MID49 Right Side Bracket, Microphone Shock Mount, & plans for the Blackmagic PYXIS 6K & URSA 12K

At NAB 2024 in Las Vegas, MID49 was showing new accessories, including a Right Side Bracket (Upper Cage) which works with the Blackmagic Pocket 6K Pro and a few other cameras, and a Microphone Shock Mount (Hot Shoe).

I also asked MID49 what their plans were for the new Blackmagic PYXIS 6K & URSA Cine 12K.

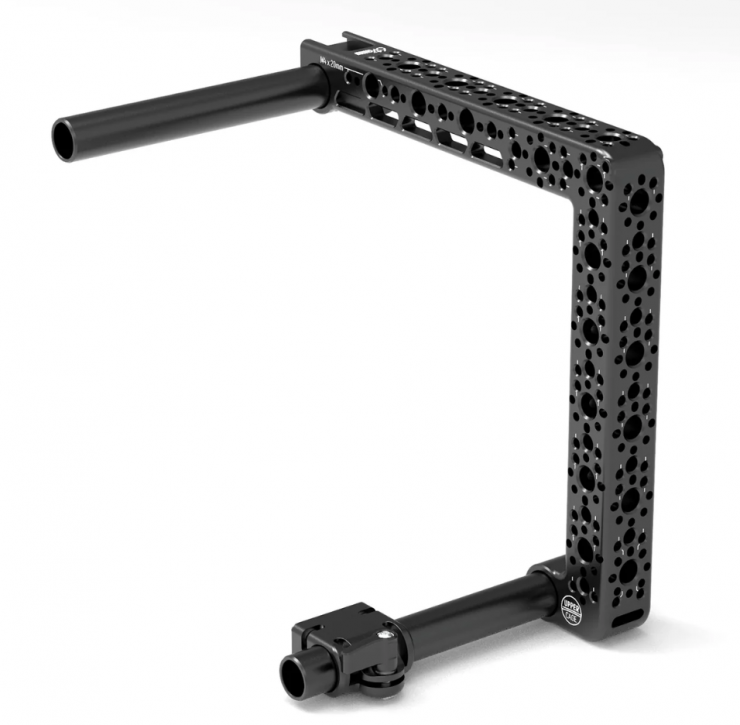

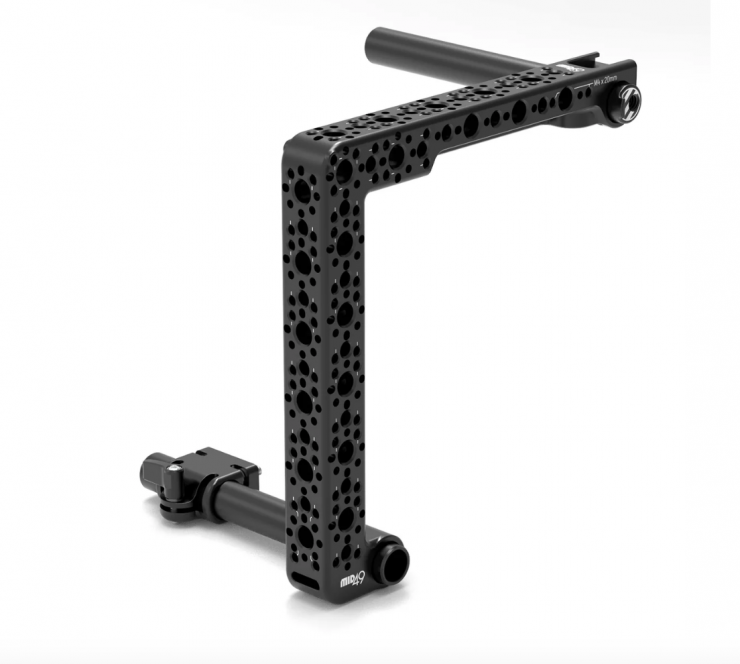

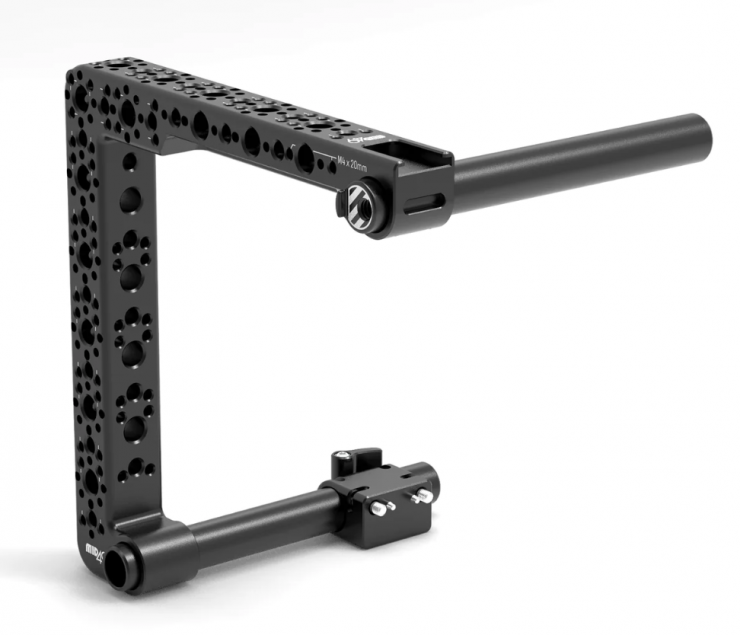

Right Side Bracket (Upper Cage)

Right Side Bracket (Upper Cage) attaches to the Upper Cages by two included 15mm rods. The top rod has a special recess and 1/4-20 threaded hole to accept the audio breakout boxes AB-3 (Fujifilm GFX100 II), AB-4 (Canon C70), or AB-6 (Blackmagic FF), depending on which camera you have.

You can choose between the  Right Side Bracket for the GFX, or Blackmagic/C70 versions.

The included lower 15mm rod clamp attaches to the rear of the Upper Cage bottom plate by two M4 screws and locating pins.

Arrays of 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins are available on many sides along with M4x20mm holes. The top front features a shoe mount for adding the optional Microphone Shock Mount (Hot Shoe).

Product Weight: 9.60oz (274g)
Product Dimensions (WxLxH): 6.49 x 6.71 x 0.86in (165 x 170 x 22mm)

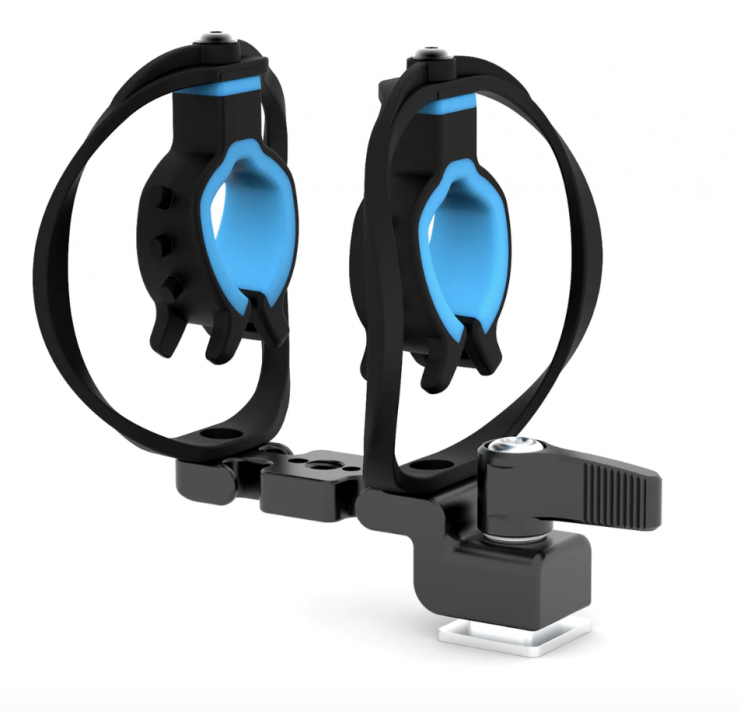

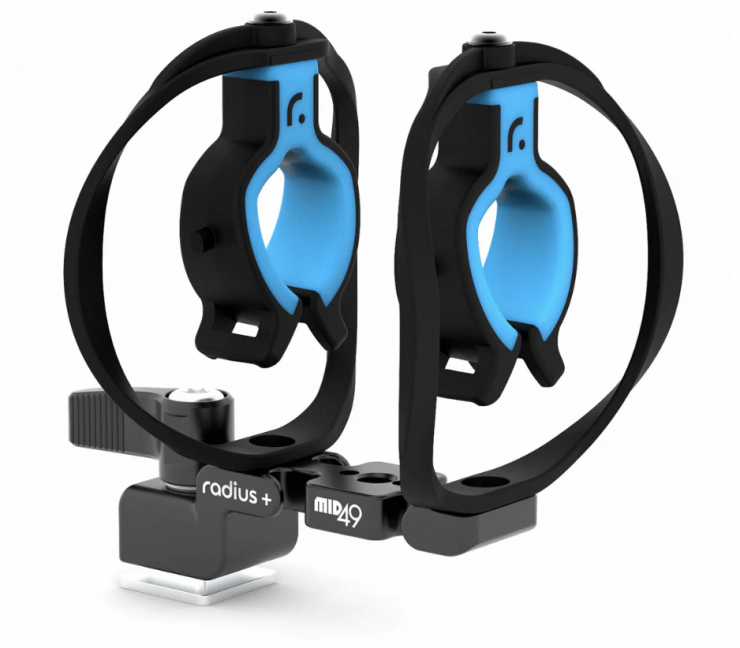

Microphone Shock Mount (Hot Shoe)

The Microphone Shock Mount (Hot Shoe) is dade in collaboration withRadius Windshields, and it mounts to a Hot Shoe (or Cold Shoe).

Suspension provides exceptional isolation from movement, handling noise, and other vibrations. Recommended for use with short shotgun, omni, cardioid, and super-cardioid pencil mics with a diameter of 19-25mm, up to 250mm in length.

Product Weight: 2oz (57g)
Product Dimensions (WxLxH): 2.77 x 4.08 x 2.57in (70 x 104 x 65mm)
