Teradek Prism Flex Mk II 4K H.264/HEVC Encoder for IP Video

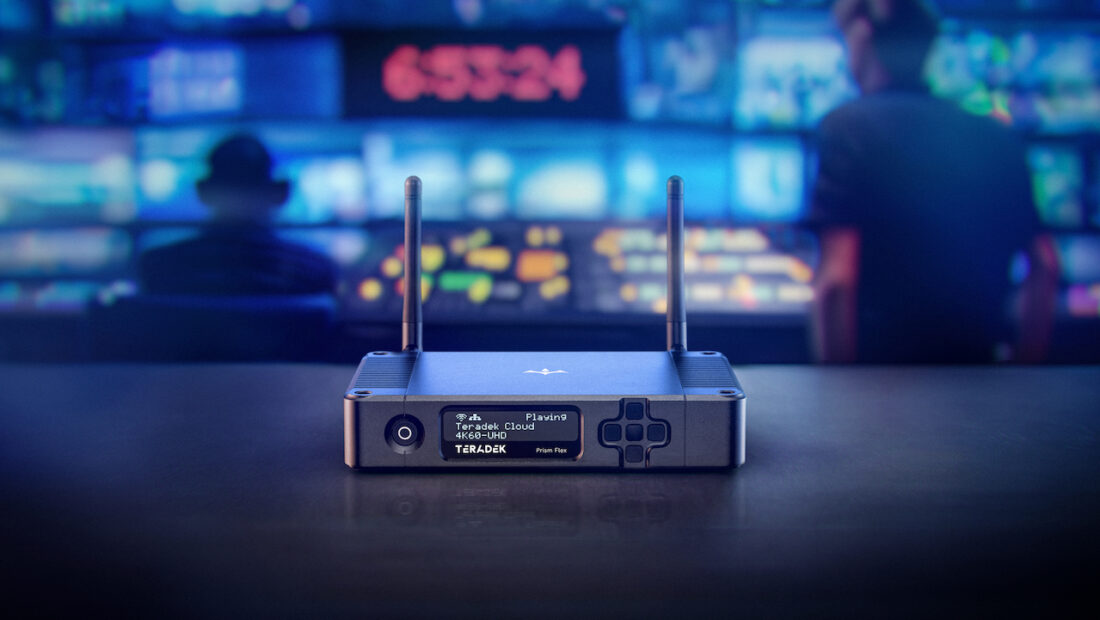

Screenshot 2024 03 19 at 13 22 28

The Teradek Prism Flex Mk II is a more advanced version of the original Prism Flex. The Prism Flex Mk II is being touted as a jack of all trades encoder for broadcast and live production with ultra-low latency, and 4K HDR 4:2:2 10-bit streaming in a low-SWaP form factor.

Screenshot 2024 03 19 at 13 17 56

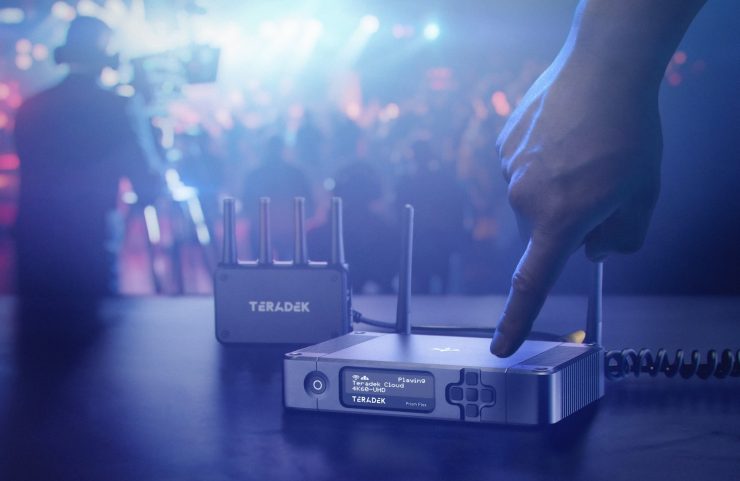

It features a redesigned chassis with improved front panel controls for more intuitive operation and better cooling mechanisms. Along with these improvements, Teradek has integrated analog audio IFB functionality, that allows for talkback communication between devices through the Teradek Core Cloud.

With the Prism Flex Mk II, broadcasters can now:

  • Enable intercom with Teradek’s Core Cloud platform and other Prism devices.

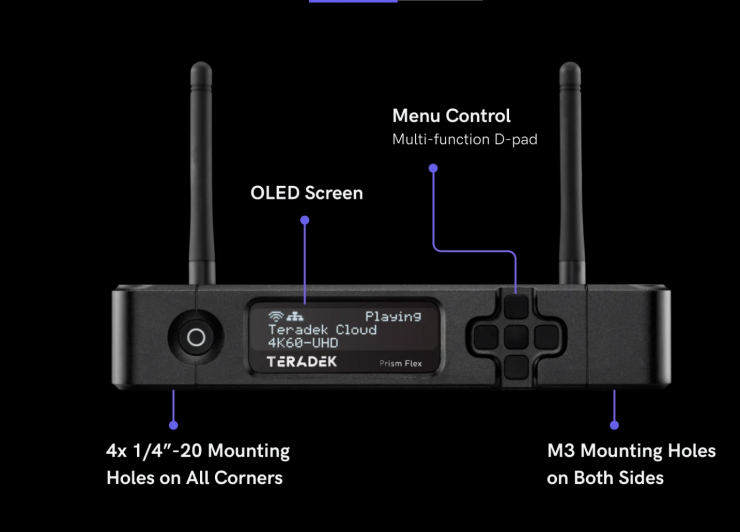

  • Navigate the OLED screen effortlessly with the newly introduced D-pad front control buttons, offering an improved tactile experience for users.
  • Experience the fastest high-quality video streaming with the integration of the on-board ultra-low latency Teradek Reliable Transport (TRT) protocol, achieving latency as low as 100ms over WAN.
  • Encode and decode concurrently with the optional “Decode” license available for Mk II encoders.
  • Select from a myriad of protocols, including: SRT, TRT, MPEG-TS, RIST, RTMP, RTSP, HLS, and DASH.

You can record your live feed on the Prism Flex Mk II and then upload recordings directly to camera-to-cloud platforms like Frame.io and Sony C3P, while also facilitating secure orchestrated video distribution feeds through Teradek’s Core Cloud platform.

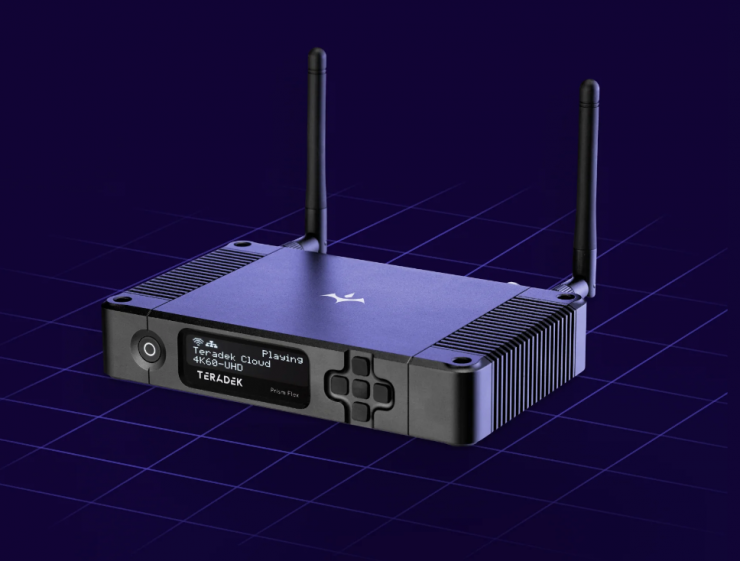

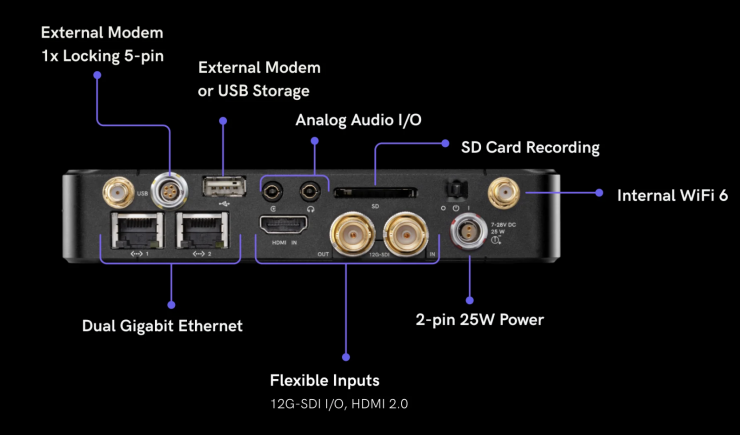

The encoder includes a 12G-SDI input and loop though, HDMI 2.0 input, dual Ethernet ports, WiFi 6, and 2 USB ports for LTE modems and external recording drives.

Screenshot 2024 03 19 at 13 12 50

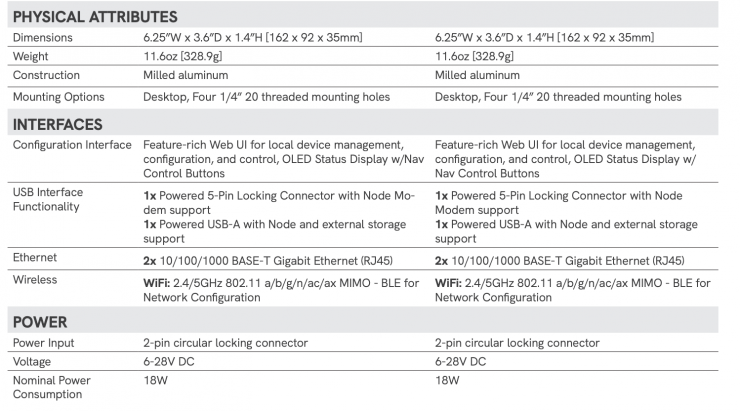

The Prism Flex Mk II weighs in at 11.6oz / 328.85g and it draws a max of

Screenshot 2024 03 19 at 13 16 42

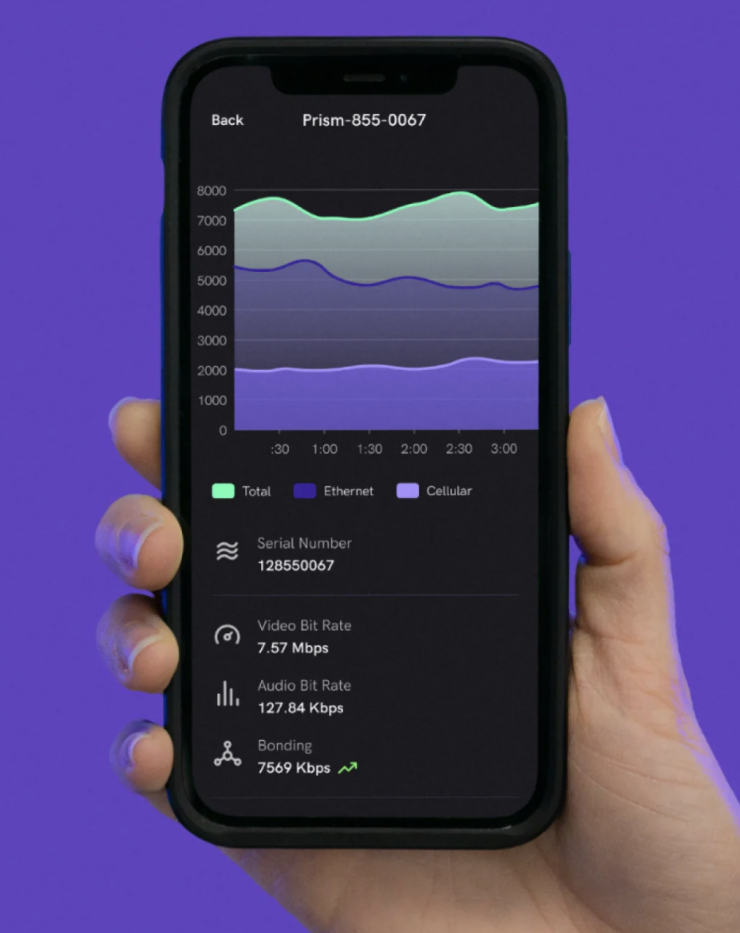

With the Prism app for iOS and Android, you can manage your Prism devices right from your phone or tablet. You can use the app to configure your encoder, monitor and manage your feed, and review streaming stats in real-time. The Prism app also allows you to share your phone’s 5G or LTE bandwidth with your Prism device.

The Prism Flex Mk II is available for pre-order today. Visit http://tdek.co/pfmkii-pr to learn more and get in touch with team.
