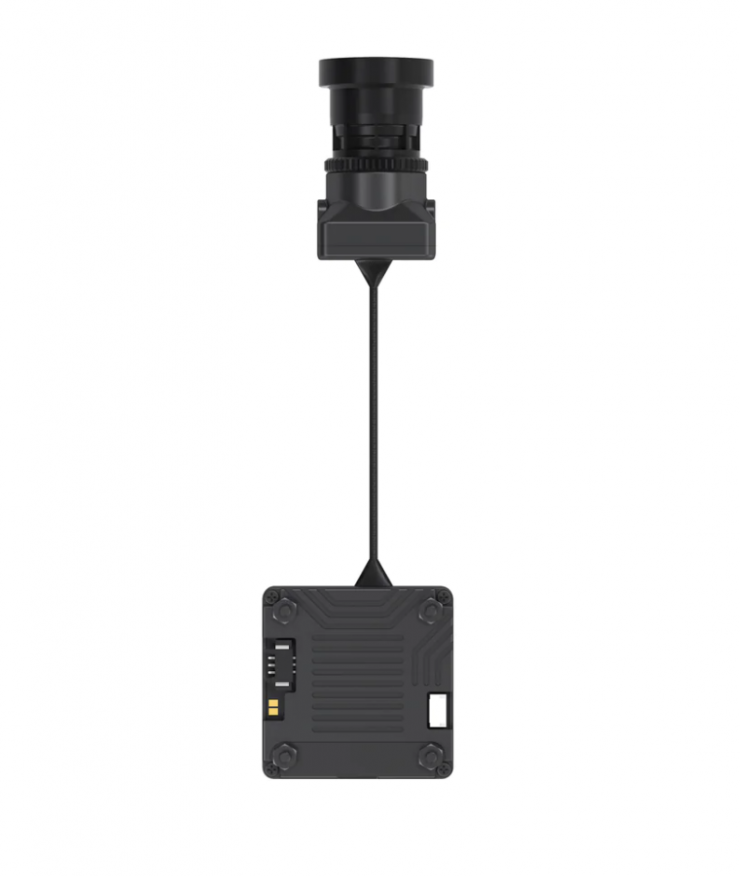

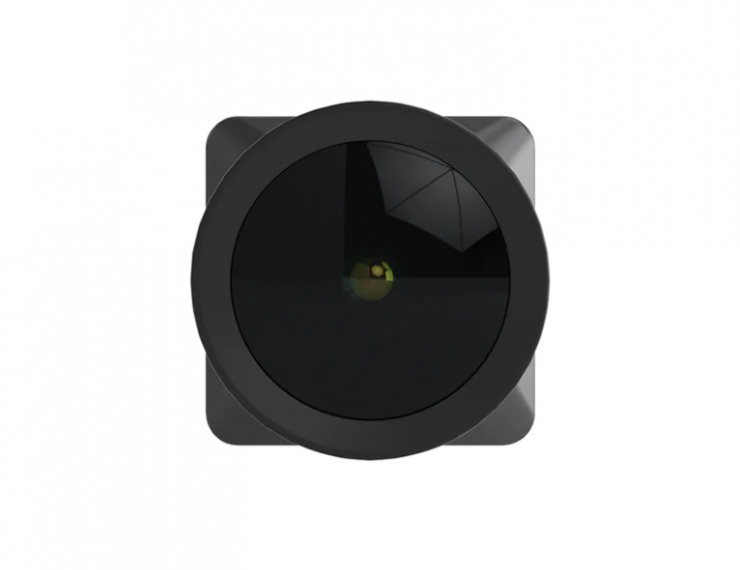

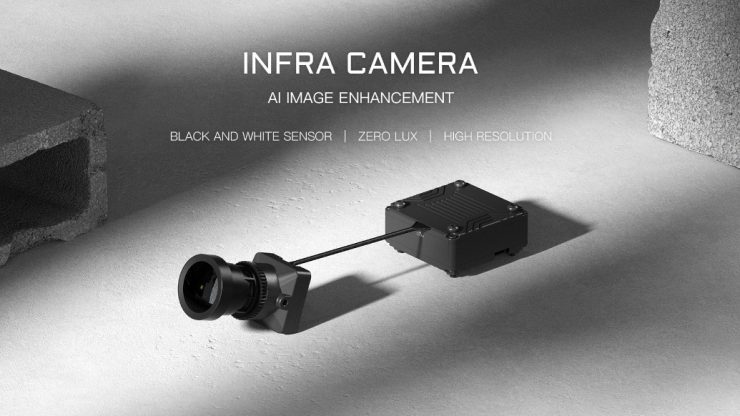

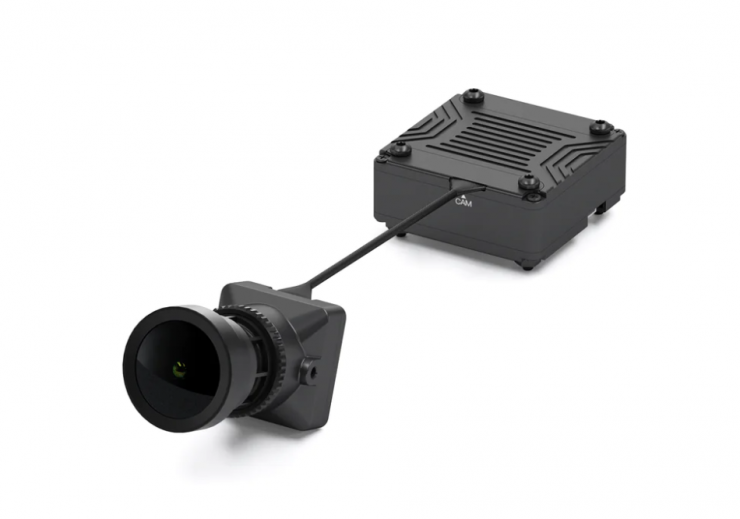

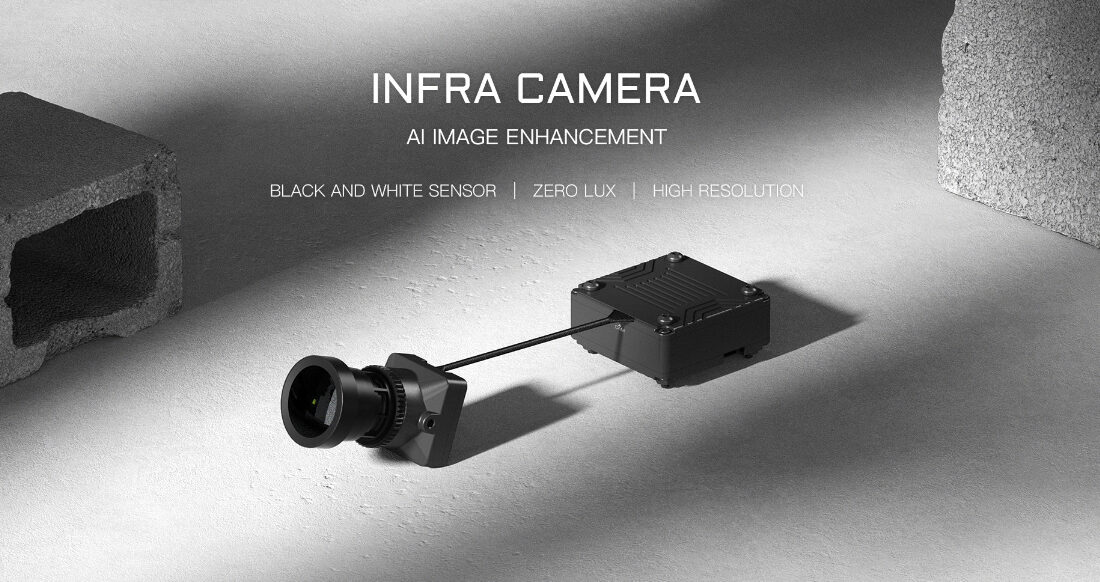

The CADDXFPV infra camera features a black and white sensor that can be used in very low light conditions. It also utilizes AI image enhancement and an HD output which makes it compatible with Walksnail HD systems.
Key features
- AI Image Enhancement
- 0 Lux
- Black and White Sensor
- High Resolution
According to CADDXFPV, AI image enhancement improves image quality and it can replace some of the scenarios where infrared radiation is used to generate images, expanding the range of analog camera applications.
It is also being touted as the first no-light night vision analog camera in the FPV market, capable of capturing images in 0 Lux conditions. Compared to traditional color cameras, its sensitivity is claimed to be much improved, allowing for better capture of object shapes and contours.
The CADDXFPV infra camera also supports WDR.
The Infra camera supports 16:9 or 4:3 images, giving users the flexibility to adapt to different preferences and scenarios.
The camera features a 120° FOV, to offers pilots a natural visual experience during flight.

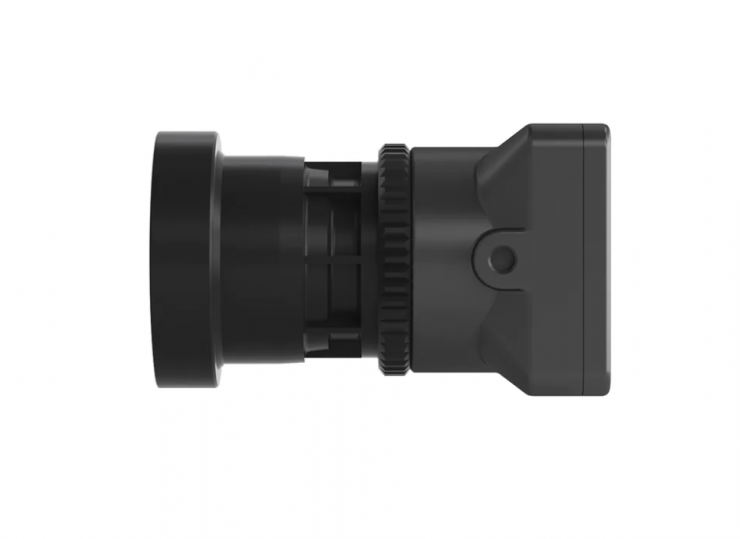

The CADDXFPV infra camera in enclosed in a metal case, and the lightweight design is claimed to improve durability and heat dissipation.
Price & Availability
The CADDXFPV infra camera is now available to pre-order for $129 USD. Currently, each order will be shipped within 30 working days.
Specification
| Model | Infra Camera |
| lmage sensor | Black&White Sensor |
| Horizontal Resolution | 1500TVL |
| FOV | 120° |
| Min.lllumination | 0 Lux |
| WDR | Super WDR |
| LENS | M16/F1.0/2.8mm |
| Frame Rate | 50/60fps |
| Power Consumption | <1.5W |
| Supply Voltage | 5V~20V |
| Output | PAL |
| Analog Interface | CVBS |
| HD Interface | MIPI-CSI(Walksnail Avatar) |
| Latency | Average Latency 20ms |
| lmage Quality | Allmage Enhancement |
