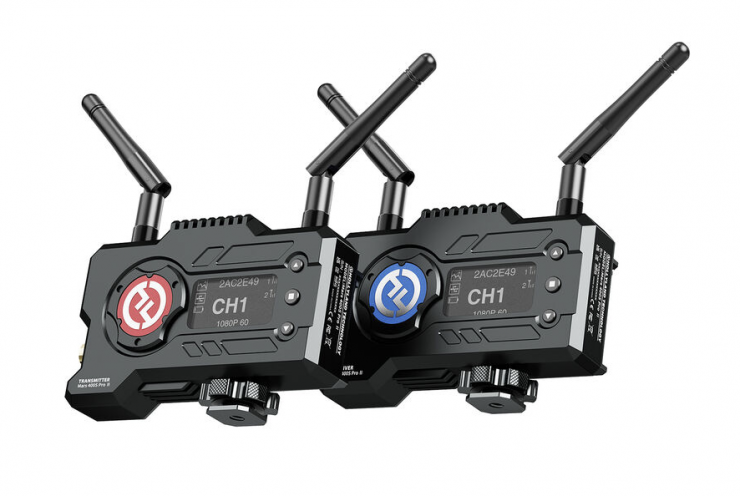

Holland has unveiled the second iteration of its Mars 400S wireless video transmission system, the Mars 400S Pro II.

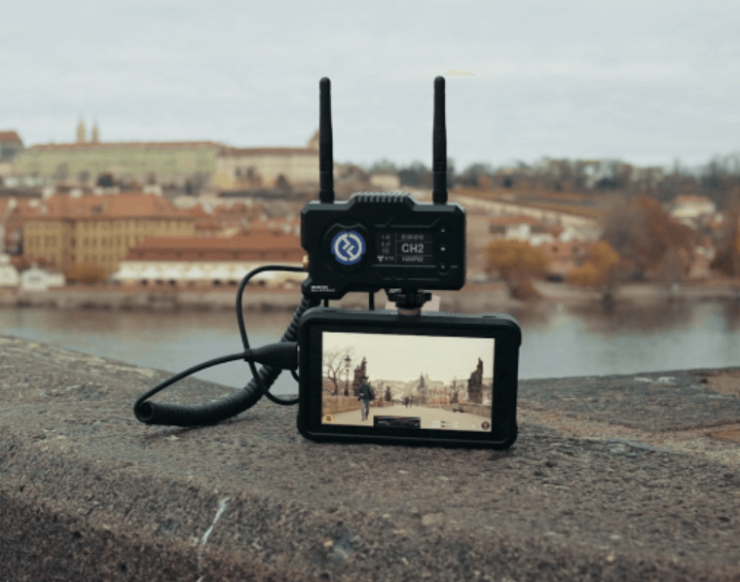

The Mars 400S Pro II offers a claimed transmission range of up to 450ft / 150m and a low latency of 70ms. Additionally, Mars 400S Pro II is equipped with SDI+HDMI dual interfaces, supports multi-receiver setups, and allows monitoring through the HollyView App.
Key features
- Transmitter and Receiver Set
- Transmit up to 1080p60 Video
- Transmit up to 500′ Line-of-Sight
- Extremely Low 70 ms Latency
- SDI and HDMI Inputs and Outputs
- L-Series Battery/USB-C/DC Power
- OLED Display, Low-Battery Warning
- Shoe Adapter and 1/4″-20 Mounting Thread
The Mars 400S Pro II can work in the following configurations:
- 1 Transmitter X 2 Receivers
- 1 Transmitter X 1 Receiver & 2 APP
- 1 Transmitter X 4 APP
The Mars 400S Pro II supports 12 Mbps data rate, which is slightly higher than the 8 Mbps of the original Mars 400S Pro.
Above you can see the claimed improvements when it comes to transmission range and latency that the Mars 400S Pro II offers over its predecessor.
The Mars 400S Pro II is equipped with both SDI and HDMI inputs and outputs, so that it can be used with various types of equipment.

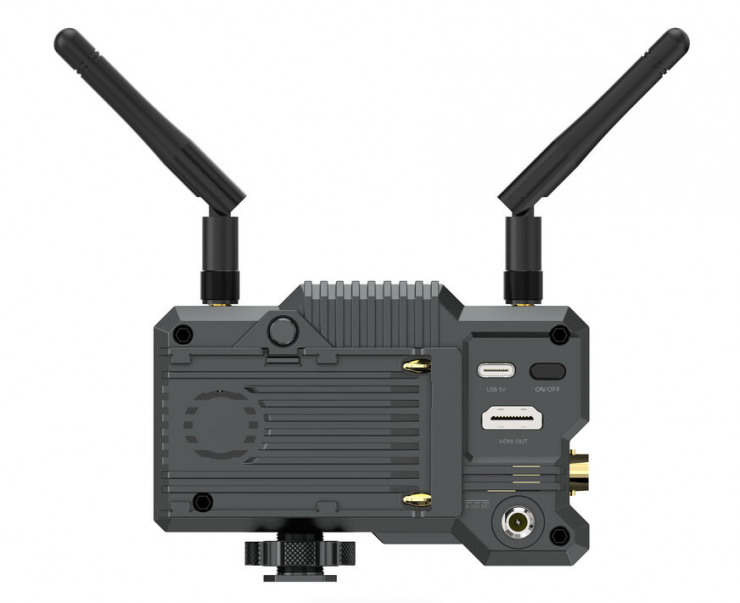

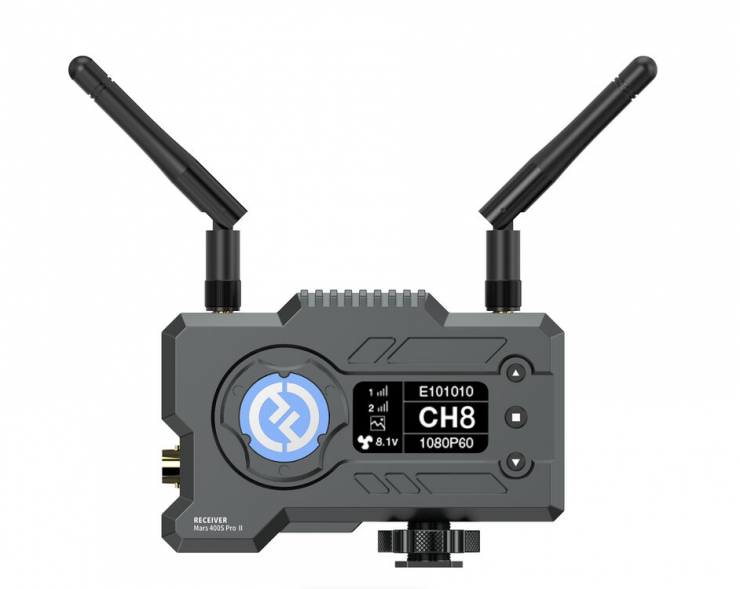

The receiver has the following inputs/outputs:
- HDMI Output (Type A Female)

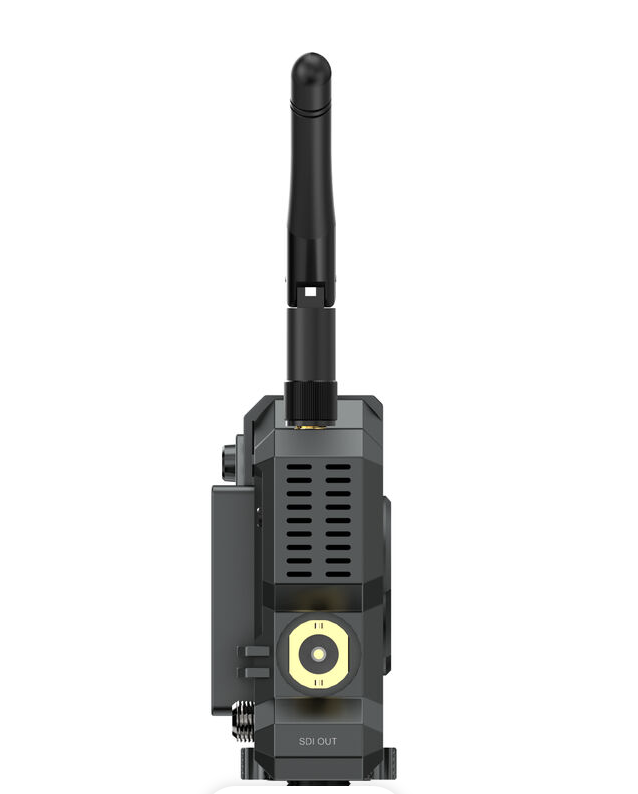

- SDI Output
- 2x Antenna Interfaces (RP-SMA Male)
- DC Input
- USB Type-C

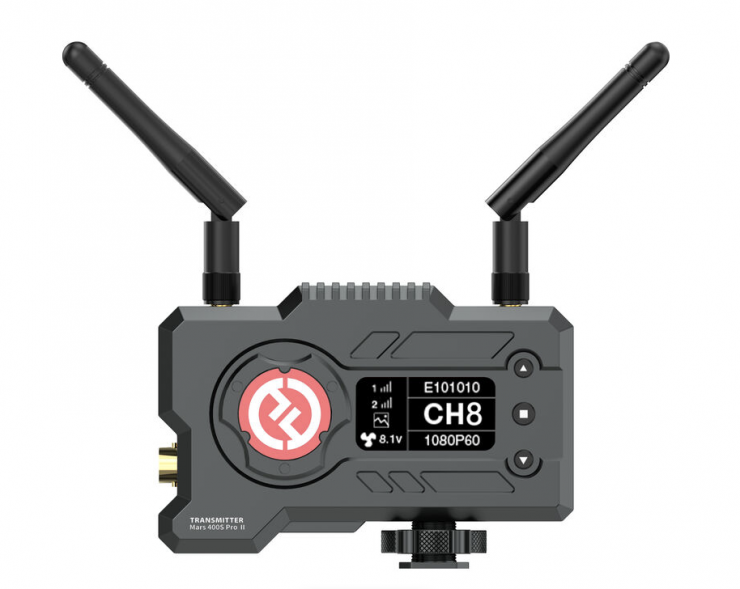

The transmitter has the following inputs/outputs:
- HDMI Input (Type A Female)
- SDI Input
- 2x Antenna Interfaces (RP-SMA Male)
- DC Input
- USB Type-C
You can input the following video signals:
HDMI:
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60
SDI:
1080p60/59.94/50(Level A)
1080p60/59.94/50(Level B)
1080i60/59.94/50
1080p30/29.97/25/24/23.98
1080psf24/23.98
1080psf30/29.97/25
720p60/59.94/50
You can power the TX and RX using either the Barrel (5 VDC) Input, USB-C (16 VDC) Input, or via the built-in Sony NP battery plate.
The Mars 400S Pro II is also compatible with Mars 400S Pro, allowing them to be paired and used together.

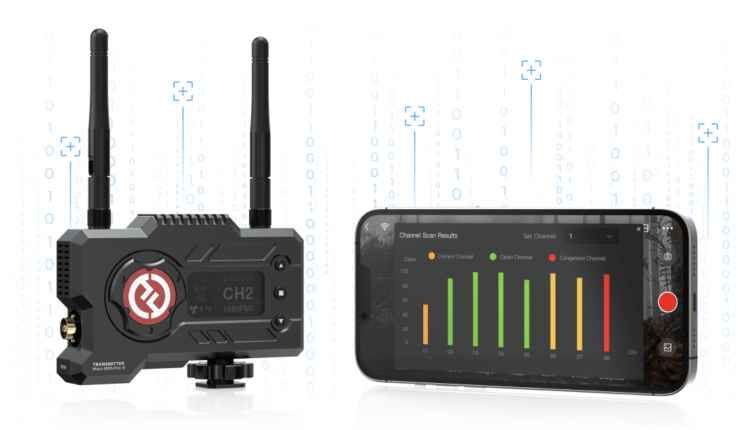

Upon startup, the Mars 400S Pro II automatically selects the best frequency channels. Additionally, channel scanning can be conducted using the receiver or the HollyView App, providing a visual representation of signal interference levels at each frequency. This allows for the quick identification of the most suitable frequency.

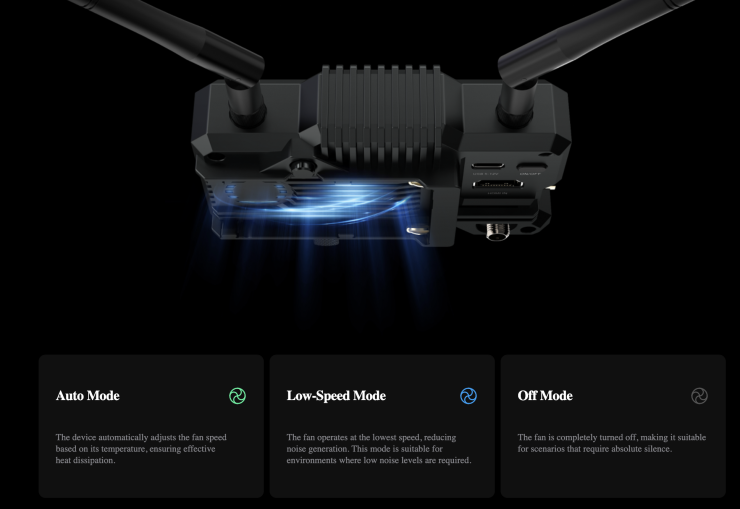

The Mars 400S Pro II is equipped with a three-speed fan adjustment feature (Auto, Low Speed, Off). Its intelligent cooling design allows it to perform optimally in various usage scenarios by reducing device temperature and ensuring stable signal transmission.

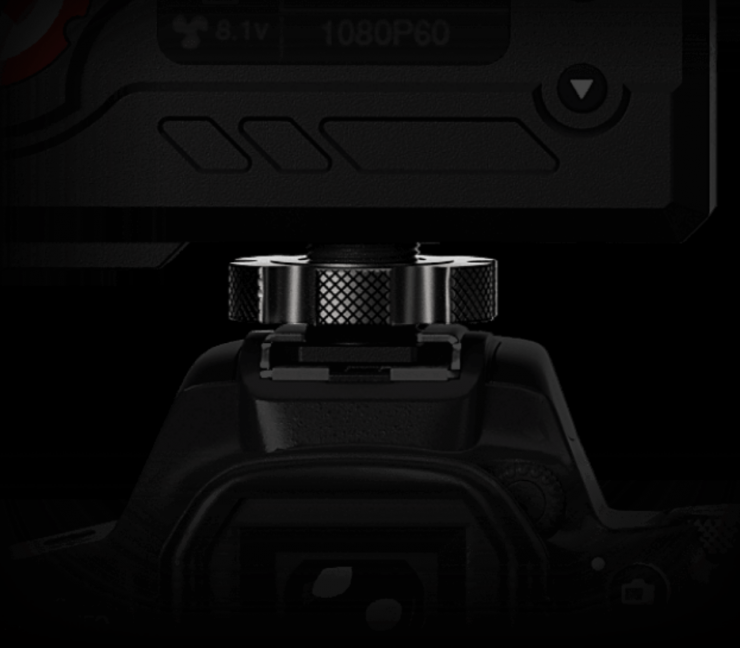

For mounting, it features an integrated cold shoe with a 1/4-inch threaded cold shoe.

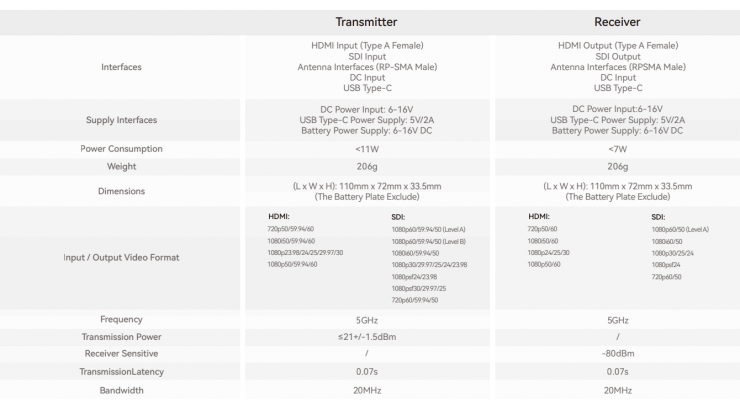

Specifications
Price & Availability
The Hollyland Mars 400S Pro II is now available to purchase for $599 USD.
