The SWIT FLOW6500 SDI & HDMI Wireless Video & Audio Transmission System is capable of sending uncompressed FULL HD at up 60p at a range of 6500′ / 1.98km (line of site).
- Up to 6500′ Line-of-Sight Range
- 1 x Transmitter & 1 x Receiver
- Transmits up to 1080p60 Video
- Uncompressed HDMI & 3G/HD/SD-SDI
- 2-Channel SDI/HDMI Embedded Audio
- Multicasting to Unlimited Receivers
- AES 128-Bit Encryption
- TX: L-Series Battery or DC Adapter Power
- RX: V-Mount Battery or DC Adapter Power

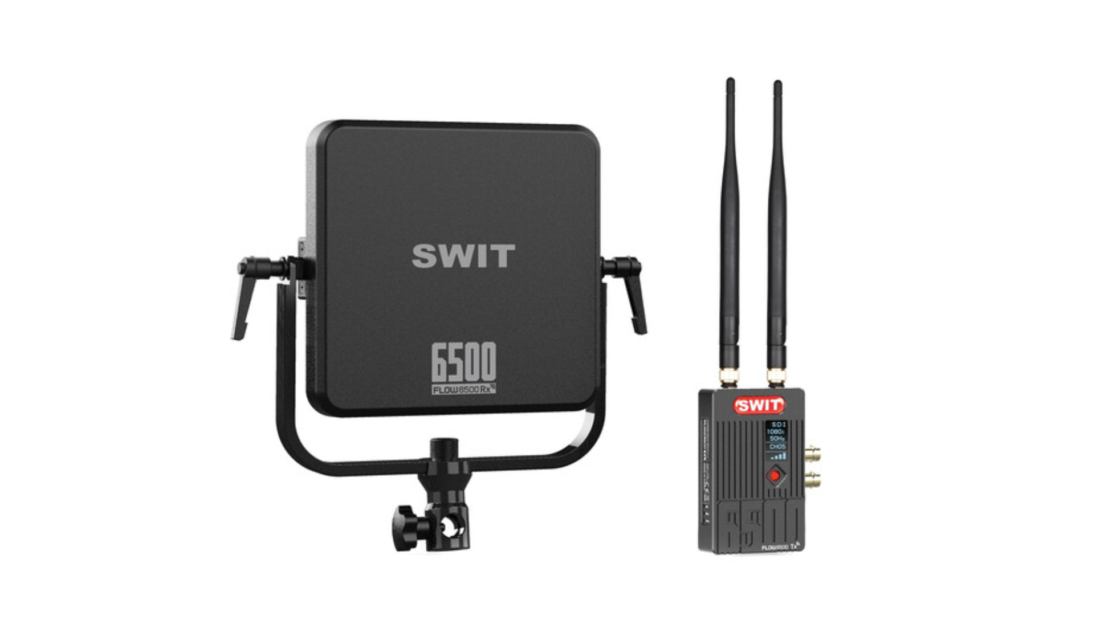

The set includes one transmitter and one receiver and as well as being able to support up to 1080p60 uncompressed video, it features AES-128 encryption, embedded SDI/HDMI stereo audio, and 3G/HD/SD-SDI and HDMI inputs and SDI (BNC) outputs.

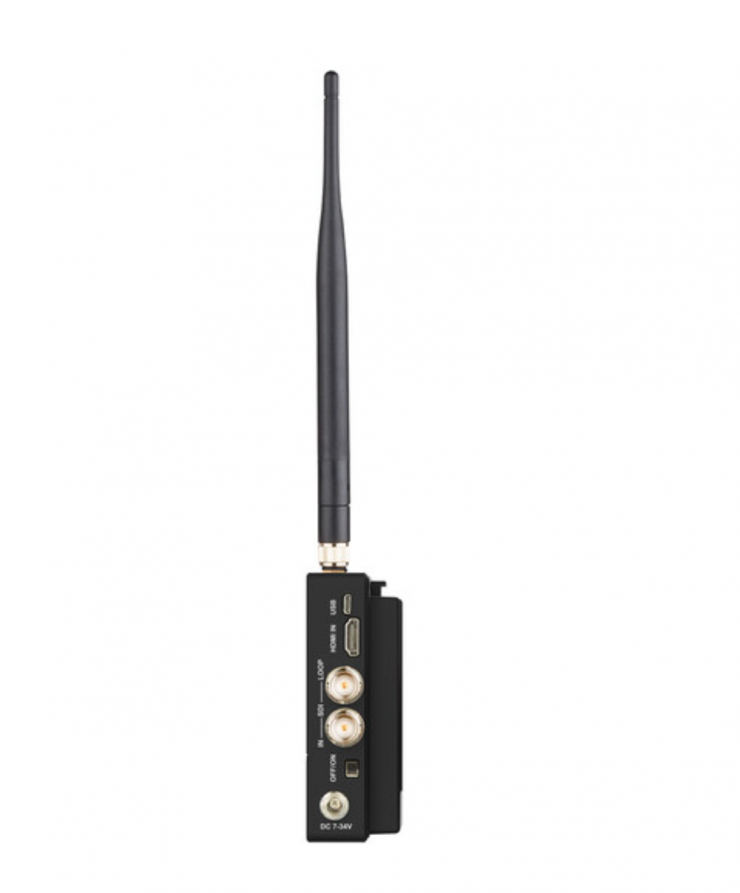

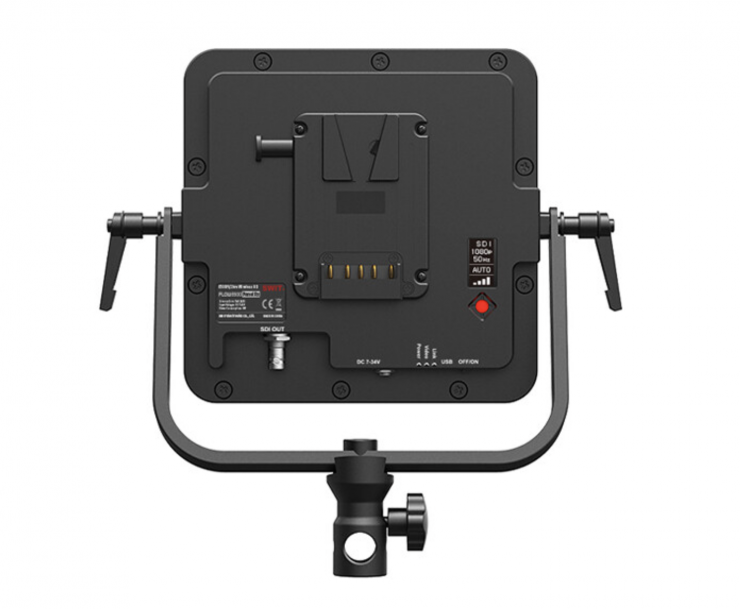

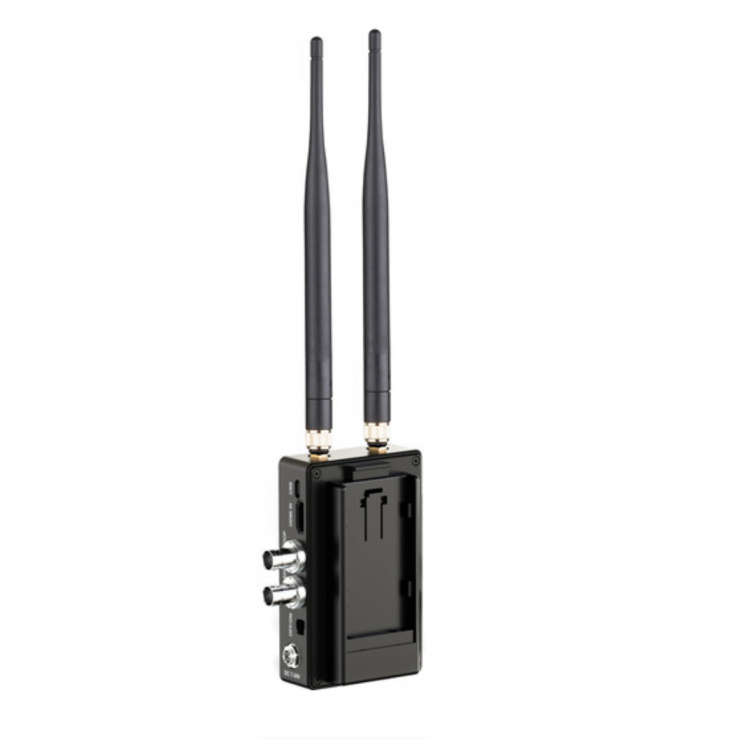

The system features robust wall-penetrating transmission. The TX has 1x HDMI Type-A input, 1x SDI (BNC) input, and 1x SDI (BNC) loop output. The RX has one SDI (BNC) output. There are 1″ OLED displays on both THe TX and RX that display channel information and other operating paramaeters.
The SWIT FLOW6500 works in the license-free 5.1 to 5.8 GHz spectrum.
You can use it with separately available receivers to multicast one transmitter to an unlimited number of receivers. It is also cross-compatible with other FLOW series receivers at their respective operating distances.
As far as power is concerned, the TX and RX both have 7-34 VDC barrel inputs. The TX has an L-Series battery plate, and the RX has a V-Mount battery plate.
Price & availability
The SWIT FLOW6500 SDI & HDMI Wireless Video & Audio Transmission System is now available for $6,499 USD.
