Z CAM E2 firmware 1.0.0

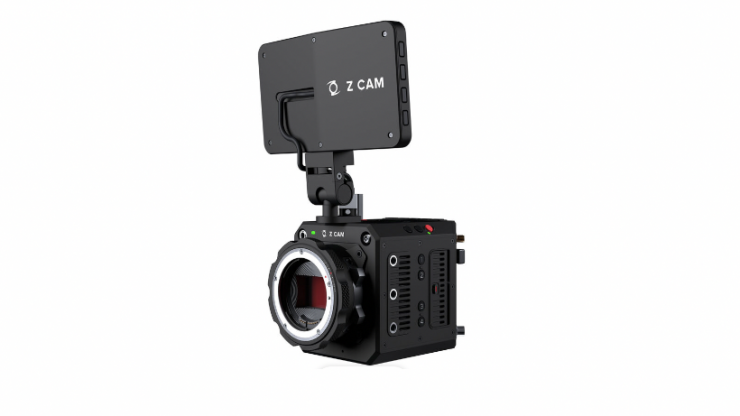

Screen Shot 2022 10 12 at 22 59 26

Z CAM has released firmware 1.0.0 for its E2 cameras. This update allows you to record the RAW signal that gets sent out over HDMI as BRAW on a Blackmagic Video Assist. This only works with the following cameras: E2, E2-M4, E2-S6 & E2-F6.

Screen Shot 2022 10 12 at 22 50 37

Firmware Upgrade using Z CAM web client:

  1. Connect Z CAM E2 to the computer through an Ethernet cable.
  2. Menu -> Connect -> Network -> ETH. Mode -> Direct
  3. Read the ETH. IP 10.98.32.1 (normally).
  4. Open your browser on computer and enter: http://10.98.32.1/www/html/controller.html
  5. Z CAM web client screen would show up.
  6. Go to Upgrade, select the firmware file and follow the step to complete.

* MAKE SURE THAT THE CAMERA IS CONNECTED TO A STABLE POWER SOURCE.
** MAKE SURE THAT THE FIRMWARE FILE IS NOT UNZIPPED BY THE BROWSER (SAFARI IS NOT RECOMMENDED) DURING THE DOWNLOAD PROCESS.
