Cineo Quantum Ladder

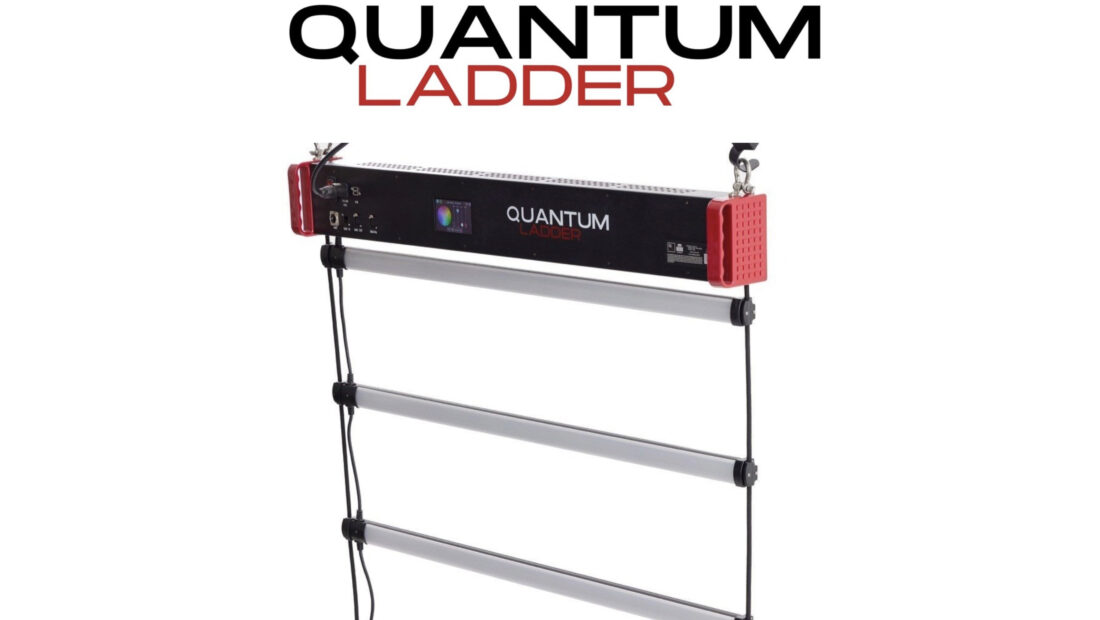

Screenshot 2022 09 08 at 10 31 11 AM

The new Cineo Quantum Ladder is a full RGB lighting source that was designed specifically for the film industry and it is claimed to provide an output of 100,000 lx in a compact and lightweight form factor.

The Quantum Ladder has a CCT range of 2500K to 10,000K and it features +/- G/M control. It has a built-in power supply, touchscreen interface, and it is water-resistant.

This is not an owner/operator fixture and it will be bought by broadcasters, studios, and large production facilities.

Key features

  • Cineo StageLynx Software on fixture
  • Wired Network, WIFI, CRMX, DMX / RDM
  • WIFI Hotspot capable
  • Virtual Production capable
  • Variable CCT 2500k – 10,000K +/- Green Control
  • 100,000 Lumens Output
  • Saturated Color Control
  • User effects / Presets Recorder and player
  • Rugged & durable
  • Built-in power supply
  • Water resistant
  • Touchscreen interface

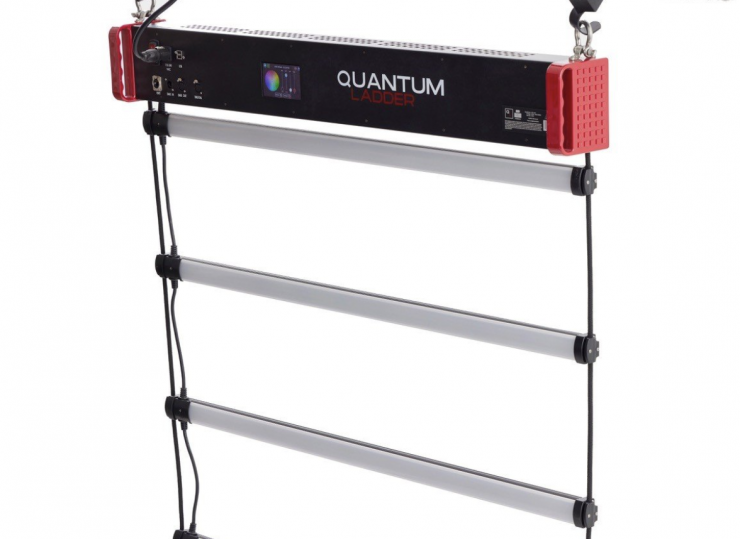

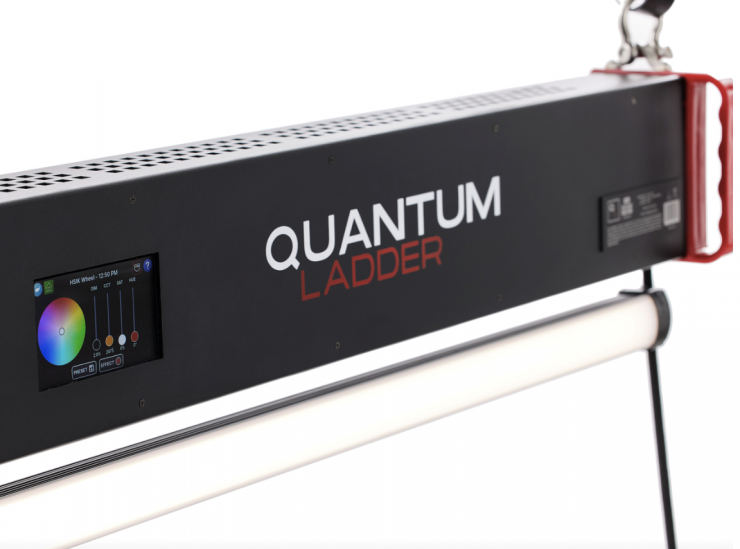

Screenshot 2022 09 08 at 10 35 59 AM

With the addition of the touch screen control via the Cineo StageLynx software, the Quantum Ladder is capable of delivering 64 thousand presets and effects that are easy to program. This level of customization makes it possible to create looks and effects that in the past would have involved a lighting console and hours of programming.

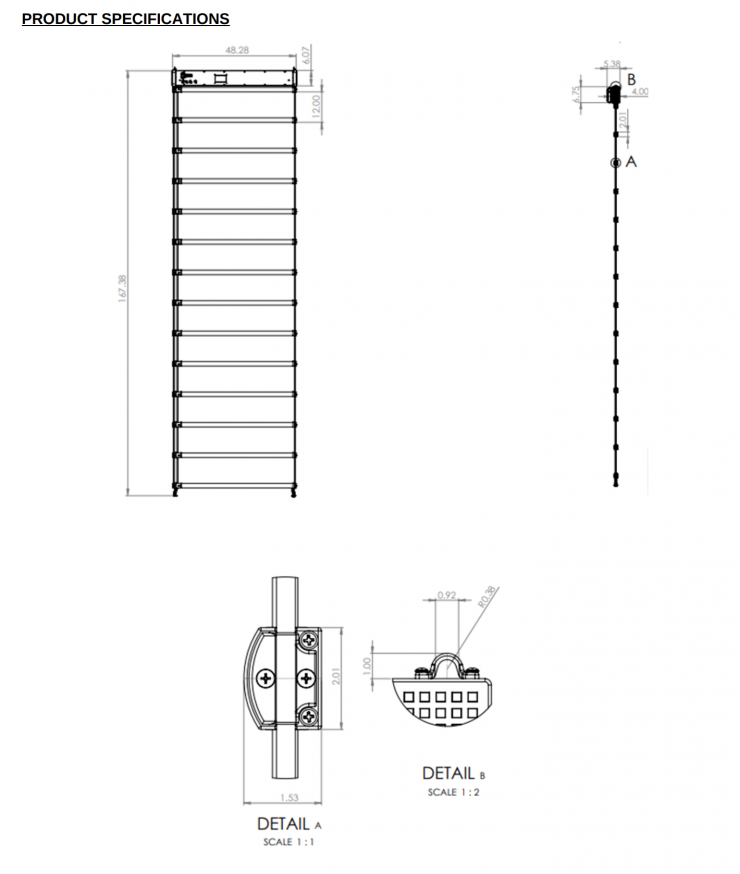

Screenshot 2022 09 08 at 10 41 59 AM

The Quantum Ladder is 4.29m / 13.94′ high and 1.2m / 3.94′ wide. It weighs in at 18kg / 40lb. The light draws 1500W of power and it has a wide 150 degree beam angle.

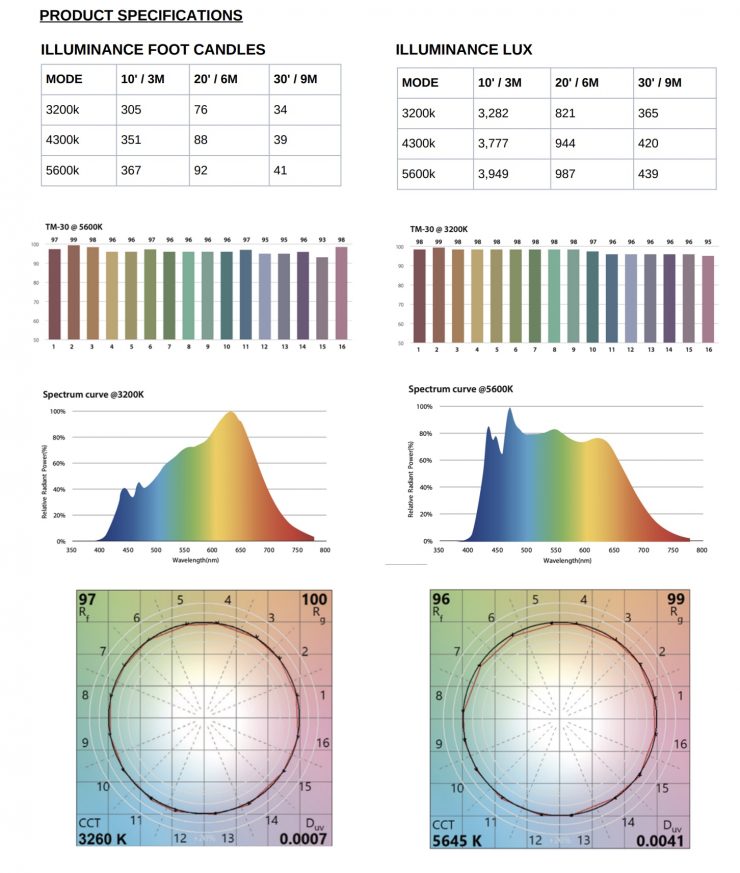

Screenshot 2022 09 08 at 10 42 10 AM

Above you can the claimed photometric scores and output of the Quantum Ladder.

Full Specifications

Screenshot 2022 09 08 at 10 41 49 AM
