The Lilliput Q28 28″ 12G-SDI Professional Production Studio Monitor is a well-priced, fully-featured 3840 x 2160 display.
Key features
- 12G-SDI and 4K HDMI 2.0 Connectivity
- 3840 x 2160 Display Resolution
- Quad-Split Multiview Display
- Multiple Color Temperature Presets
- HDR and 3D-LUT Support
- Built-In Speakers, 3.5mm Earphone Jack
- Supports DCI 4K60 Input
- Audio Vector, Histogram, and Waveform
- RS-422 Remote Control Application
- Integrated Tally Light
The monitor features a 28″ 3840 x 2160 resolution screen with a claimed brightness of 300nits.

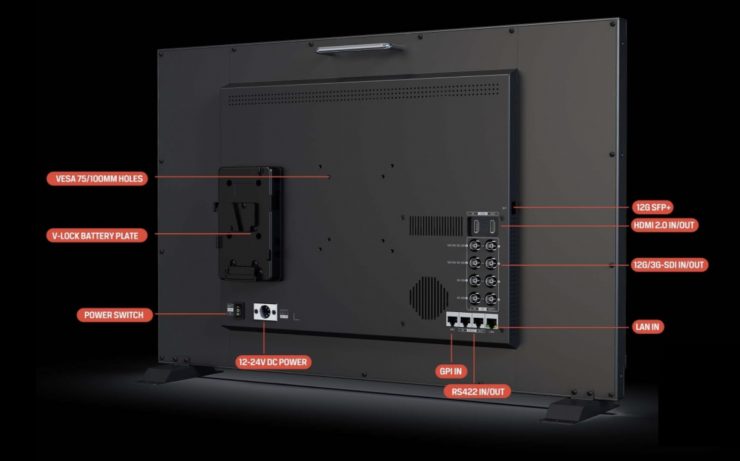

The Q28 has two 12G-SDI inputs, two 3G-SDI inputs, one HDMI input with respective loop outputs, and a 12G-SFP port for optional fiber-optic connectivity, all supporting 4K and embedded, multichannel digital audio.
Four different signals can be monitored via the unit’s quad-split multiview display.
RS-422, LAN, and GPI connectivity allow for remote control application support.
There are lots of monitoring assist tools such as audio vector, histogram, and waveform, etc. HDR and 3D-LUTs are also supported. The Q28 has two built-in speakers, a 3.5mm headphone jack, and a tally light for studio broadcast applications integrated into the front panel design.
There are five default customizable color temperature presets 3200, 5500, 6500, 7500, and 9300K and gamma values can be adjusted from 1.8 to 2.8.
The Q28 supports Sony Slog2 and SLog3, Canon Log, ARRI Log, Nikon N-Log, and JVC J-Log. There are also four user-definable buttons to organize custom auxiliary functions, such as peaking, underscan, and check field as shortcuts.
The monitor can be run via mains power or you can power it via the included V-mount or AB Gold mount battery plate (depending on which one you choose.
What do you get?
- Lilliput Q28 28″ 12G-SDI Professional Production Studio Monitor
- 15 VDC Power Adapter
- VESA Mount Plate
- 2 x Base Bracket
- Gold Mount or V-mount Battery Plate
- USB Flash Drive
- Limited 1-Year Warranty
- User Manual
Price & availability
The Lilliput Q28 28″ 12G-SDI Professional Production Studio Monitor is available to pre-order for $2,199 USD.

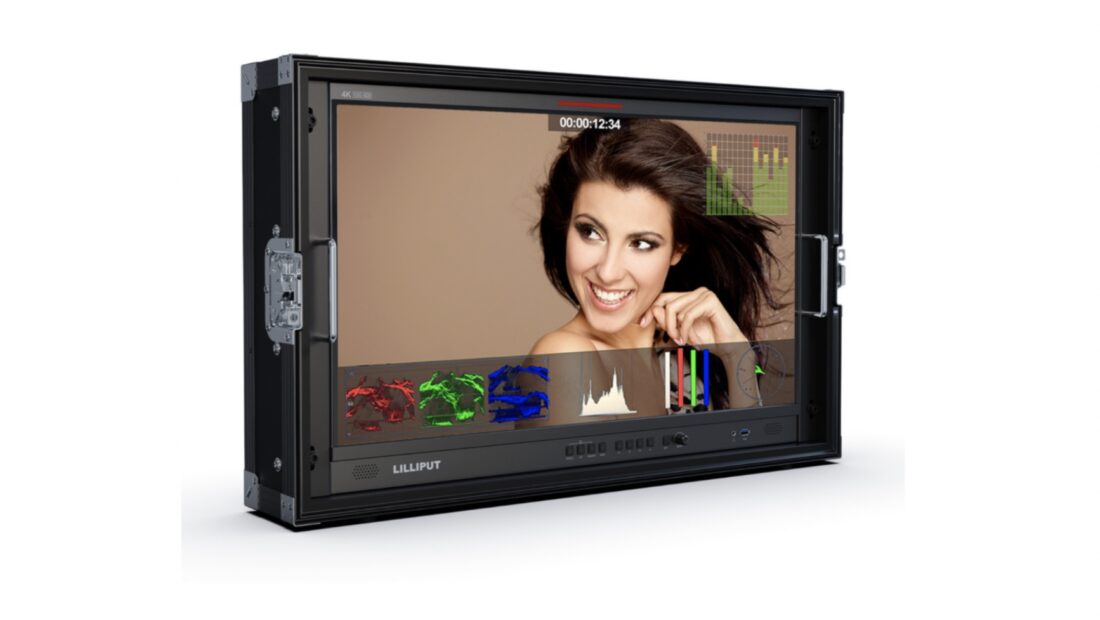

You can also buy it in a travel case for $2,399 USD.
