MEIKE 135mm T2.4 FF cine lens

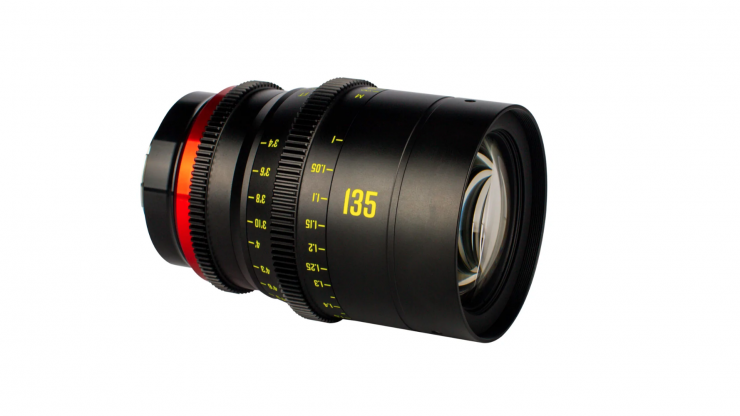

Screen Shot 2022 08 11 at 19 00 31

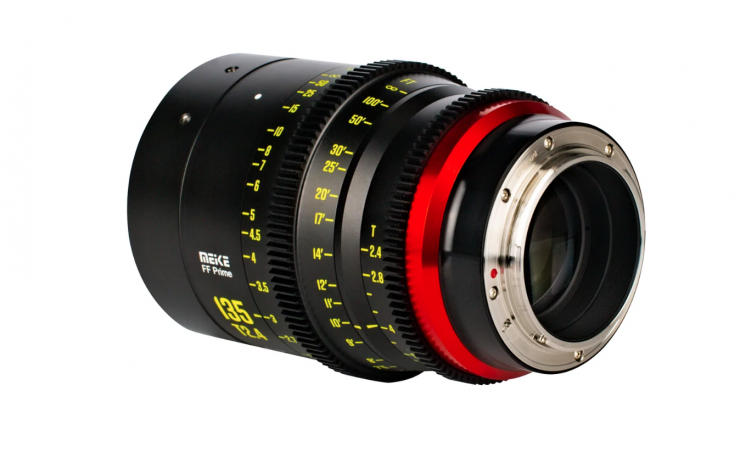

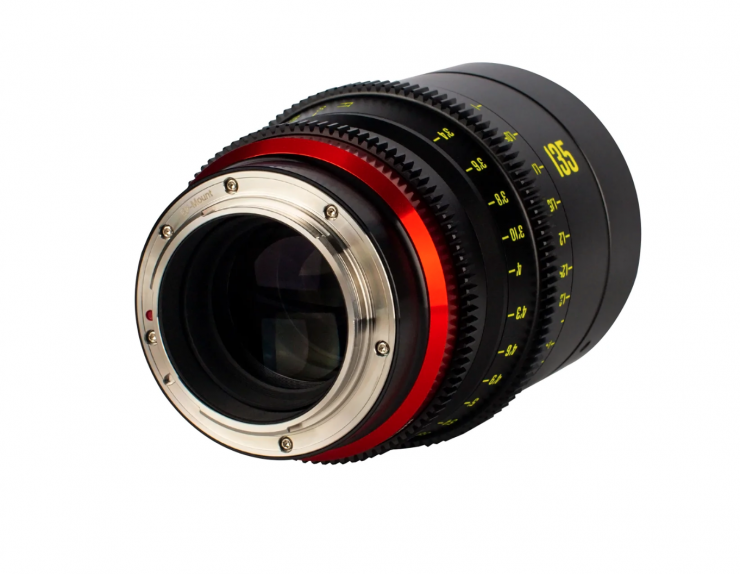

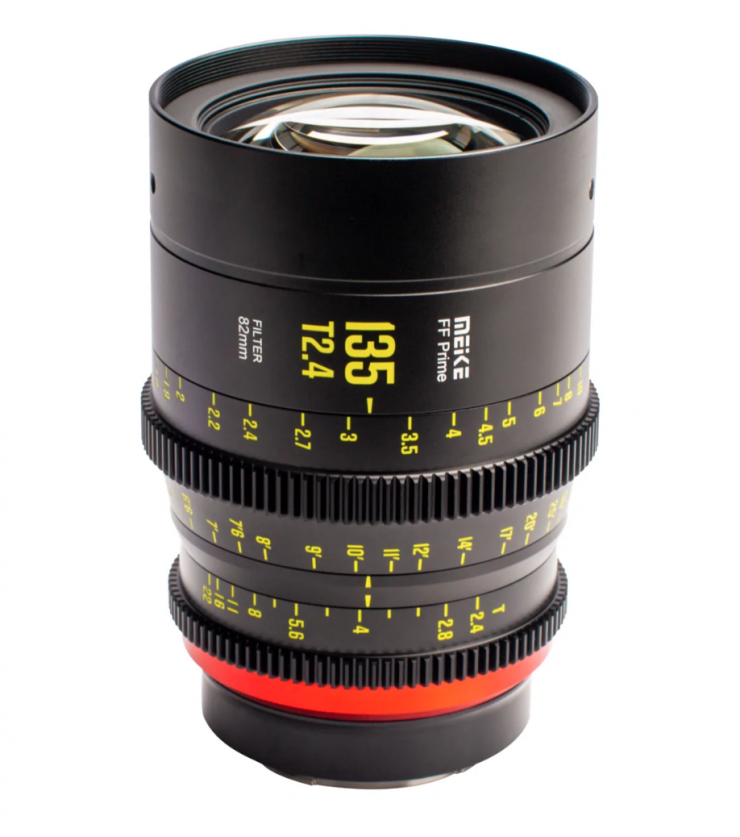

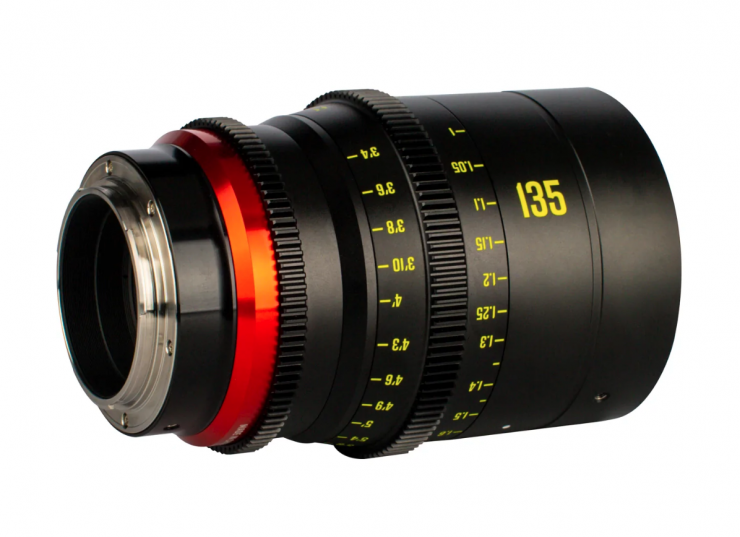

Meike has announced its new 135mm T2.4 FF cine lens. This is Meike’s sixth full-frame cine lens. It covers an image circle of 45mm and it is available in either PL, Canon EF, Canon RF, Sony E, or Panasonic L mounts.

The 135mm T2.4 joins the following lenses in Meike’s full frame cine lens line-up:

  • 16mm T2.5
  • 24mm T2.1,
  • 35mm T2.1
  • 50mm T2.1
  • 85mm T2.1
  • 105mm T2.1
Screen Shot 2022 08 11 at 18 58 53

The lens has industry-standard 0.8mm pitch gears on the focus and aperture ring. The optical design of the lens consists of 12 elements in 8 groups and there are 17 aperture blades. The minimum focus distance is 100cm / 39.37″.

Specifications

Lens Mount: PL/EF/RF/E/L
Min Focal Dist:100cm / 39.37″
Filter Thread:82mm
Front Diameter:85mm
Image Circle:45mm
Structure:12 Elements in 8 Groups
Focal Length:135mm
Aperture Range:T2.4-T22
Iris Blades:17
Gear Mod:M0.8
Focus Rotation:330 Degrees
Dimensions (Ø x L): PL: φ89.6 × 101.9mm
                                EF(Canon):    φ89.6  × 110mm
                                RF(Canon):    φ89.6  × 133.9mm
                                E(Sony):        φ89.6  × 135.9mm
                                L(Panasonic): φ89.6  × 133.9mm
Weight:1202g / 2.65lb

Price & Availability

The Meike 135mm T2.4 full-frame cine lens is now available for pre-order for $1,099 USD and will be in stock at the end of August.
