OWC miniStack STX Review

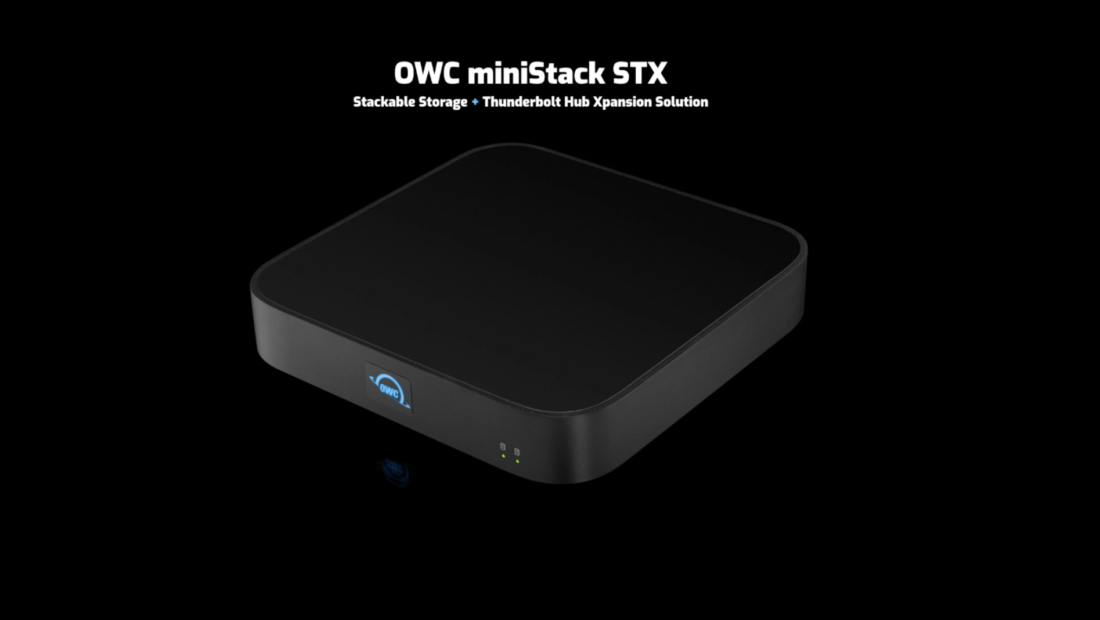

Screenshot 2022 06 16 at 11 26 11 AM

The OWC miniStack STX is the latest addition to the miniStack family that has been around since 2005. miniStacks have always been designed as a nice compliment to the Apple Mac Mini, and while that is still the case, you can also use them with any desktop or laptop as well.

OWC ministack XT 08

The new miniStack STX features storage and Thunderbolt Xpansion, and according to OWC it is the world’s first Thunderbolt certified Thunderbolt 4 storage solution. It was primarily designed to be a jack of all trades solution that offers connectivity and multiple storage options.

OWC ministack XT 08 06

The miniStack STX is equipped with a universal SATA HDD/SSD bay and an NVMe M.2 PCIe SSD slot. Three Thunderbolt (USB-C) ports enable you to connect to Thunderbolt, USB, and future USB4 drives, displays, A/V mixers, cameras, and tablets; as well as desktop accessories like a keyboard, card reader, or mouse.

Key features

  • Massive Capacity: Add over 200x greater data storage on top of your Mac mini’s built-in storage
  • More Connectivity: Add a mix of up to five Thunderbolt devices, three USB devices, and two displays
  • Whisper-Quiet: An aluminum housing with an internal heat sink and high-efficiency cooling fan provides cool, nearly silent operation
  • Maximum Compatibility: Use with Thunderbolt or USB equipped Macs, PCs, iPads, Chromebooks, Android tablets, or virtually anything that supports external storage
  • Data Security: Add RAID 1 protection with optional OWC SoftRAID software
  • Easy Backups: Apple Time Machine and Windows File History ready
  • Plug & Play
  • Includes Thunderbolt cable

Size & Form Factor

The miniStack STX is identical in size to the Mac mini. It isn’t small, but it isn’t gigantic either, so you could also use it with a MacBook or PC notebook, desktop machine, iPad, and Chromebook.

Because they have been designed to be stackable you can create nice, neat mini-towers.

Dual Drives

The universal SATA drive bay holds a hard disk drive or SSD for increased capacity data storage performance. When you need to support low latency instant access operations, such as video editing, the NVMe M.2 SSD slot makes for a good addition. NVMe was designed to deliver the speed potential of modern flash drive technology by using a more direct path to a computer’s processor over PCIe.

With multiple drive configurations available, you can get up to 770MB/s of real-world data transfer speed. This allows you to move 5GB of video footage in about 6 seconds. No, this isn’t blindingly fast, however, it is more than sufficient when working with a lot of footage from today’s modern cameras on a decent computer.

You can use the SATA drive for Time Machine or File History backups while working off the NVMe drive.

Inputs & Outputs

OWC ministack XT 08 07

The miniStack STX has three Thunderbolt (USB-C) ports for connecting devices and one more for connection to a computer. There is also a 20V DC input.

The miniStack STX was designed so you can connect up past, present, or future devices/accessories via three Thunderbolt (USB-C) ports. These three ports allow you to create three independent chains with up to five total Thunderbolt devices with a USB device on the end of each chain (for 8 devices total). You can now also remove devices from one chain without affecting the other chain(s).

Build Quality

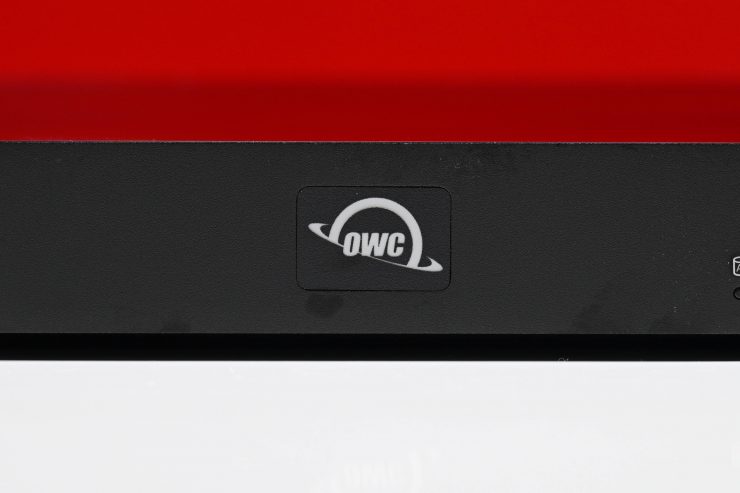

The OWC miniStack STX is well made and it features a rather understated design. The OWC insignia does light up on the front of it.

How easy is it to set up?

Screen Shot 2022 06 12 at 12 05 37

The OWC miniStack STX is pretty much plug-and-play. When you first hook it up to your computer you launch the OWC Drive Guide which then asks you how you would like to configure your drive.

Screen Shot 2022 06 12 at 12 06 34

Once you select your option you click next and that is all you have to do.

Changing & removing drives

OWC ministack XT 02

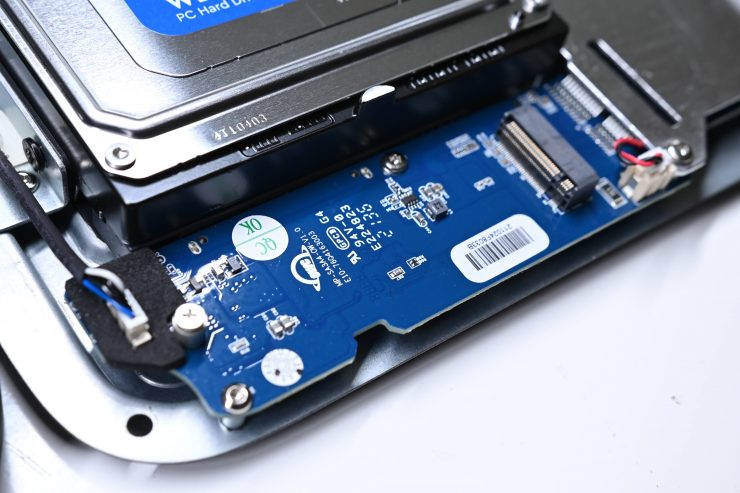

Changing over the drives inside the OWC miniStack STX is pretty straightforward. All you need to do is to undo four screws on the bottom of the OWC miniStack STX and remove the top cover. Here you can easily swap out the HDD/SSD and add or remove an NVMe drive.


The OWC miniStack STX isn’t going to give you mind-blowing speeds even if you are using an NVMe. OWC claims that the miniStack STX can provide speeds of up to 770MB/s.

Screen Shot 2022 06 12 at 12 08 58

Above you can see a speed test done with the 2TB 7200rpm HDD.

Screen Shot 2022 06 12 at 12 09 49

Above you can see a speed test done with the OWC Aura P12 Pro NVMe. Even though this SSD is capable of write speeds of up to 3000MB/s and read speeds of up to 3200MB/s you aren’t going to get anywhere near that if you use this inside an OWC miniStack STX.


You can use OWC’s SoftRAID software with your miniStack STX and create a RAID 1 to automatically maintain identical copies of all your data on each drive. SoftRAID has been around for more than 25 years and it s a good software RAID solution for Mac and Windows.

SoftRaid starts protecting your data even before you start saving by validating the miniStack STX drives are safe for data storage. In the improbable event that you experience a disk issue, your data is still complete and accessible on the miniStack STX’s other drive.

SoftRAID constantly monitors your disks with a combination of S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) attributes along with its own I/O statistics. This deep dive disk health analysis identifies potential problems so you can take preventive action. As SoftRAID is available for both Mac and PC it allows you to share the miniStack STX between computers if you need to.

Real World Use

I was using the OWC miniStack STX with an Apple MacBook Air, primarily as an expansion hub, that I could also use to do dual backups of material I was shooting on the road. While it isn’t the fastest device, it was generally quick enough for backing up CFast 2.0 cards which is the primary media I use. I could make one back up to an NVMe drive that I could also use to edit from, while also making another backup to the HDD drive.

The miniStack STX also has enough inputs that I could comfortably hook up additional drives and card readers if need be.

Was this the perfect solution for doing this type of thing? Probably not, but it still worked reasonably well. Usually, with my laptop, I use an expansion hub that needs to be powered anyway, so the miniStack STX wasn’t a big departure away from that. As I had two drives installed inside it sort of made sense to use it instead of the expansion hub and attaching multiple drives.

Price & Availability

The OWC miniStack STX is now available in various configurations.

Screenshot 2022 06 04 at 2 34 48 PM

You can buy the base enclosure with no pre-installed drives for $279 USD. Prices then range from $349 USD for a miniStack STX with a 2TB HDD, up to $1,499 USD for a miniStack STX with a 14TB HDD and a 4TB SSD.

You can also configure the enclosure with whatever combination of HDD/SSD and NVMe capacities that suit your needs.


The miniStack STX is a nice little device, but it is best viewed as a jack of all trades and master of none. It can certainly be used for a variety of purposes, but the speeds it offers are a little on the slow side and that may keep a lot of people from considering it.

In a lot of ways, the miniStack STX is a little niche, but it is likely to appeal primarily to owners of the latest Mac Mini’s.
