Swit releases huge capacity PB-C420S 420Wh battery

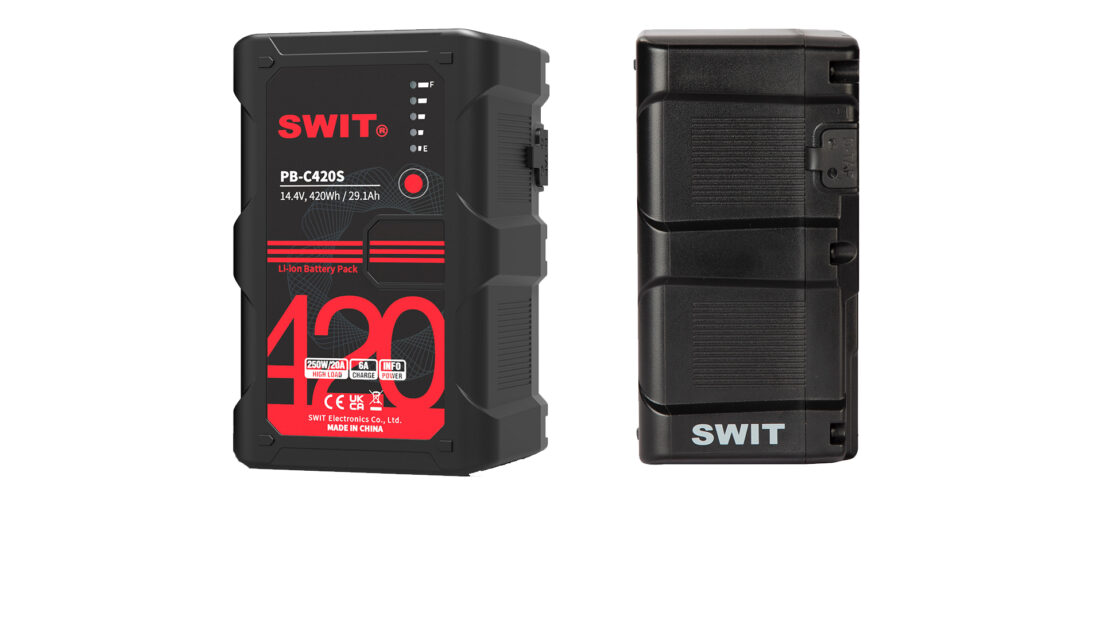

Swit PB C420S Thumbnail 2

Swit has released what they state is the largest capacity battery available today. The PB-C420S is a 14.4V, 29.1Ah battery that can supply a constant power load of 250W/20A, and a peak load of 305W. The battery is made up of 24 individual Li-ion cells.

Screenshot 2022 04 25 at 4 18 14 PM

With more and more devices coming out that draw large amounts of power, higher capacity batteries are needed. The biggest caveat with high-capacity batteries you can’t travel with them on a plane. Most airlines limit the max capacity to 160wh, and even then you are only allowed to carry two batteries between 100-160Wh.

Screen Shot 2022 05 06 at 7 55 17

The largest capacity 14.4V V-mount batteries that I am aware of top out around 290Wh.

The new PB-C420S is currently only available in V-Lock. It is still unclear whether Swit will release the new battery in other mounts such as B and Gold Mount.

250W Constant High Load

Screen Shot 2022 05 06 at 7 55 30

Swit states the PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high-power Cine cameras and on-camera devices together. The high load cells will also ensure battery life compared to normal load batteries. The new battery features an over current protection of 24A.

Screenshot 2022 04 25 at 4 00 37 PM

The PB-C420S features two 150W/10A D-tap outputs and it has a five-level power bar indicator.

The battery weighs 2.07 kg / 4.56 lb and it has physical dimensions of 155 x 101 x 80mm.

PB-C420S Charger

Screenshot 2022 04 25 at 4 00 24 PM

SWIT states that the PB-C420S supports 100W/6A fast charging on a compatible charger. They go on to say that you can charge the battery from 0-80% in just under 4 hours, and fully charge the battery in 5 hours and 20 minutes.

PC-C420S Specifications

Nominal Voltage14.4V
Capacity420Wh, 29.1Ah
Power Load250W/20A Constant, 305W Peak
D-tap2× D-tap 150W/10A in total
ChargingDC 16.8V, 6A Max
Size/Weight155×101×80mm, 2.07kg

If you are running high-powered LED lights or large cameras with high power draws then batteries with a big capacity like this do make sense. With a peak load of 305W, a pair of Swit PC-C420S‘s should be able to power a 600-watt light at full power. That is something I would like to test!

Pricing & Availability

At this time pricing and availability have not been released. I’ll update the article once it is announced.
