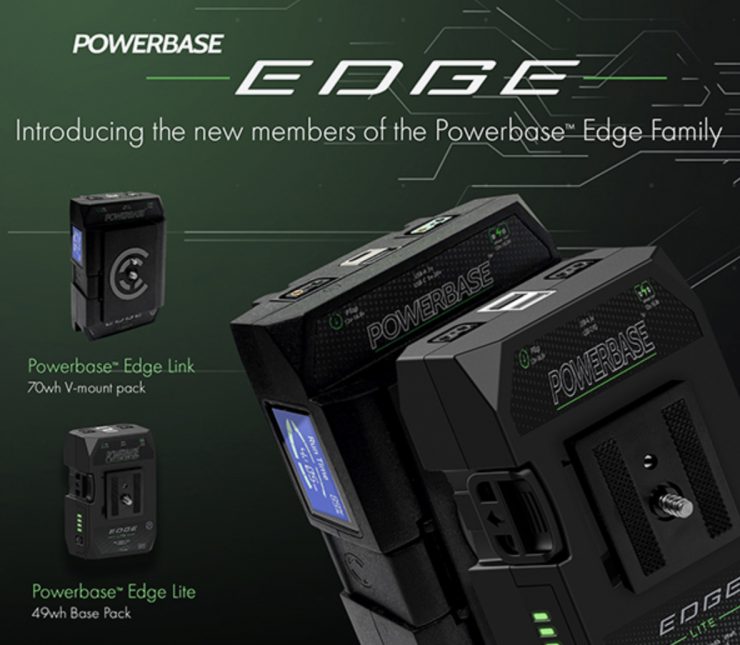

AT NAB 2022, Core SWX has announced its new Powerbase Edge Link and Powerbase Edge Lite battery packs.
![Screenshot 2022 04 25 at 8 36 59 AM](https://www.newsshooter.com/wp-content/uploads/2022/04/Screenshot-2022-04-25-at-8.36.59-AM-740x645.jpg)
The Powerbase Edge Link and Powerbase Edge Lite were primarily designed to power smaller-sized cameras where you need longer run times and/or you also need to power additional accessories. The whole idea is that you place the Powerbase modules under your camera.
Powerbase EDGE LINK
![Screenshot 2022 04 25 at 8 45 37 AM](https://www.newsshooter.com/wp-content/uploads/2022/04/Screenshot-2022-04-25-at-8.45.37-AM-740x590.png)
The Powerbase Edge Link allows you to power your camera and its accessories for more than 12 hours. This 14.8V 70wh battery has a maximum continuous draw of 8A and can be linked with other packs using its V-mount to double or triple its capabilities.
![Screenshot 2022 04 25 at 8 46 08 AM](https://www.newsshooter.com/wp-content/uploads/2022/04/Screenshot-2022-04-25-at-8.46.08-AM-740x659.png)

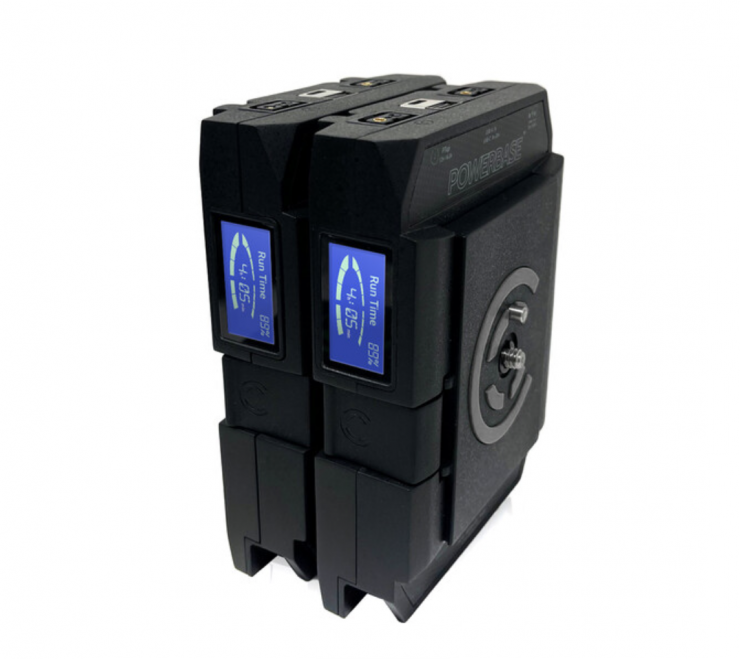

The name “Link” comes from the added linking feature so when using the battery as a V-mount pack, you can have multiple packs “linked” to provide 140wh or 210wh on-board for additional runtime while still meeting air travel safety standards when the packs are separated.

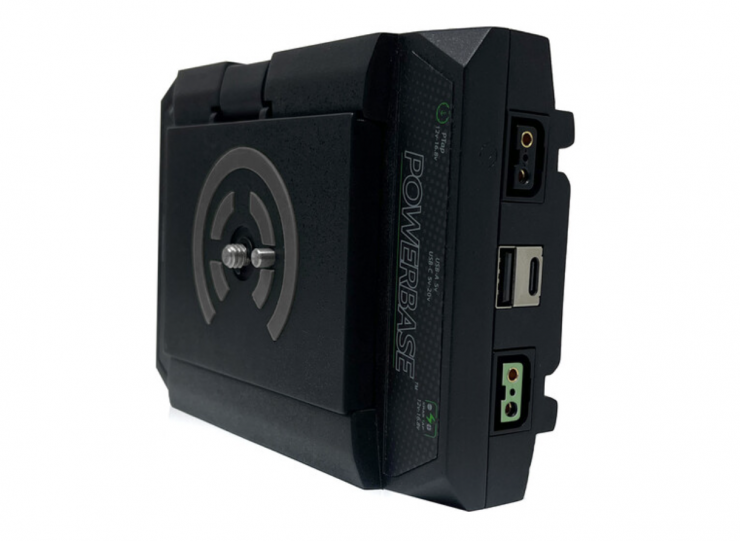

It features a dovetail-style quick release plate and multiple 1/4″-20 threads. Two unregulated D-Tap ports on the device can power your on-camera monitor or wireless transmitter, while one USB Type-A output and one USB Type-C output can charge anything from mobile devices to laptops. Another 8V output is compatible with legacy battery paddle cables to attach to your DSLR camera or camcorder.
![Screenshot 2022 04 25 at 8 46 17 AM](https://www.newsshooter.com/wp-content/uploads/2022/04/Screenshot-2022-04-25-at-8.46.17-AM-740x681.png)
You can monitor your battery’s status via the built-in runtime LCD. The Powerbase EDGE LINK can be recharged with a separately available D-Tap or V-mount charger.
Key features
- 70Wh, 14.8V V-Mount Battery Pack
- 8A Draw, 12-Hour+ Runtime
- Quick Release Top Plate, 1/4″-20 Threads
- USB and D-Tap Output Ports
- Runtime LCD
- Charge with D-Tap or V-Mount
The Powerbase Edge Link is now available to pre-order for $279 USD.

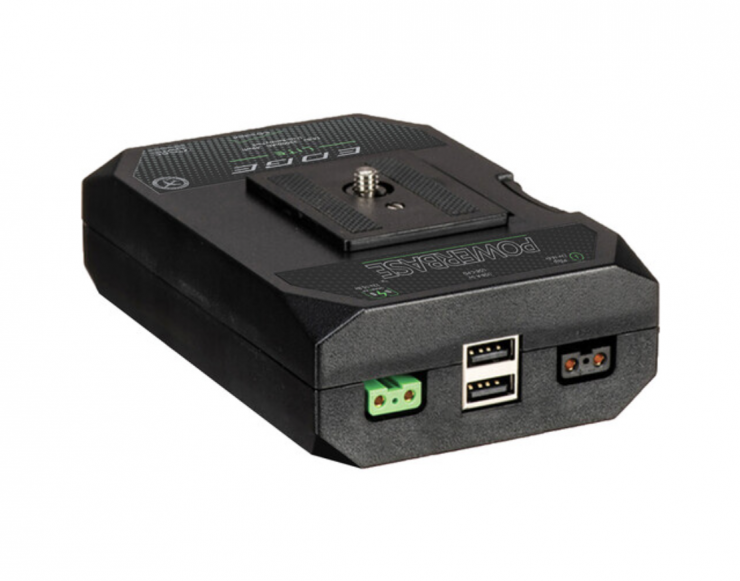

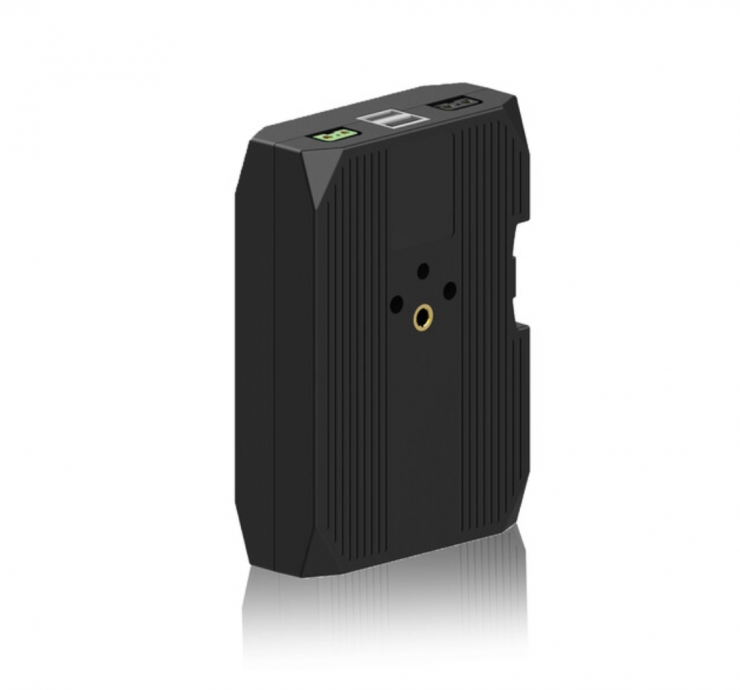

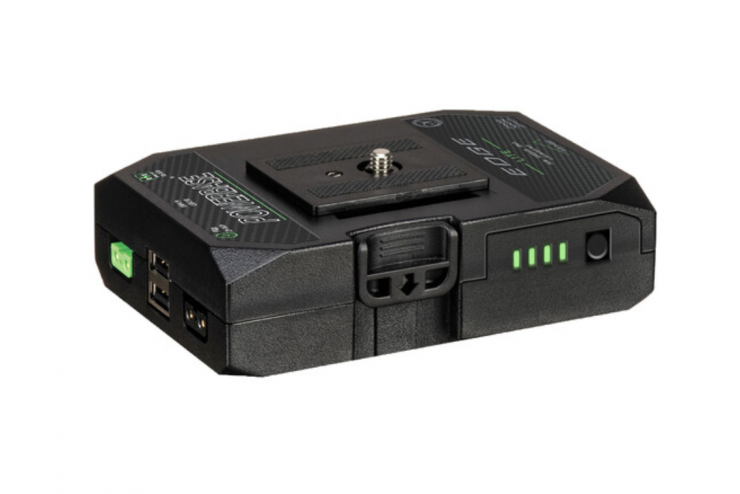

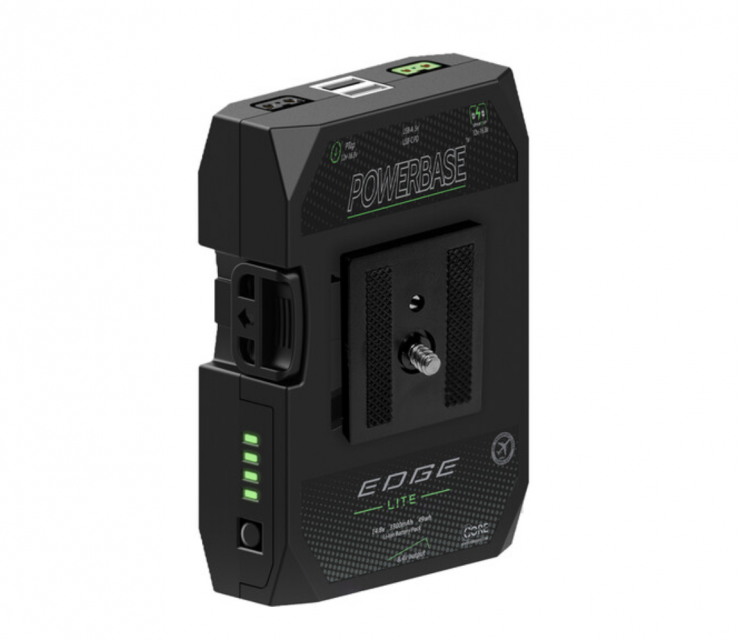

Powerbase EDGE LITE 47Wh Battery Pack
![Screenshot 2022 04 25 at 8 53 13 AM](https://www.newsshooter.com/wp-content/uploads/2022/04/Screenshot-2022-04-25-at-8.53.13-AM-740x641.png)
The Powerbase Edge Lite is for those users who have already invested in the Powerbase system or those that don’t utilize the v-mount connection and just want a base pack.
Key features
- 47Wh, 14.8V V-Mount Battery Pack
- 8A Draw, 8-Hour Runtime
- Quick Release Top Plate, 1/4″-20 Threads
- USB Type-A and D-Tap Output Ports
- 4-Stage LED Gauge
- Separately Available D-Tap Charger
Similar to the original Edge, the Edge Lite has nearly all the features including two P-taps, two USB ports, 4-stage LED gauge and the same 49wh capacity of the original Powerbase Edge minus a runtime LCD and the aforementioned V-mount connection.
It is scheduled to start shipping in mid-May for $149 USD.
