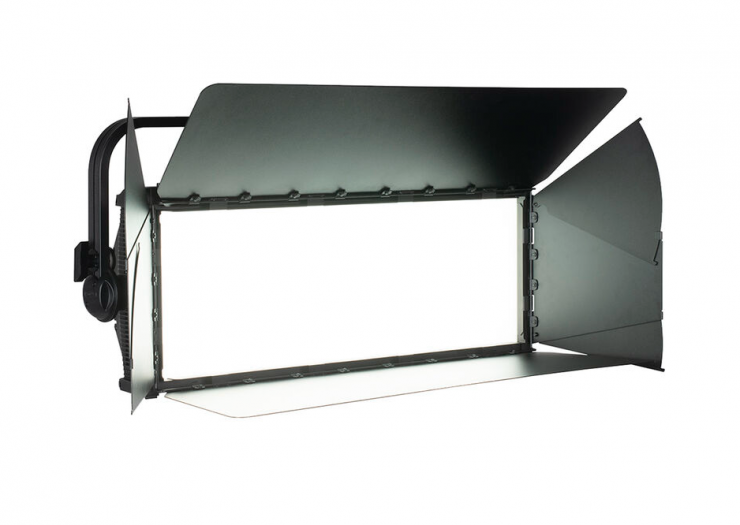

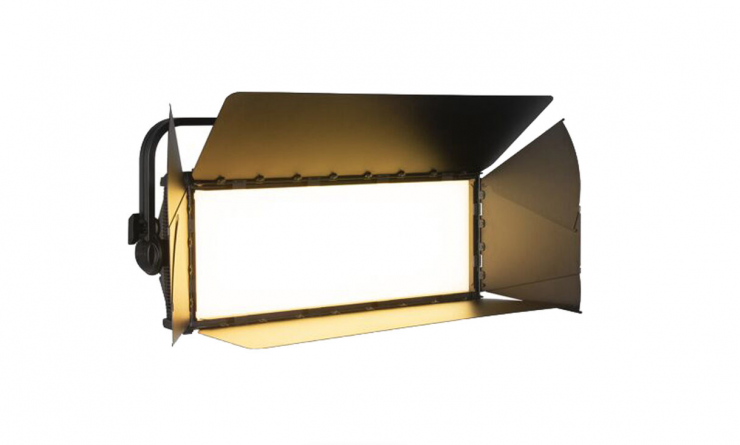

The Elation KL PANEL XL is a full-color-spectrum LED soft light that is claimed to provide high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.

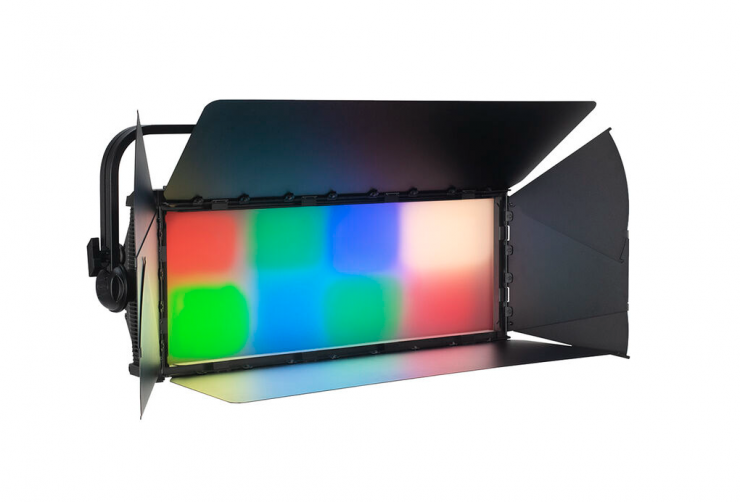

Elation has optimized the KL PANEL XL for the tunable white light requirements of Film and Television. The fixture incorporates a highly efficient 6-in-1 LED package that is claimed to produce up to 44,000 lx at a 100° half-peak angle. The optional 4×2 Section control provides additional creative capabilities for color effects.

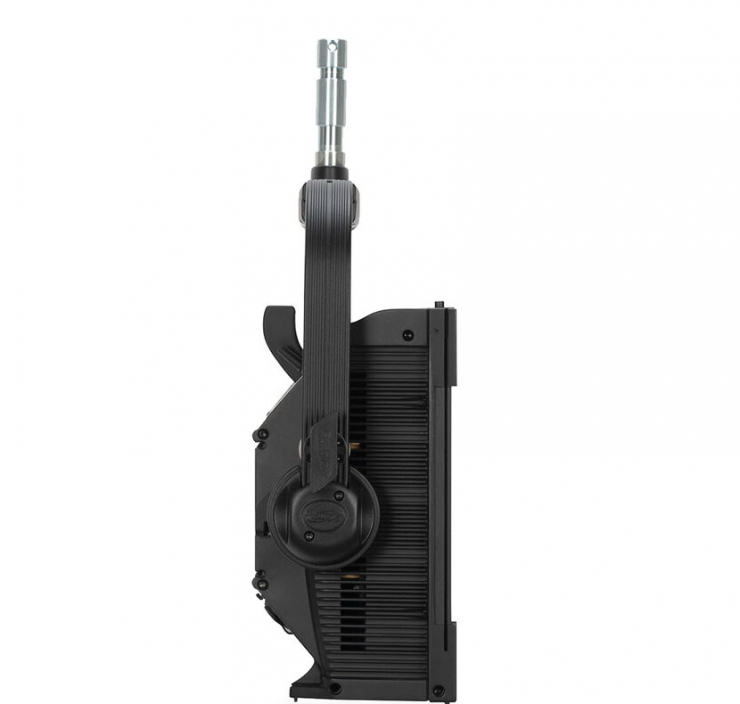

The fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. The rugged housing features impact-resistant surrounds. It is fully self-contained without the need for an external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input.

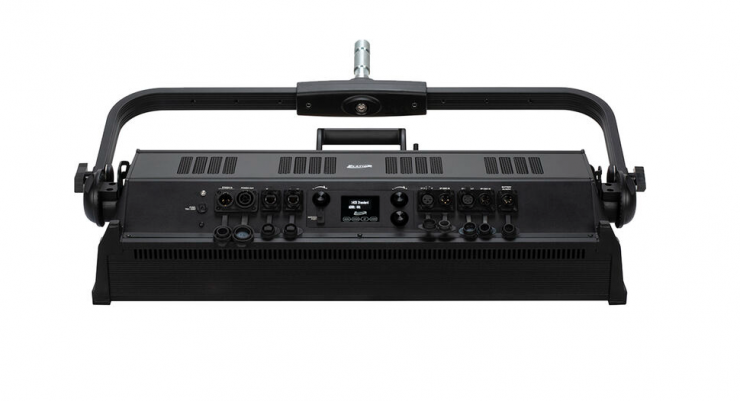

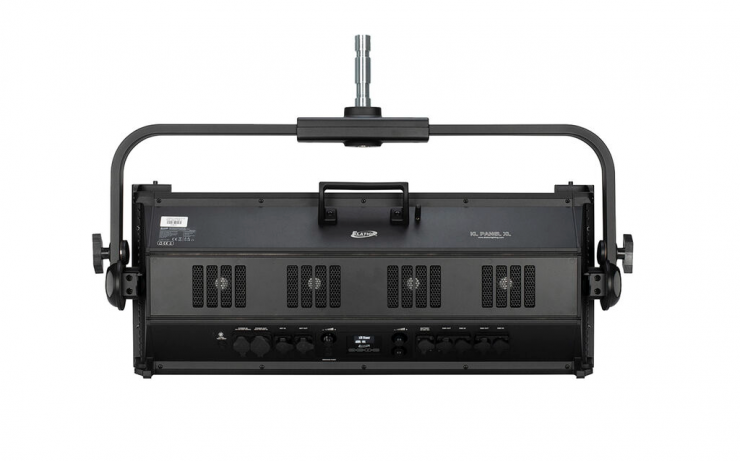

The KL Panel can be operated through industry-standard DMX, Art-NET or sACN protocols. In addition, it can also be adjusted manually using the included encoders and OLED display. You can control the intensity, color temperature, green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY wireless system allows for even more flexibility of use.
Key features
- 544W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
- CRI 95
- CCT Adjustment from 2,000 to 10,000K
- 44,000 lx
- 4×2 Section control option
- Virtual Gel Library
- Internal Power Supply with Power Pass-Through
- 24-36 VDC Battery Operation (battery not included)
- DMX/RDM, Art-Net and sACN Protocol
- Support E-FL
- Wireless DMX Transceiver Stand-Alone Control with 3 Encoders
Specifications Sheet
User Manual
SIZE / WEIGHT: Length: 30.1” (763.8mm)Width: 6.1” (155mm)Height: 12.05” (306mm)Height (with yoke): 16.8” (426.8mm)Weight: 37.9 lbs. (17.2 kg)Weight: (Junior Pin) 1.02 lbs. (0.46 kg)
ELECTRICAL / THERMAL: AC 100-240V – 50/60Hz24-36 VDC (battery operation – battery not included)Max Power Consumption 544W14°F to 113°F (-10°C to 45°C)
Price
The Elation KL PANEL XL retails for $3,200 USD
