Hollyland Streamix M1

Screen Shot 2021 06 29 at 21 21 11

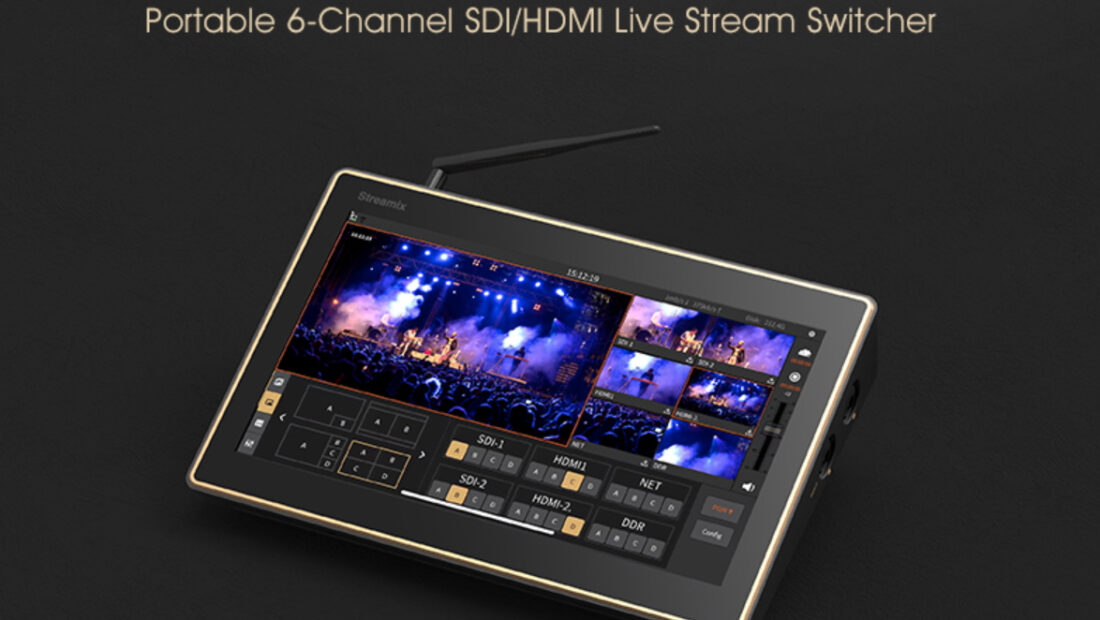

Hollyland has announced the Streamix M1, a multi-function integrated live stream mixer with six video inputs.

It has been designed to be a one-stop solution if you need to record, stream and switch multiple sources of video and audio.

Key features

  • Multiple SDI / HDMI & Network Video Inputs & Easy Live Stream
  • Gigabit RJ45 Port for Wired connection / In-built Wireless Connection
  • Wide Equipment / Gear Compatibility
  • Real-Time PTZ Camera Control & Streaming Available
  • 256GB internal RAM, Intelligent Power Outage Protection
  • Multiple Built-In Effects
  • Library of Overlays
  • Professional Audio Support
  • Built-In Analog Mixer
  • Two Switchers Remote Interaction
  • Instant Remote Connection
Screen Shot 2021 06 29 at 21 25 24

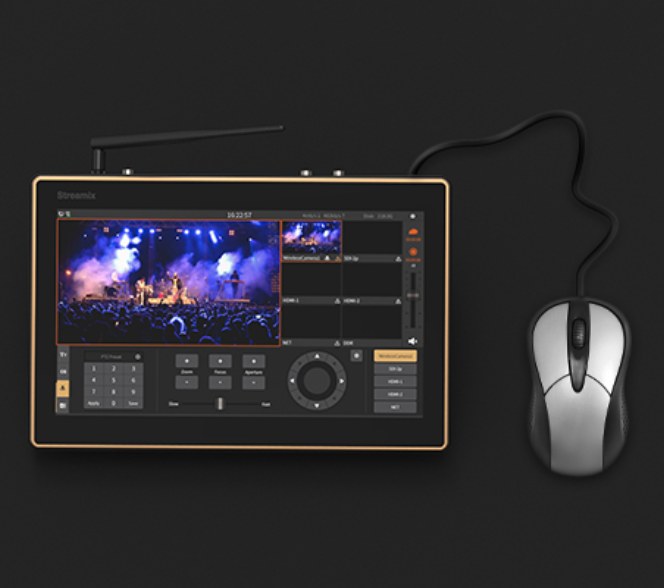

It features an 11.6″ touchscreen, however, you can also connect up a mouse if you prefer.

Screen Shot 2021 06 29 at 21 24 18

There is also a multi-view screen so you can see all of your sources at the same time.

Screen Shot 2021 06 29 at 21 23 25

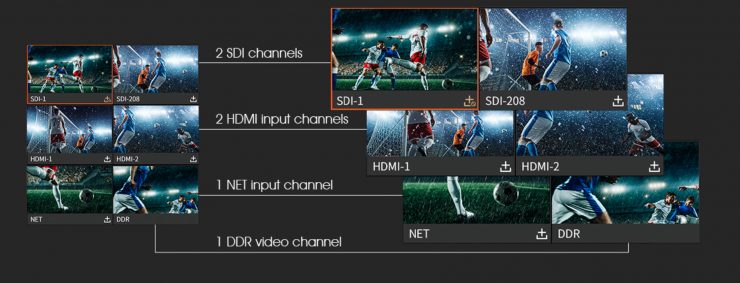

You can live switch up to 6 video sources, however, the Streamix M1 is only equipped with 2 SDI and 2 HDMI inputs, so the other two sources need to be via a NET or DDR channel.

Screen Shot 2021 06 29 at 21 23 11

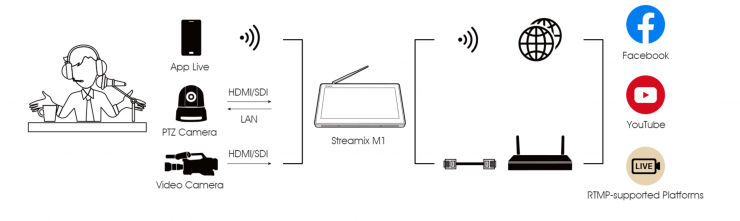

You can live stream to 3 different platforms such as YouTube, Facebook, or any other platform that supports RTMP simultaneously. Streaming can be done via a wired or wireless internet connection.

Screen Shot 2021 06 29 at 21 25 11

You can stream at 1Mbps, 2Mbps, or 4Mbps. The device is limited to streaming full 1080p images.

Screen Shot 2021 06 29 at 21 52 04

The Streamix M1 also supports internal recording and features 256GB of internal memory. According to Hollyland, it also features intelligent power outage protection that makes sure that your material is saved safely even in event of a power outage.

Screen Shot 2021 06 29 at 21 24 26

For streaming to social media platforms, the Stremix M1 lets you adjust the aspect ratio between portrait or landscape modes.

Screen Shot 2021 06 29 at 21 23 34

The unit has an SDI Out, HDMI Out, and a Monitor out so that you view your live streams on larger screens or record your stream externally.

Screen Shot 2021 06 29 at 21 47 25

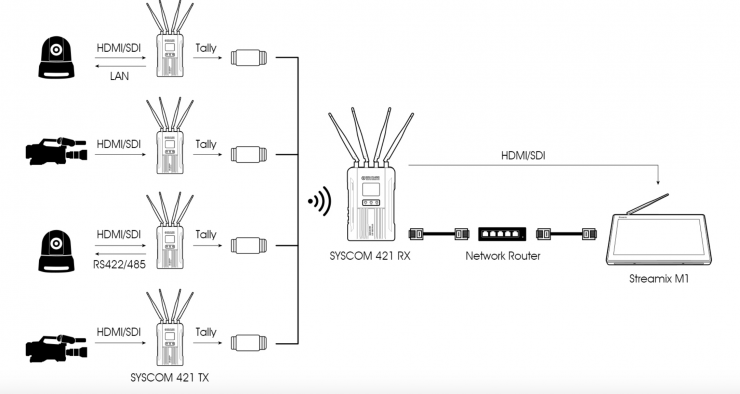

You can also set up a system where you can wirelessly send images from cameras using Hollyland wireless video products.

Screen Shot 2021 06 29 at 21 24 02

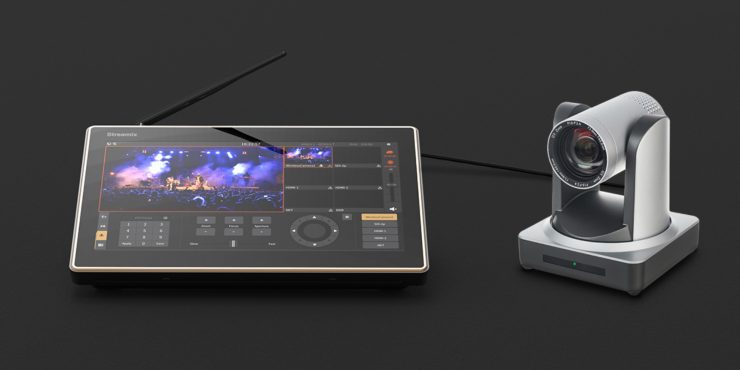

If you own a PTZ camera you can control and operate that camera through the use of an RJ45 cable. You cannot control regular cameras through the SDI and HDMI inputs.

Screen Shot 2021 06 29 at 21 24 34

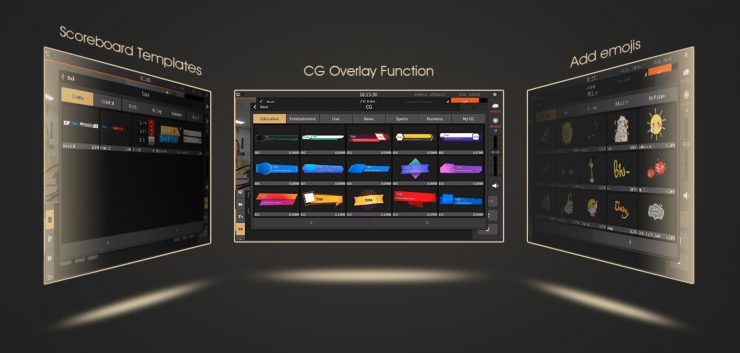

The Streamix has a vast library of overlay effects so you can add images, emojis, text, and other forms of content. There are built-in templates that you can use or customized templates can also be imported from other devices through the USB connector.

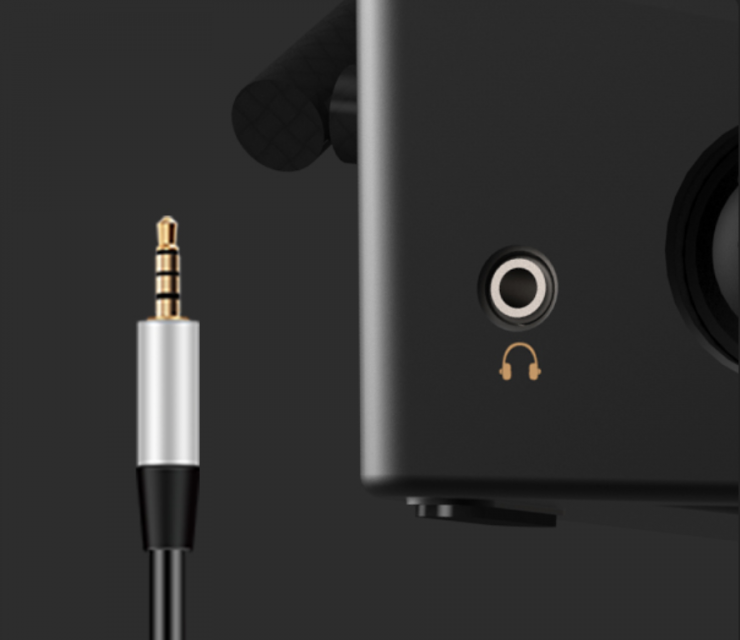

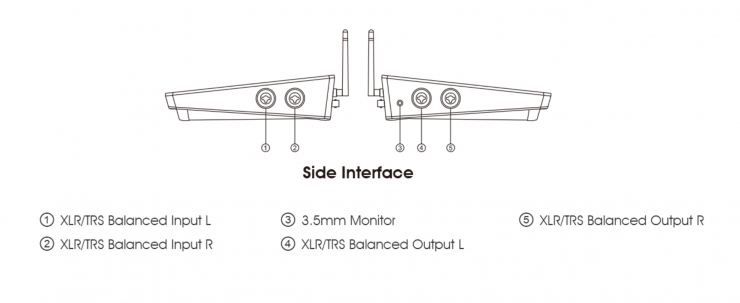

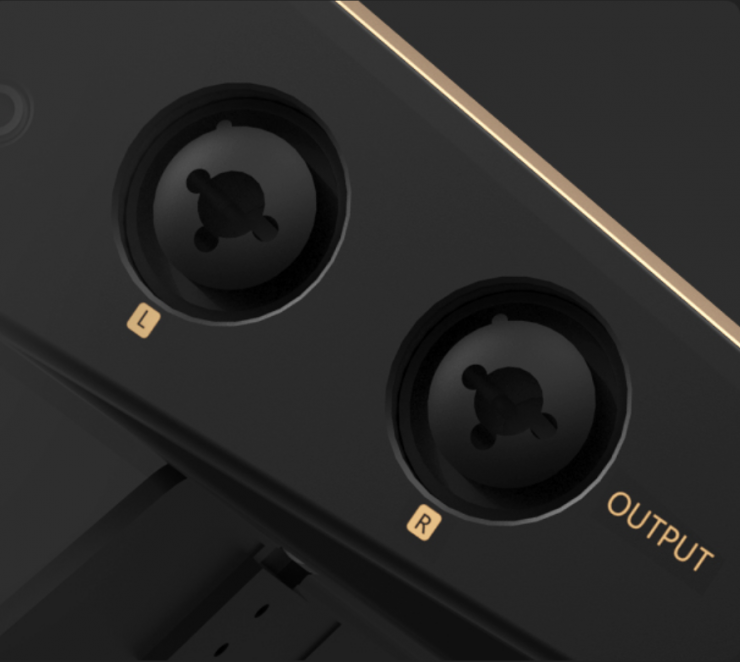

As far as audio is concerned, it is equipped with an XLR/TRS audio interface. There is a 3.5mm audio out for monitoring through headphones.

Screen Shot 2021 06 29 at 21 25 00

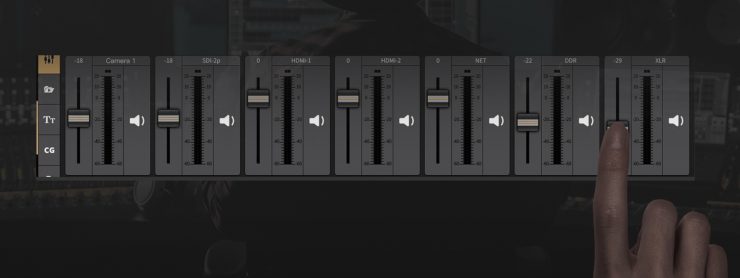

On the switcher itself, there is an analog mixer. This lets you mix multiple audio sources and adjust the volume via the touchscreen.

Screen Shot 2021 06 29 at 22 02 29

In a nice touch, two remote live steam switchers can be connected by entering a director code. This way, two devices are able to share their screens so you can do cross-regional streaming.

Price

The Hollyland Streamix M1 will retail for $2,999 USD.

It certainly looks to be an interesting device, and it is interesting to see so many live streaming/switching devices coming to market recently.
