Matthews Studio Equipment introduces Gobo Plate™ Line

Matthews Studio Equipment has introduced the new Gobo Plate™ Line.

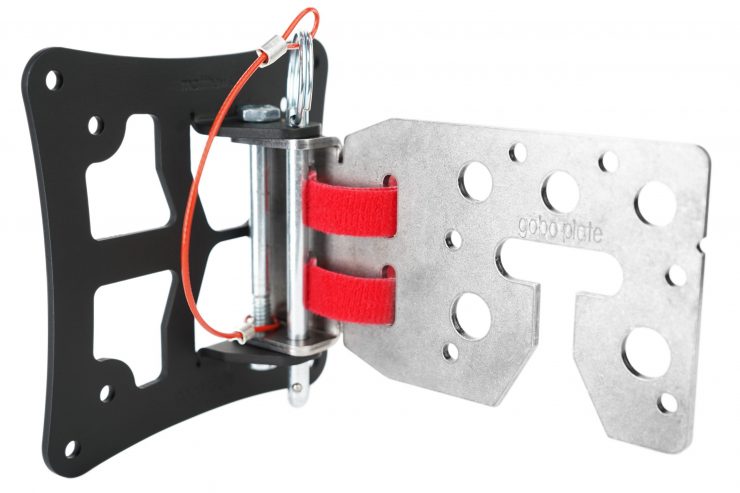

gobo plate media mount 30027 front open 01 scaled 1

The Gobo Plate Media Mount adapts the traditional VESA mount to a new type of plate that offers greater versatility, mobility, safety and adaptability.

Key features

  • Mounts to 75mm and 100mm VESA hole pattern
  • T-slot with V centering quickly secures 2.5” grip head mounting
  • Tethered and removable locking pin secures mount in the open and closed position
  • Five each ½” diameter, and six each ¼” diameter spaced circular cutouts allow bolting to cheese plate, lumber, beams, set walls, or rod pass through.
  • Two slots at hinge end fit red hook and loop straps for cable management and organization
  • Low profile design folds down flat to remain on the monitor for the next location.

The Media Mount can not only be used to secure monitors onto C-Stands using standard 2.5” grip heads but also screws, bolts and rigs onto wooden beams, set walls, pipes, cheese plates and more, using readily available grip gear.

gobo plate media mount 30027 pipe mount01 web scaled 1

The Gobo Plate Media Mount simply attaches to a monitor via Matthews’ black powder-coated 75/100mm VESA mount with a built-in hinge attachment.

The ruggedized hinge includes a removable locking pin, complete with safety lanyard. The hinge interfaces with the Gobo Plate portion that’s designed to easily mate with all types of on-set gear from stands to beams to walls.

gobo plate media mount 30027 use02 03 scaled 1

Weighing 16.9 ounces, Gobo Plate is machined out of a single sheet of 1/8” thick steel, with a clear zinc coating on the outer side and black powder coating inside. A T-slot with V centering quickly secures grip head mounting.


The cheese plate section of the Gobo Plate features five 1/2″ diameter and six 1/4″ diameter spaced cut-outs that can be used to bolt to heads, lumber, beams, set walls or rod pass through.

Two hook and loop straps are used for cable management.

By simply pulling the pin, the assembly folds down flat for removal from the monitor, ready to stow in a road case or remain on the monitor to stack in the truck for the next location.

Matthews Media Mount Gobo Plate is available through the company’s worldwide dealer network.
