Vibesta Peragos Animatable Cinema Grade RGBW Pixel Tubes

The Vibesta Peragos Animatable Cinema Grade RGBW Pixel Tubes are a range of weatherproof LED tubes that give you independent control of up to 32 pixels within one tube. This allows you to create interesting lighting effects.

The Peragos RGB pixel tubes are the 60C and 120C. They are 2′ (62cm) and 4′ (120cm) respectively.

Screen Shot 2020 10 08 at 10 28 25

You may remember that these lights were teased back in August, but now the Kickstarter campaign has officially launched.

Animatable Pixels

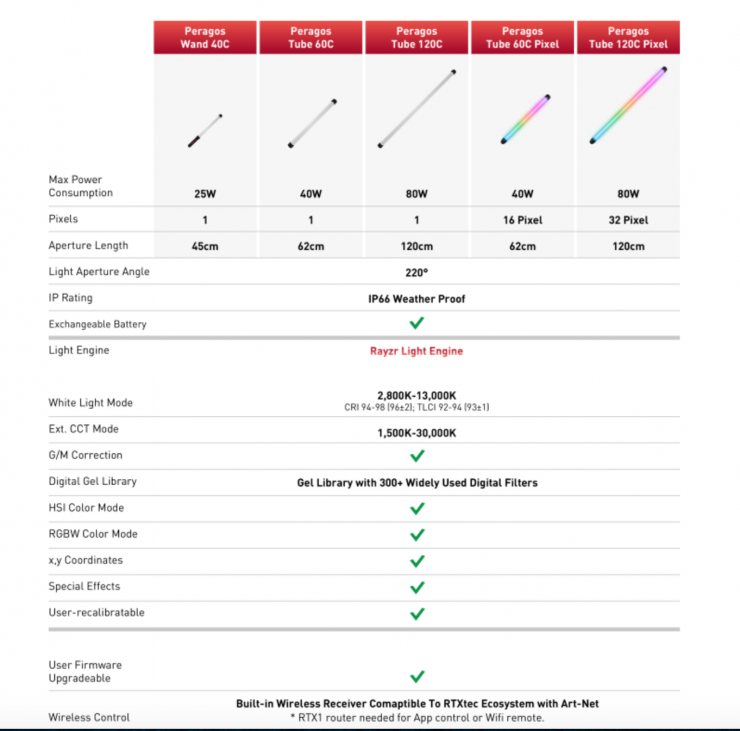

As I mentioned at the start of the article, you can independently control up to 32 pixels within one tube. However, if you want to, you can spread pixel animations across multiple tubes to create more complex setups.

Screen Shot 2020 10 08 at 11 22 09

Vibesta is also selling the Peragos 40C Wand, Peragos 60C, and Peragos 120C in versions that don’t feature the inimitable pixel control.

How bright are they?

Screen Shot 2020 10 08 at 10 41 27

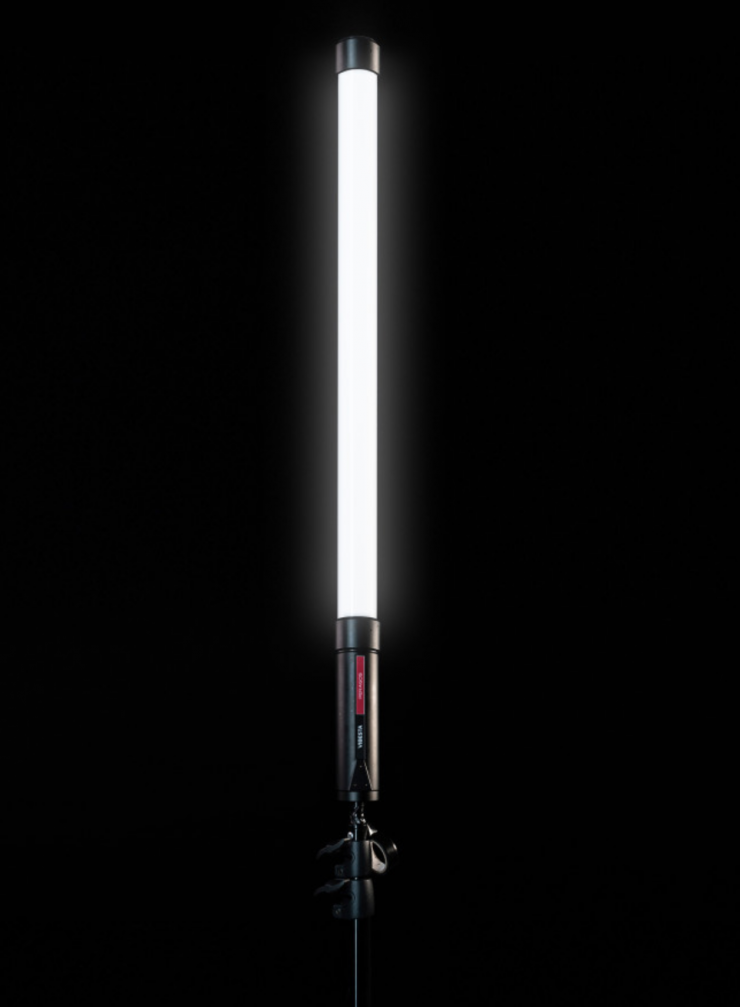

Most RGB LED tube lights are not particularly very bright, and that holds true with the Peragos tubes.

Screen Shot 2020 10 08 at 10 41 17

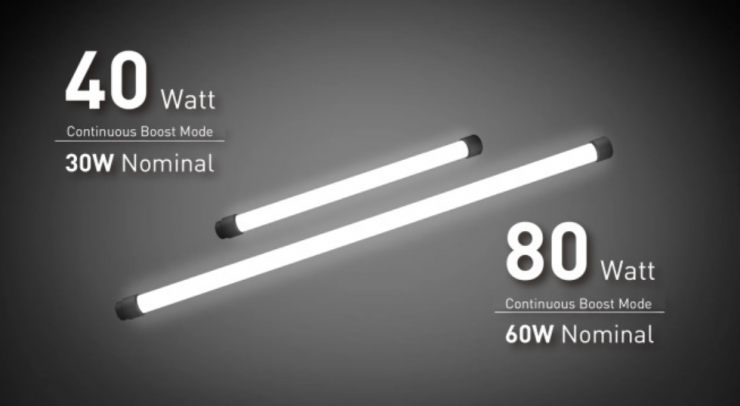

The Peragos Tube 60C has 30W of power and the Peragos Tube 120C has 60W. A continuous Boost Mode enables you to increase the brightness to 40W and 80W without any limitations.

Soft Spread

The Peragos Tube features a 220° tube lens to help create a soft, wide beam spread.

Kelvin Color Temperature Range

In White-Light Mode the Peragos Tube has a Kelvin color temperature range of 2800K to 13000K. According to Vibesta, the tubes have a claimed TLCI of 93+-1 and a CRI of 96+-2 throughout the full adjustment range.

What is interesting is that Vibesta has also put in an extended Kelvin Mode that lets you adjust the temperature from 1500K up to 30,000K. The only downside of going into this mode is that the output will be reduced by roughly 20%.

Weatherproof

The Peragos tubes are IP 66 rated, so you can use them in a variety of weather conditions.

Calibration & Consistency

Screen Shot 2020 10 08 at 10 57 50

Vibesta claims hat the tube lights use custom algorithms to mix the light from several LEDs with various colors. They also claim that each individual light is calibrated so that there is virtually no tolerance from fixture to fixture.

To ensure consistency after many years of use, Vibesta says that the Light Engine inside the tubes can be recalibrated by the user.

With a system called Source Match you are are able to match any light source. Vibesta says that all you need to do is enter the x/y coordinates you measured from another light and your fixture will be an exact match. Now, I think they are referring to matching RGB colors from other lights. Entering x/y coordinates is just telling the light what color you are creating.

Other Features

The lights have various operating modes including CCT, Filter Mode, HSI Mode, x/y Coordinate, RGB Mode, and Effects.

RTX Control App

With the RTX control App you can create complex lighting setups.

The user interface allows you to control each light separately or in groups of lights.

*RTX1 router needer for App control or Wifi remote.

The hardware and software of the RTXtec control system are designed to support large lighting setups.

Mounting

The Peragos tubes feature a variety of mounting points and there is a range of accessories for creating additional rigging solutions.

1/4″ Female

Suspension Ring

Ground Light Stand

16 mm Pin

Powering the lights

The tubes us an exchangeable Smart Li-Ion battery that is claimed to be able to power the fixtures for up to 20 hours. The 4 batterycharger allows you to recharge multiple units at once and even from within their case. When the AC adapter is connected to the controller and the Smart Li-Ion battery pack is attached it automatically charges during operation.

There is a V-Type Quick Release that allows you to quickly attach and detach the controller unit and smart Li-Ion battery pack to the backside of the tube. A female QR point is in the center of the tube for fitting grip accessories like a Spigot. Additional ¼ inch threadings allow for more rigging options.

The Controller and Smart Li-Ion battery pack for the Peragos Tube have been designed in a modular way. The controller is compatible with both the Peragos 60C and 120C and you can power the tubes by AC directly through the controller.

Pricing & Availability

The tube lights are available in a variety of sizes and kits. They will start shipping in November. Below are the prices:

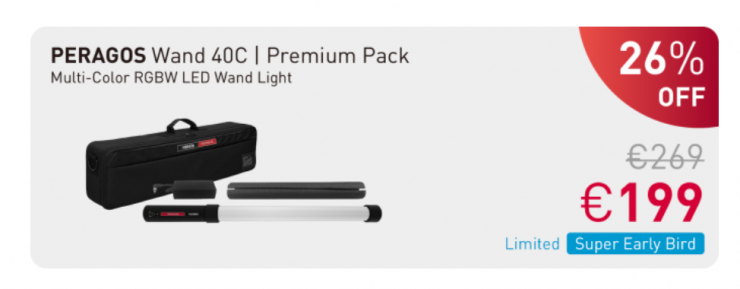

  • Peragos Wand 40C Premium Pack €199

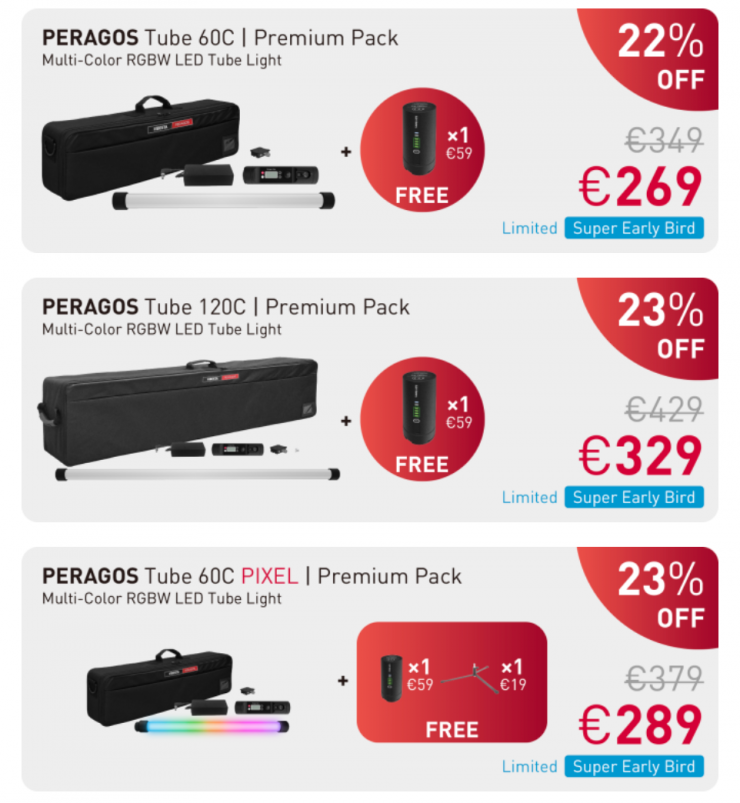

  • Peragos 60C Premium Pack €269
  • Peragos 120C Premium Pack €329
  • Peragos 60C Pixel Premium Pack €289

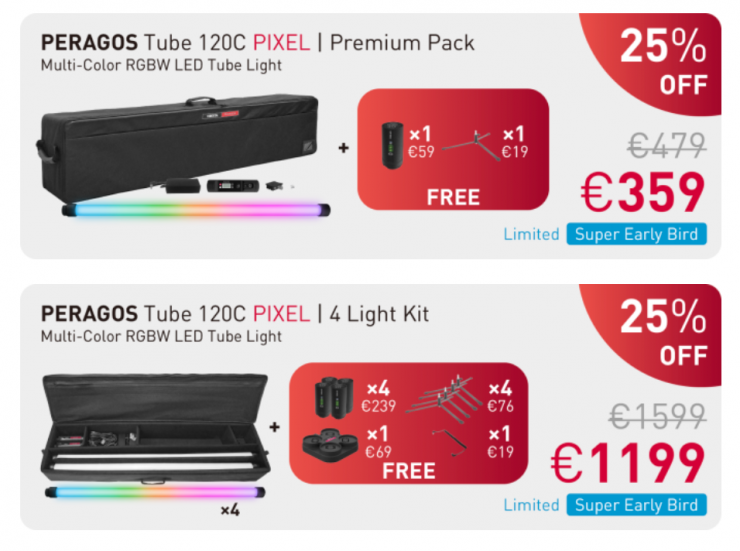

  • Peragos 120C Pixel Premium Pack €359
  • Peragos 120C Pixel $-Light Kit €1199
