Marshall CV503-U3 Miniature POV Camera for USB

Screen Shot 2020 09 26 at 16 46 52

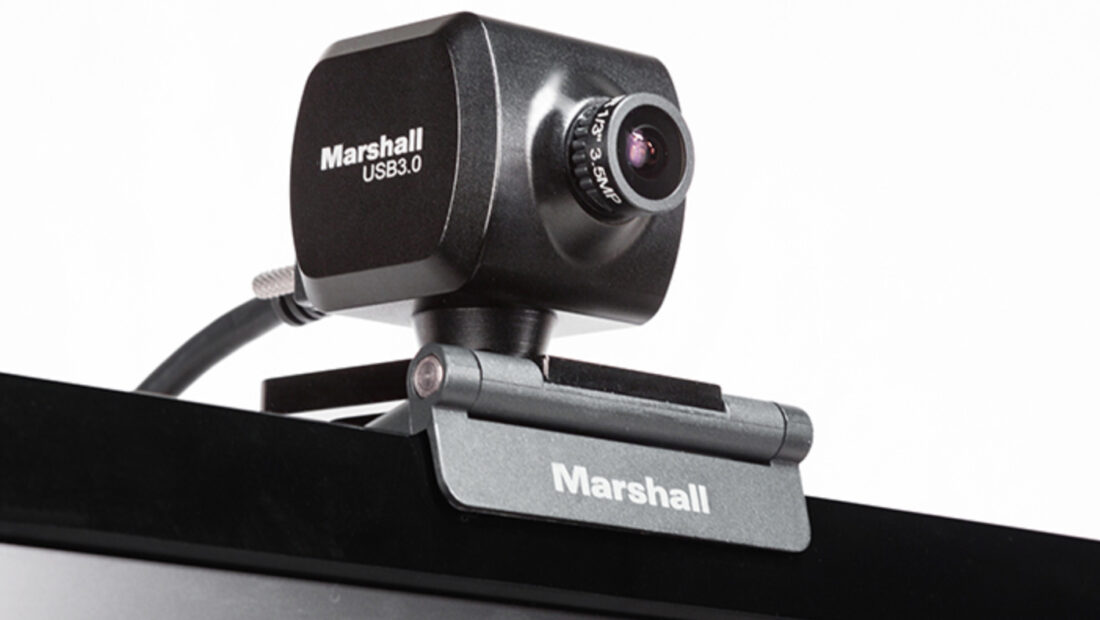

Marshall has announced the CV503-U3 Miniature POV Camera for USB. This is a USB3.0 HD camera with interchangeable lenses, and it is software agnostic so you can use it for a variety of applications.

It replaces the now-discontinued CV502-U3 USB 3.0 HD POV Camera.

Screen Shot 2020 09 26 at 16 46 26

CV503-series cameras have been used as unique point-of-view cameras in television productions for the last 10 years. Television broadcast, sportscasts, newscast,s weathercasts, car racing, reality-TV, gameshows, talk shows, and live concerts have all utilized small Marshall POV cameras.

Key features

  • Software agnostic design provides flexibility to use or switch between soft codecs.
  • Interchangeable lenses create customizable field-of-view (comes with 90-degree).
  • Locking 6 1/2 foot (2m) USB3.0 cable for power and video capture over one cable.
  • Same broadcast quality as Marshall CV503 cameras up to 1080p60fps video.
  • Self adaptable resolution and frame-rate provides video stability during operation.
  • Universal UVC1.5 command and control to adjust settings from any soft codec.
  • No additional drivers required that change your personal video capture settings.
  • Locking USB thumb screws lock cable into place and can’t be pulled out during use.
  • Durable design and smooth finish for professional setup and appearance.
  • Ships with a CVM-5 Monitor/Desktop stand, adaptable to any 1/4″-20 mounts.
Screen Shot 2020 09 26 at 16 45 19

The camera comes equipped with a wide-angle 2.8mm lens producing a 90° horizontal angle-of-view, however, as it features an interchangeable lens mount. There is a wide array of M12 lenses that you can put on the camera. These lenses range from a 2.3mm, F2.2 3MP, all the way up to a 16.0mm, F1.8 2MP. You can also choose a 2.8~12mm, F1.4 3MP lens or a 6.0~22mm, F1.6

Screen Shot 2020 09 26 at 17 10 13
The CV503-U3 utilizes the same sensor and processors as the Marshall CV503, CV506, CV566, CV344, and CV346. That sensor is a 1/2.8″ Progressive CMOS (Approx. 2.5 Megapixel) sensor.

Here are the available resolutions and frame-rates:

  • 1920x1080p @ 60/59.94/50/30/29.97/25/24/23.98fps
  • 1920x1080i @ 60/59.94/50fps
  • 1280x720p @ 60/59.94/50/30/29.97/25/24/23.98fps
Screen Shot 2020 09 26 at 16 46 38

The latest generation CV503 POV cameras feature a rugged aluminum alloy body, secure locking connectors, and good low-light ability.

Screen Shot 2020 09 26 at 17 13 39

The settings can be changed through UVC1.5. The camera will work with any Mac, PC, Laptop, or Linux system.

Price & Availability

There is currently no indication of pricing. The discontinued CV502-U3 USB 3.0 HD POV Camera was around $600 USD.
