Teradek Airmix– Professional Live Streaming for iOS

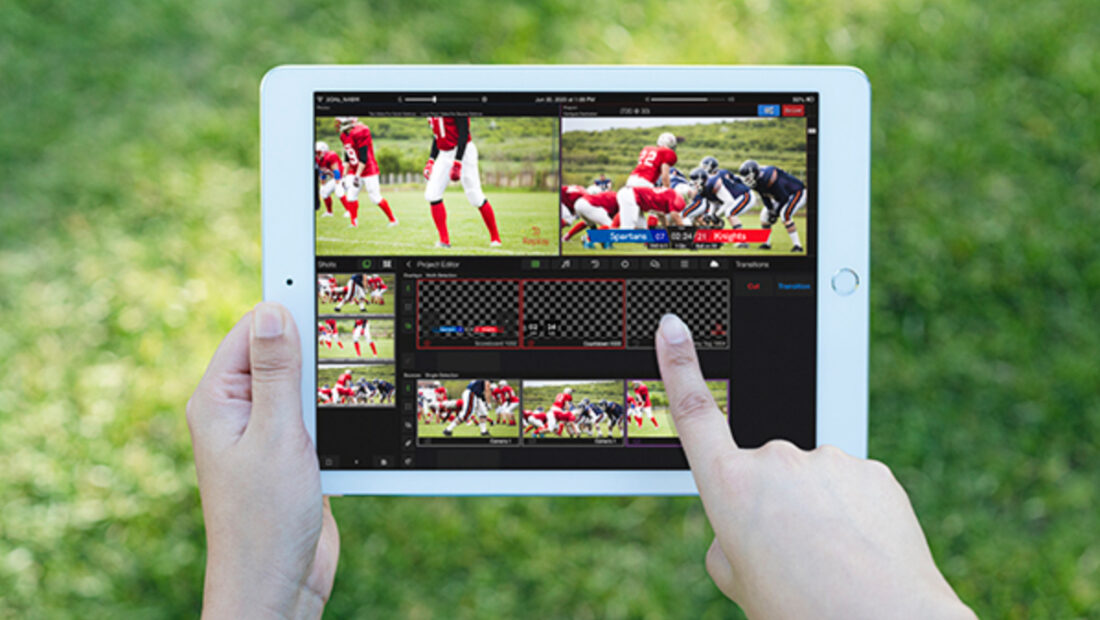

Screen Shot 2020 09 02 at 10 20 49

Teradek has officially made Airmix, a professional live streaming solution for iOS devices available.

Teradek formally had products such as Live:Air Solo – YouTube Live.

Screen Shot 2020 09 02 at 10 18 20

Airmix is an app that you download from the iOS store. You use it in conjunction with your basic single or multi-camera live production set-up. Essentially, Airmix turns your iOS device into a video switcher, making it a good solution for streaming.

Screen Shot 2020 09 02 at 10 23 30

You can broadcast to multiple platforms simultaneously, such as Facebook, YouTube, and Periscope. You could use Airmix to stream any type of event for any purpose you like.

Key features

  • Stream with up to 10 media sources time including cameras, network video, and pre-recorded files
  • Support for up to 1440p60 streaming resolution
  • PiP and Multiviewer functionality
  • Integrated audio mixer and graphics editor
  • Chroma key compositing
  • GIF and PDF support
  • Built-in customizable scoreboards and overlays
  • Streams to any online video platform
  • Instant replay and slow motion for sports
  • Picture-in-picture
  • Tally (with Airmix Remote app)
  • Record to the iPad instead of streaming, or do both simultaneously
  • Multiple video transitions including dissolve, swipe, and scale
  • YouTube, Facebook, and Twitch chat monitoring integration
  • RTSP remote video ingest
  • Project-based workflow with quick access presets
  • Manual camera control for iOS devices (bitrate, resolution, focus, exposure)

Airmix allows you to insert custom graphics, text, and customizable lower-thirds. You can also use a range of transitions, animations, and scaling options. These tools allow you to personalize your livestream by bringing in your own logos or content from web-based links and PowerPoint presentations. You can also use a chromakey (green screen) function if you want to use a different background.

Screen Shot 2020 09 02 at 10 18 39

For anyone streaming sporting events, Airmix lets your viewers re-watch plays throughout your broadcast in Instant Replay.

Screen Shot 2020 09 02 at 10 21 04

You can also break down particular plays in detail using Slow Motion. Airmix also features a built-in sports timer and a set of custom scoreboards.

Screen Shot 2020 09 02 at 10 36 57

Airmix supports up to ten video sources, with the ability to switch between iOS cameras and other cameras like DSLR’s and camcorders with Teradek encoders, plus pre-recorded video and audio files.

How does it work?

The Airmix apps can use external video cameras as a streaming source when they are combined with a compatible Teradek encoder.

This includes sports/action cameras such as GoPro or Replay XD, consumer- or professional-level camcorders, or Digital SLR / DSLR cameras.

NOTE: DSLR cameras are not typically recommended for live event production — refer to this article for additional information.

The following are required to use an external camera as a source:

  1. The physical video output from the external camera (HDMI or SDI) must be connected as input to a compatible Teradek encoder.
  2. The Teradek encoder must be configured to use the Airmix streaming mode.
  3. The Teradek encoder must be connected to the same network as the iOS device running the Airmix app.
  4. The network must allow communication between the Teradek encoder and the iOS device — refer to this article for additional information.

Other Features


Capture your event without an internet connection and stream it later


Control levels and set parameters for each video source


See what your audience is saying by adding YouTube, Twitch, and Facebook chat to your live broadcast


Live stream to multiple online video platforms simultaneously and ingest remote video feeds


Bring Powerpoint presentations into your live stream through PDF support


Project-based workflow with quick access presets

Price & Availability

Now, while the app may be free you do need an optional Teradek Core or Sharelink account for multi-platform streaming.

The Airmix Remote and Airmix Solo apps can only stream to a single destination at a time.

For example, a single stream can be sent to Facebook Live, YouTube Live, Livestream, Ustream, Wowza Streaming Engine, or your own RTMP server.

Streaming to multiple destinations simultaneously requires a subscription to the Teradek Core service.

When used with Core, the app can send multiple RTMP or MPEG-TS streams simultaneously by way of the Core-controlled Sputnik server.

Screen Shot 2020 09 02 at 10 40 02

Teradek offers three different versions of Airmix. There is Airmix Remote which you download for free from the iOS app store. There is Airmix solo which is for use with iPhones, and there is Airmix. Airmix is the fully-featured suite of production tools. It costs $29.99 USD/ month. Teradek does offer a 30-day free trial.

Airmix does look like an interesting solution, however, you need to factor in the cost of a subscription-based system, plus the cost of a Teradek Core or Sharelink account, and the associated equipment that is also required for streaming.
