Wooden Camera LPL Mounts Adaptors for Panasonic L Mount & Canon R Mount

Screenshot 2020 04 24 at 10 16 50 AM

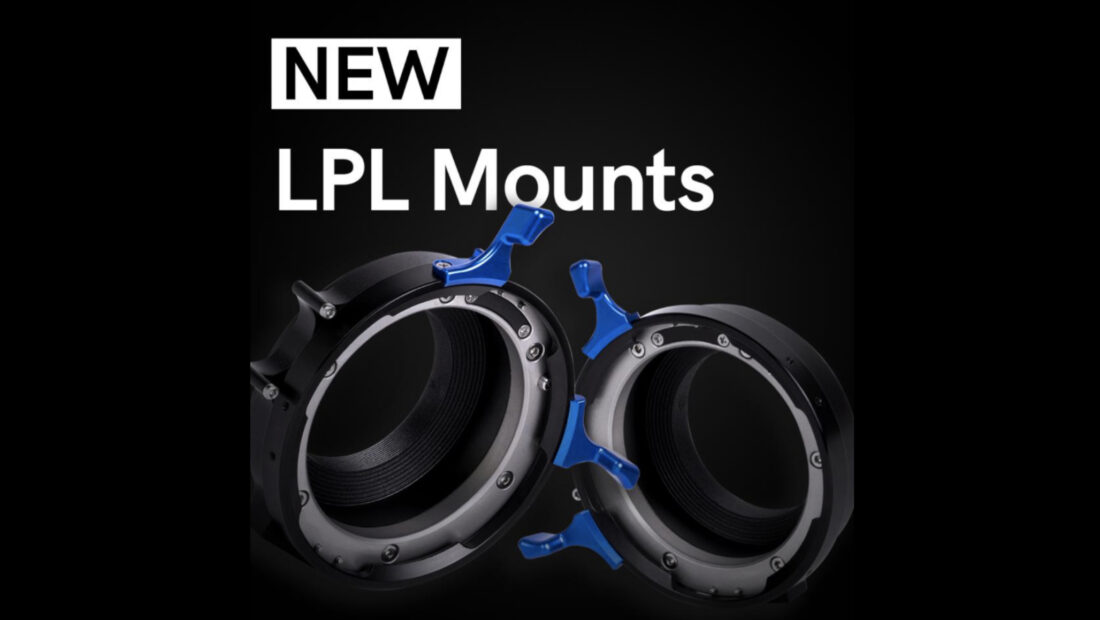

Wooden Camera has some new LPL Mounts that allow you to use lenses such as the ARRI Signature Primes and the Leica Thalia LPL on Panasonic L mount and Nikon R mount cameras.

Wooden Camera has had LPL adapters available for quite some time for Sony E-mount, Fujifilm G Mount, and RED DSMC2 cameras. They have LPL Mounts for the Sony VENICE and RED RANGER.

The new additions to the LPL collection are the Panasonic Leica L Mount to ARRI LPL Mount Adapter and the Canon R Mount to ARRI LPL Mount Adapter.

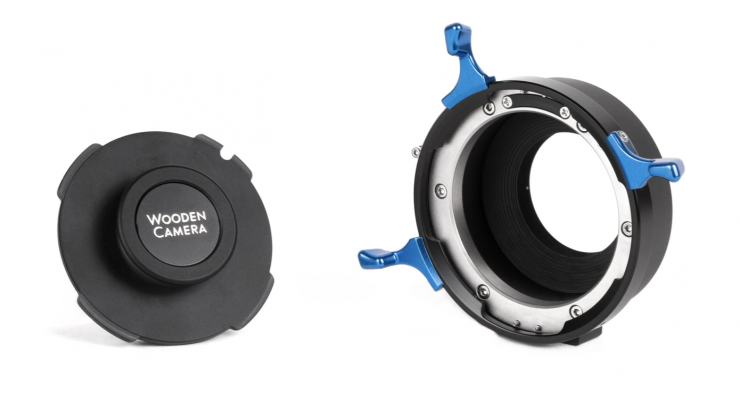

Panasonic Leica L Mount to ARRI LPL Mount Adapter

Screenshot 2020 04 24 at 10 09 42 AM

Panasonic Leica L Mount to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Panasonic or Leica L Mount cameras. Other LPL lenses like Leica Thalia LPL are also compatible.

The 1/4-20 threaded hole on the bottom reduces strain on the camera mount by attaching to a tripod or the vertical lens support hole on the Unified DSLR Cage. LPL Cap included prevent dust from entering the sensor area when the lens is not attached. A third tab is included for use with mount when not installed in a DSLR cage.

Wooden Camera set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

ARRI’s LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.

Shim Set (stackable to achieve necessary thickness)
Silver .0127mm (0.0005″)
Amber .0254mm (0.001″)
Purple .0381mm (0.0015″)
Red .0508mm (0.002″)
Green .0762mm (0.003″)
Tan .1016mm (0.004″)
Blue .127mm (0.005″)

Specifications:
Weight: 216g (0.5 lbs)
Dimensions: 81.8 x 81.8 x 46.5 mm (3.2 x 3.2 x 1.8 in)

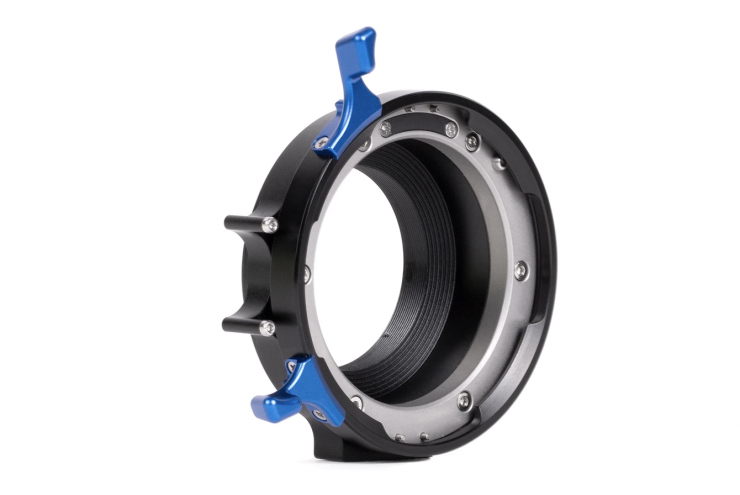

Canon R Mount to ARRI LPL Mount Adapter

Screenshot 2020 04 24 at 10 12 12 AM

Canon R Mount to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Canon R Mount cameras. Other LPL lenses like Leica Thalia LPL are also compatible.

The 1/4-20 threaded hole on the bottom reduces strain on the camera mount by attaching to a tripod or the vertical lens support hole on the Unified DSLR Cage. LPL Cap included to prevent dust from entering sensor area when lens is not attached. A third tab is included for use with mount when not installed in a DSLR cage.

Wooden camera set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

ARRI’s LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.

Shim Set (stackable to achieve necessary thickness)
Silver .0127mm (0.0005″)
Amber .0254mm (0.001″)
Purple .0381mm (0.0015″)
Red .0508mm (0.002″)
Green .0762mm (0.003″)
Tan .1016mm (0.004″)
Blue .127mm (0.005″)

Specifications:
Weight: 216g (0.5 lbs)
Dimensions: 81.8 x 81.8 x 46.5 mm (3.2 x 3.2 x 1.8 in)

Price & Availability

The Canon R Mount to ARRI LPL Mount Adapter and Panasonic Leica L Mount to ARRI LPL Mount Adapter both retail for $599 USD and they are now available ¥directly from Wooden Camera.
