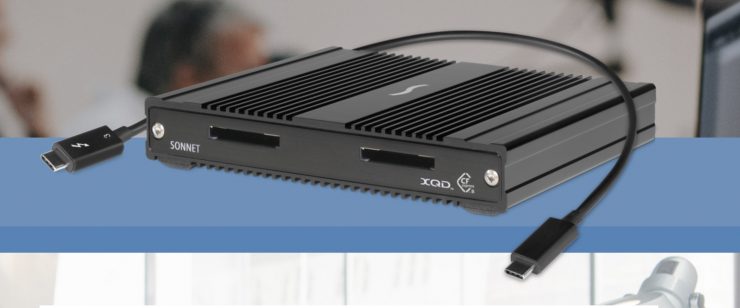

Sonnet Professional Dual-Slot Thunderbolt 3 Card Reader for CFexpress 2.0 Type B & XQD Media

Sonnet has announced a Professional Dual-Slot Thunderbolt 3 Card Reader for CFexpress 2.0 Type Band XQD Media.

The SF3 Series – CFexpress / XQD Pro Card Reader features dual card slots and a 40Gbps Thunderbolt 3 interface. CFexpress 2.0 Type B media was media developed to support the requirements of shooting 4K and 6K RAW video and continuous capture of high-megapixel photos. XQD cards have been available for several years and share the same form factor and connector as CFexpress 2.0 Type B media.

We are now starting to see quite a few cameras coming to market that are using CFexpress as their recording media.

Key Features

  • 40Gbps Thunderbolt™ 3 Interface
  • Dual CFexpress/XQD Slots
  • Ingest footage from CFexpress 2.0 Type B cards
  • Ingest footage from XQD cards
  • Rugged Aluminum Enclosure
  • Compact, Rugged, Stackable
  • Thunderbolt Cable and ThunderLok Included
  • Mac® and Windows® Compatible
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed in the USA

Fast Offloads

Screenshot 2020 02 13 at 9 30 42 AM

The Sonnet card reader can ingest files simultaneously from two CFexpress cards at up to 2,600 MB/s (or two XQD cards at up to 800 MB/s). This can cut ingest times by up to half compared to any USB- or Thunderbolt-based single-slot reader available.

Screenshot 2020 02 13 at 9 41 09 AM


The Sonnet’s SF3 Series – CFexpress / XQD Pro Card Reader is the only dual-slot CFexpress 2.0 Type B card and dual-slot XQD card reader available, and it supports both card types in both slots. For DITs working multicamera shoots or in a small workspace, the ability to stack multiple SF3 Series CFexpress / XQD, RED MINI-MAG, SxS, and CFast 2.0 readers in the same footprint is convenient, and you can do all this by connecting them all to a computer through a single cable.

Screenshot 2020 02 13 at 9 39 59 AM

For users who need to mount their gear in equipment racks, Sonnet SF3 Series readers include threaded mounting holes to support installation in a standard rack shelf, enabling side-by-side mounting of two readers in 1U of rack space.

Build Quality & Connectivity

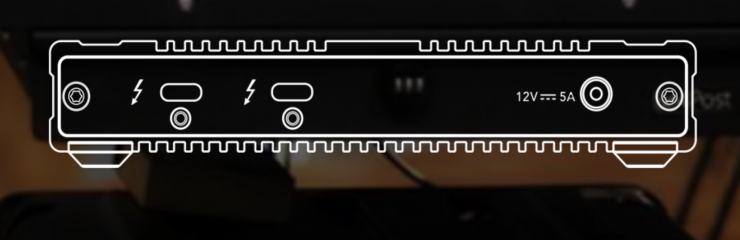

The card reader features a rugged aluminum enclosure and dual Thunderbolt 3 ports. These features enable users to stack and connect up to six readers to their computer in a daisy chain through a single cable, and ingest footage from four, six, or more cards simultaneously. The Sonnet reader is also compatible with older Macs with Thunderbolt 2 or Thunderbolt ports when used with the bidirectional Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately).

Price & Availability


The SF3 Series – CFexpress / XQD Pro Card Reader is now available for $199 USD.
