Wise CFexpress Card Review

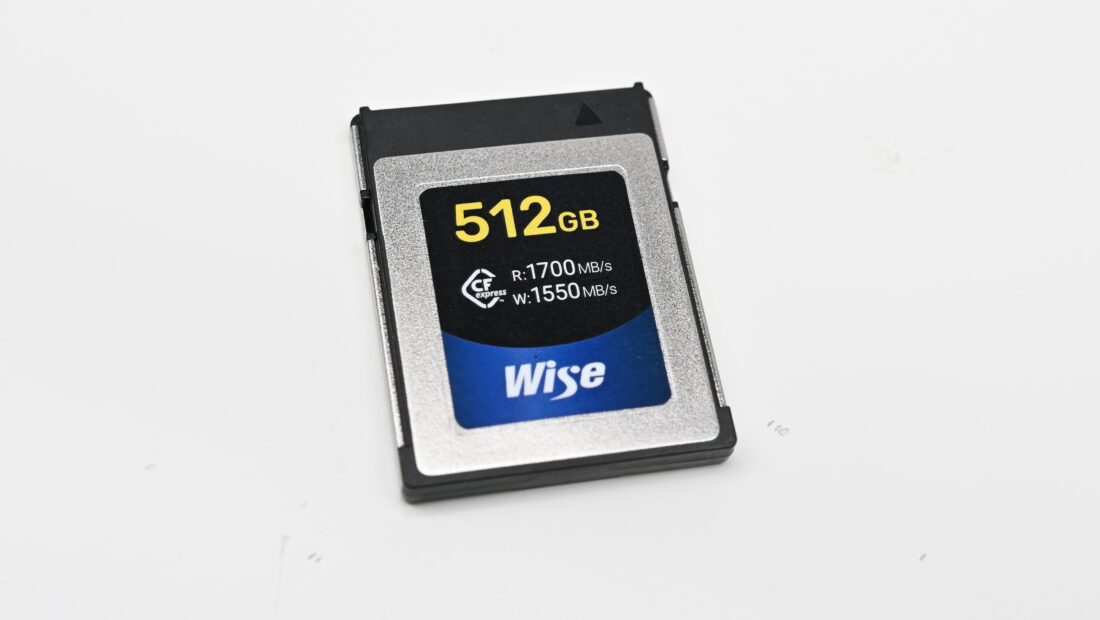

DSC 4877 01

Only a few weeks ago, Wise announced new CFexpress cards in capacities of 128GB, 256GB, and 512GB.

The cards were specifically designed and engineered to work with the Canon EOS C500 Mark II, Nikon Z6 and Z7. I was lucky enough to get my hands on one to review.

DSC 4879

CFexpress cards are relatively new, but I think we will start to see more and more cameras starting to use the technology, especially with increased resolutions and frame rates now being offered by camera manufacturers.

The Wise CFexpress cards are backward compatible with the XQD form factor with updated cameras to optimize performance.

Wise CFexpress cards are water-proof, dust-proof, shock-proof, and can be operated in temperatures ranging from 14˚F to 158˚F (-10˚C to 70˚C).

Sayonara XQD

IMG 7527

CFX-B series CFexpress enables 8K RAW continuous shooting and video recording for future premium DSLR, Mirrorless and video cameras. With the design of PCIe Gen3 interface, the card provides speeds of up to 1700 MB/s read and 1550 MB/s write, which is over 3 times faster than the best CFast 2.0 and XQD cards.

Capacity

One of the main reasons to choose CFexprees over XQD, aside from speed, is capacity. XQD cards top out at 256GB, while with CFexpress you can have a 512GB card.

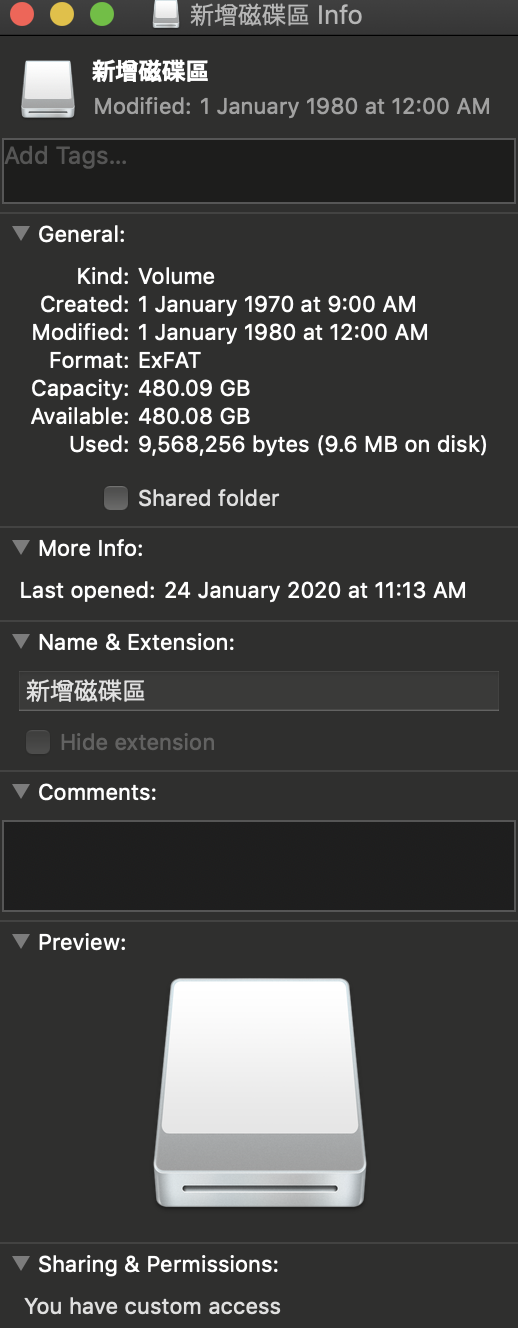

Screenshot 2020 01 24 at 11 13 47 AM

So when I mounted the 512GB CFexpress card it only shows the actual capacity as being 480GB. Given the recent RED Mini Mag controversy I reached out to Wise to ask them why a 480GB capacity card is labeled 512GB.

Wise told me “We reserve more space for buffer cleaning purpose which offer more stable writing performance in the beginning when developing the media. At that time, there are no host devices (cameras) coming out yet. Therefore, we think reserve this amount of space should be a safer choice. In the future or next firmware update, we may try to reduce this space and see if they still provide the same performance for current cameras.

In saying that my Nikon 128GB XQD card only has an actual capacity of 108.72GB. When I checked one of my ARRI SanDisk 512GB CFast 2.0 cards it actually has a capacity of 512GB.

I also got someone to check the capacity of the SanDisk 512Gb CFexpress card. That card also only has 476GB of capacity (3GB are used for structure).

Camera performance increase?

Nikon Z6

CFexpress uses a dual-lane PCIe 3.0 interface that enables it to meet the high read and write speeds that are quoted by card manufacturers.

The problem is, I believe that all of the current mirrorless and DSLR XQD capable cameras out there today only have a single lane PCIe 2.0 interface. What does this mean? Essentially only having a single ane PCIe 2.0 interface means the camera can only read and write to CFexpress cards at throttled down speeds that are similar to what you would already get with an XQD card.

canon c500 ii IBC 01

Until cameras start coming out with dual-lane PCIe 3.0 interfaces, the cameras read and write speeds when using CFexpress isn’t going to show fast speed improvements over XQD. From what I understand, the Canon C500 Mark II uses a dual-lane PCIe 3.0 interface.

The Nikon Z6 and Z7 don’t even use the full write speed capabilities of XQD cards, so CFexpress won’t offer any increased in-camera performance.

Way faster offload speeds

DSC 4887

Where you are going to notice massive speed improvements is when it comes to offloading your cards. Transfer speeds from your CFexpress card to your computer through a USB-C CFexpress reader will yield much faster results than when using an XQD card.

What you clearly need to remember, and this goes for any type of media, is that transfer speeds will vary depending on both read and write speeds of your card, your card reader, and what type of hard drive you are transferring too.

If you are using a CFexpress card and transferring to an HDD drive, you won’t be getting fast transfer speeds. If you are transferring to a very fast SSD then you will see lightning fast offload speeds.

Real World speed tests

I did a few tests to see what the sustained read/write speeds of the Wise CFexpress cards were and also how fast I could offload material through a USB-C card reader to an ultra-fast SSD. I also did the same tests with an XQD card.

CFExpress

Above you can see the read/write speeds using Blackmagic Disk Speed Test for the Wise CFexpress card.

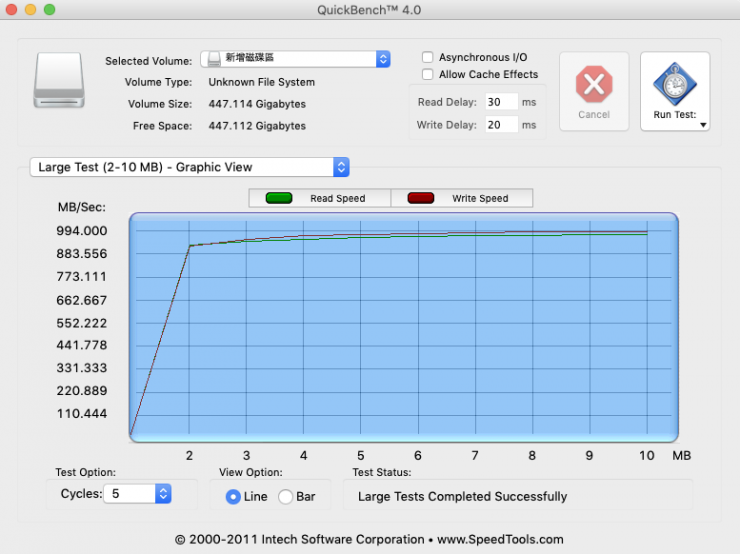

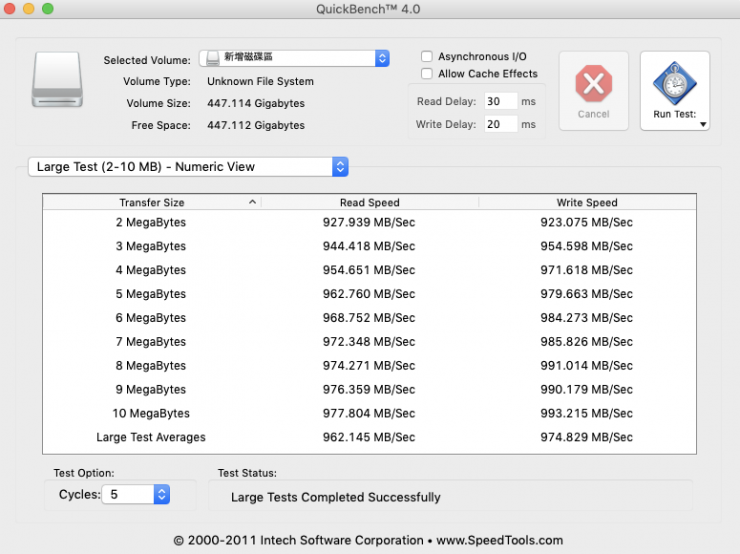

Above you can see a Quick Bench speed test for that same card. As you can see the sustained average write speed was 962.14 MB/s and the average read speed was 974.83 MB/s. Considering I was using a Wise CFexpress USB-C card reader that has a maximum read speed of 1000 MB/s these were the results I was expecting to see.

XQD

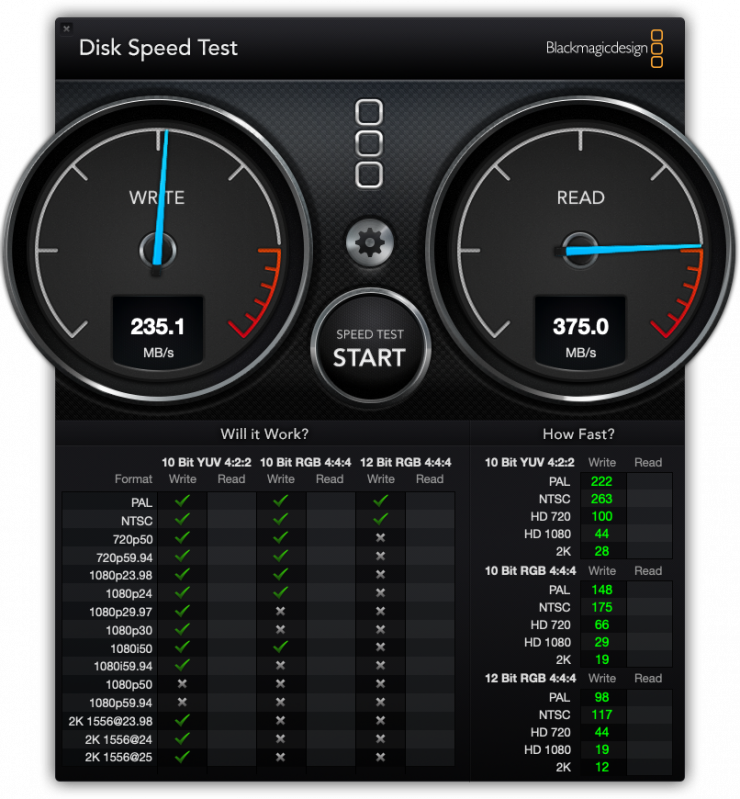

As you can see above, a Nikon 128GB XQD card when used with a USB3 card reader had a write speed of 235.1MB/s and a read speed of 375MB/s.

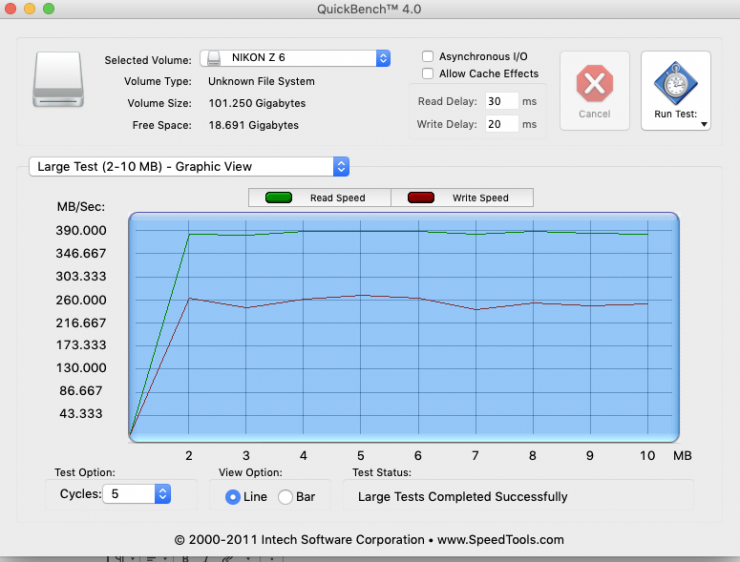

Screenshot 2020 01 24 at 11 04 30 AM

Above you can see a Quick Bench speed test for that same card.

I also tried some real-world tests with the Nikon Z6 where I started recording and then turned the power off. The files were saved and I didn’t lose any footage. With the Z6 if you pull the card out while you are recording it doesn’t save any of the last clip.

Price & availability

DSC 4839

They are priced as follows:

They come with a 2-year manufacturer warranty.

How does the price compare to XQD cards?

As a comparison here is what various capacity Sony XQD cards cost compared to Wise CFexpress:

CapacitySony XQDWise CFexpress
120GB/128GB$199.99 (120GB)$179 USD (128GB)
240GB/256GB$379.99 USD (240GB)$339 USD (256GB)

As you can see, the faster CFexpress cards are actually cheaper than Sony’s XQD cards.

Competition

Screenshot 2020 01 24 at 11 48 05 AM

Competition comes in the form of the SanDisk Extreme PRO CFexpress Card Type B. They come in capacities of 64GB, 128GB, 256Gb, and 512GB.

CapacitySanDisk CFexpressWise CFexpress
128GB$199.99 USD$179 USD
256GB$399.99 USD$339 USD
512GB$599.99 USD$499 USD

Above you can see the price comparison. The Wise cards are quite a bit cheaper, especially when you are looking at 512GB capacity cards.

Conclusion

DSC 4880

If you own a Nikon Z6/Z7, or you have just purchased a C500 Mark II, the Wise CFexpress cards are a nice option. With increased capacity and far greater offload speeds (depending on your hard drive), they make a lot more sense than buying an XQD card.

While you won’t get or see any noticeable increase in performance in-camera when using CFexpress in a Z6/Z7, the offload speeds make it a far wiser decision than using an XQD card.

If you are using them with a Canon C500 Mark II and are recording RAW internally, you are going to need quite a few of these cards to get you through a day!

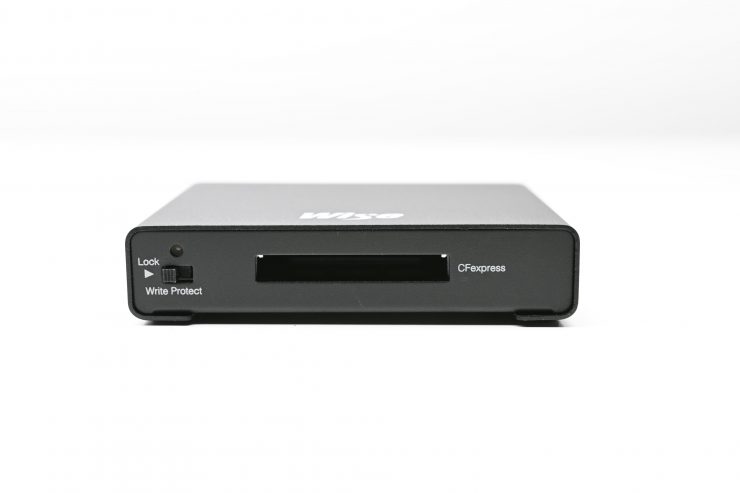

Wise Advanced CFexpress USB 3.1 Gen 2 Type-C Card Reader

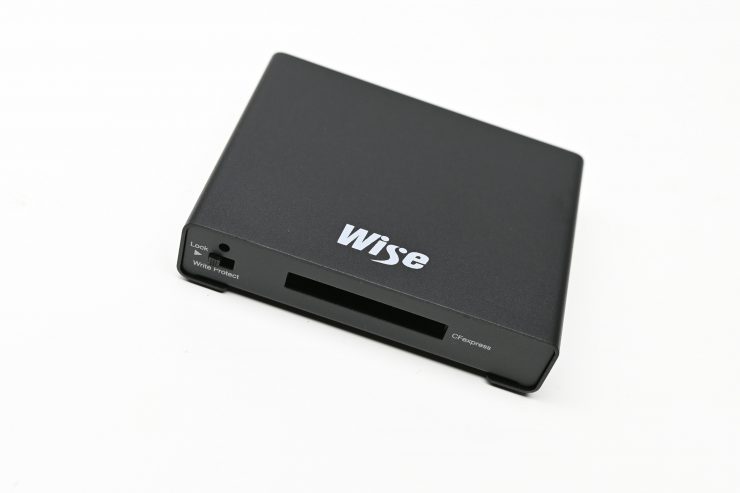

DSC 4885

The Wise Advanced CFexpress USB 3.1 Gen 2 Type-C Card Reader is built around the 10 Gb/s USB 3.1 Gen 2 standard and USB Type-C interface. The CFexpress USB 3.1 Gen 2 Type-C Card Reader from Wise Advanced enables smooth and efficient workflows for raw images, high-res photos, and 8K, 4K, HD, and 3D video.

Its aluminum design is not only durable but helps protect against overheating, and a built-in write protect switch helps users avoid accidental data loss.

Key features

  • Burst Speeds of up to 10 Gb/s
  • With read speeds of up to 10 Gb/s, you’ll be able to transfer raw images, high-res photos, and 8K, 4K, HD, and 3D video.
  • Built-In Write Protect Switch
  • Wise Advanced’s integrated write protect switch helps users guard their footage from accidental deletions.
  • Aluminum Design
  • The aluminum design is not only durable but helps protect against overheating.

I tested out the card reader and found that it worked as advertised. Even though it says read speeds of 10Gb/s are possible, the real-world performance you get when offloading a CFexpress card over USB-C is around 1000MB/s.

DSC 4837

The Wise Advanced CFexpress USB 3.1 Gen 2 Type-C Card Reader is now available to pre-order for $59 USD.
