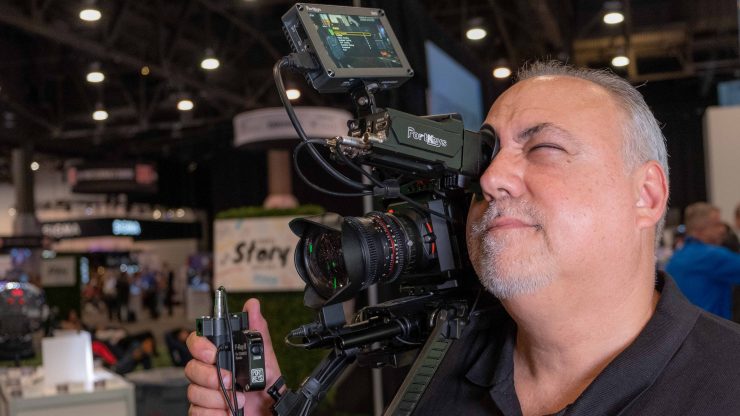

Portkeys is showing their new OEYE-3G EVF at NAB and it looks pretty good. The EVF has a full HD 1920 x 1080 OLED and delivers a sharp image making focusing easy. The color looks good as well.
I/O and diopter adjustment
Specifications
| Screen Size | 0.71″ |
| Dimension | 180×69.7×72.4mm |
| Brightness | 200nit |
| Resolution | 1920 x 1080 |
| Color Depth | 8bit |
| Screen | OLED |
| Input Voltage | DC 7-24V |
| Power Consumption | 7 watt |
| Diopter | +8D~-3D |

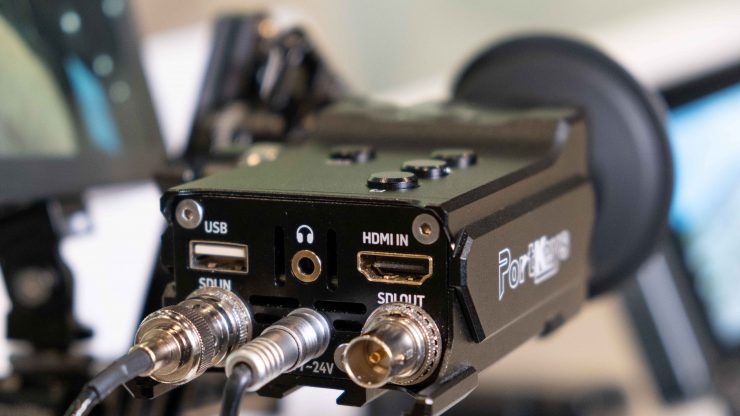

The OEYE-3G has SDI and HDMI with looping capability so you can feed the EVF with SDI and send the signal out as HDMI. It does support 4K input, however only at 24fps.

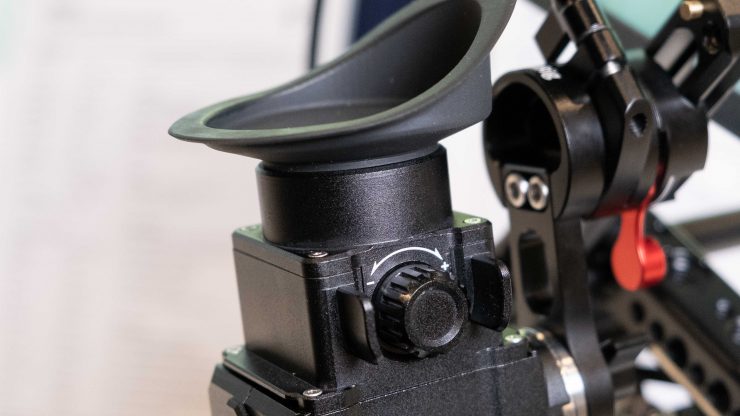

The diopter range is +8D~-3D. I wear +2 reading glasses and still have some range left.

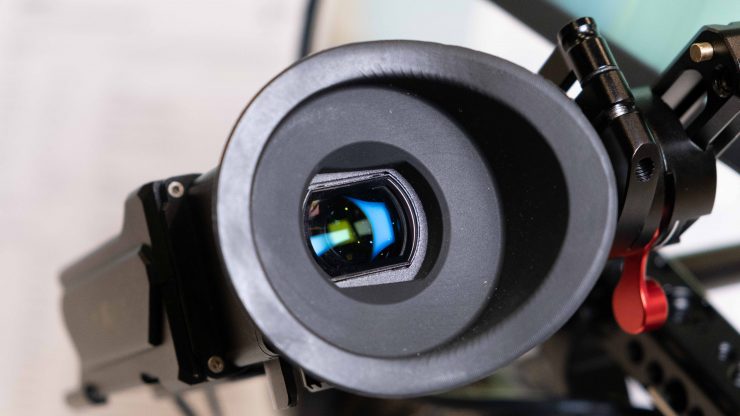

The lens does have some distortion when not looking directly in the center but I didn’t find it distracting. By way of comparison this is also present in the Zacuto Gratical.
Build quality and features

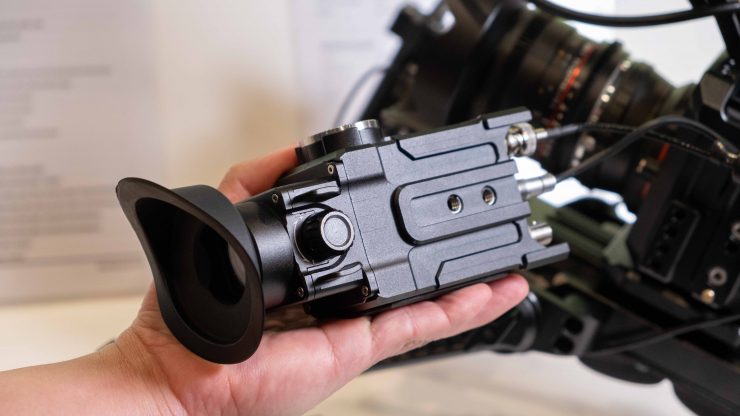

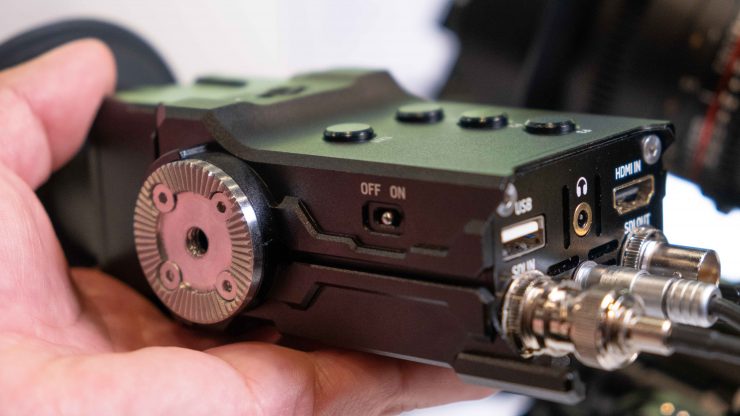

The build feels solid. To mount the EVF there’s an ARRI rosette on the side and a 1/4″- 20 tap on the bottom. There is also a raised area for a hardware mounting solution that will be available from Portkeys after release.
There’s an on/off switch on the side and that’s a nice feature so you won’t accidentally drain the camera battery when not in use. I like the headphone jack on the back for monitoring audio. This keeps the cables to a minimum when mounted.
I did notice some latency on the OEYE-3G EVF. Portkeys told me they are still tweaking the hardware for better performance.
LUTs and power

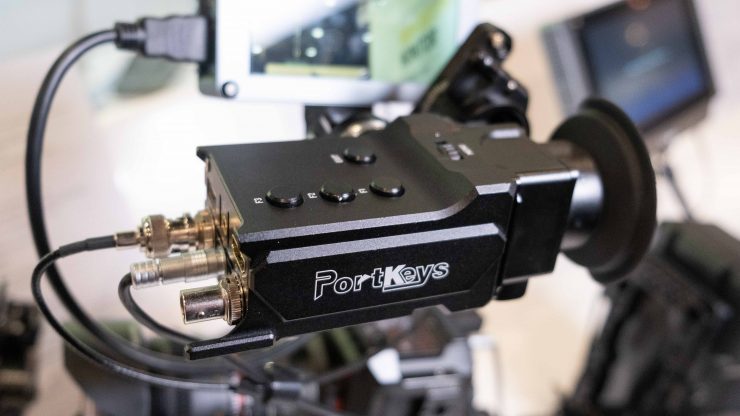

If you shoot Log you can load up some LUTs and select up to 30 different looks. Powering the EVF requires an external solution though – you can’t attach a battery directly to the EVF.
HDMI Signal Input
- 4096×2160p@24Hz
- 3840×[email protected],24Hz,25Hz,29.97Hz,30Hz
- 1920×[email protected],24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz
- 1920×[email protected],24Hz,25Hz,29.97Hz,30Hz
- 1920×1080i@50Hz,59.94Hz,60Hz
- 1280×720p@50Hz,59.94Hz,60Hz
- 720×576i@50Hz
- 720×576p@50Hz
- 720×[email protected],60Hz
- 720×[email protected],60Hz
SDI Signal Input
- 1920×1080p@50fps,59.94fps,60fps
- 1920×1080p@50Hz,59.94Hz,60Hz YUV422
- 1920×[email protected],24Hz,25Hz,29.94Hz,30Hz
- YUV444/YUV422/RGB444
- 1920×[email protected],24Hz,25Hz,29.97Hz,30Hz
- YUV444/YUV422/RGB444 1920×1080i@50Hz,59.94Hz,60Hz
- YUV444/YUV422/RGB444
- 1280×720p @50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444
Tools avaliable
- OEYE-3G EVF
- 3D LUT
- Audio Meters
- Pixel To Pixel Brightness Contrast
- Chroma Sharpness
- Tint
- Color Temperature Aspect
- Backlight
- Display flip
- OEYE-3G EVF
- Osd flip
- Check Field
- H/V Delay
- Guides
- Cross Hair
- Grids
- Peaking
- False Color
- Zebra
- UnderScan
- Waveform
- Zooming
Price and availability
The Portkeys OEYE-3G EVF will retail for $1,199 US and will be available June.
