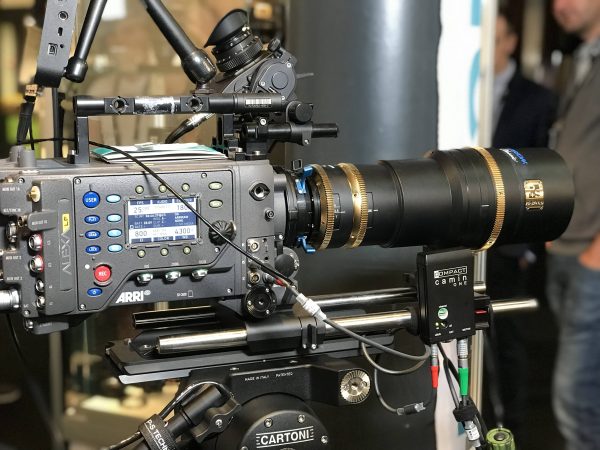

P+S TECHNIK was showing their TECHNOVISION Classic 70-200mm 1.5X anamorphic Full Frame Zoom which is the companies third 1.5X anamorphic Full Frame zoom at IBC. The lens joins the 1.5X 40-70mm (LPL mount), and the 1.5X 35-70mm lens (PL mount).
The TECHNOVISION Classic 70-200mm 1.5X anamorphic Full Frame Zoom has a constant T3.5 aperture and allows for anamorphic capture on 16:9 and VistaVision sensors. It features a front anamorphic design and a front diameter of 114mm.
The TECHNOVISION Classic zooms covers the Full Frame format (36 x 24mm). With the 1.5x anamorphic squeeze the lens is adapted to the widely used 16:9 sensor ratio and offers anamorphic qualities, such as barrel distortion, nicely formed flares and shallow depth of field. When shooting with the Arri Alexa Mini in Open Gate, the whole sensor image area is used with this lens.
| Zoom Range | 70-200mm |
| Anamorphic Squeeze Factor | 1.5x |
| Lens Mount | LPL / PL (standard) IMS Interchange Mount System |
| Light Sensitivity | T 3.5 |
| Angular Rotation of Iris Scale | 70° |
| Angular Rotation to MOD Endstop | 250° |
| Min. marked distance | tbd |
| Close focus from front | tbd |
| Image Diameter | tbd |
| Iris Drive Gear | Mod. 0.8 |
| Focus Drive Gear | Mod. 0.8 |
| Front Diameter | 114mm |
| Compatibility |
Lens Mount
PL Mount
|
| Weight (in gram) | 3500 |
| Dimensions | Length: 310 Width:114 Height:114 |
The TECHNOVISION Classic 70-200mm 1.5X anamorphic Full Frame Zoom will retail for €27,500 ($31,582 USD).
