Shape the light with new Aputure Barn Doors for the Light Storm C120 and C300

Back in 2016, Aputure introduced the COB Light Storm 120t. Since then they have produced a daylight version (12od) as well as the high output Light Storm 300d. The fixtures share the same popular Bowens mount that supports a ton of 3rd party accessories widely available such as beauty dishes, snoots, and softboxes.

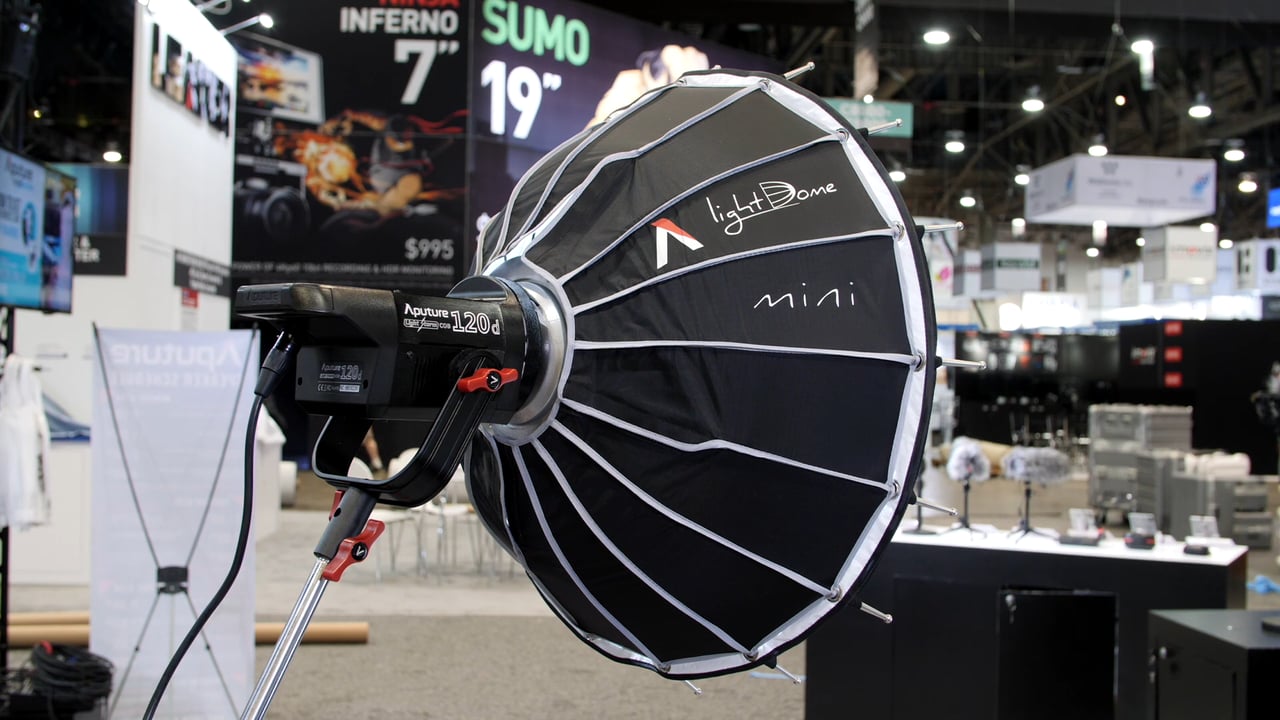

Aputure Space Light

Aputure makes a lot of diffusion options for the COB Light Storm line such as the Light Dome, Light Dome Mini as well as a Space Light that is similar to a large Chinese Lantern. To have more control of the COB fixture a Fresnel is also available. However, Aputure never made barn doors for the COB Light Storm until now.

Aputure Barndoors Features

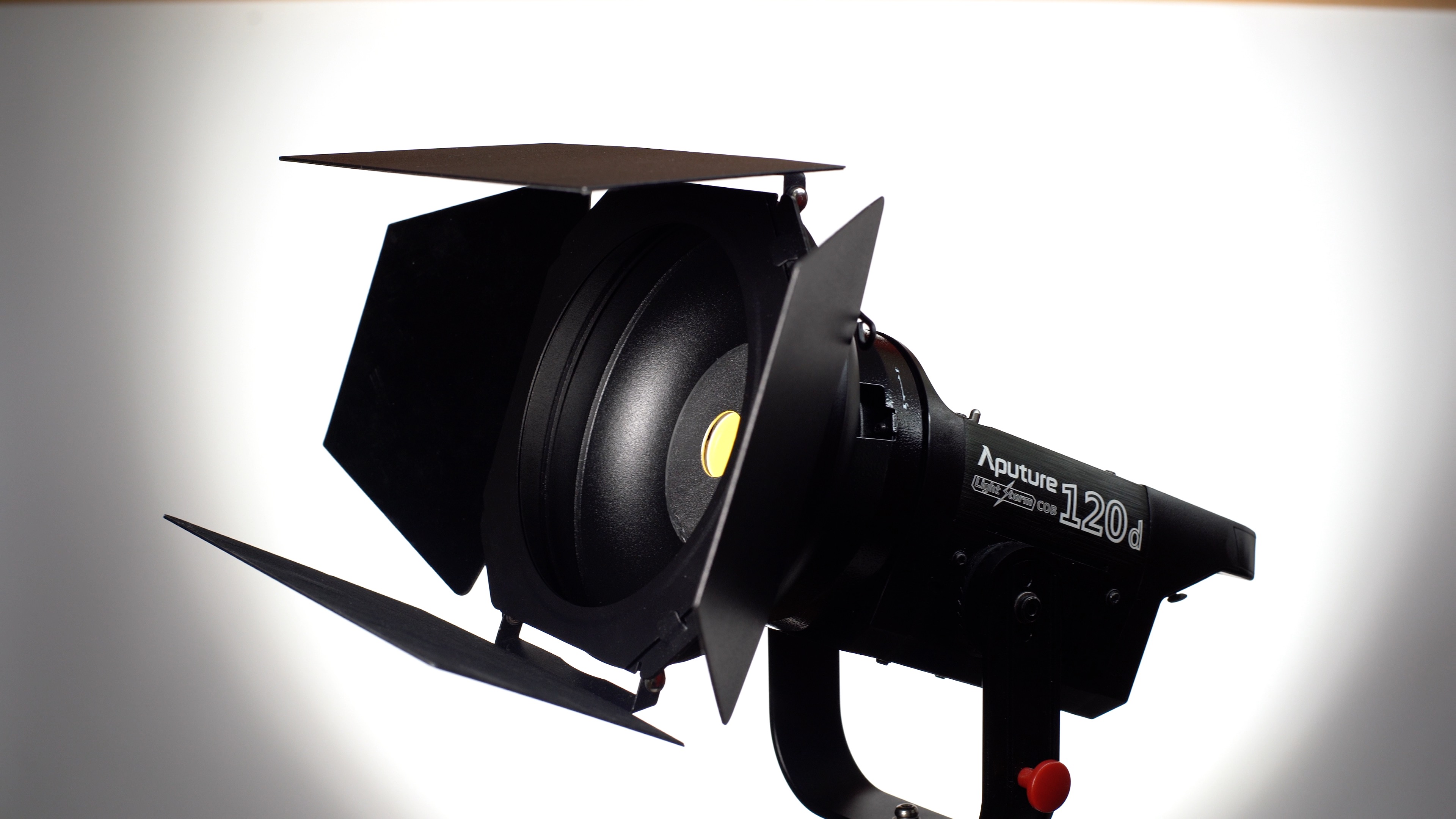

Aputure Barndoors on 120d

The Barndoors are solid. I mean really solid. They’re on the heavier side. I compared them to the ARRI 650 barn door and they weigh about twice as much at 2lbs compared to 15oz of the ARRI 650 barn doors. The Aputure Barndoors are a little bigger than the ARRI’s as well.

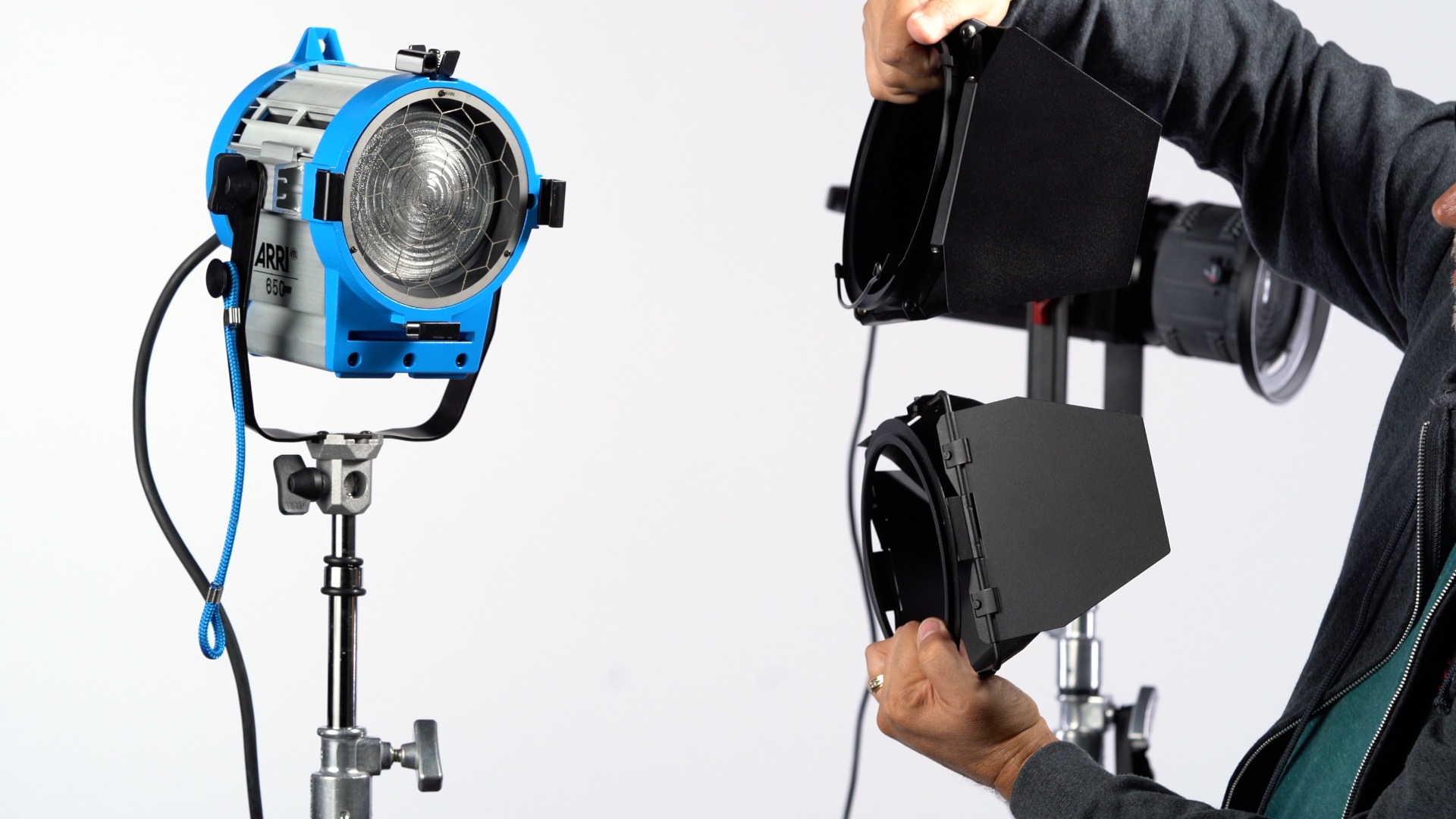

Barndoors ARRI side by side fixture

Each of the four flags on the barn doors has felt added to suppress reflections. The doors are tight on the mount and hold positions as it should.

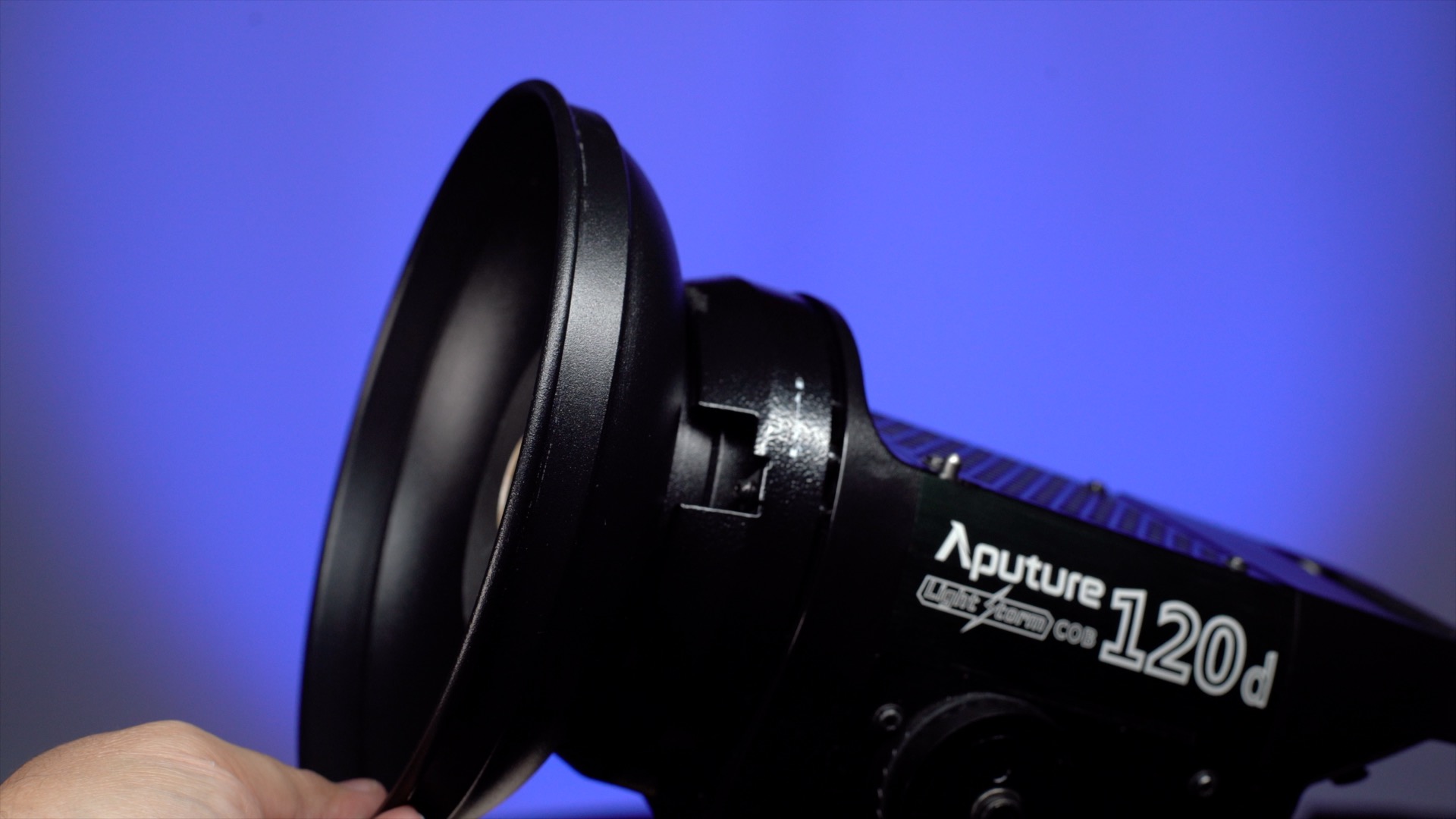

Aputure Barndoors shallow modifier

The barn doors come with a shorter Bowens mount. This keeps the fixture shorter and gets the doors closer to the COB light source for better control.

To mount the barn doors, it uses a stiff wire that locks into a notch on the mount. It’s not a new design as I’ve seen this with 3rd party models. This mechanism holds fine, but if you tug on them really hard they will come off of the Bowens adapter. Don’t do that.

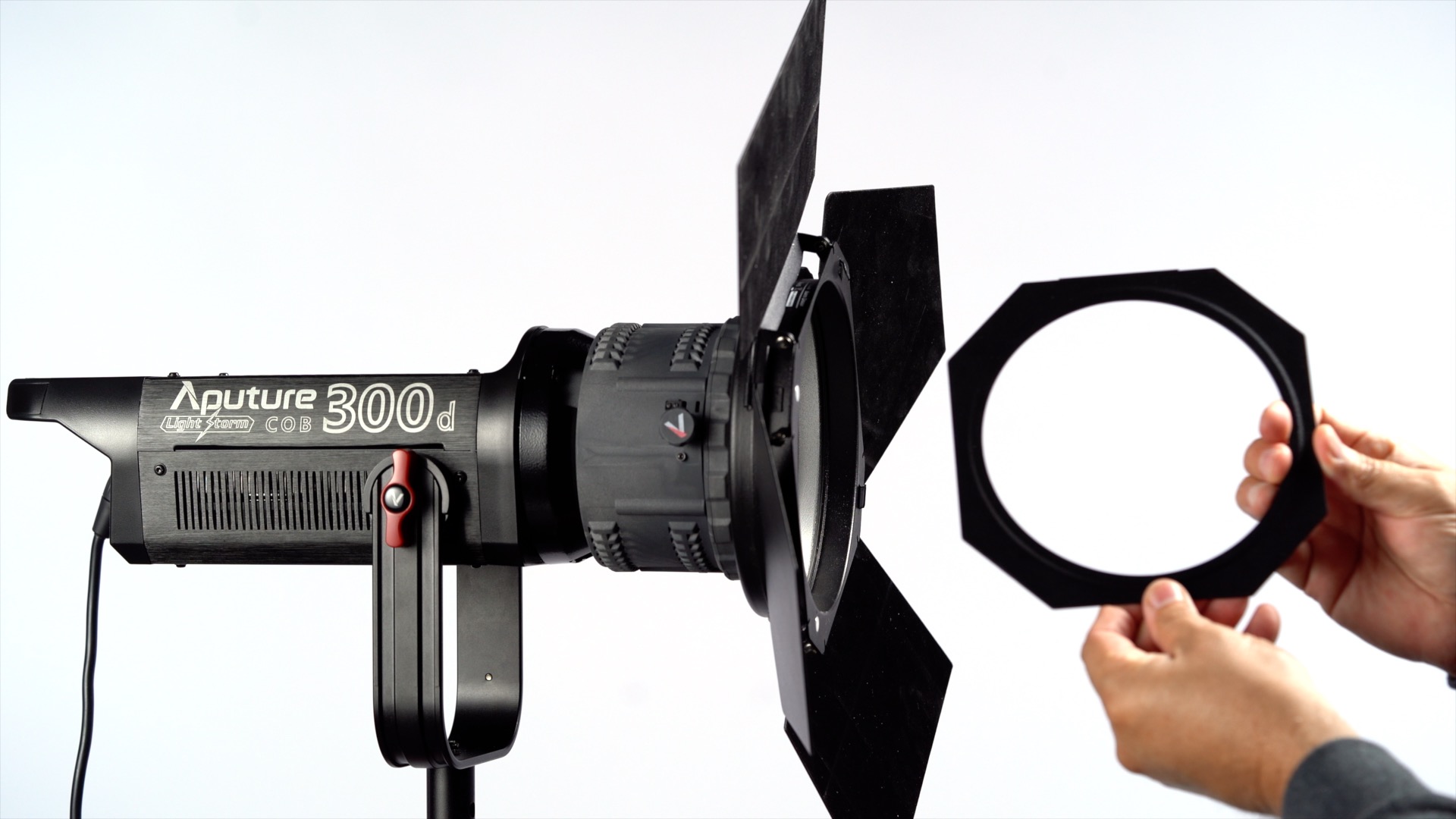

Aputure Barndoors filter holder

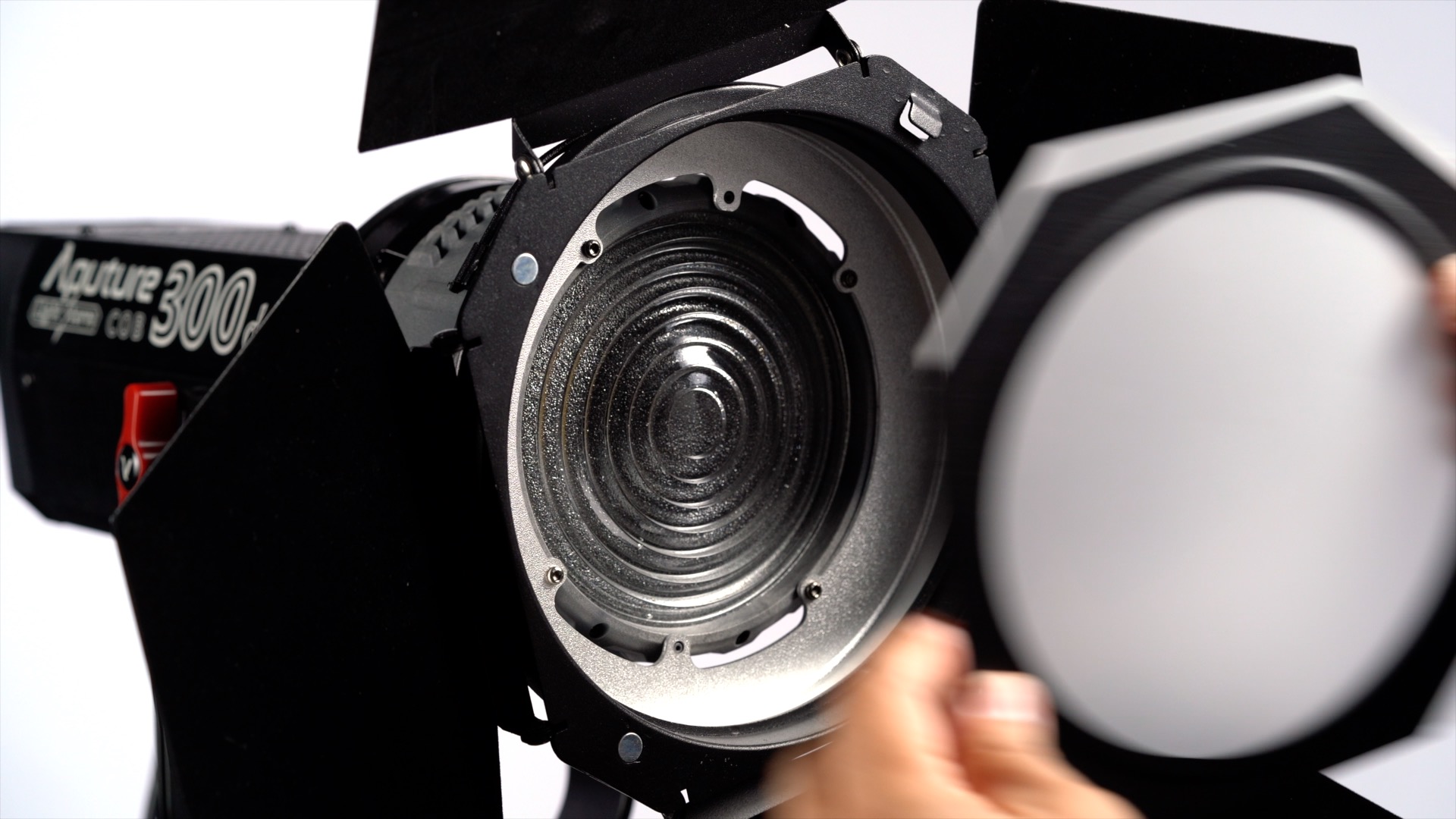

Aputure Barndoors filter holder magnets

The kit comes with a nice filter holder that is held in place by two magnets. Simply slide a pre-cut gel into the filter holder and slide it into the front of the Barndoors. Two clips also hold the filter in place along with the magnets.

I tested some Rosco Color Effects Filters on the 300d and the gels melted in the center. I also tested Lee Filters Master Location Pack colored filters and they worked perfectly. In order to prevent the Rosco filters from melting, I had to use the larger modifier that is included with the 300d. This puts the gel farther away from the COB.

Using The Aputure Barndoors

I tried them on the 300d with and without the fresnel. I was surprised how mushy the fresnel is with the 300d. The fresnel does increase the output of the fixture, however, I wasn’t able to get a clean cut with the doors. The ARRI for example, without the Fresnel, I actually got a better cut. Strange right?

Aputure Barndoors ARRI side by side

The design of the Barndoors performs better than the ARRI’s for a clean cut. All Barndoors have some leak, however, Apurture’s design doesn’t allow much light from the side due to good coverage from behind near the mount. The ARRI doors don’t get as close together either while the Aputure barn doors has cleaner ends.

Final thoughts

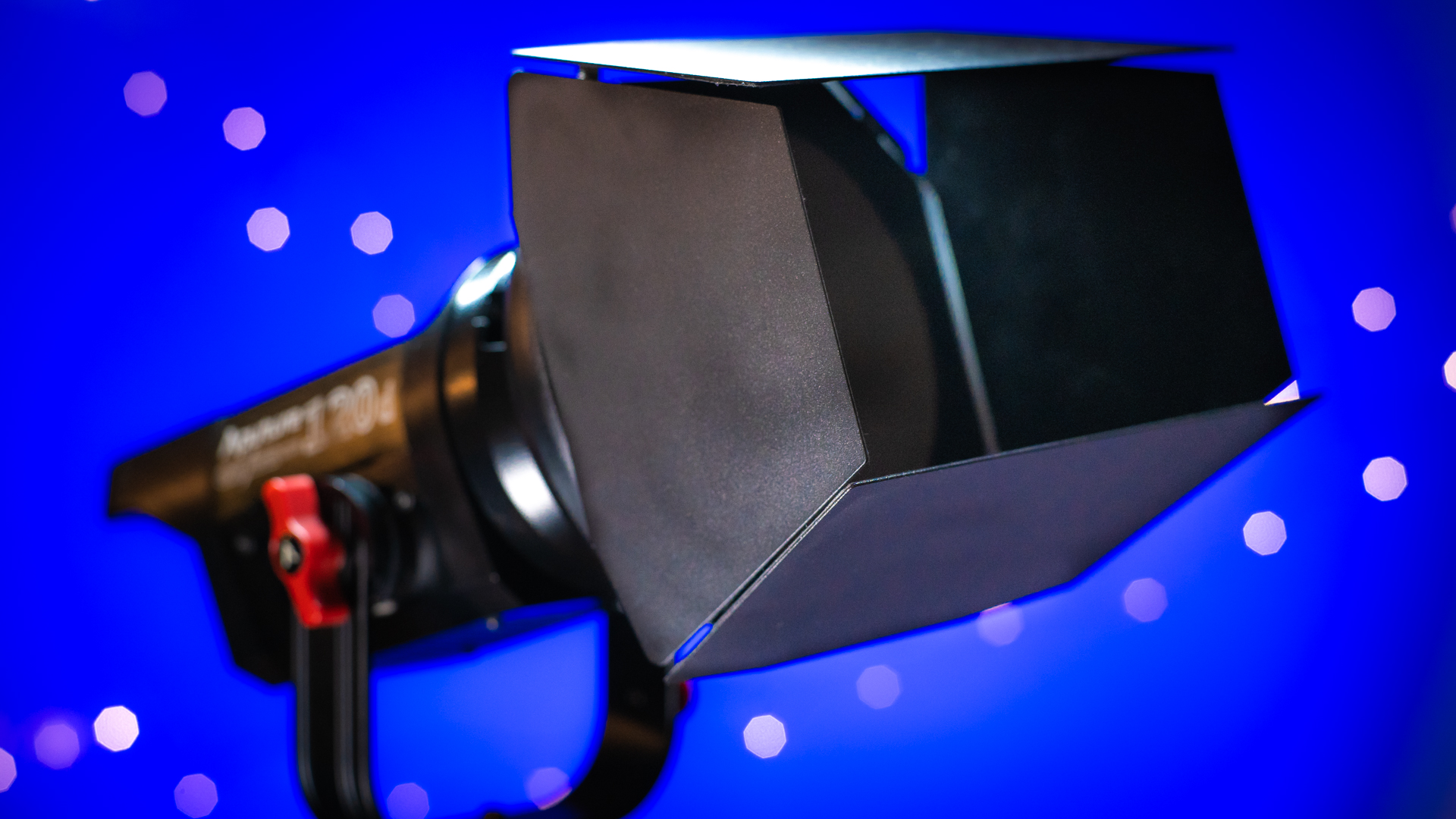

Aputure Barndoors

These are still pre-production models. I like the build quality, however, wish they were a little lighter. It’s nice to have a more compact Bowens mount for them but would have preferred to not have two pieces. If it was a single piece then it would make attaching them to the fresnel impossible. The filter holder is very nice. Much better than clipping to the doors. Get a few of your favourite pre-cut and you’re good to go! All in all, a better solution than what is readily available. Pricing and availability have not been formally announced yet. Aputure states they will cost around $50-$70 USD, and start shipping some time in July-August.

Side note. I shot this review with the Sony a7 III without a profile. I do think it’s more contrasty than I like but overall it looks good. I’m now playing with CINE4 and Stills colour. Nice combo!
