Arri SkyPanels Firmware 4 adds 10 new features

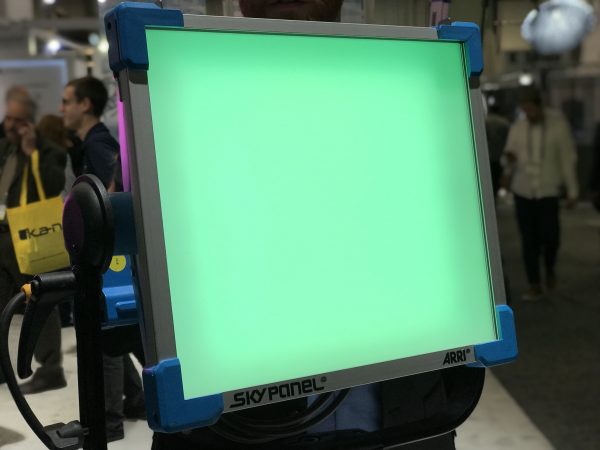

SkyPanel Firmware 4 brings new controls to the SkyPanel. Arri have released a beta of their firmware for their Skypanels and this update has a truck loads of new features, ten in total.



Extended Colour Control

Extended Colour Control in SkyPanel Firmware 4 makes finding the perfect colour easy and intuitive. Simply pick a starting colour such as a digital gel, HSI value, or colour temperature and use the eight new colour adjustments to push the colour in the desired direction. These colour parameters include warmer/cooler, saturate/desaturate, +/- red, +/- green, +/- blue. +/- cyan, +/- magenta, +/- yellow. These controls are available via the onboard control panel or DMX.

Light Engine DMX Control

Every SkyPanel is made up of one or more light engines. The S60 has two light engines while the S360 has twelve light engines. SkyPanel Firmware 4 allows the user to control individual light engines via new DMX modes. Each light engine acts as its own mini SkyPanel with parameters like CCT & RGBW, HSI, or x,y Coordinates. This precise level of control enables new programing possibilities with the SkyPanel.

 Additional Lighting Effects

SkyPanel’s range of  lighting effects is expanding with SkyPanel Firmware 4. Explosion, welding, process, and fluorescent flicker have been added to the lineup for a new total of 17 pre-programmed lighting effects. Explosion is the perfect effect for muzzle flashes and explosion effects. Welding mimics the sparks of a high intensity welding source. Process sends light shooting down the surface of a SkyPanel to imitate the effect of a street light passing over a car – this effect works well with the S120. And finally, the fluorescent flicker effect recreates the hum and flutter of a malfunctioning fluorescent bulb. The customer favorite cop car effect has been augmented with five new colour combinations.

 Stage Mode

Activating Stage Mode allows SkyPanel to smoothly and seamlessly dim down to zero percent intensity without colour jumps or noticeable intensity drop off.

 Ultimate DMX Mode

In the past, choosing the right SkyPanel DMX mode for a project would force a choice of one or two predefined colour selection methods. For example, if colour temperature control and lighting effects were needed, this would require a change in DMX mode. With the Ultimate DMX Mode in SkyPanel Firmware 4, this is no longer necessary. The Ultimate DMX Mode allows for any control mode to be selected within one DMX mode. Simply pick the colour method (CCT, HSI, lighting effects, etc.) and the DMX parameters will adjust to allow for control of the selected control method. One DMX mode is all that is needed.

 New SkyPanel Web Portal

The SkyPanel Web Portal is a way to make adjustments to a SkyPanel over an Ethernet or WiFi network. This Web Portal has been vastly expanded and improved in SkyPanel Firmware 4. A completely new design allows for fast navigation and new control interfaces offer complete control over all aspects of a SkyPanel directly from any web browser. Advanced monitoring capabilities also provide an in-depth view into all DMX functions.

 DMX Live Page

When receiving a DMX signal, the SkyPanel can display detailed DMX information directly on the control panel with SkyPanel Firmware 4. Not only can the DMX mode, address, and channel count be easily read, but the SkyPanel now displays lighting values for the DMX signal it is receiving. The SkyPanel even does the conversion from DMX values to real world light output values by calculating the math internally. This feature will be a powerful tool when troubleshooting DMX issues.

 Strobe DMX Channel

Strobing the light is one of the most popular effects in the SkyPanel lighting effects range. To make it easier to access this important effect, one of the reserved DMX slots at the end of every DMX mode has been turned into a strobe channel. No matter what colour mode is being used in SkyPanel Firmware 4, it is now easy to strobe that colour without having to change to the lighting effects DMX mode.

 x, y Coordinate Onboard Control

x, y Coordinate Mode has become a popular method for recreating an exact match to a colour point measured with a spectrometer. In SkyPanel Firmware 4, this colour mode can be controlled via DMX and can now also be adjusted using the onboard control panel.

 Custom RGBW White Point

SkyPanel Firmware 3.0 introduced a RGBW Calibrated Mode with a set white point of 3200 K. In the new SkyPanel Firmware 4, this white point can be set anywhere from 2800 K to 10,000 K. Having a user selectable white point gives users the ability to customize their SkyPanel RGBW output to any other light source’s white point.

Other Minor Changes

As with all Firmware updates, many small improvements and bug fixes have been made with SkyPanel Firmware 4 including menu adjustments, improved DMX behavior, and the ability to adjust the Bonjour state.

Availability

The firmware is available as a beta today and the final version will be out April 20 2018.

Here is a link to the download page – http://www.arri.com/lighting/l_series/led_software/skypanel_firmware/
