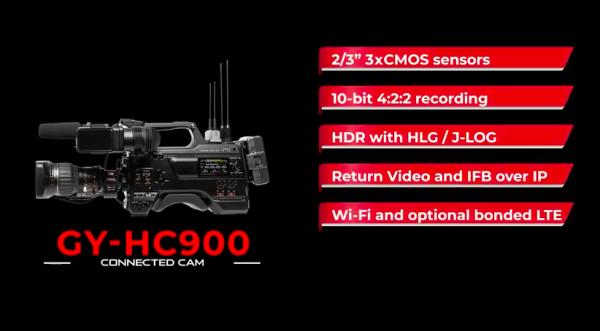

JVC’s new GY-HC900 2/3″ Broadcast Live-Streaming Connected Camera

JVC has announced the GY-HC900 “CONNECTED CAM” broadcast camcorder, which features three 2/3-inch CMOS image sensors, as well as a complete built-in news-over-IP workflow solution.

JVC GY-HC900 2/3-INCH BROADCAST CAMCORDER WITH COMPLETE IP WORKFLOW

When paired directly with the optional ProHD Dockable Bridge or via Wi-Fi with any ProHD Bridge unit, the GY-HC900 allows on-air talent to conduct a two-way interview with return video while streaming live to air without any external boxes or backpacks. This is JVC’s first camera that features a new communications engine that optimizes both image processing and IP performance. According to JVC, this engine enables simultaneous recording, low latency streaming, and simultaneous decoding for return video and IFB. Latency can be as low as 500ms for both outgoing and incoming video.

Having built-in live streaming technology and return audio is certainly a very useful feature for news organizations. Going live as quickly as possible is paramount in today’s news environments, and being able to do it without the need for an external LiveU or Dejero system saves a cameraman from having to carry around extra equipment.

https://us.vocuspr.com/Publish/3310842/vcsPRAsset_3310842_67177_b9ae7add-4087-4658-b996-9aa8d78a4839_0.jpg

The GY-HC900’s complete IP workflow includes streaming performance up to 20 Mbps and built-in Wi-Fi (2.4Ghz/5GHz) with dual external antennas. The camera also features Zixi™ error correction with automatic repeat request (ARQ) and SMPTE 2022 forward error correction for reliable transmission.

Looking beyond ENG, the GY-HC900 also looks to be a good choice for high-end EFP and studio fiber applications. It works with the FS-900 camera module, which attaches to the camera via a 68-pin interface, and feeds 3G-SDI signals, control, audio, sync, and intercom to a base station via fiber.

JVC GY-HC900 2/3-INCH BROADCAST CAMCORDER WITH COMPLETE IP WORKFLOW

The camera is equipped with an industry standard B4 lens mount and four-position optical filter. The GY-HC900 delivers a sensitivity of F12 at 60Hz, F13 at 50Hz in extended mode and high 62dB signal-to-noise ratio (in standard mode). The 2/3-inch CMOS sensors, each with 1920×1080 pixels, combine with an F1.4 prism to produce full HD images. The camera also offers an HDR mode, as well as up to 120fps 1080p slow-motion recording.

The GY-HC900 supports native recording of both MPEG-2 at up to 35 Mbps, which is widely used by broadcasters, and H.264 (.MOV), which provides 10‑bit, 1080/60p 4:2:2 footage. Plus, the camcorder records in Sports Exchange Standard formats, so sports organizations can produce HD video with rich metadata that specifically addresses the workflow needs of sports production and video coaching applications. The camera can also record in J-log.

With dual memory card slots for SDHC/SDXC media, the GY-HC900 offers redundant, relay, and backup recording modes. It also records proxy resolution video clips for off-line editing or online posts. The camera includes a 3.26-inch OLED colour viewfinder, as well as a 3.5-inch LCD panel for menu navigation.

JVC GY-HC900 2/3-INCH BROADCAST CAMCORDER WITH COMPLETE IP WORKFLOW

An integrated 3G-SDI pool feed input allows the GY-HC900 operator to capture video and stream it live simultaneously. Camera functions can also be controlled via a web browser or the JVC RM-LP100 remote camera control. The camera also boasts an IPX2 water resistant rating for operation in challenging conditions. Other features include a genlock input, time code in/out, dual 3G-SDI outputs and an HDMI output, three XLR audio inputs, Ethernet and USB ports, wireless audio module slot, and an additional slot for future expansion.

The camera weighs in at 4.7kg (10.36lb) and draws 35W of power. This low power draw means it can be run off standard V-lock or Anton Bauer batteries for long periods of time, even when streaming.

Available in June, the GY-HC900 CONNECTED CAM with a 20x lens has an MSRP of $18,500 USD, and is also available without a lens (GY-HC900CH) at an MSRP of $13,950 USD
