Cyclo Lite is a new lightweight, high-precision 1-axis stabilized head from HD Air Studio, built for users who need speed, balance, and rock-solid horizon control.
Cyclo Lite offers an 18 kg payload, and the head features a compact, low-profile design for use in tight spaces and long handheld shooting days.

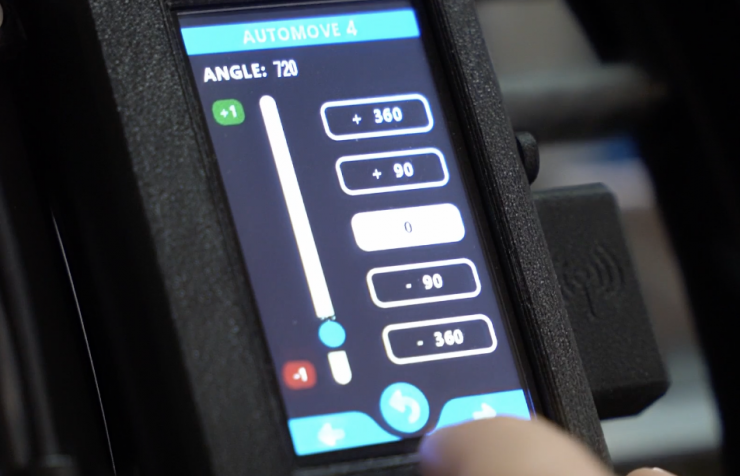

There is an integrated touchscreen, and tools like automoves, motion recording, shaker mode, diagnostics, and quick balancing modes. Additionally, users can take advantage of smart left–right micro-adjustments and a floating mode.
Cyclo Lite works with HD Air Studio’s new wireless/wired joystick, mobile app (iOS & Android), s-bus pilots, and Nodo wheels to give operators full control in any environment. HD Air Studio Cyclo Lite

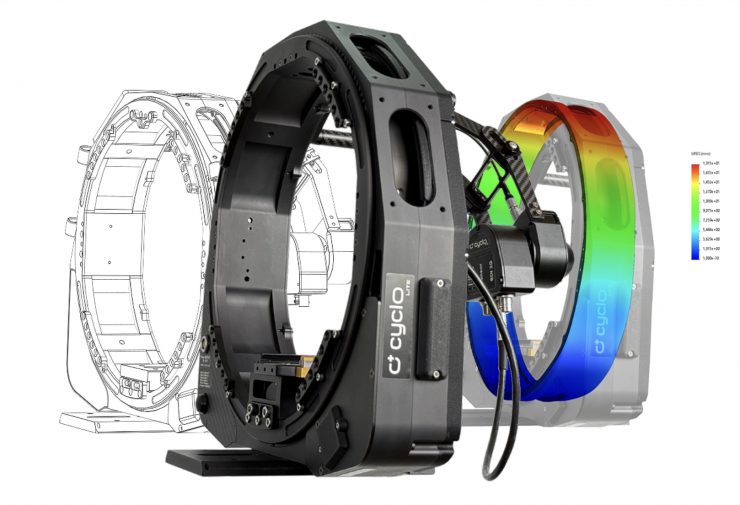

Built with a monolithic structure and a fully enclosed slipring for unlimited rotation, Cyclo Lite is claimed to deliver an organic feel, clean movement, and extreme reliability.
Key Specifications
- Empty head weight: 3350g
- Head weight with slipring and accessories (15mm elevating plate, quick release camera bridge plate, arc cheeseplates): 4000g
- Head weight without slipring with accessories (15mm elevating plate, quick release camera bridge plate, arc cheeseplates): 3550g
- Head weight with accessories + slipring + top and side handles for handheld: 4730g
- Slipring module weight (with carbon rods): 450g
- Top and side handles weight: 730g
- Payload: 18kg
- Ring inner diameter: 268mm
- Ring top-bottom inner height: 260mm
- Ring center of rotation to dovetail bottom distance: 167mm (157mm+10mm bottom dovetail)
- Outer dimensions: H: 322mm; W:340mm; D: 75mm
- Peak power consumption: 180W (head only)
- Indle stabilization power consumption: 10W
- Power input: 10-34V (24-34V recommended)
- Max rotation speed: 360deg/s
- Drift: less then 1deg/h
- Drift compensation system with temperature-controlled IMU
- Built-in mechanical ring lock with intelligent sensor control
Anyone who is interested in the HD Air Studio Cyclo Lite can sign up for a live online demo, which will take place on the 8th of December at 12 pm and 6 pm CET (UTC+1). By doing this, you can also get access to a limited launch price offer.
