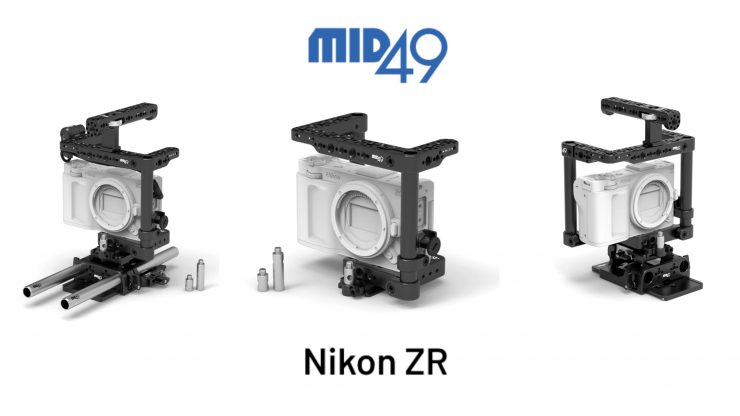

MID49 has announced its new Nikon ZR Cages and Accessories. These range from an Upper Cage all the way up to the Mid Kit, which includes a Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail and 15mm rods.
The Mid Kit is the only option I have seen so far for the Nikon ZR that would allow you to fully rig out the camera for more complex shooting scenarios.

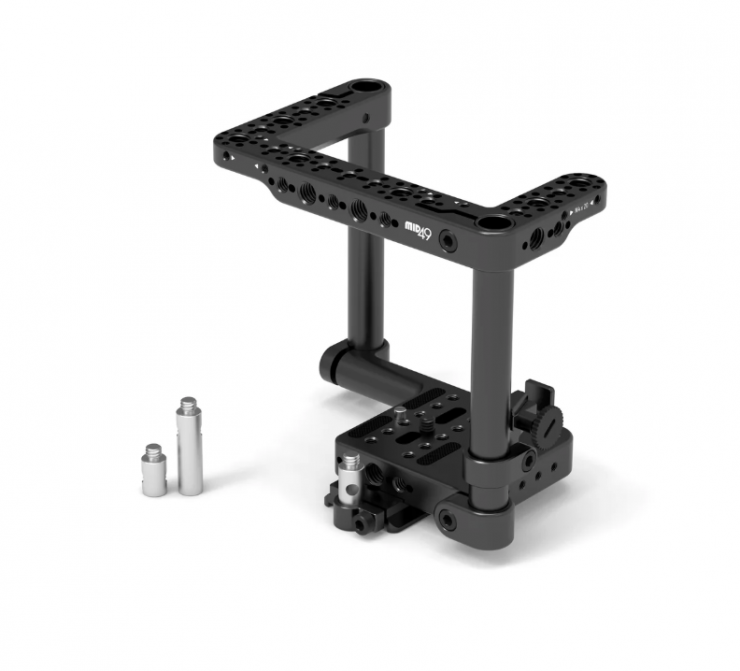

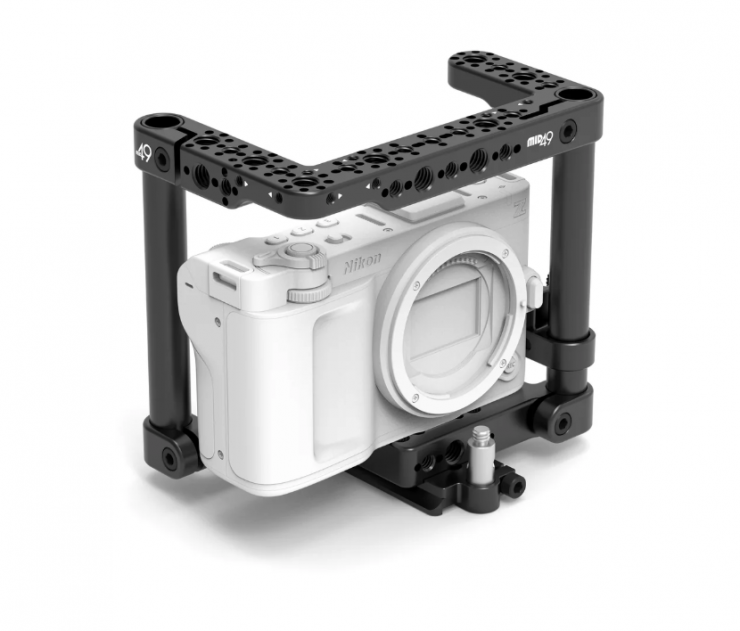

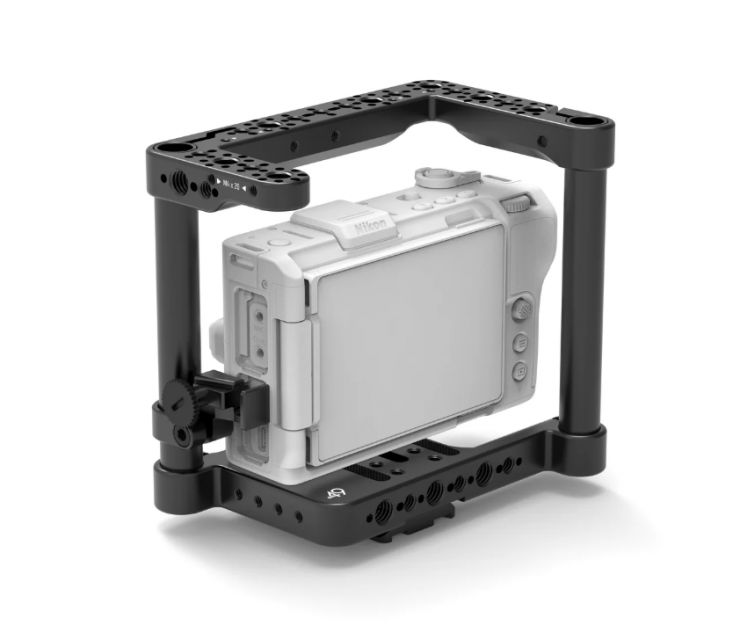

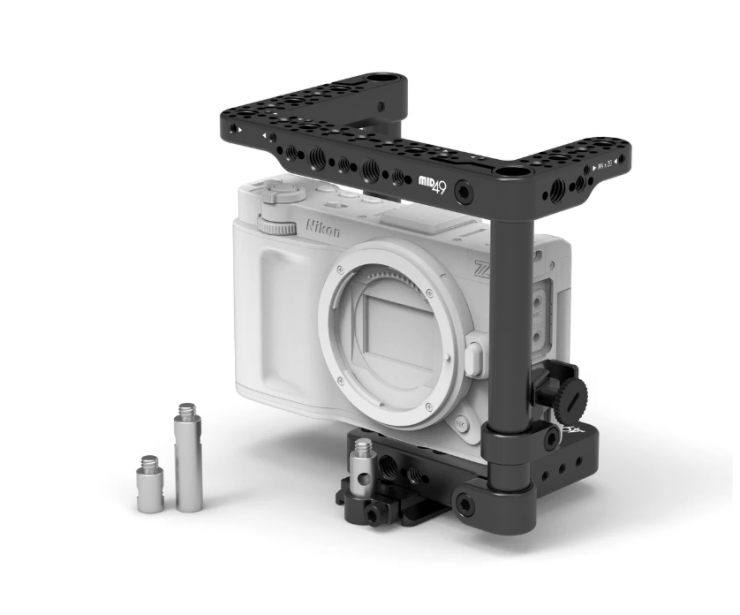

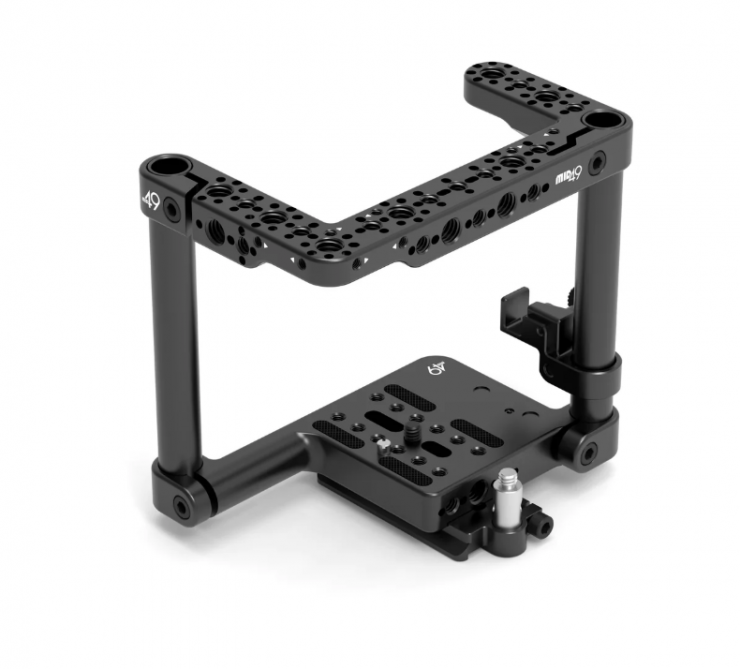

Upper Cage for Nikon ZR ($250 USD)

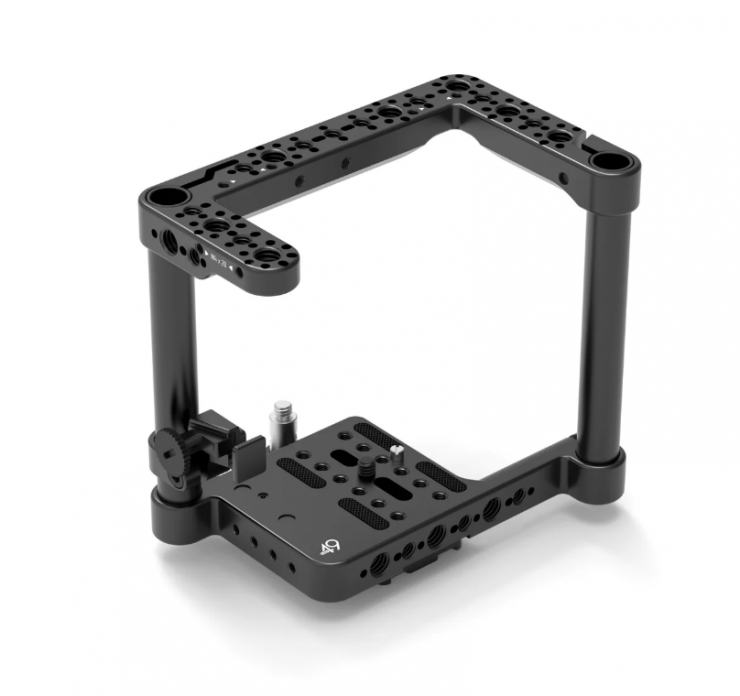

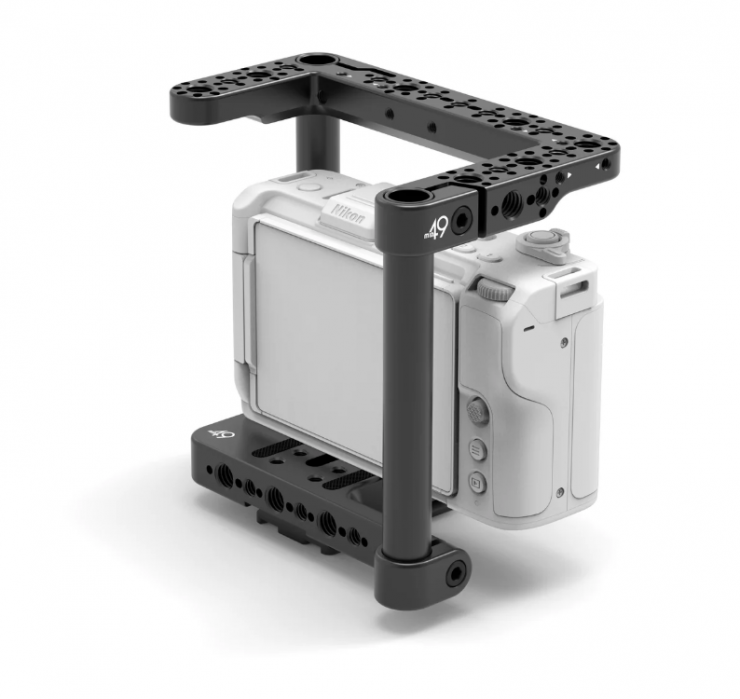

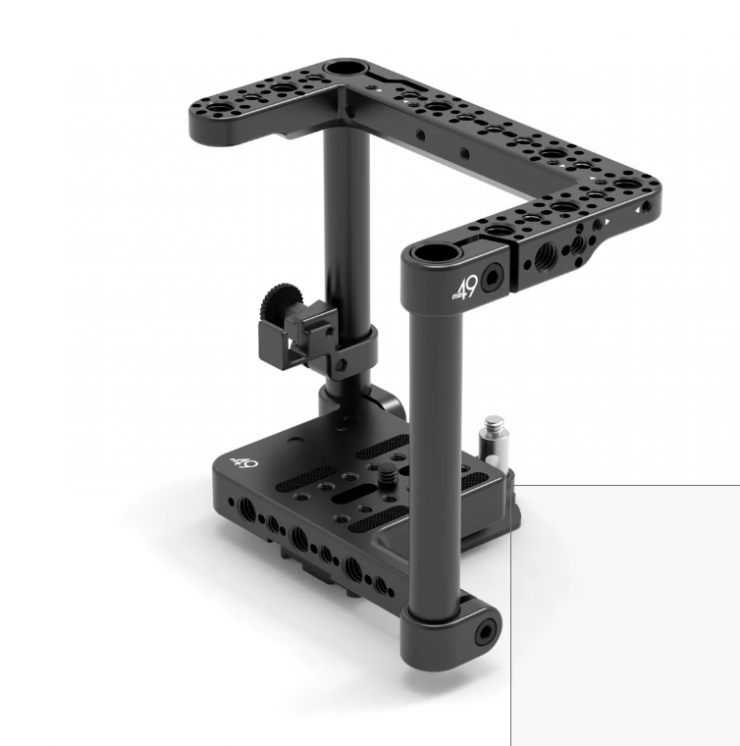

The Upper Cage for Nikon ZR is a form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places.

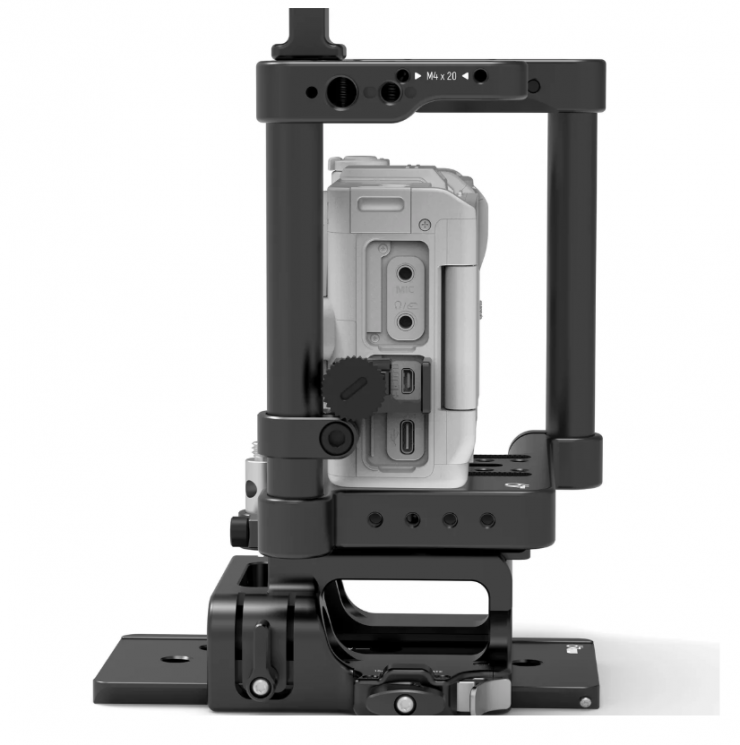

The swing-away HDMI lock protects the camera’s micro-HDMI port from abuse while allowing the dust cover to be accessed.

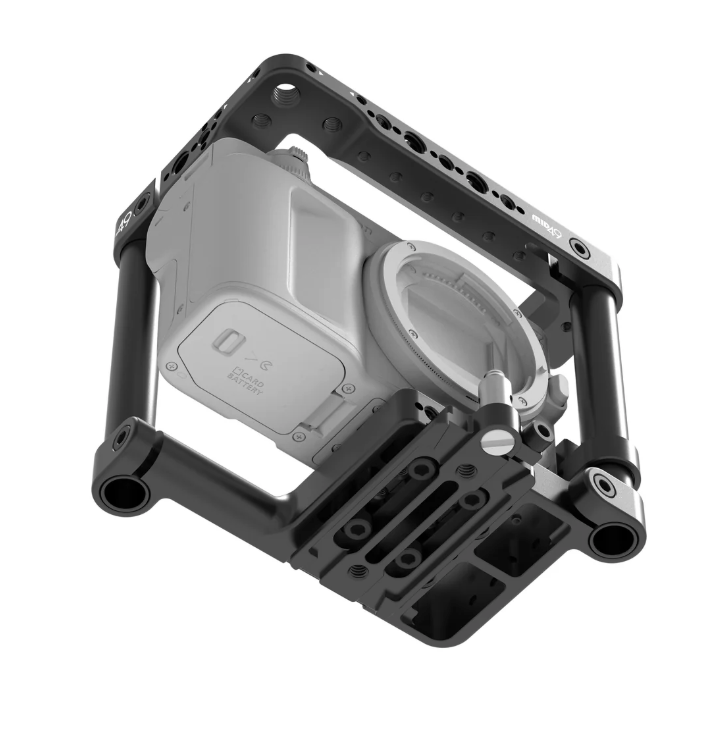

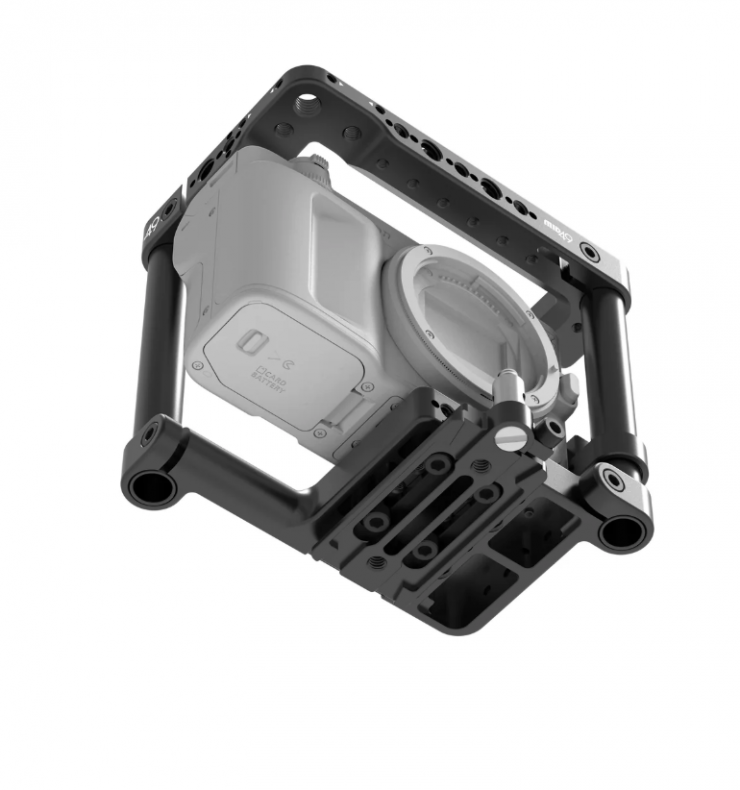

The combination battery/CF Express door on the bottom is unobstructed for easy card changes.
Lower ARCA Swiss dovetail has an adjustable lens support clamp with three included lengths of 1/4-20 support screw that attach to 3rd party lens adapters like Metabones, etc.
ARCA Swiss dovetail attaches to the optional Baseline 15mm LW (Upper Cage Nikon ZR), sold separately, to provide rods at the correct lens height. Pair with the new Bolt On Top Handle (ARRI 1/4-20), which is also sold separately.
The Upper Cage for Nikon ZR weighs 15.5oz / 438g, and it is now available to pre-order. It will start shipping in mid-December.

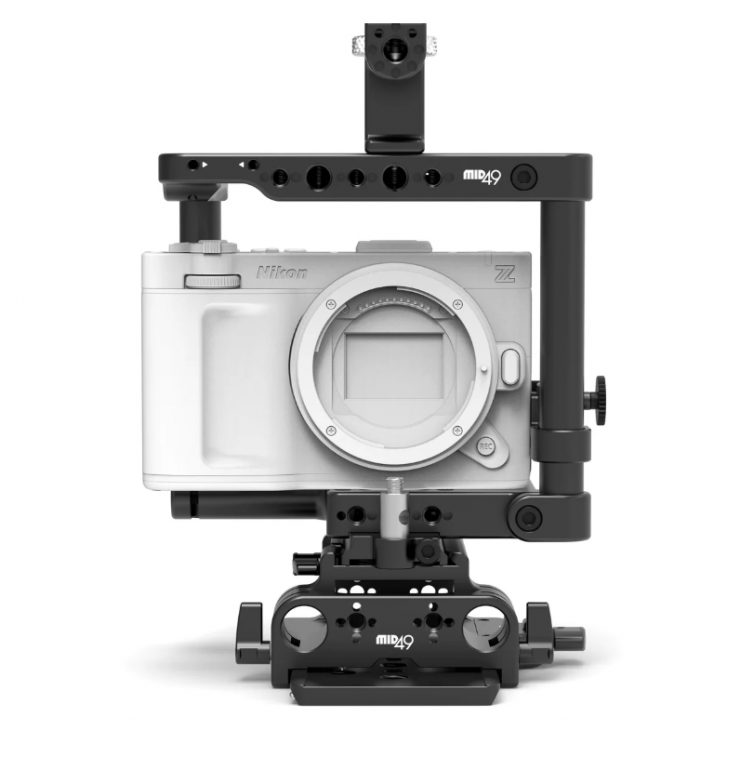

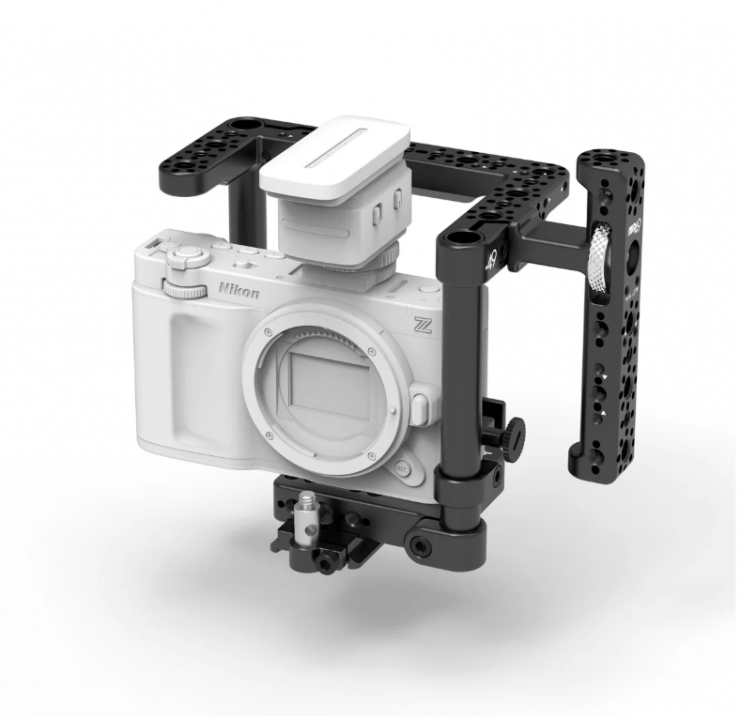

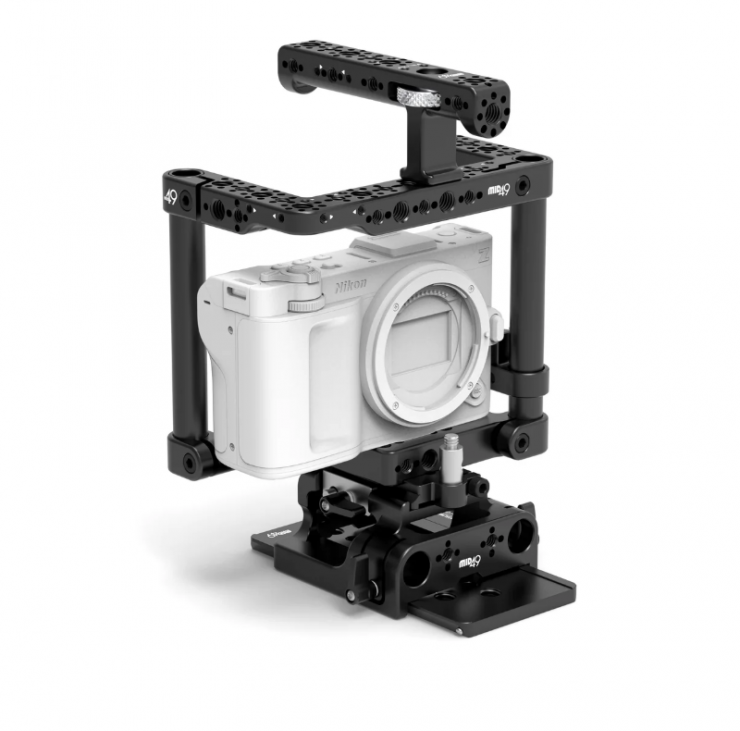

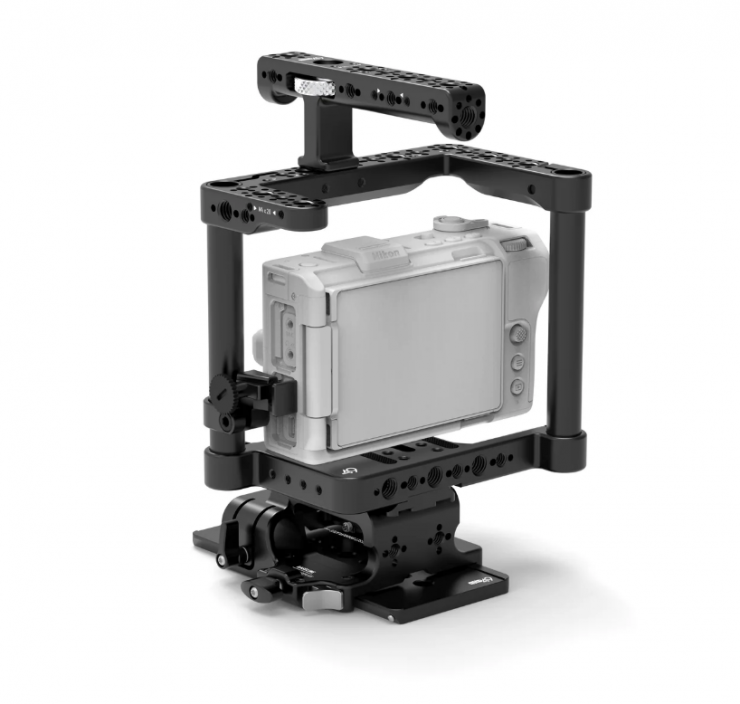

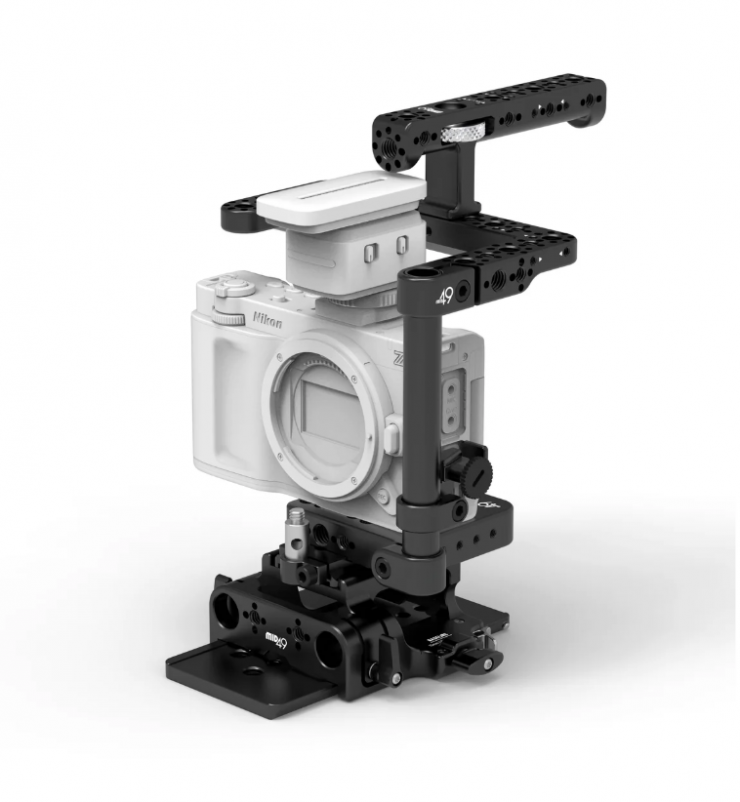

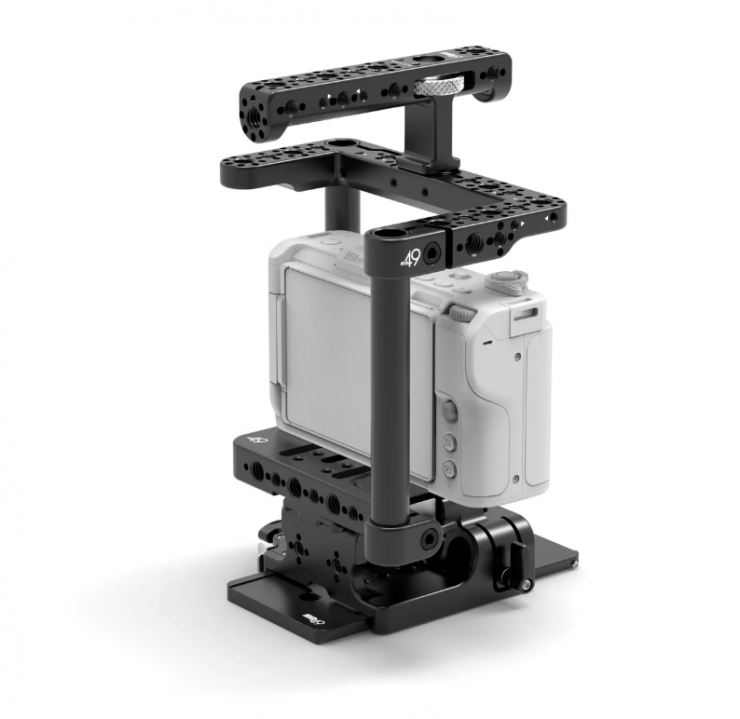

Base Kit for Nikon ZR ($595 USD)
The Base Kit for Nikon ZR is an accessory kit that includes:
A form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places.
Swing-away HDMI lock protects the camera’s micro-HDMI port from abuse while allowing the dust cover to be accessed.
Combination battery and memory card door on the bottom is unobstructed for easy card changes.
Lower ARCA Swiss dovetail has an adjustable lens support clamp with three included lengths of 1/4-20 support screw that attach to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Upper Cage Nikon ZR)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Low-profile thumbscrew and safety button allow access to the battery and memory card door.

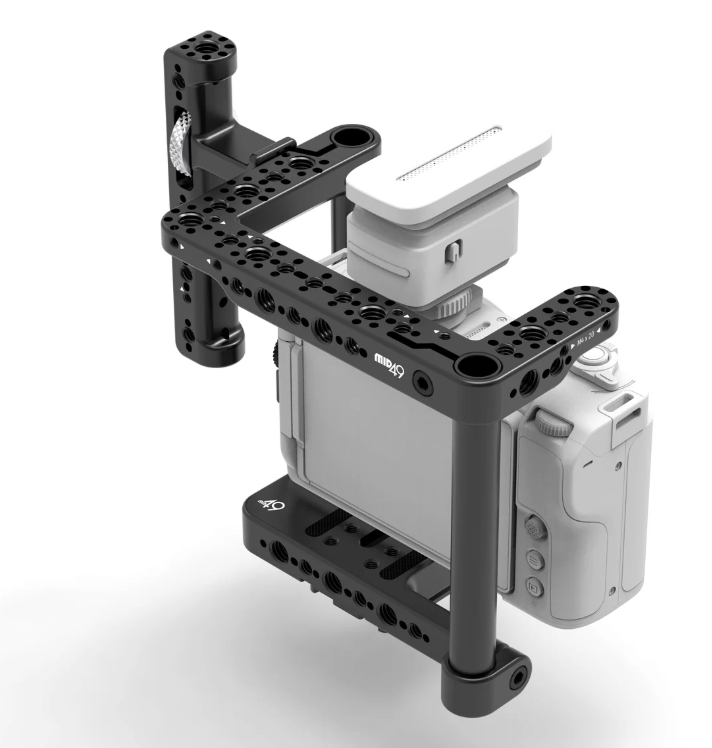

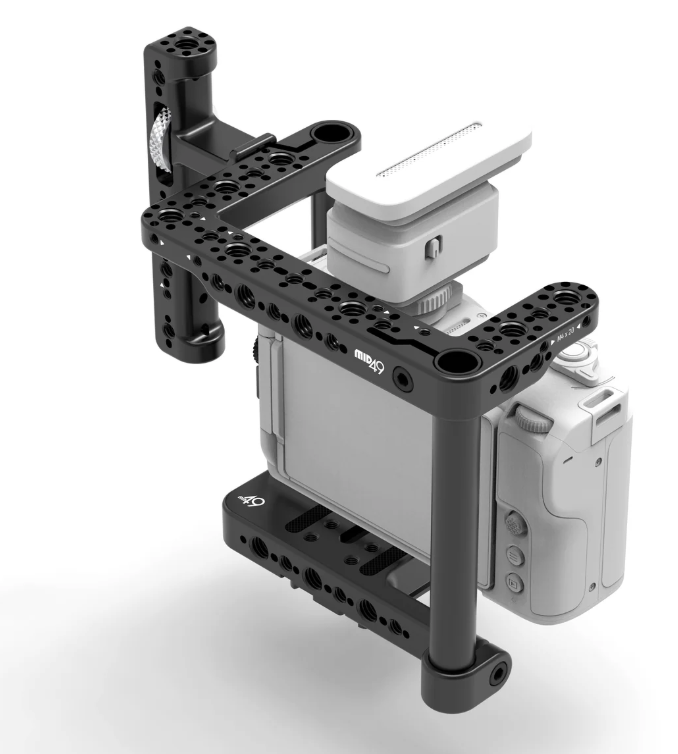

Bolt On Top Handle (ARRI 1/4-20)
Top handle that attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center-to-center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
The Base Kit for Nikon ZR weighs in at 29.2oz / 830g. It is now available to pre-order. It will start shipping in mid-December.

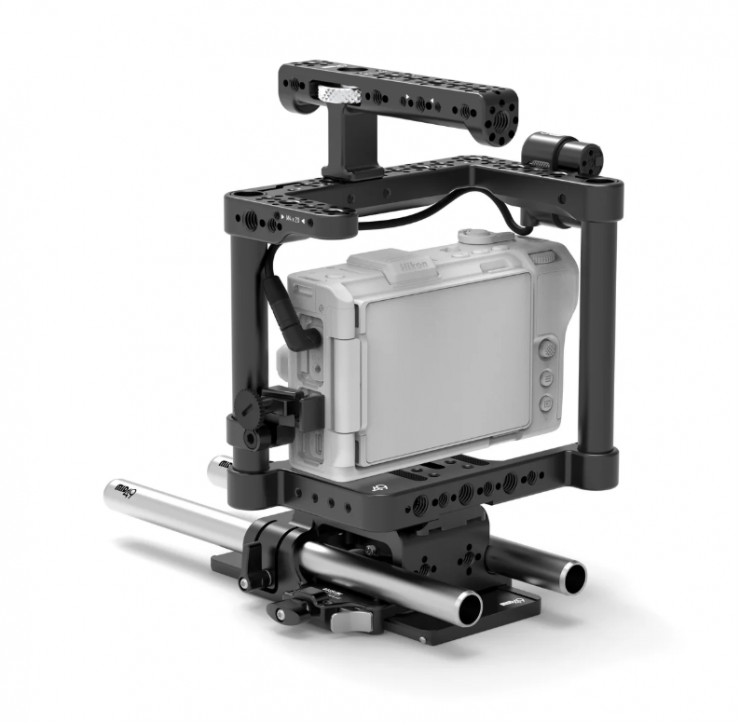

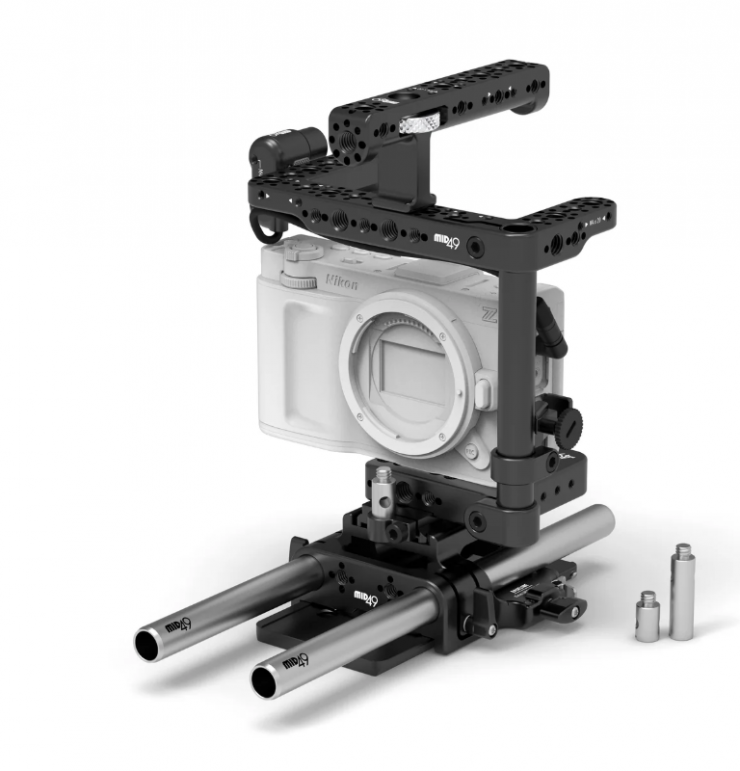

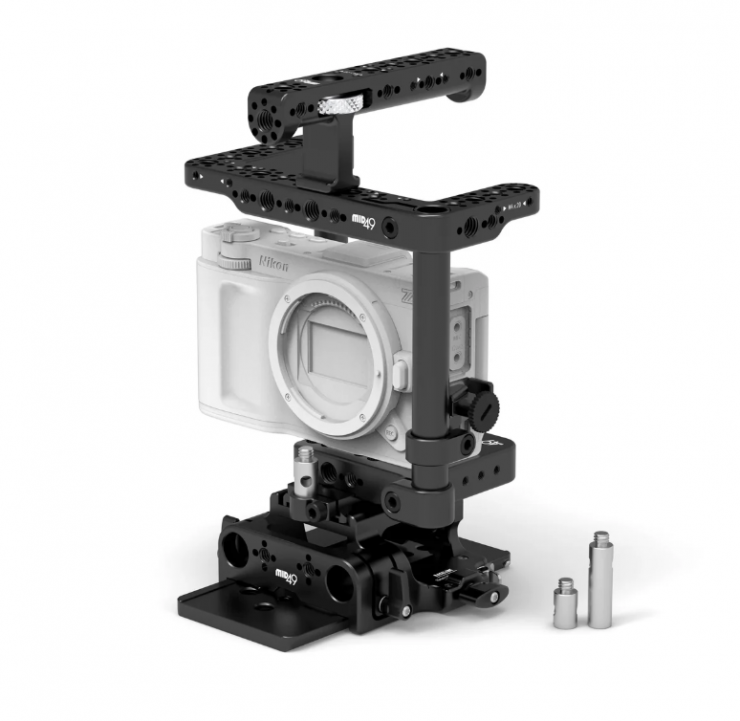

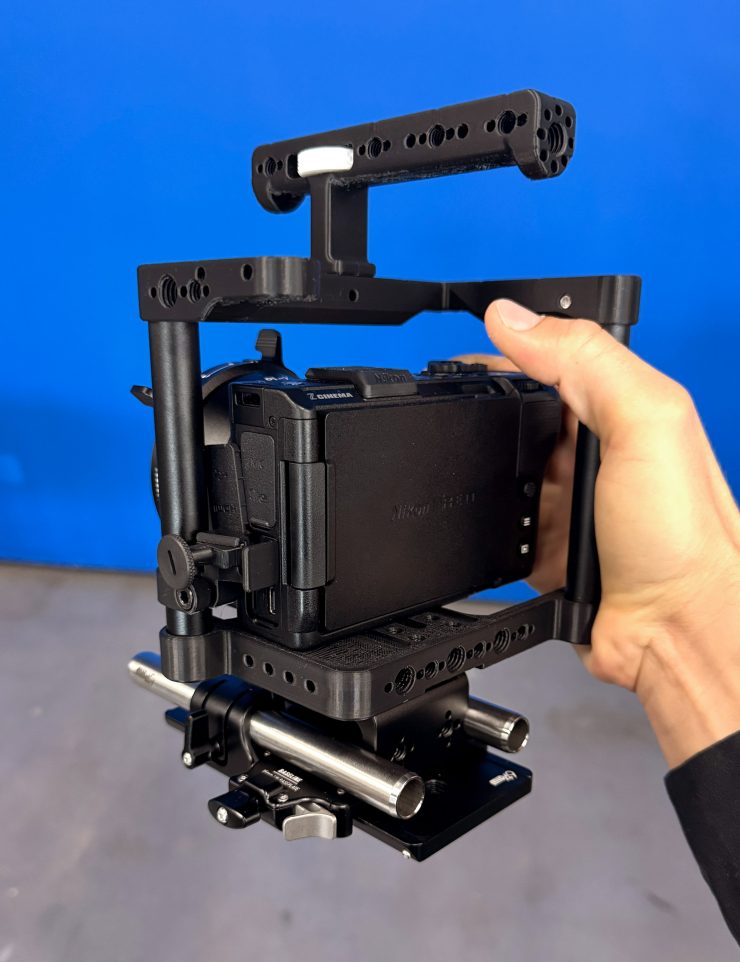

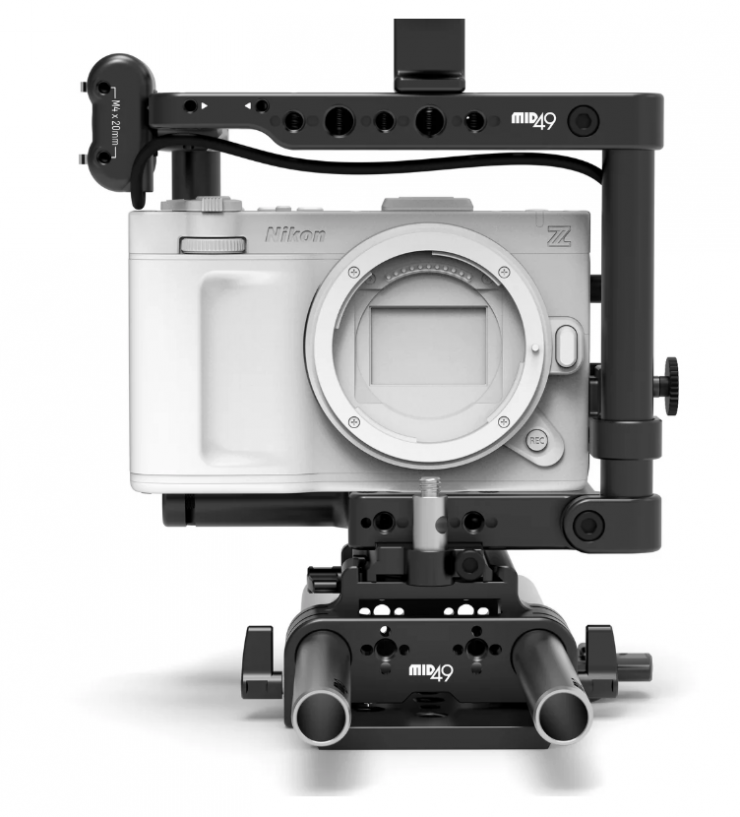

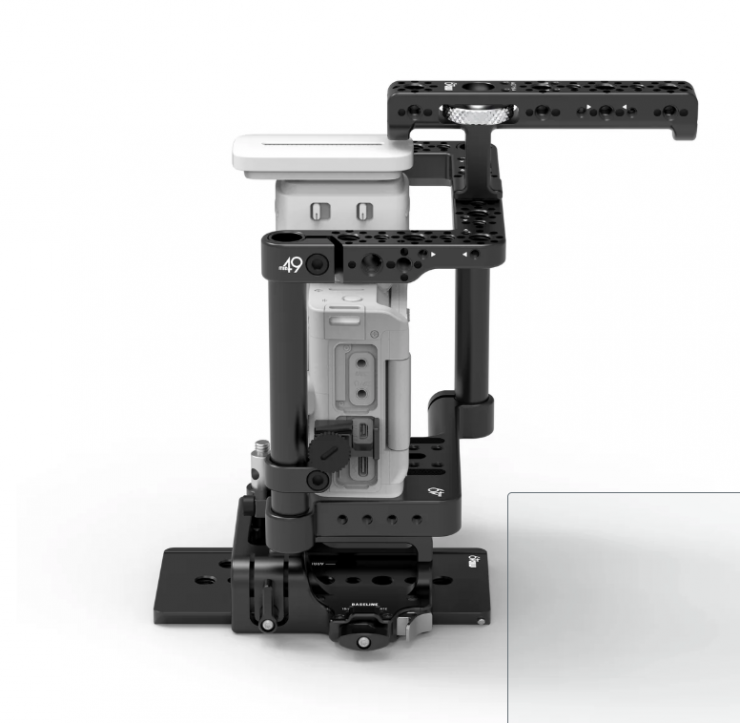

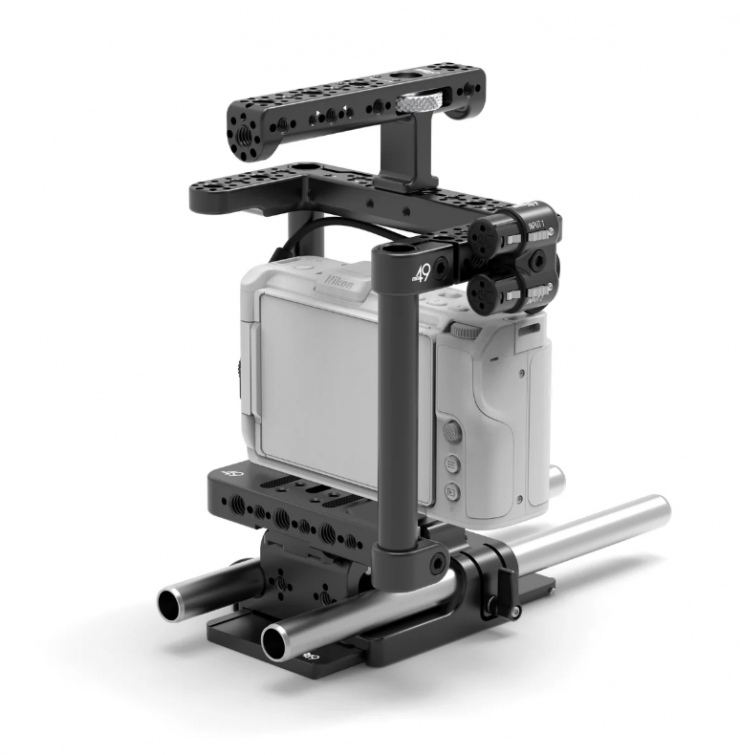

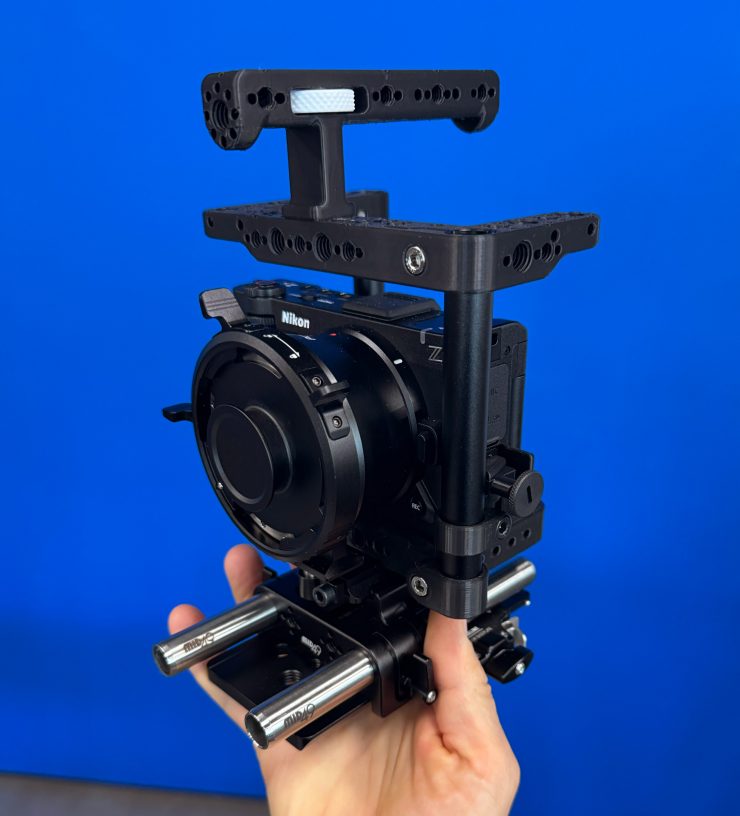

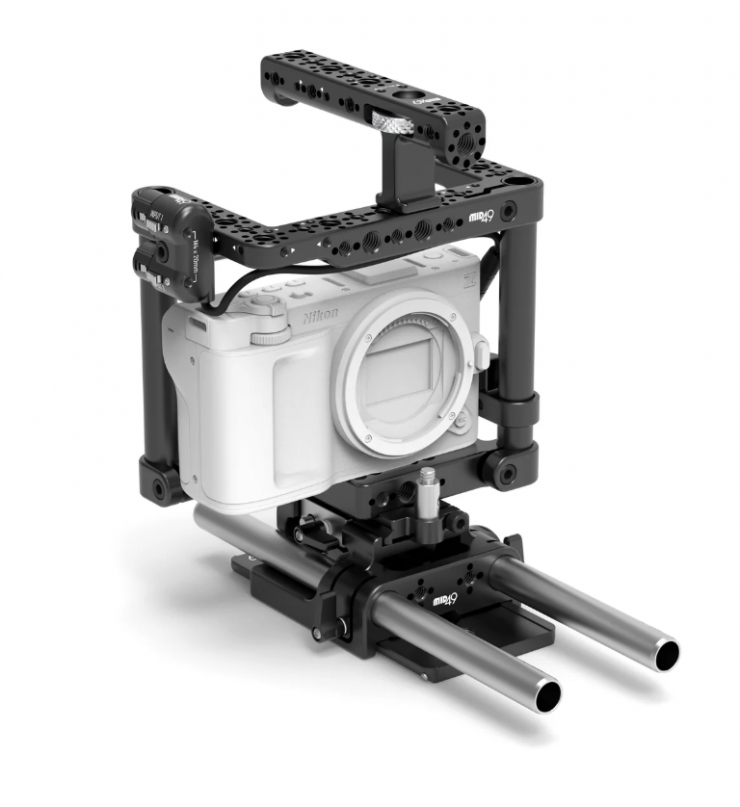

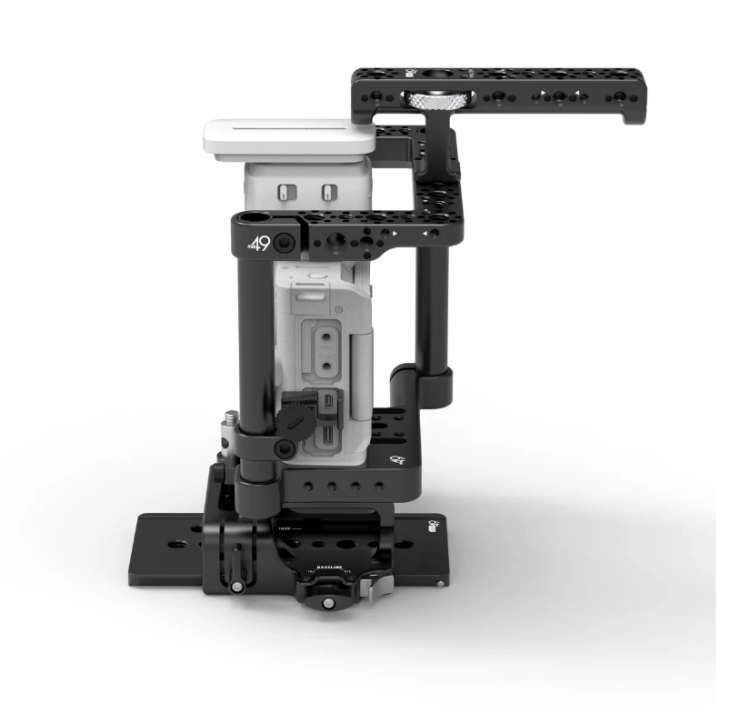

Mid Kit for Nikon ZR ($795 USD)
The Mid Kit for Nikon ZR is an accessory kit that includes:
A form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places.
Swing-away HDMI lock protects the camera’s micro-HDMI port from abuse while allowing the dust cover to be accessed.
Combination battery and memory card door on the bottom is unobstructed for easy card changes.
Lower ARCA Swiss dovetail has an adjustable lens support clamp with three included lengths of 1/4-20 support screw that attach to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Upper Cage Nikon ZR)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.Low-profile thumbscrew and safety button allow access to the battery and memory card door.
Bolt On Top Handle (ARRI 1/4-20)
Top handle that attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center-to-center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
Audio Breakout AB-3 (Stereo 3.5mm TRS)
A passive adapter that attaches to the side of the Upper Cage and converts the camera’s 3.5mm plug to two standard, full-size XLRs.
Stainless steel iris rods.
The Mid Kit for Nikon ZR weighs 29.2oz / 830g. It is now available to pre-order, and it will start shipping in mid-December.

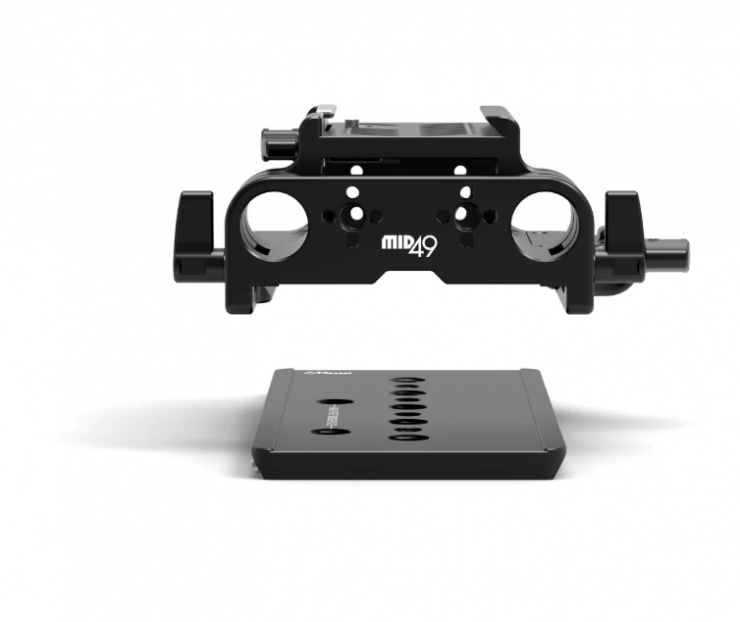

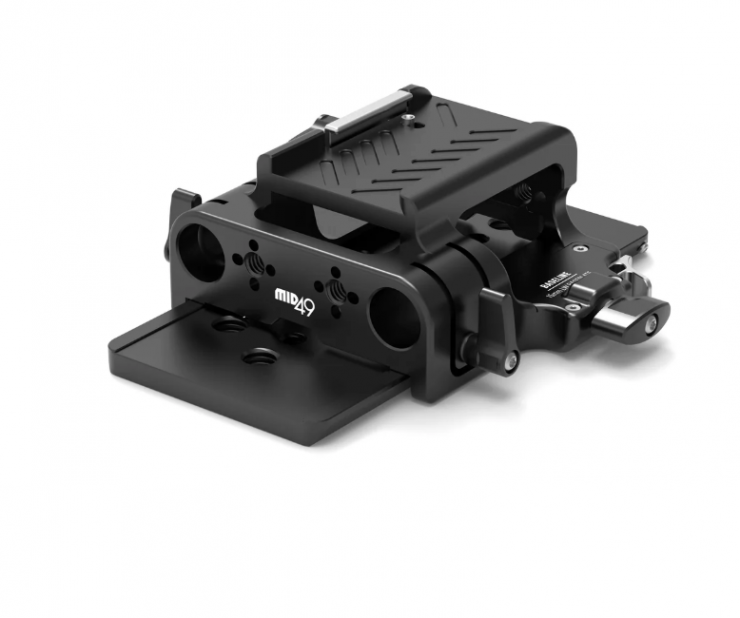

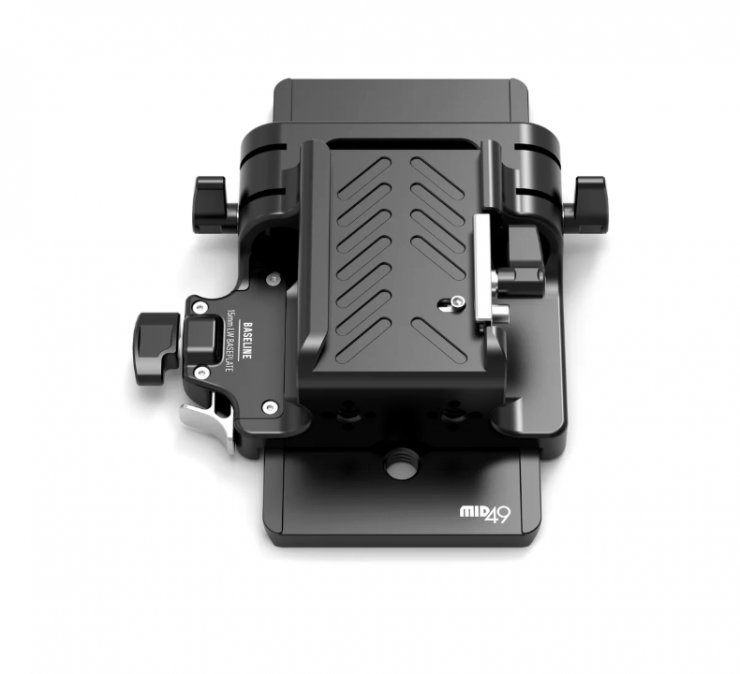

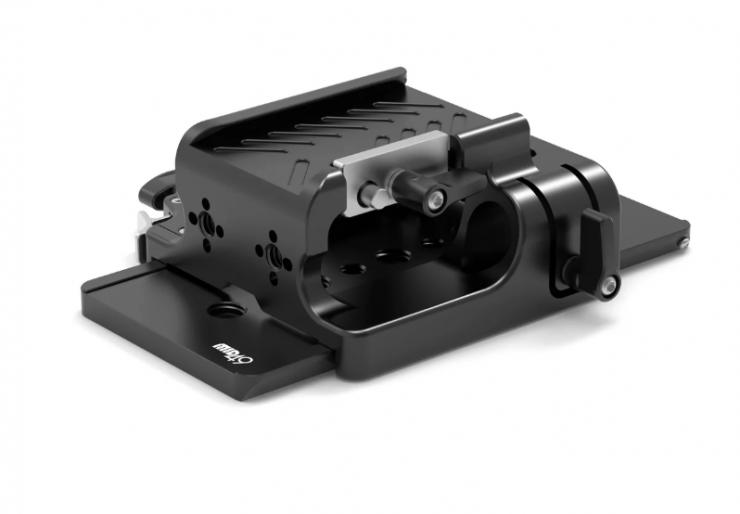

Baseline 15mm LW (Upper Cage Nikon ZR) $325 USD

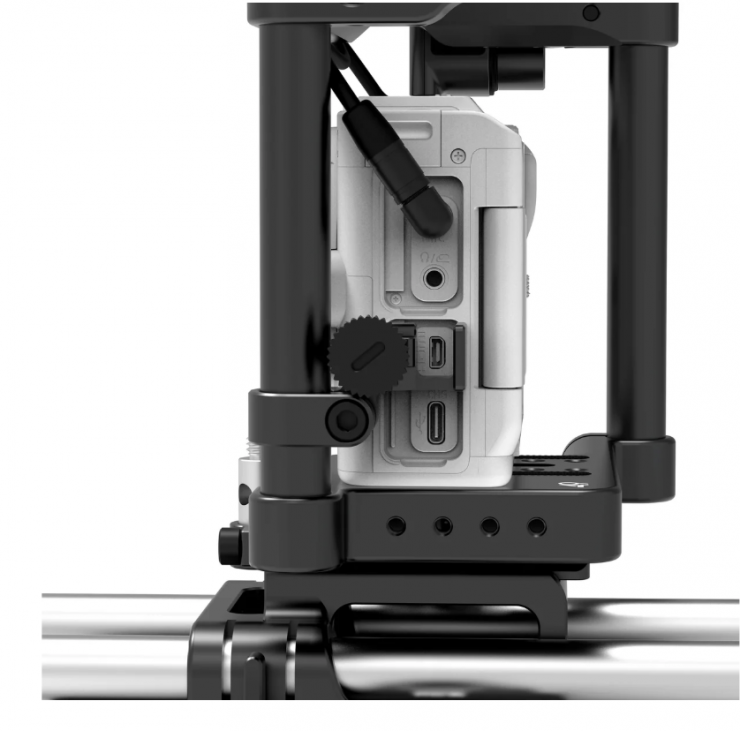

The Baseline 15mm LW (Upper Cage Nikon ZR) holds two 15mm rods at 15mm lightweight spacing when combined with the Upper Cage Nikon ZR.
Note that this is the same lens height as the version for the Canon C50, however, this assembly has a shorter thumbscrew and safety button to allow the Nikon battery and memory card to be changed without removing the baseplate.
ARRI dovetail slot on the bottom attaches using a top-load locking mechanism to the included Baseline ARRI Dovetail or other ARRI standard dovetails.
Loosen the thumbscrew and push the silver button on the operator’s side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew.
ARCA dovetail slot on top holds Baseline ARCA Dovetails and can be top-loaded, or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until the ARCA clamp has opened fully. Reverse the process to tighten.
The Baseline 15mm LW (Upper Cage Nikon ZR) weighs 5.50oz / 156g.

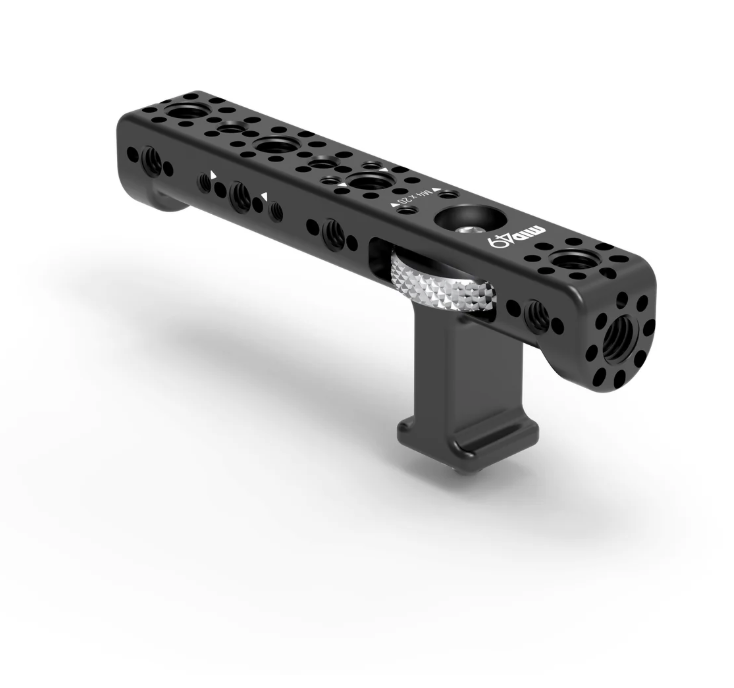

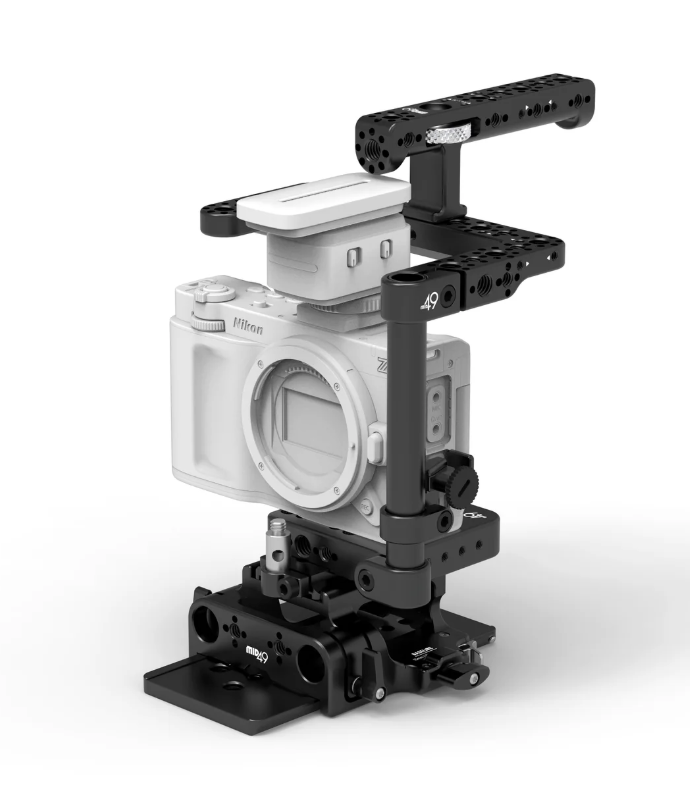

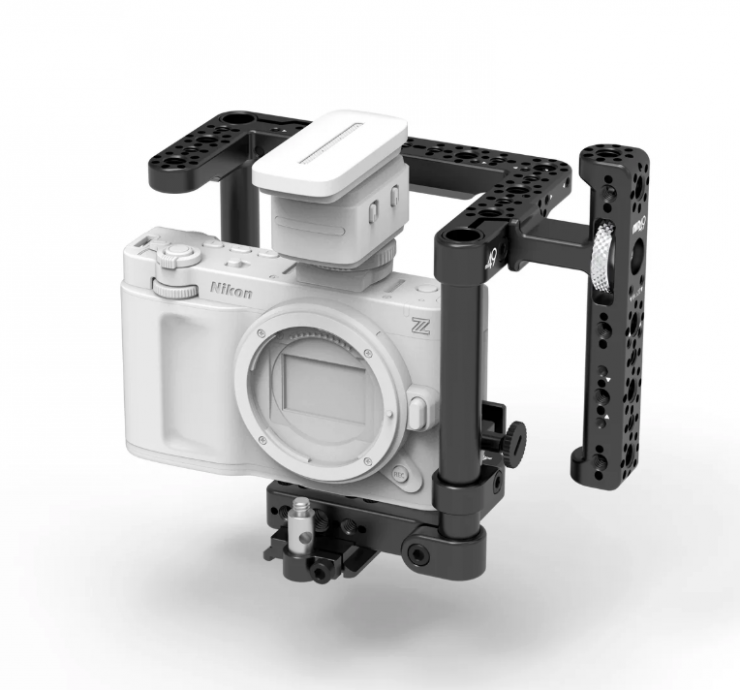

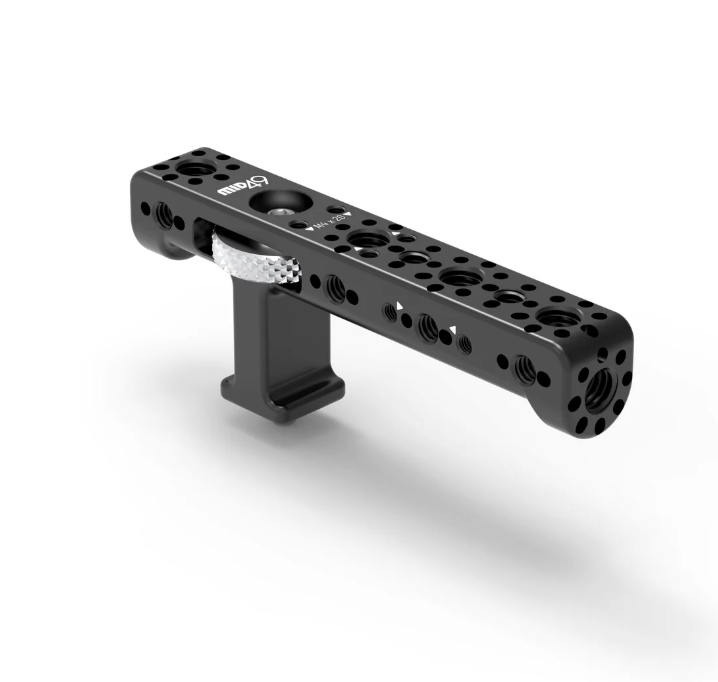

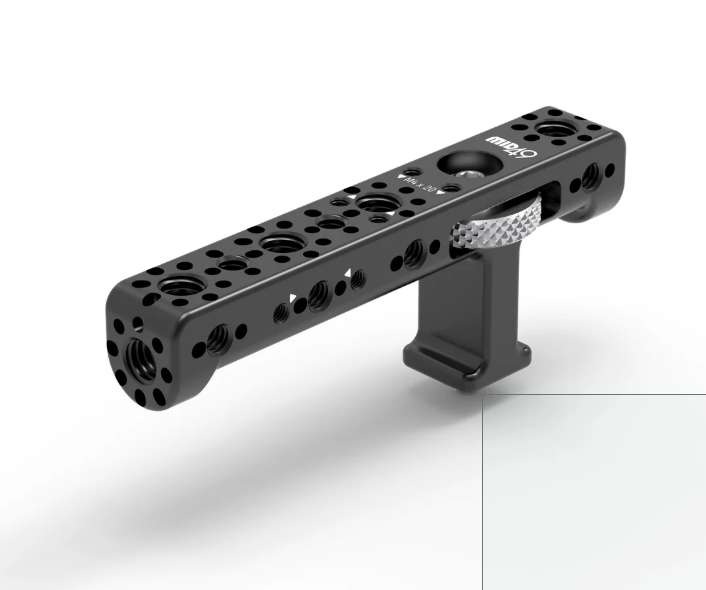

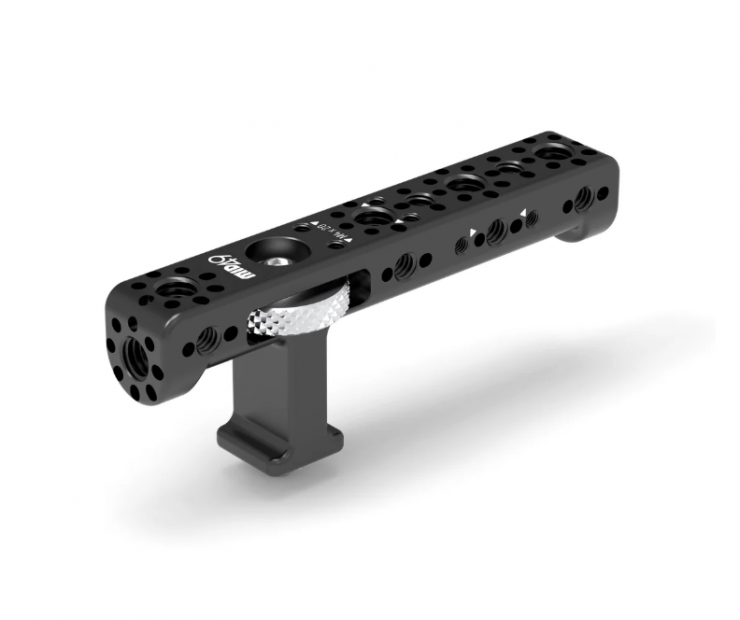

Bolt On Top Handle (ARRI 1/4-20) $95 USD
The Bolt On Top Handle (ARRI 1/4-20) is a top handle that attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center to center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
Compatible with the Upper Cage for Nikon ZR, Upper Cage for Canon C50 , and Upper Cage for Sony FX2
