MID49 has a range of new Canon C50 accessories, including a cage, baseplate, viewfinder mounts, gimbal adapters, audio adapters, and accessory kits.

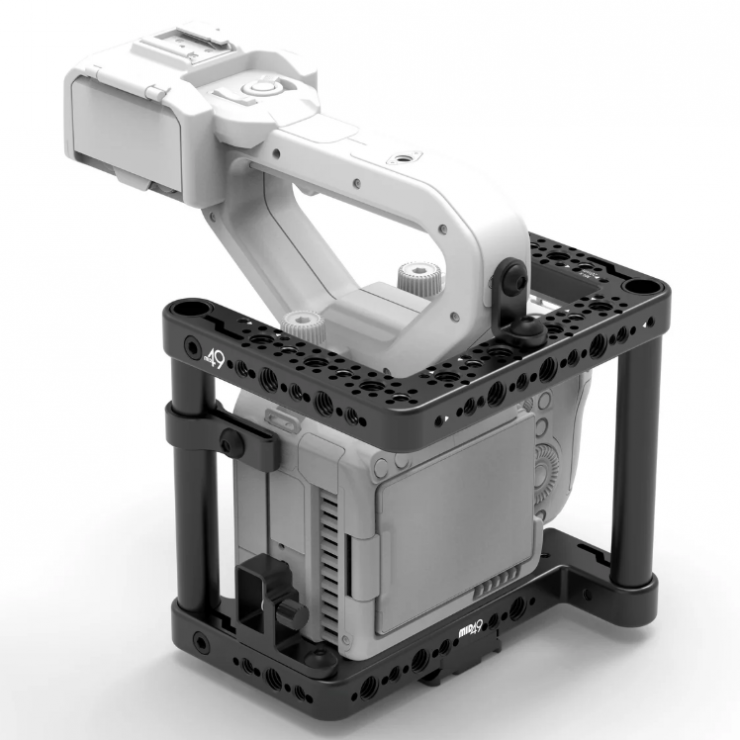

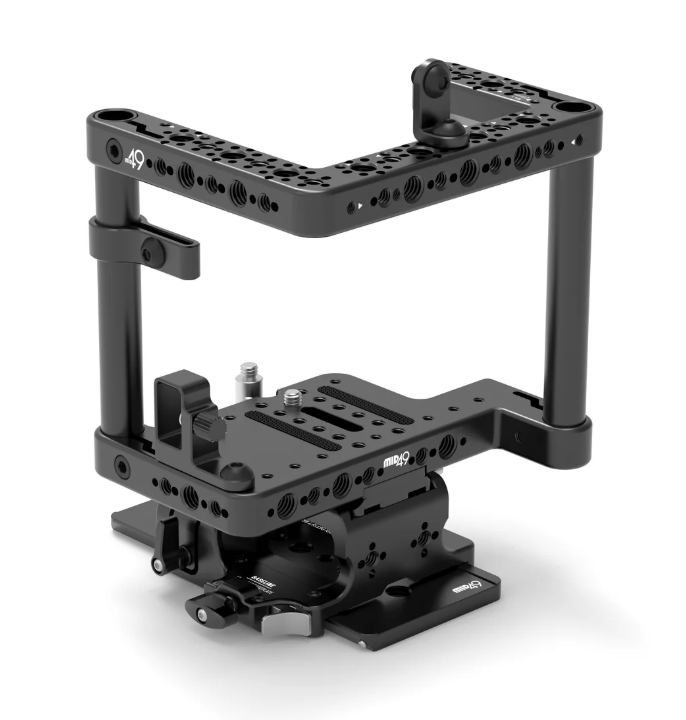

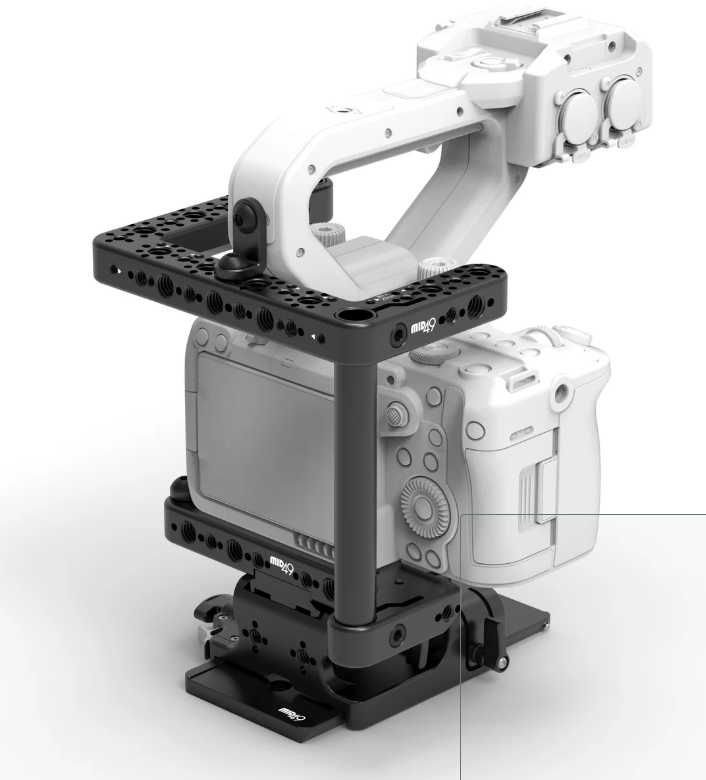

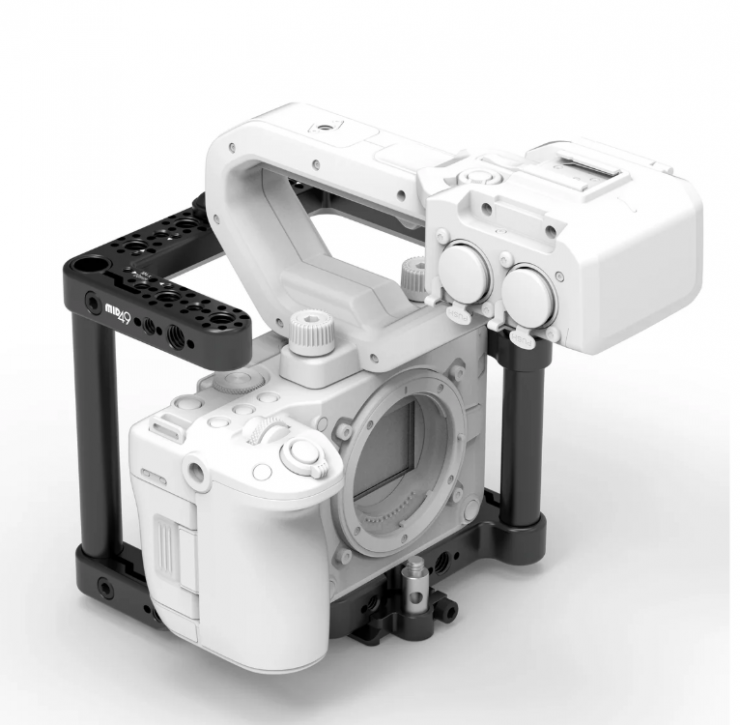

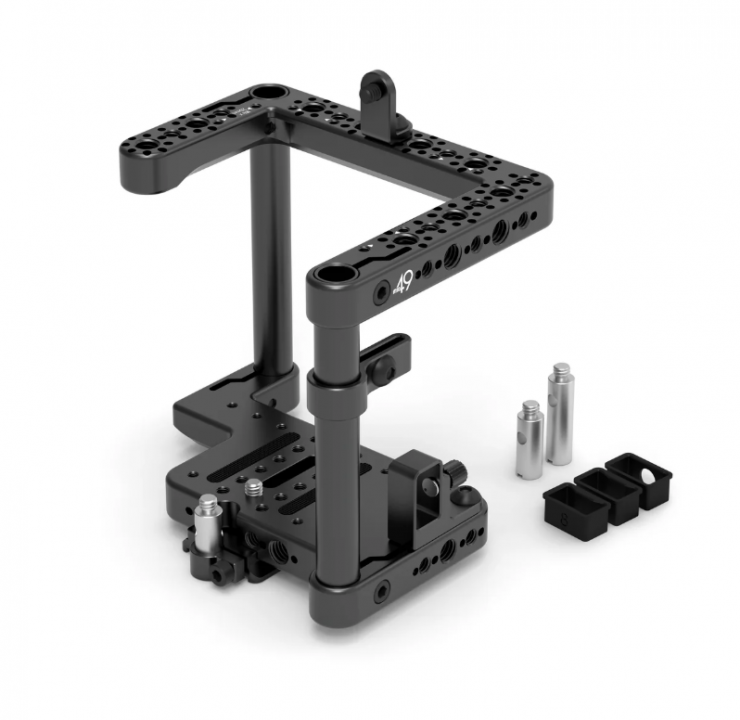

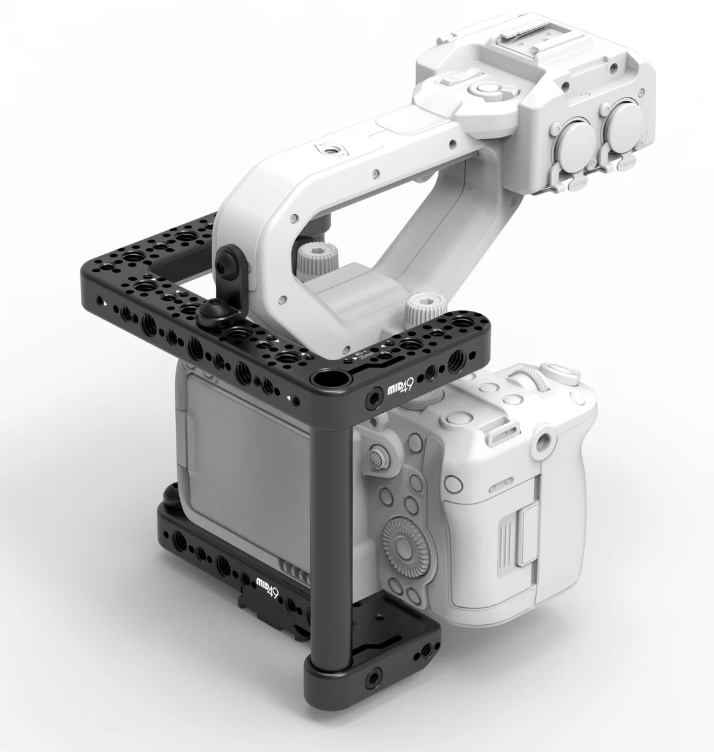

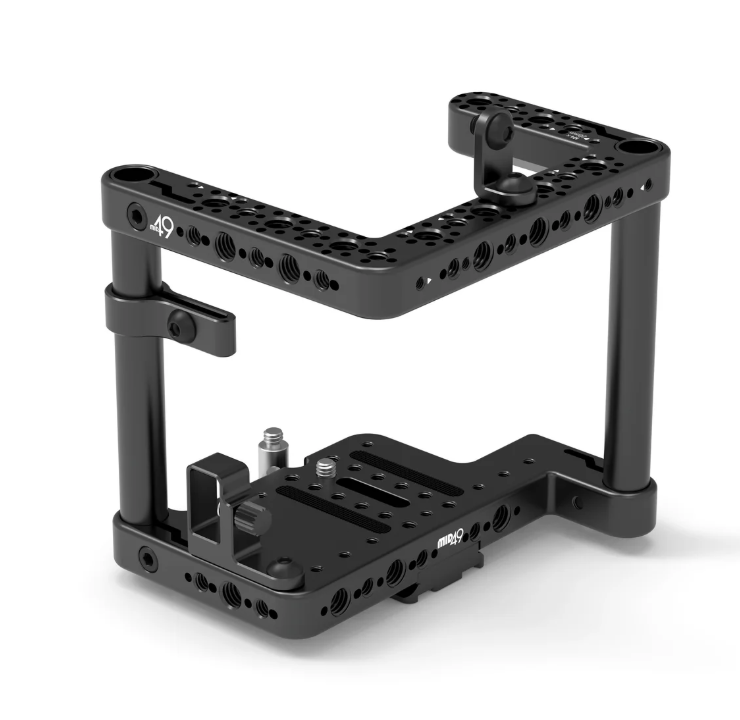

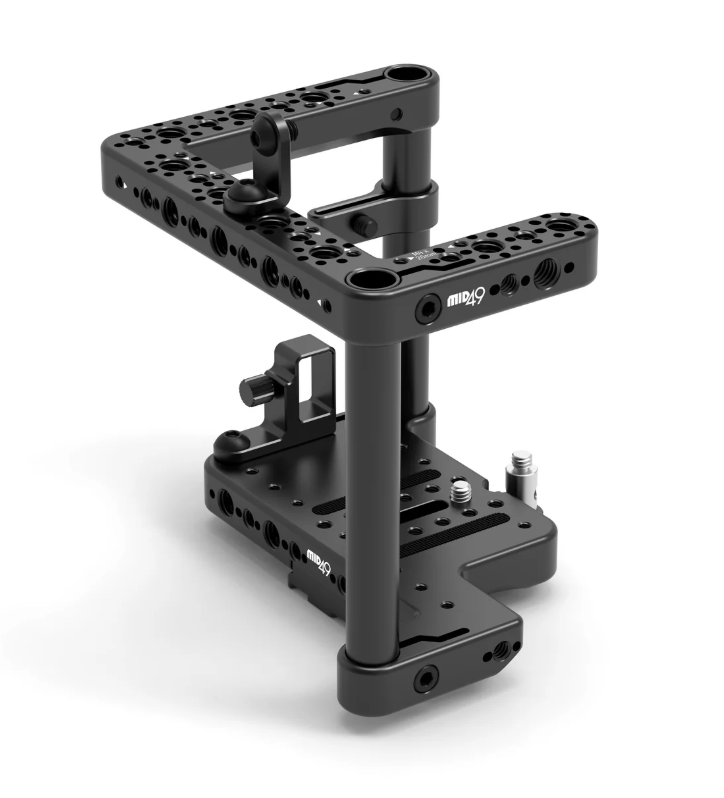

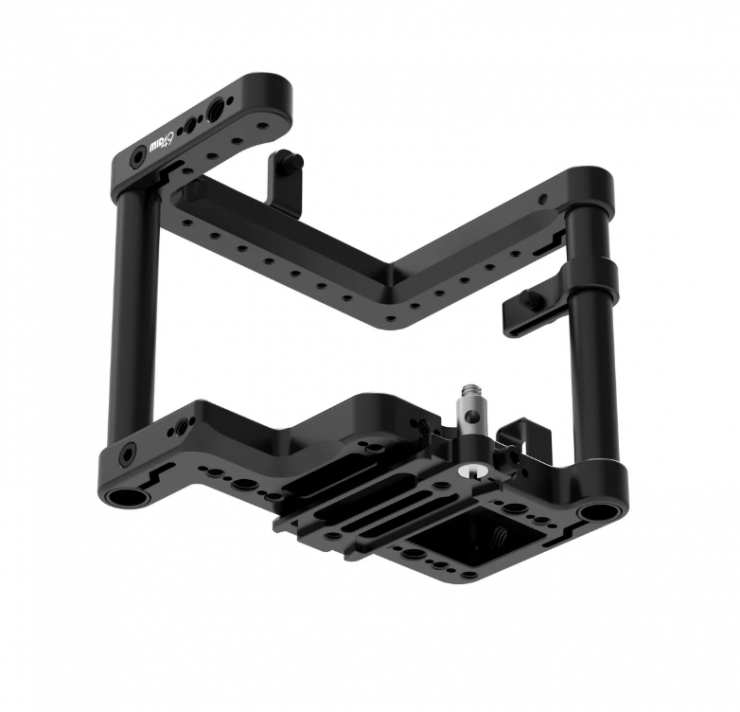

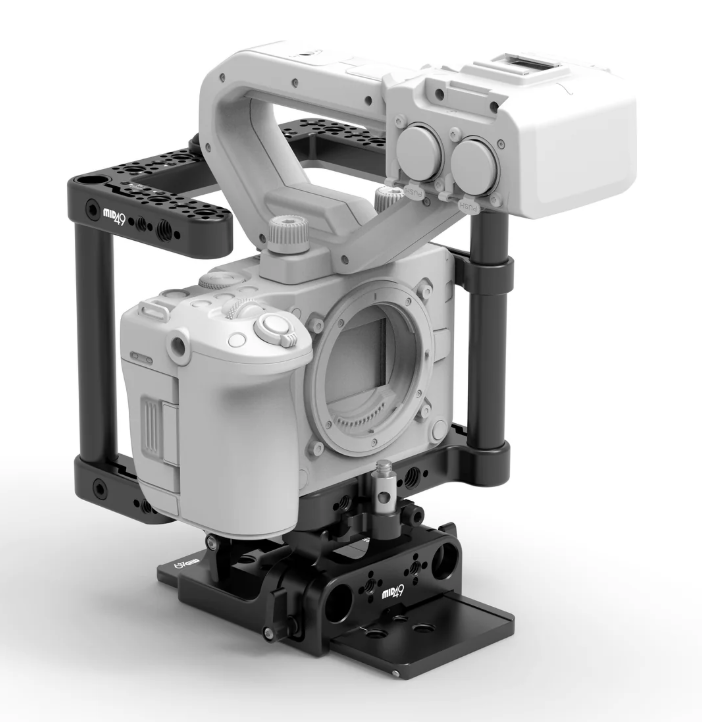

Upper Cage for Canon C50 ($250 USD)

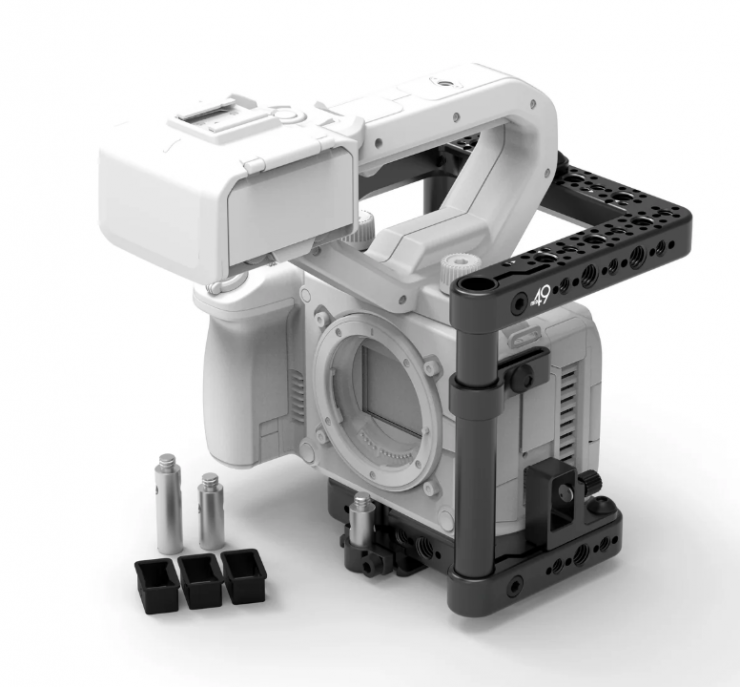

The Upper Cage for Canon C50 is a form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places. The included HDMI lock with reduction inserts protects the camera’s HDMI port from abuse.
Left side camera tie-down keeps the C50 from tipping under the force of focus motors. Rear handle tie-down adds stability to the handle-body connection when using heavy lenses.

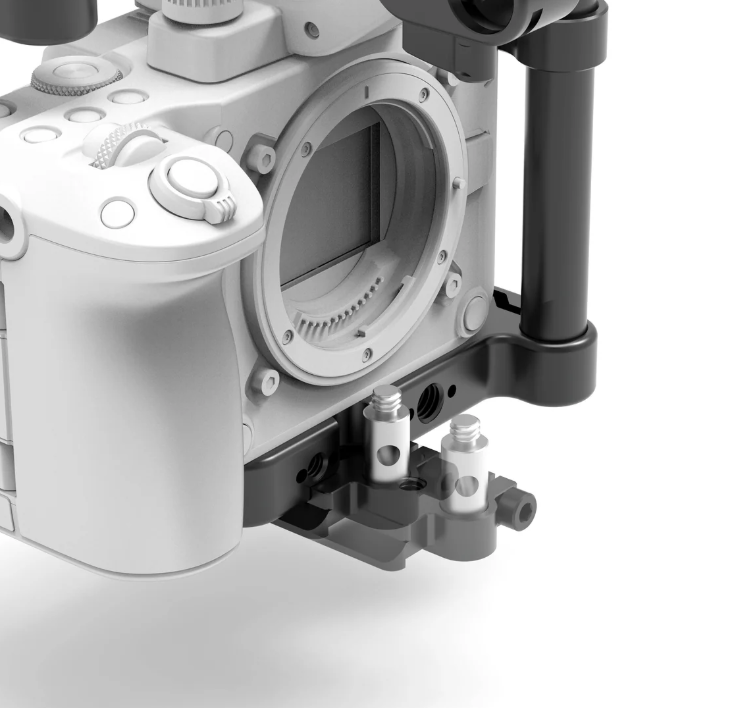

The Lower ARCA Swiss dovetail has an adjustable lens support clamp with three included lengths of 1/4-20 support screw that attach to 3rd party lens adapters like Metabones, etc.
The ARCA Swiss dovetail attaches to the Baseline 15mm Baseplate to provide rods at the correct lens height, which is sold separately.

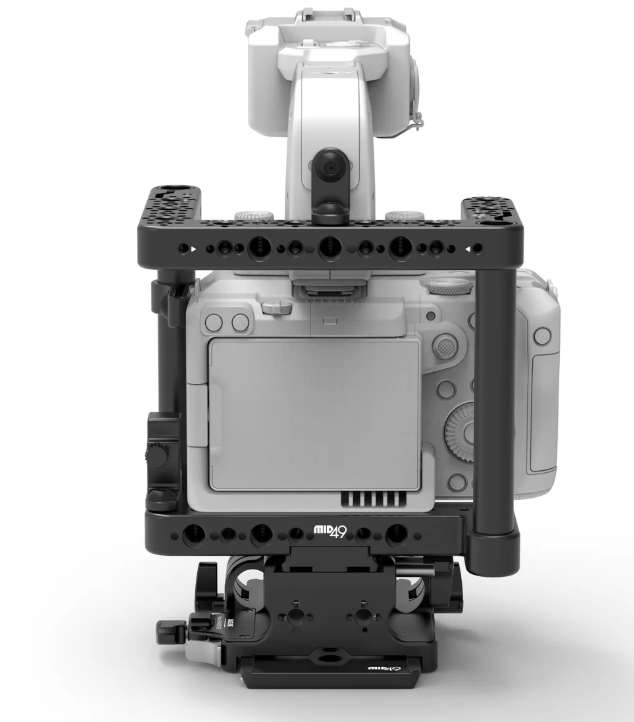

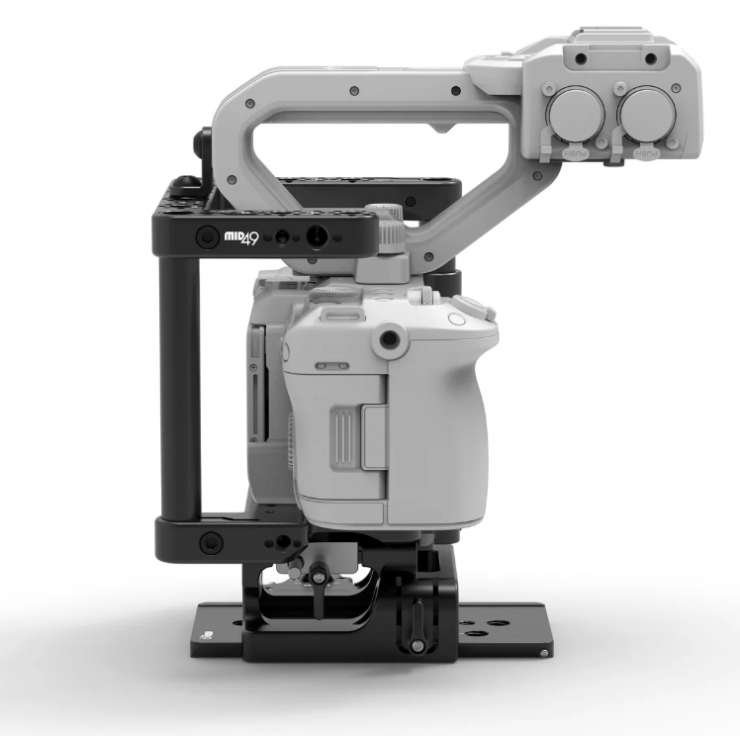

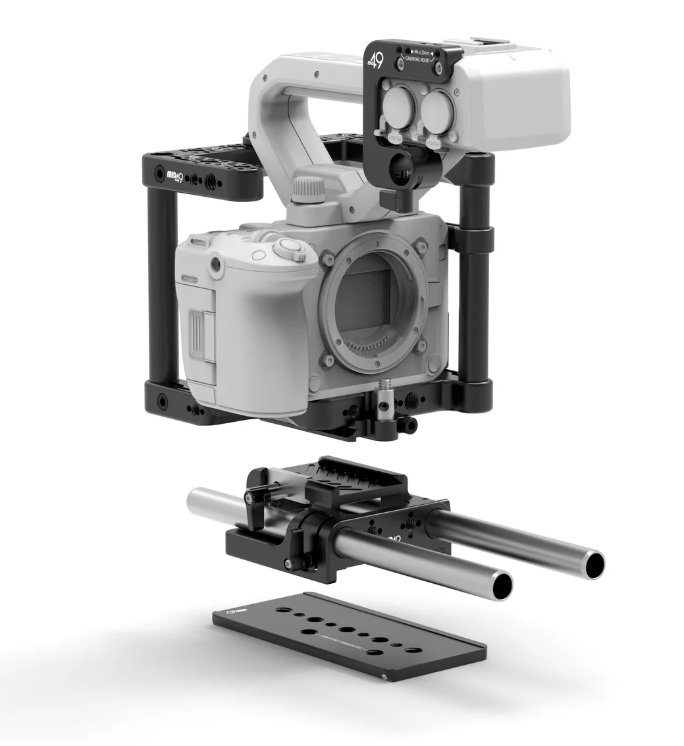

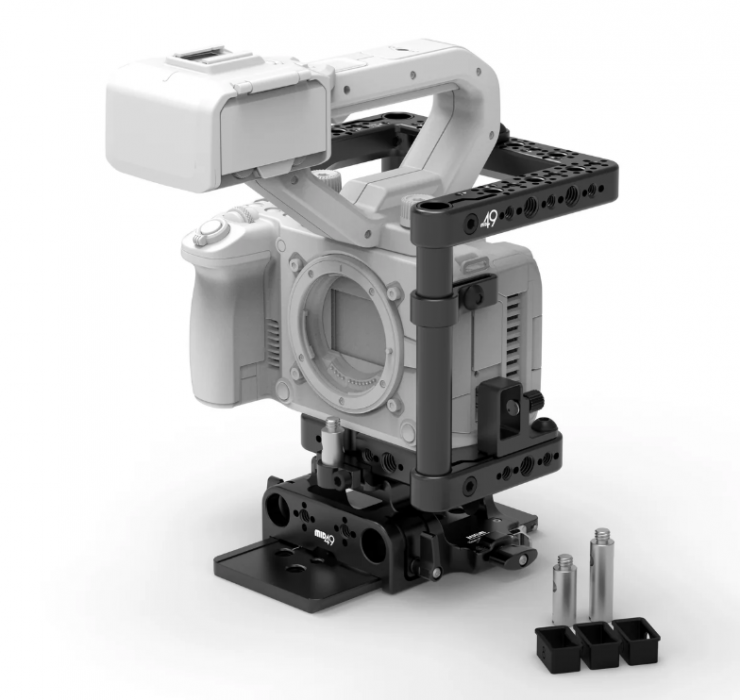

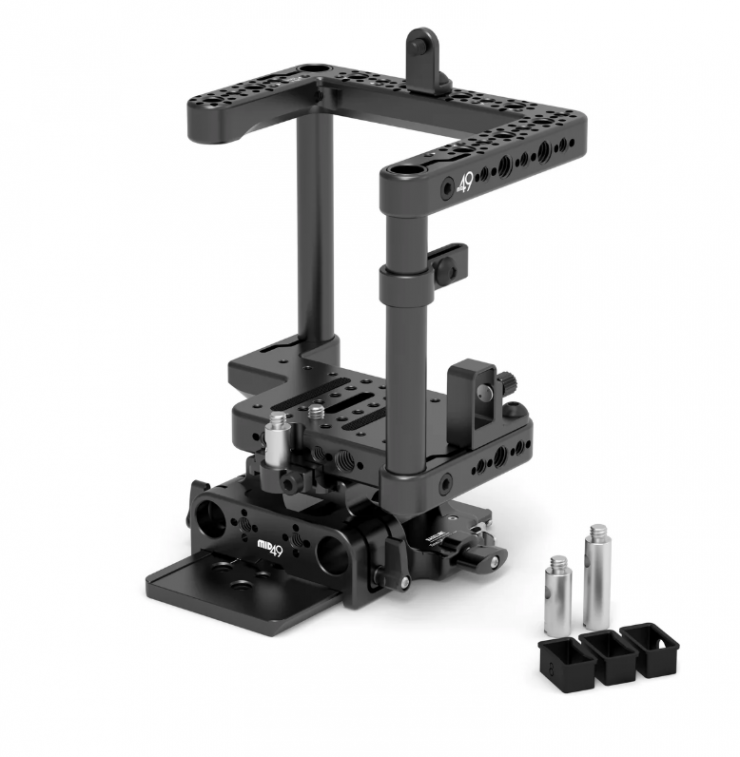

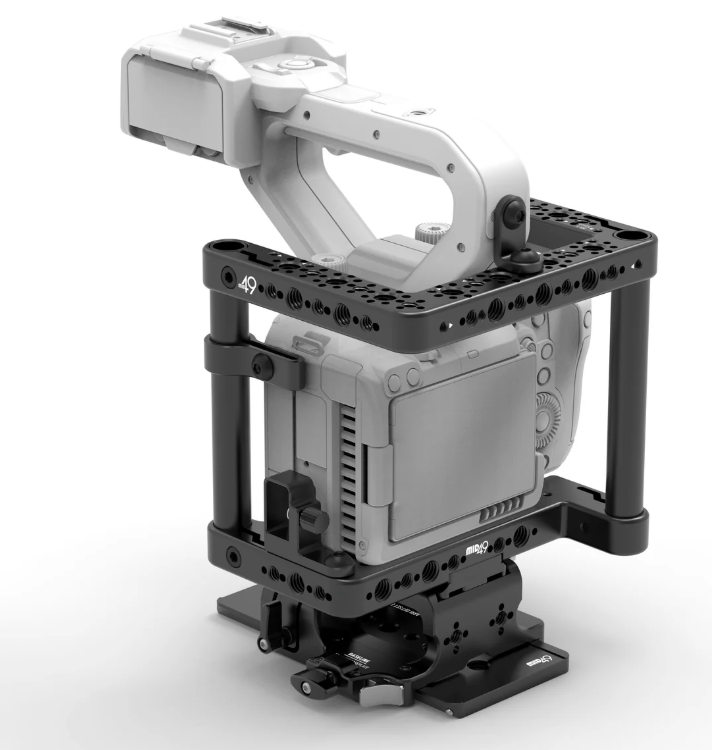

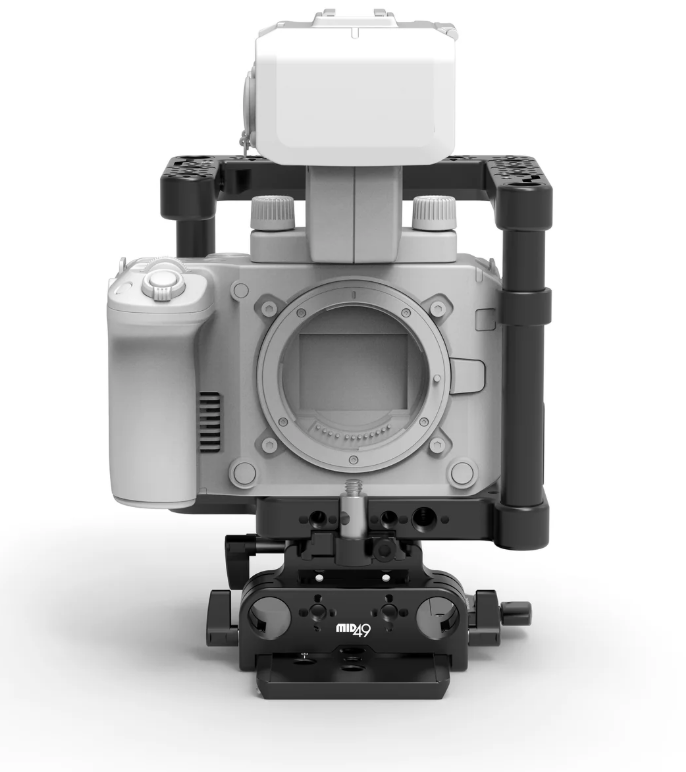

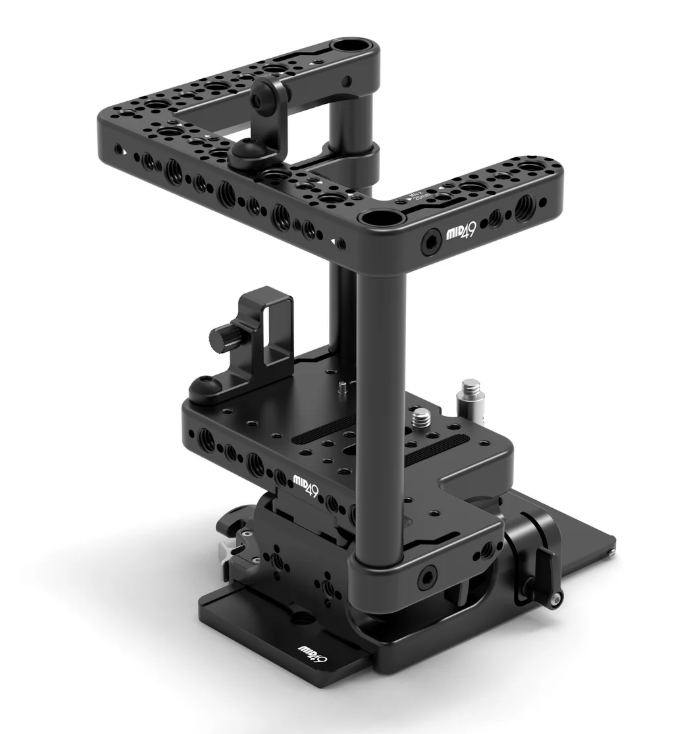

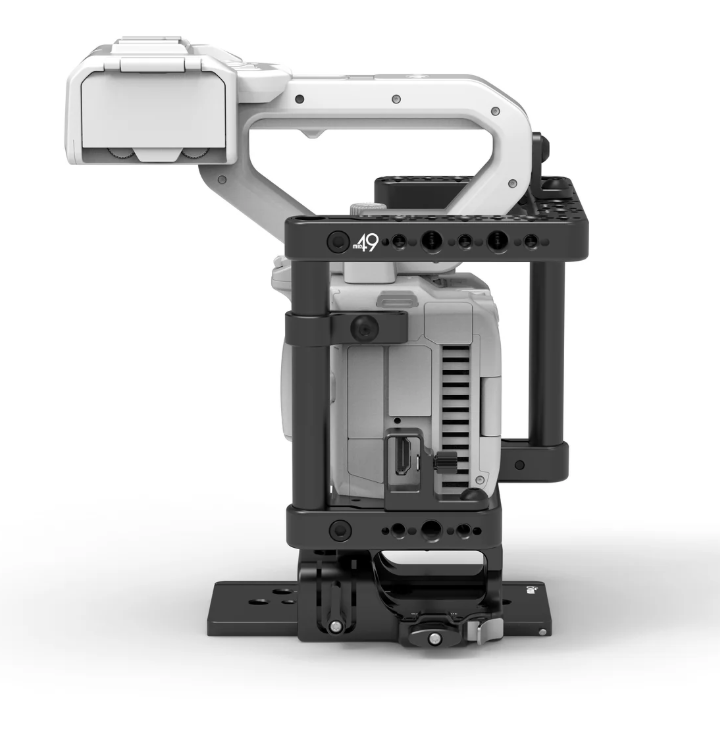

Base Kit for Canon C50 ($550 USD)
The Base Kit for Canon C50 is an accessory kit that includes:
Form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places. HDMI lock with reduction inserts protects the camera’s HDMI port from abuse.
The Left side camera tie-down keeps the C50 from tipping under the force of focus motors. Rear handle tie-down adds stability to the handle-body connection when using heavy lenses.
The Lower ARCA Swiss dovetail attaches to the included baseplate, and the adjustable lens support adapter with 3 lengths of 1/4-20 support screw attaches to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Upper Cage Canon C50)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.

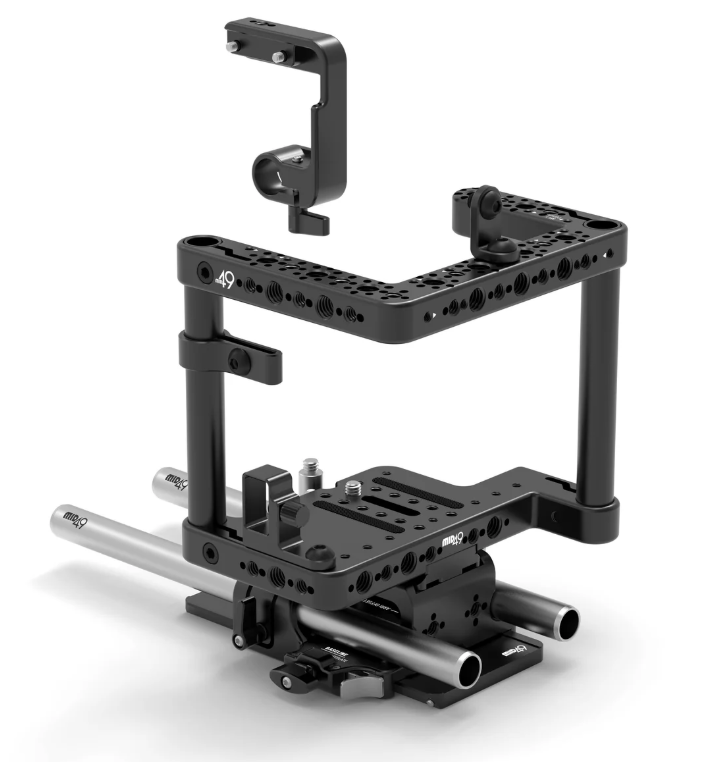

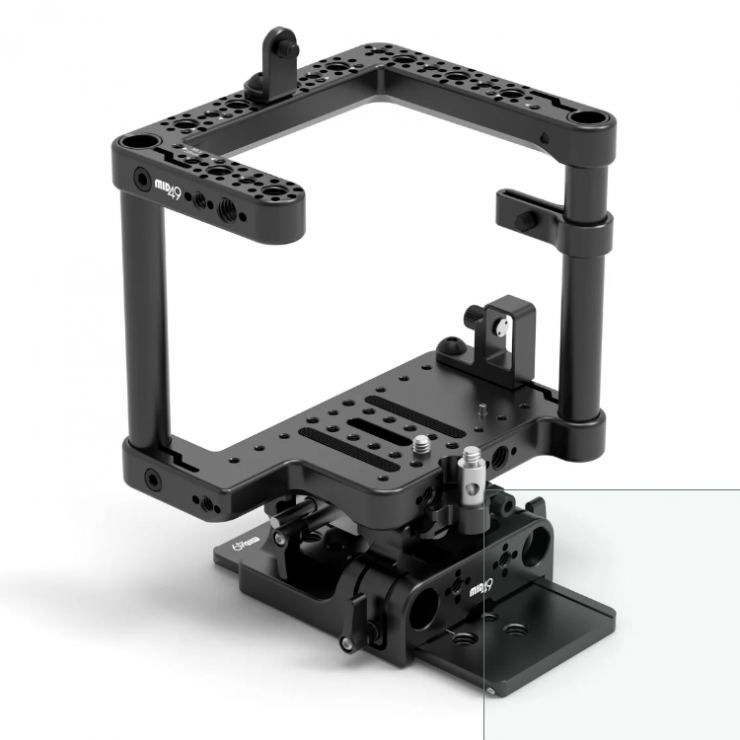

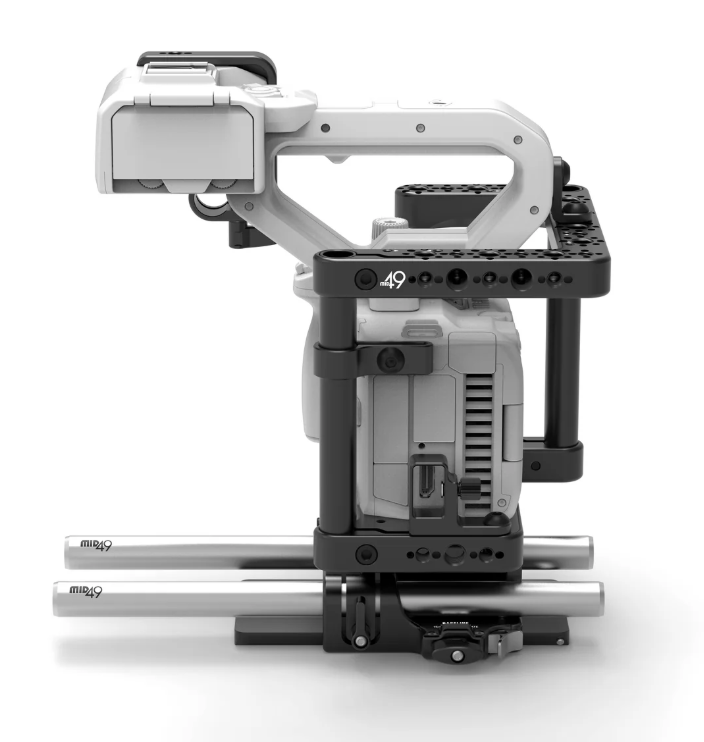

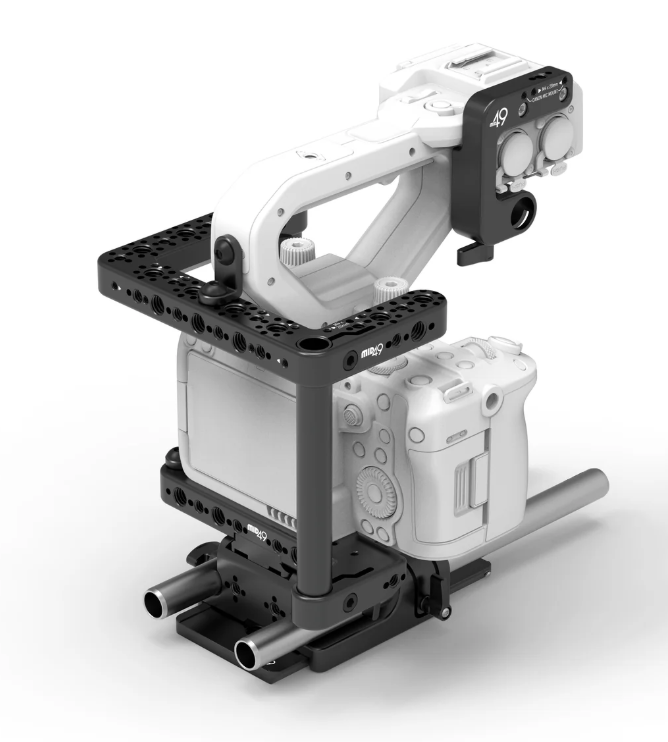

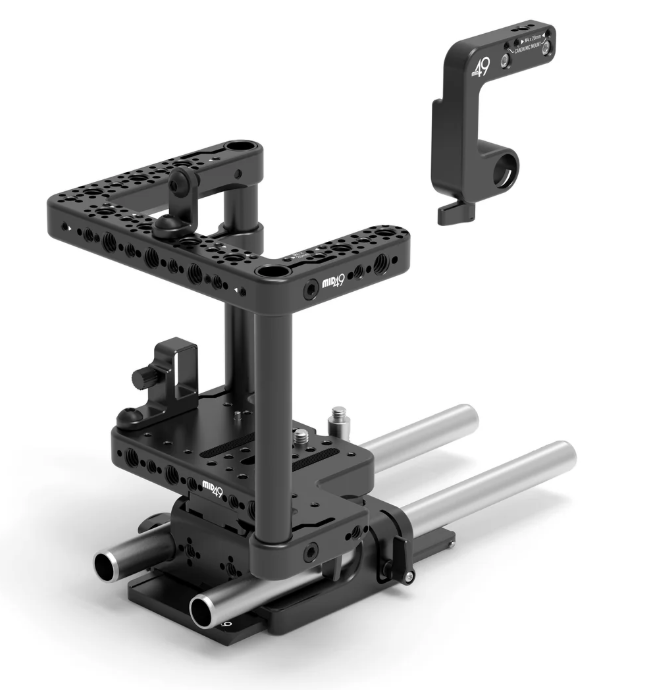

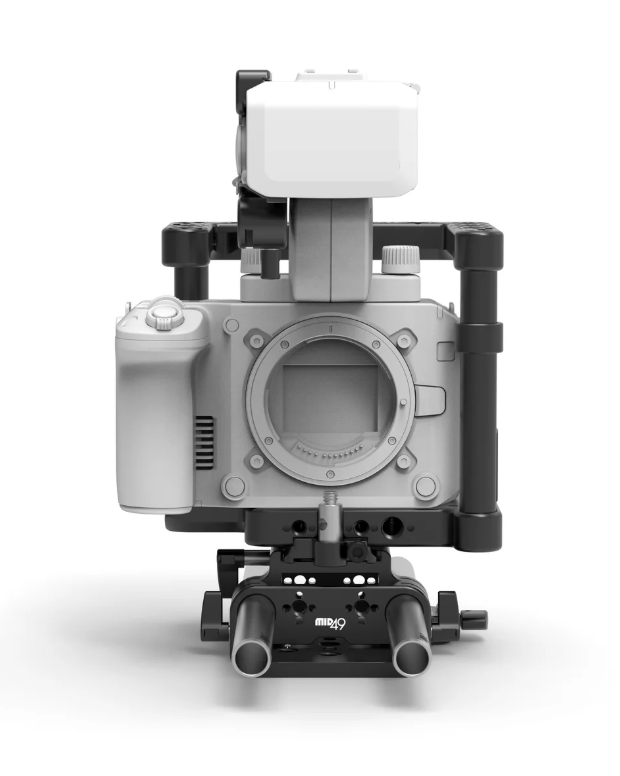

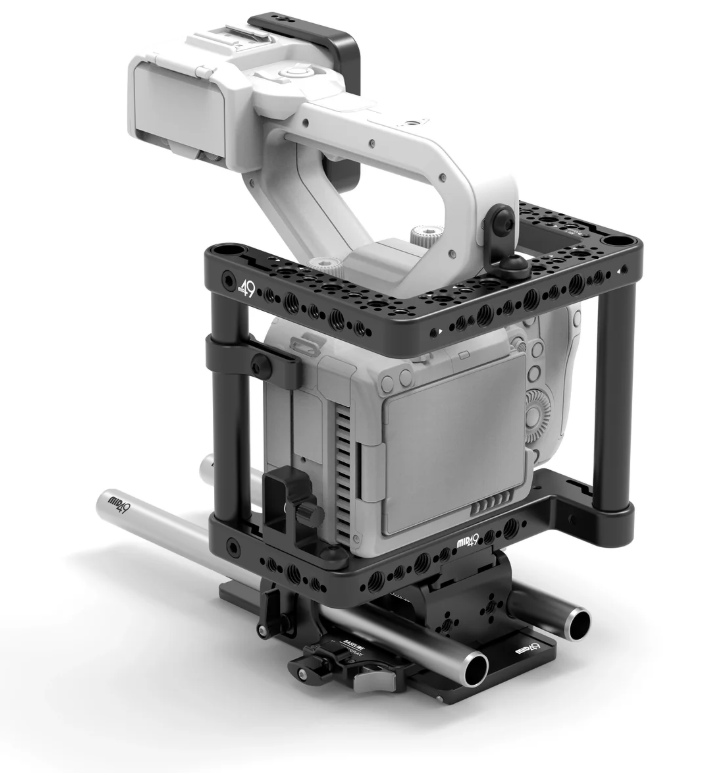

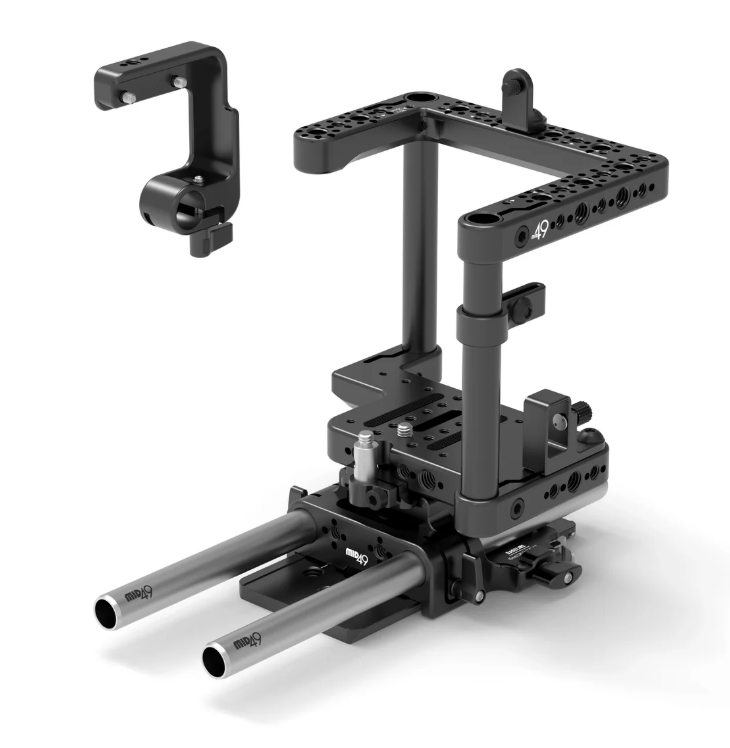

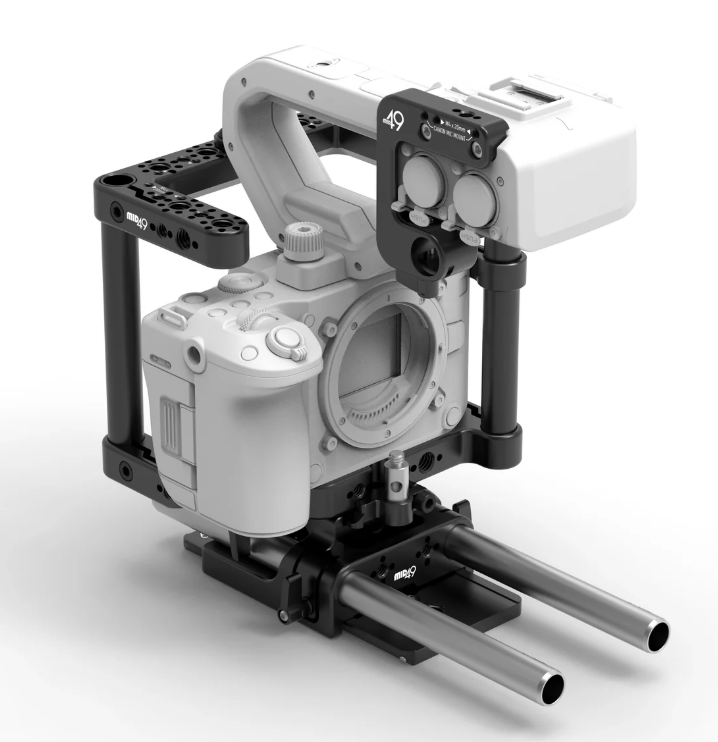

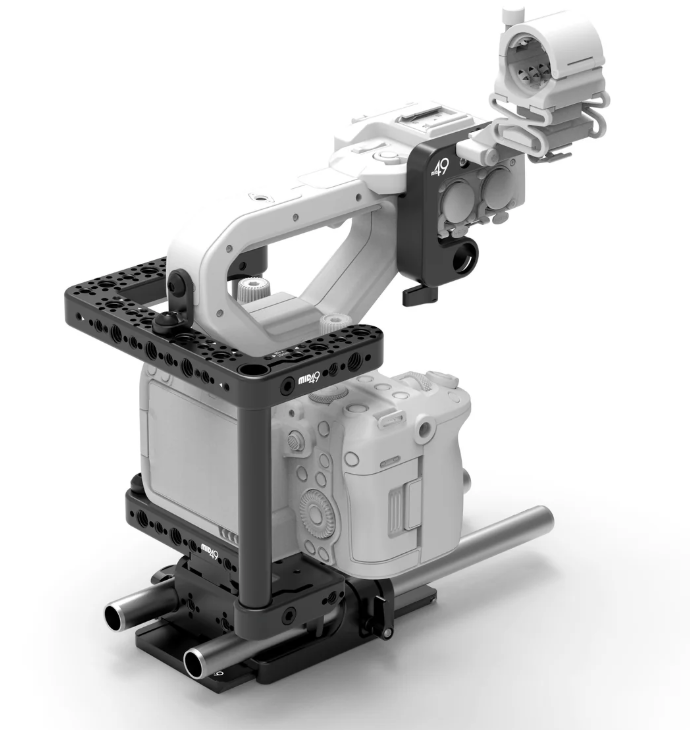

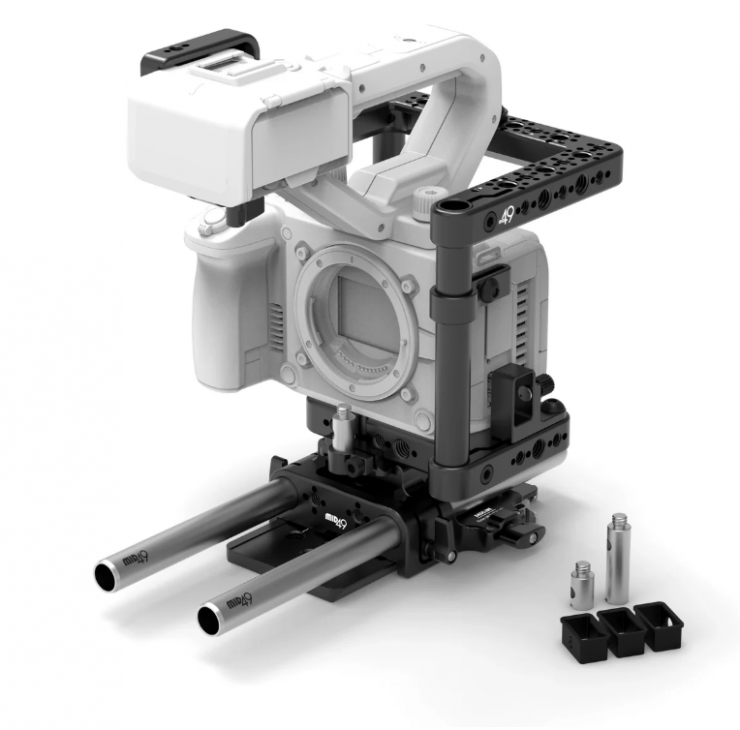

Mid Kit for Canon C50 ($695 USD)
The Mid Kit for Canon C50 is an accessory kit that includes:
Form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places. HDMI lock with reduction inserts protects the camera’s HDMI port from abuse.
The Left side camera tie-down keeps the C50 from tipping under the force of focus motors. Rear handle tie-down adds stability to the handle-body connection when using heavy lenses.
The Lower ARCA Swiss dovetail attaches to the included baseplate, and the adjustable lens support adapter with 3 lengths of 1/4-20 support screw attaches to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Upper Cage Canon C50)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Attaches to the handle’s M4 screws in place of the microphone shockmount. Replica M4 holes available for stacking the mic holder. M4x20mm ARRI MAP holes are available along with an ARRI 1/4-20.
Stainless steel iris rods.

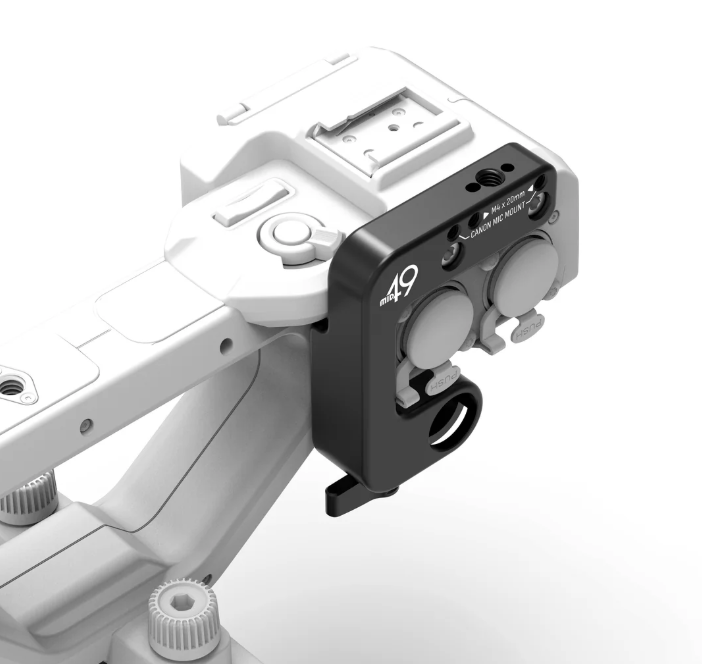

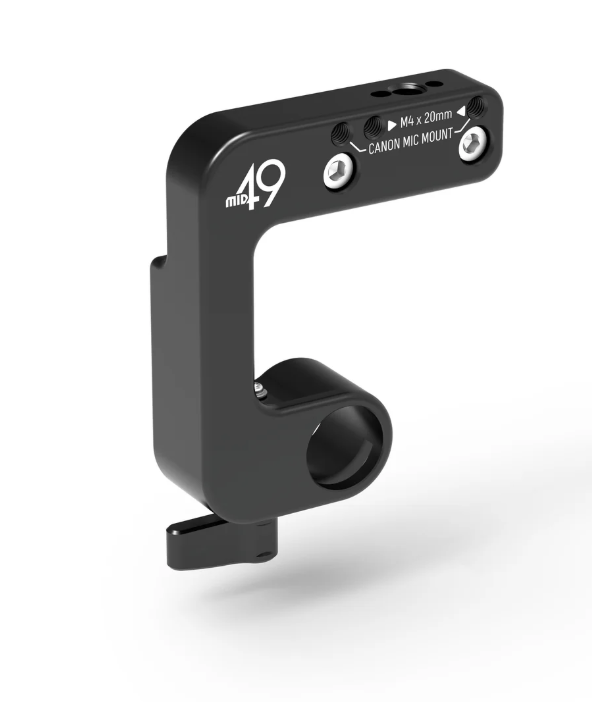

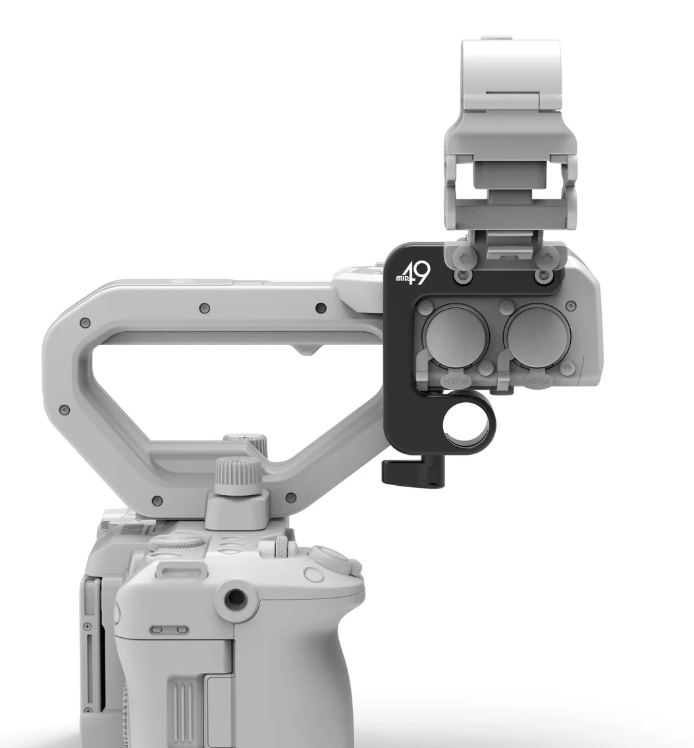

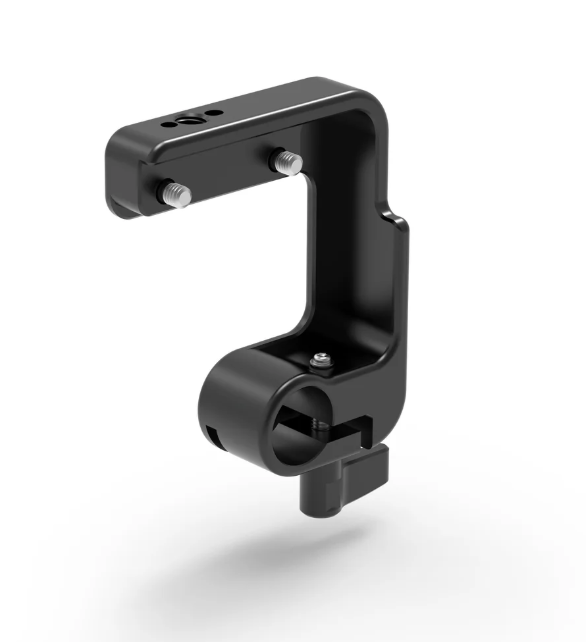

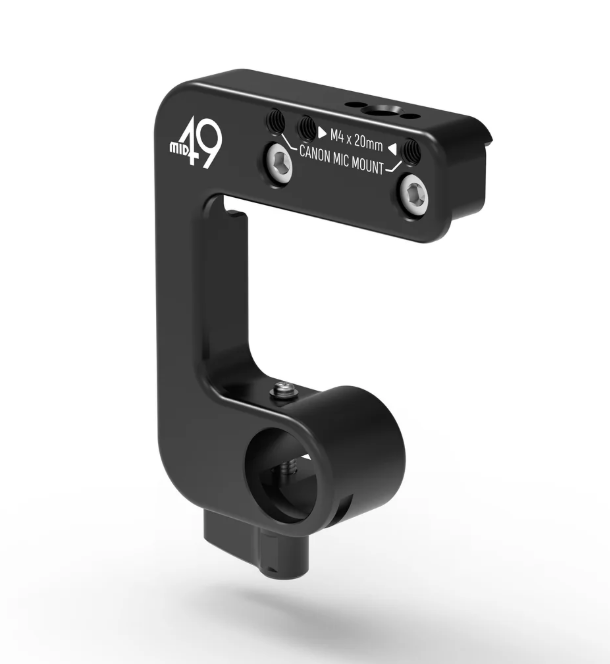

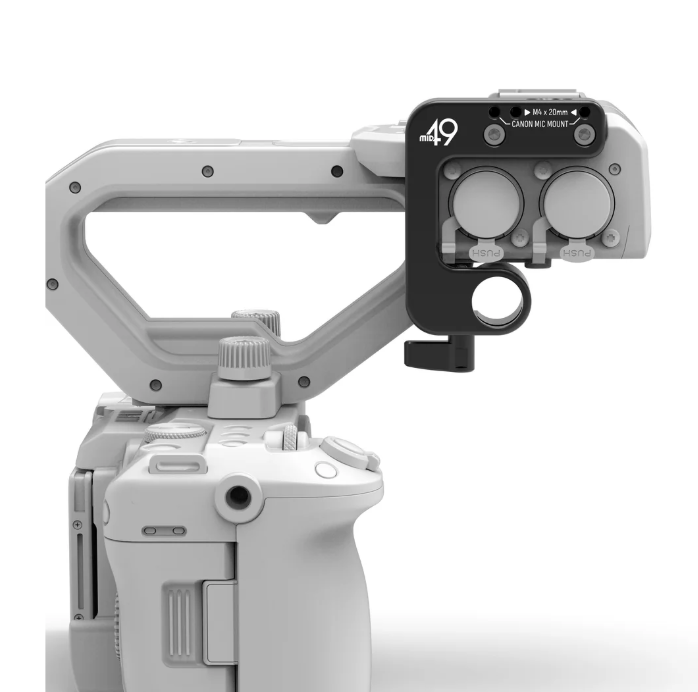

Canon C50 15mm Rod Clamp ($65 USD)

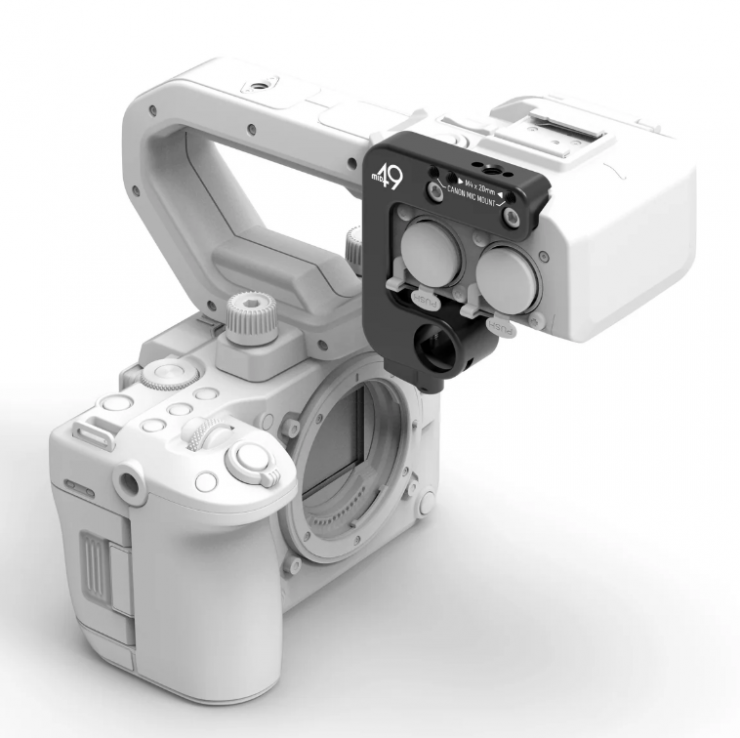

The Canon C50 15mm Rod Clamp attaches to the two M4 holes on the front of the handle where the microphone shockmount would normally be installed.

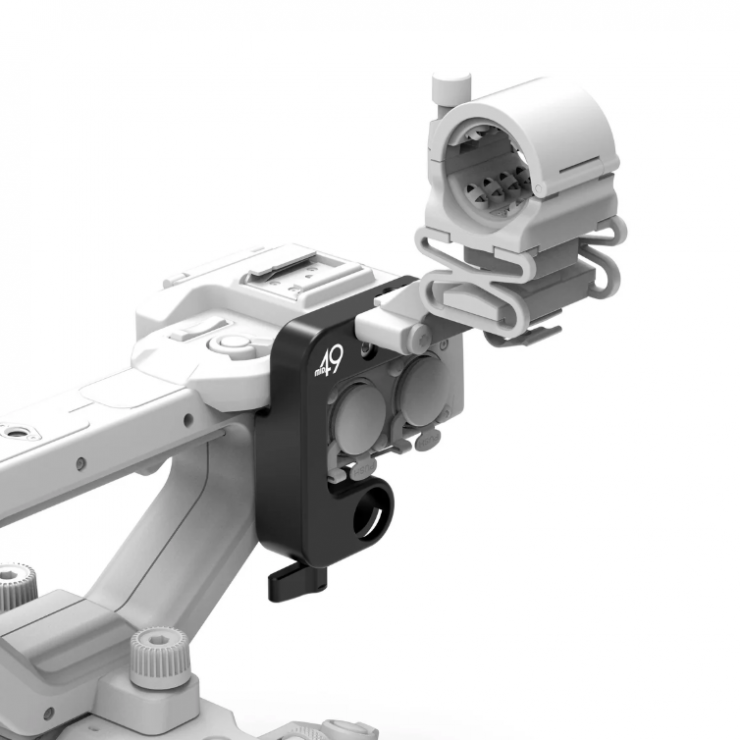

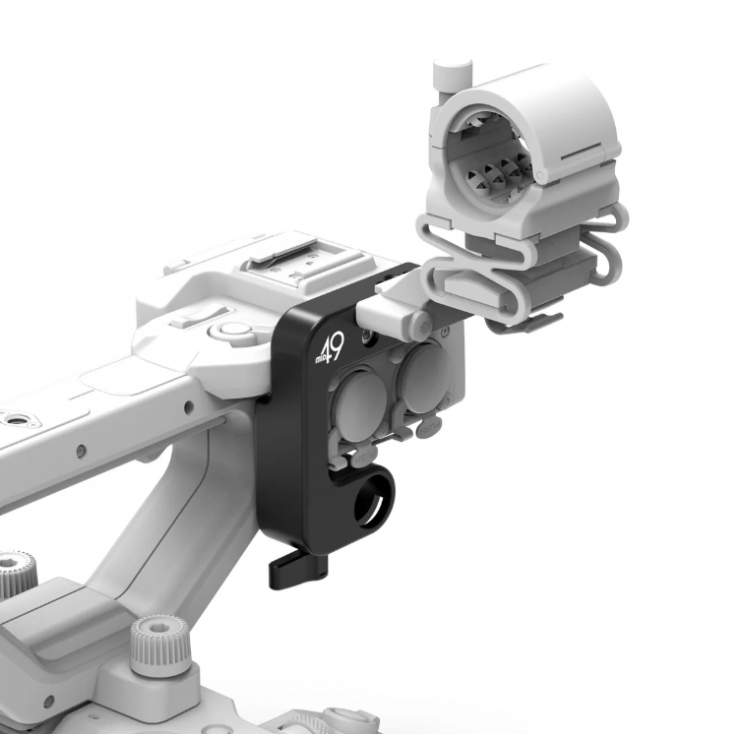

M4 holes are available to stack the Canon shockmount on top of the bracket.
M4x20 ARRI MAP holes and an ARRI 1/4-20 are also available for additional mounting.
Works great to mount the optional TWIST EVF System or 15mm Accessory Rod, sold separately.

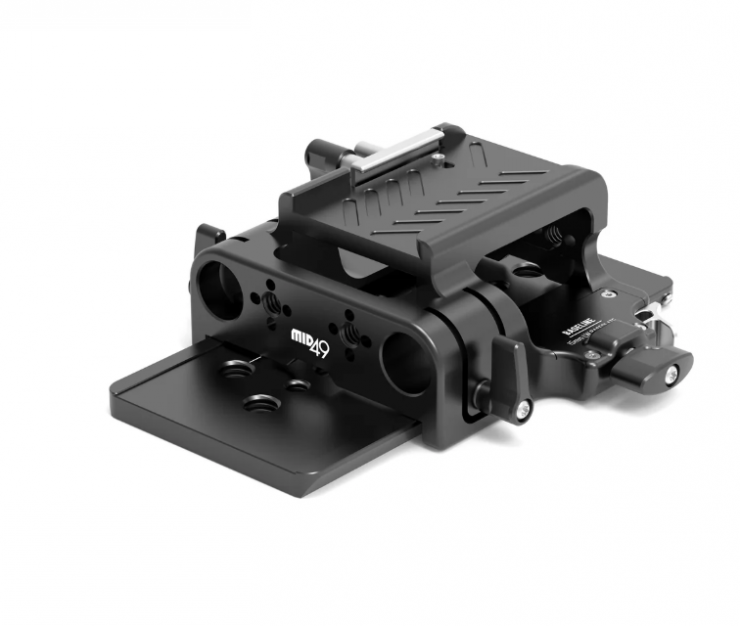

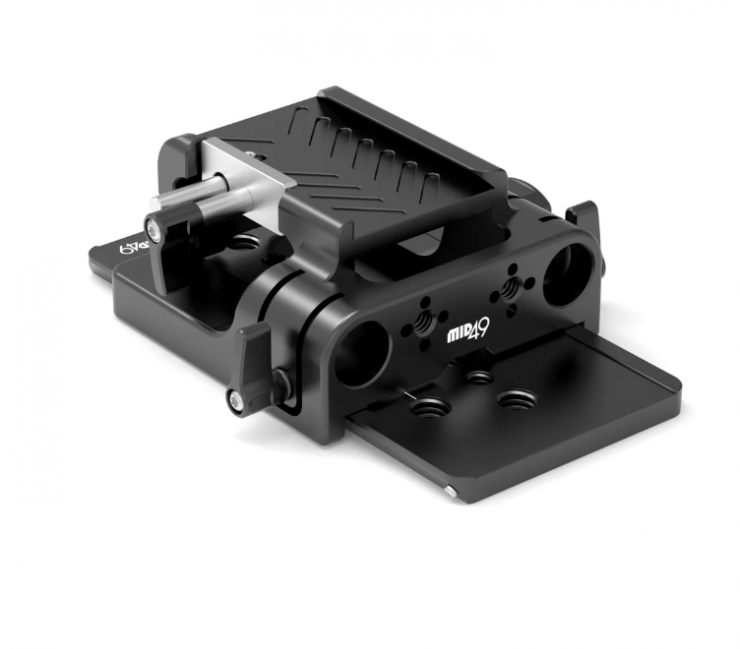

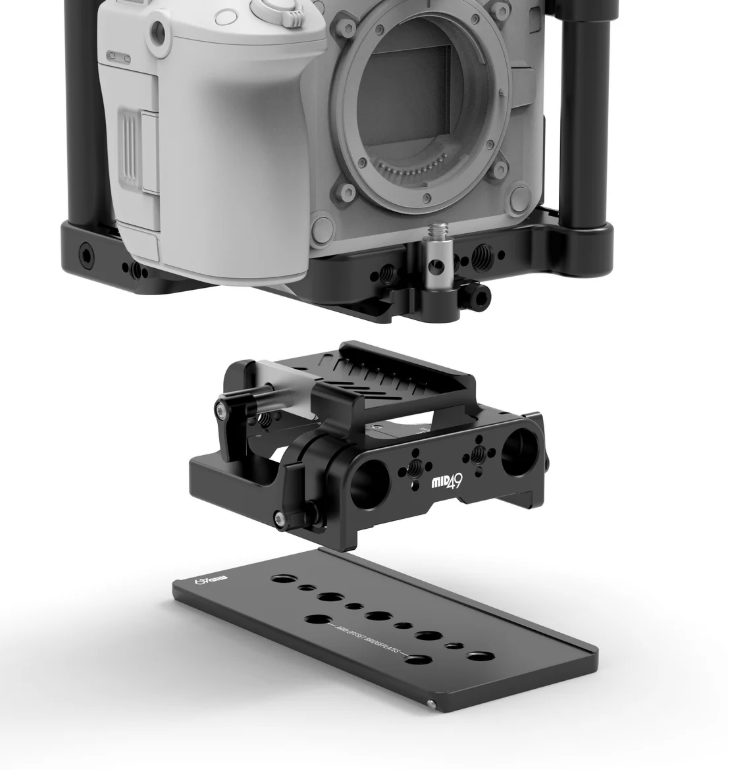

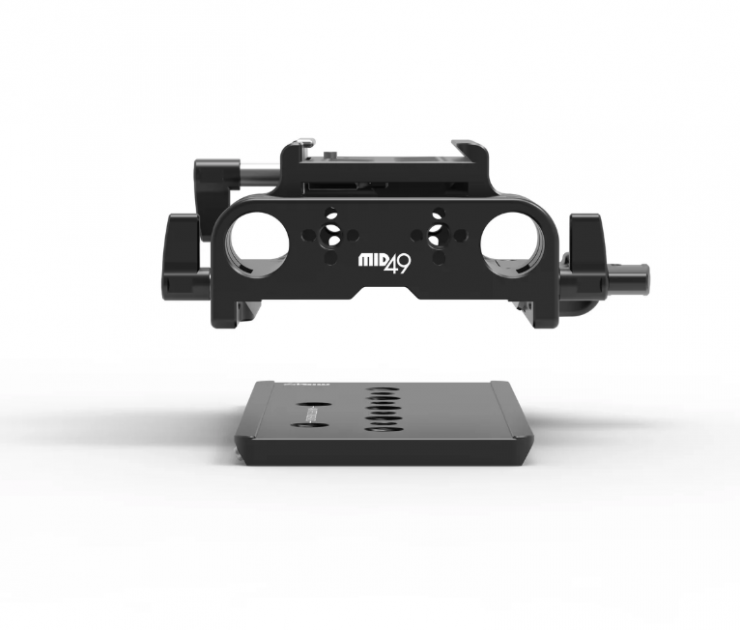

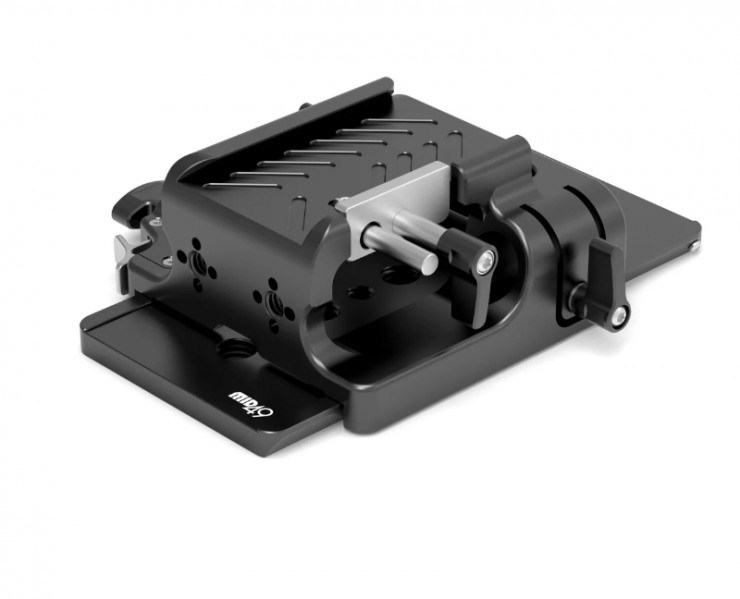

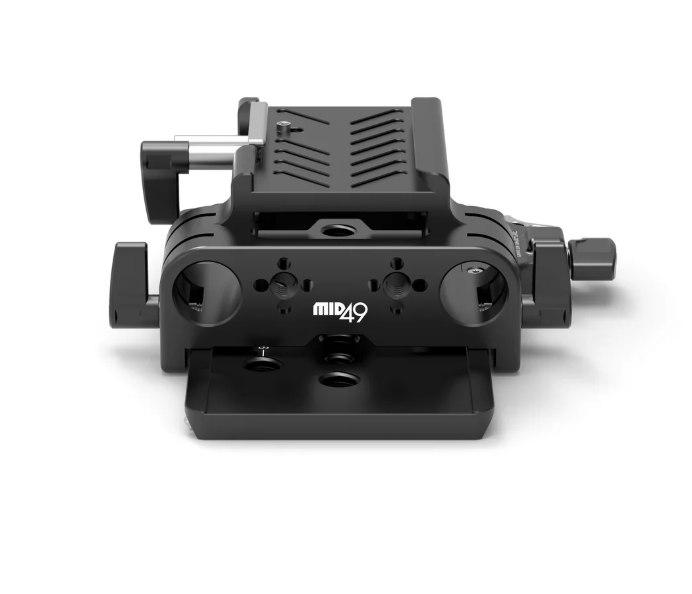

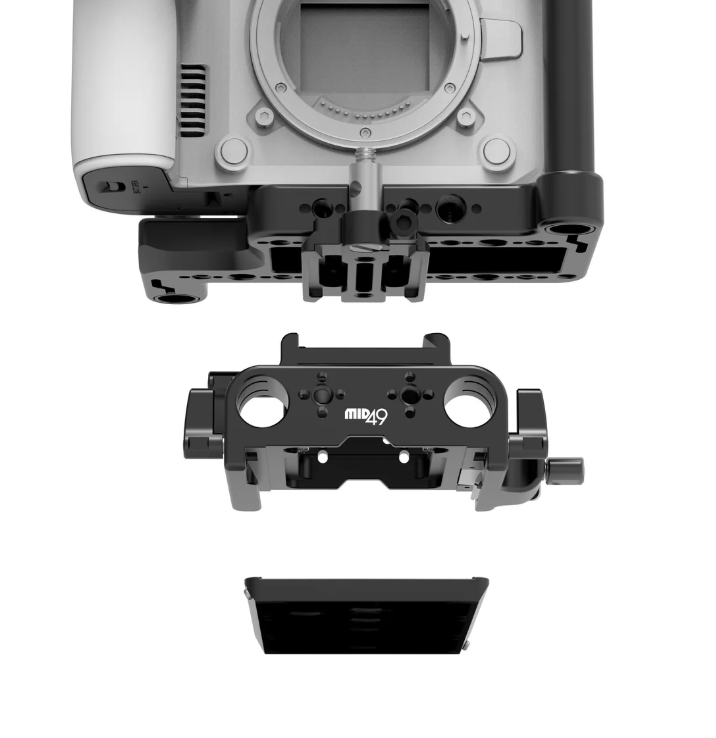

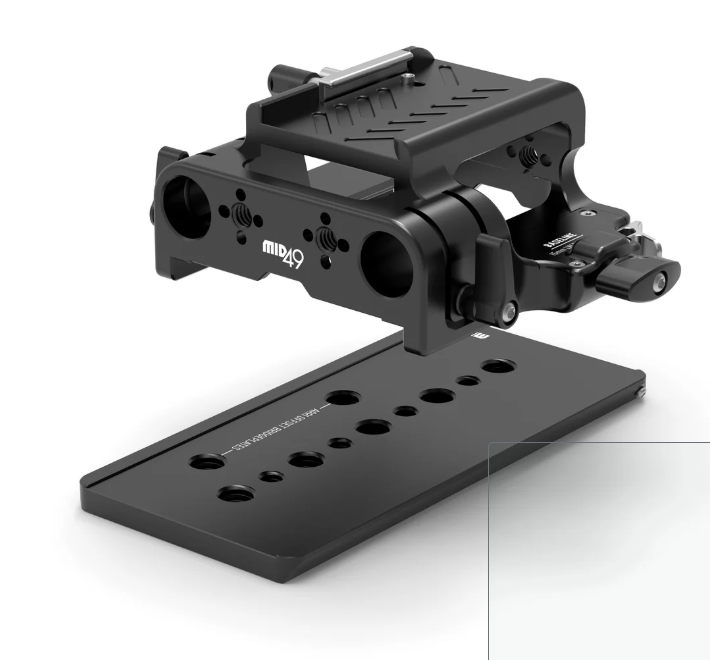

Baseline 15mm LW (Upper Cage Canon C50) $325 USD
The Baseline 15mm LW (Upper Cage Canon C50) holds two 15mm rods at 15mm lightweight spacing when combined with the Upper Cage Canon C50.
ARRI dovetail slot on the bottom attaches using a top-load locking mechanism to included Baseline ARRI Dovetail or other ARRI standard dovetails.
Loosen the thumbscrew and push the silver button on the operator’s side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew.
ARCA dovetail slot on top holds Baseline ARCA Dovetails and can be top-loaded, or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until ARCA clamp has opened fully. Reverse the process to tighten.
