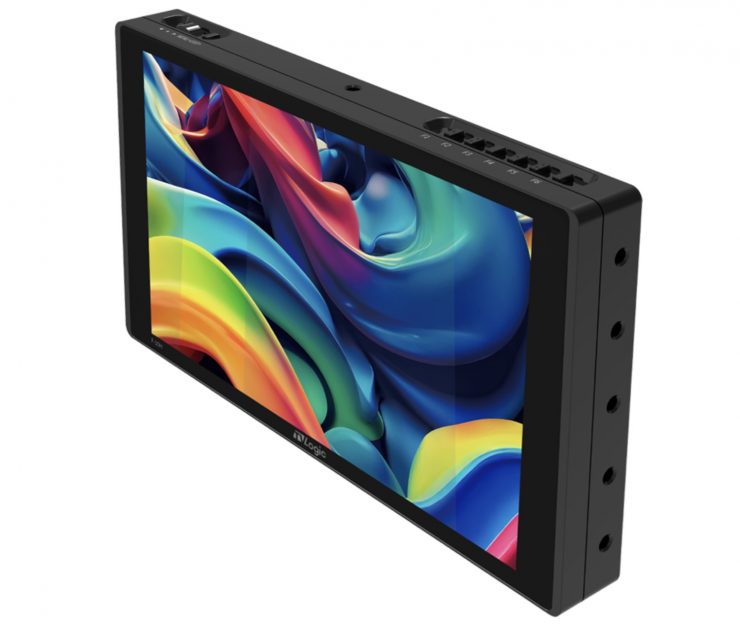

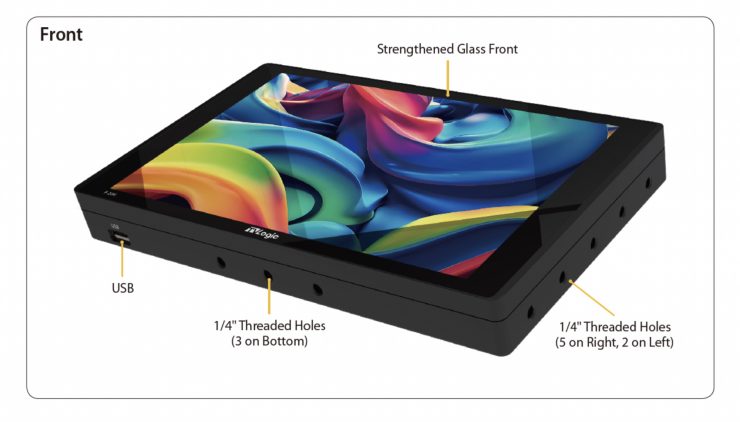

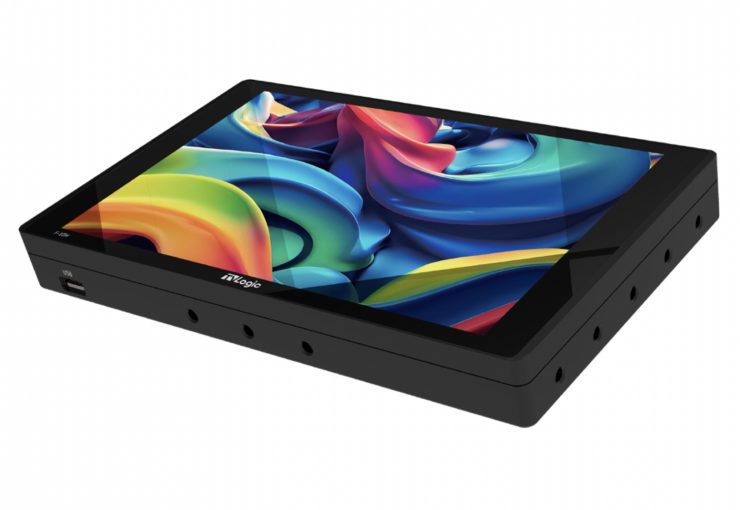

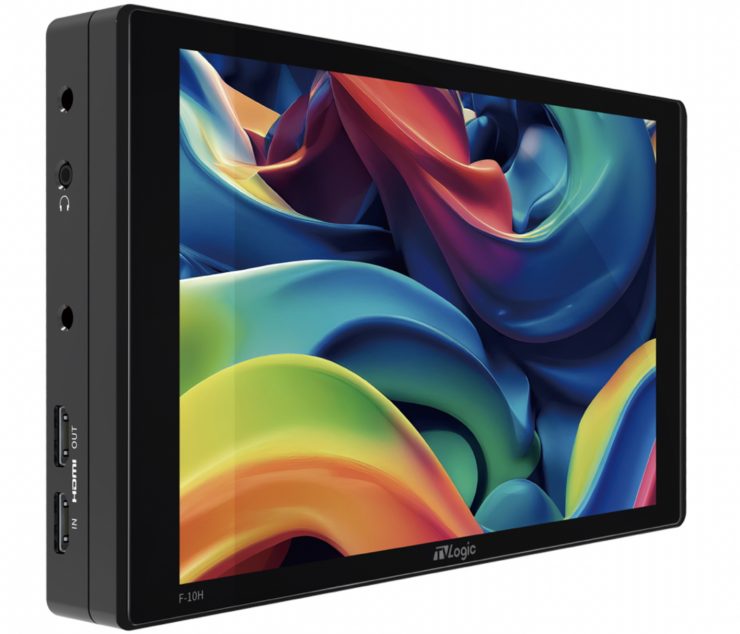

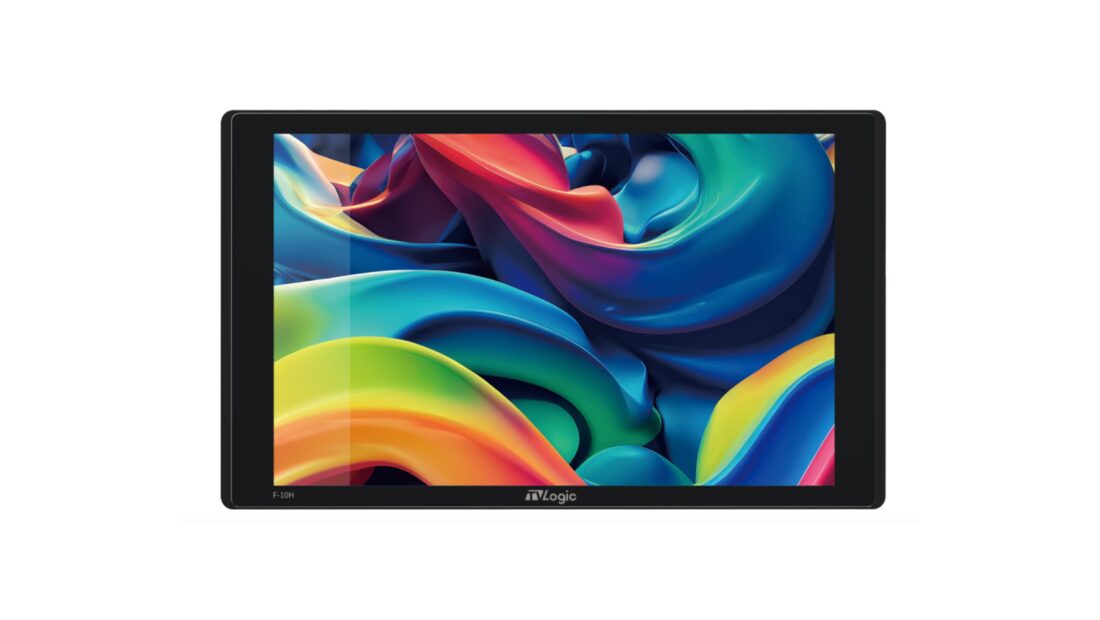

TVLogic has a new F-10H 10.1″ HDR High Brightness Field Monitor. The monitor features a 1920 x 1080 panel with strengthened glass and an ultrabright 1400 cd/m² display that is claimed to deliver exceptional clarity and optimal visibility and protection in challenging field conditions and even in direct sunlight.
Key features
- 10”, Full HD Resolution (1920×1200)
- Max Luminance 1400nits
- DCI-P3 Coverage 95%
- Tempered Glass Treatment
- HDR (PQ / HLG / Slog3)
- Camera LUTs (Log-C, C-Log, S-Log1/2/3, Red Gamma3/4)
- Custom 3D-LUT Import
- Sharpness + Peaking Boost
- ARRI Metadata Display
- Scan / Anamorphic Desqueeze / Zoom / Split Zoom
- 3x 3G SDI (1x 3G SDI Selectable I/O)
- HDMI 2.0 ↔ SDI Cross Conversion
- Luma(Y’) Zone Check (Zebra / Color)
- H/V Flip, Auto Flip
- Horizontal Meter
- Waveform / Vectorscope
- DC 12V ~ 34V
Boasting advanced tools like HDR, ARRI metadata display, waveform, and vectorscope functionality, 95% DCI-P3 coverage, and 3D LUTs support, the F-10H meets the demands of professional videographers and cinematographers, offering uncompromising durability and straightforward portability via its slim, lightweight aluminum body. It comes with a D-tap cable and a camera mount.

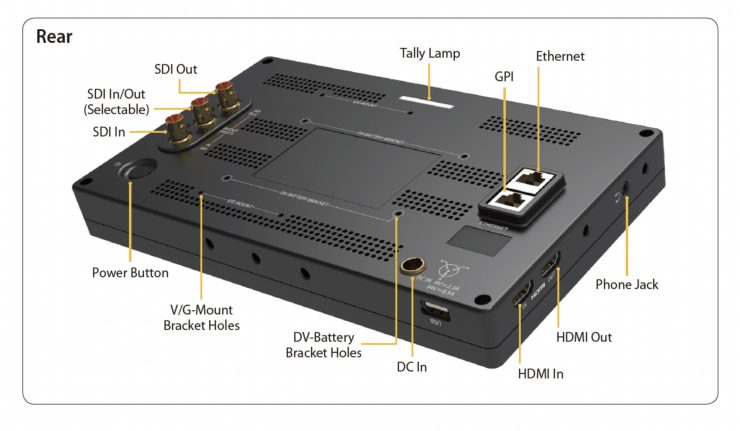

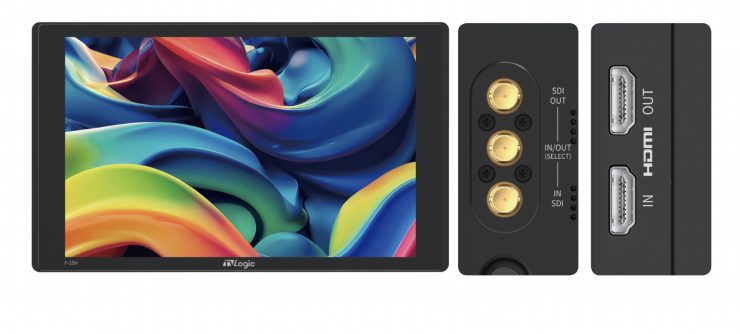

Inputs & Outputs
3 x 3G-SDI Interfaces
- 1 x SDI In
- 1 x SDI In/Out Select
- 1 x SDI Out
2 x HDMI Interfaces
- 1 x HDMI 2.0 Input
- 1 x HDMI 1.3 Output
SDI>HDMI
Cross Conversion

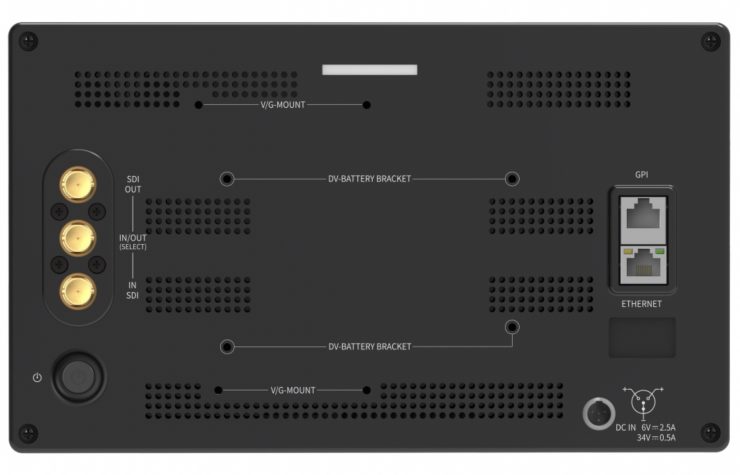

There is also a DC input, a 3.5mm headphone jack, Ethernet, and GPI.
Size & Weight
The monitor weighs 1.2kg / 2.65lbs and it has physical dimensions of 258 x 154 x 29.8(mm) / 10.15 x 6.06 x 1.17(inch).
Price & Availability
The TVLogic F-10H 10.1″ HDR High Brightness Field Monitor is now available for $3,195 USD.

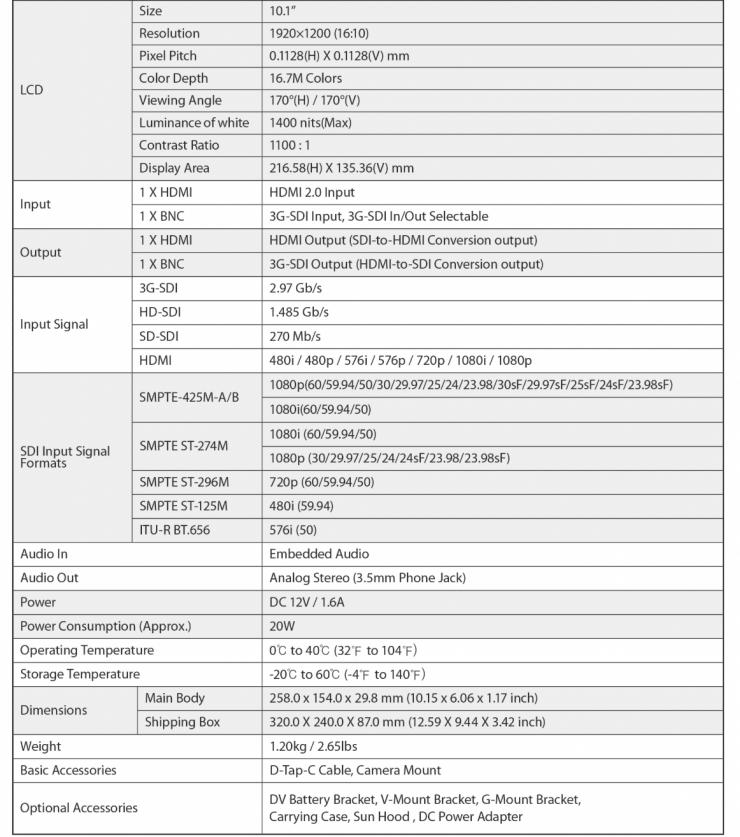

Specifications
