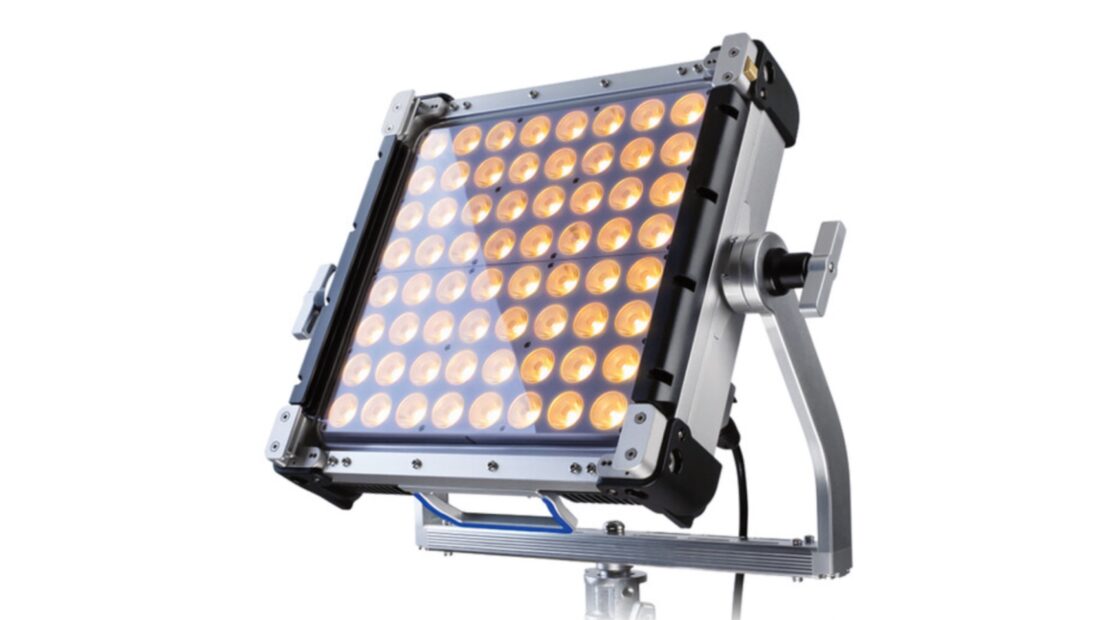

The Creamsource Vortex4 RGB LED Light Panel (Pro Kit) is being touted as an all-in-one lighting system. The Vortex4 features a punchy 20° beam and can produce 53,100 lux at 3.3′.
Key features
- Light with Yoke, Dome & Bag
- Output: 53,100 Lux at 3.3′ (5600K, 20°)
- 2200-15,000K; RGB Color Control
- 15 x 15″; AC/DC Operation
- CRI 95 | TLCI 95
- Onboard, DMX, Bluetooth & Wi-Fi Control
- LumenRadio & Ethernet with sACN
- Triggering & Syncing to Camera Shutter
- High-Speed Modes Shoot up to 5000 fps
- Fan Cooled & IP65-Rated Water-Resistant

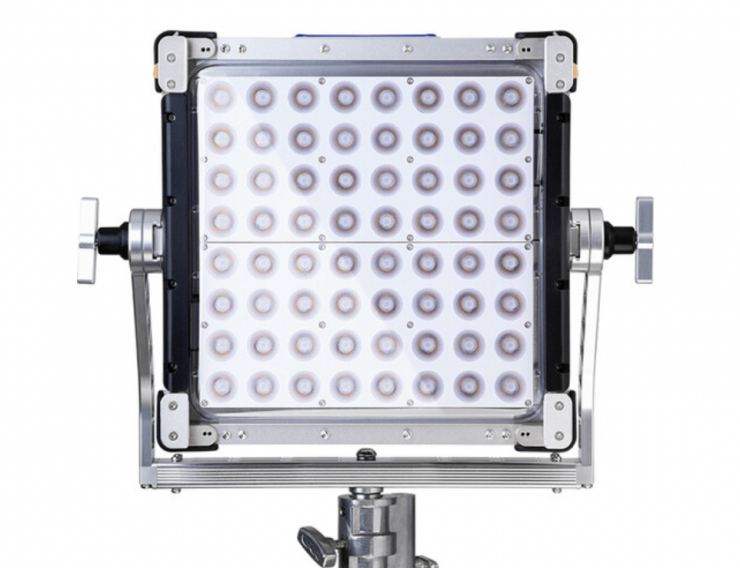

It utilizes an RRGBBW (red, deep red, green, blue, royal blue, white) LED configuration, has full hue/saturation control, 0 to 100% dimming, and a CRI/TLCI of 95. The fixture can be used with the included flat diffuser or dome modifiers, and the light has an extremely wide CCT range of 2200 to 15,000K with four independently controllable zones.
Creamsource also supplies the yoke, a power cable, and a bag for storage and greater portability.
The Vortex4 is a 325W high-power RRGBBW LED all-in-one lighting system in a compact 15 x 15 x 4.8″ configuration, equivalent to an HMI 575W Fresnel.

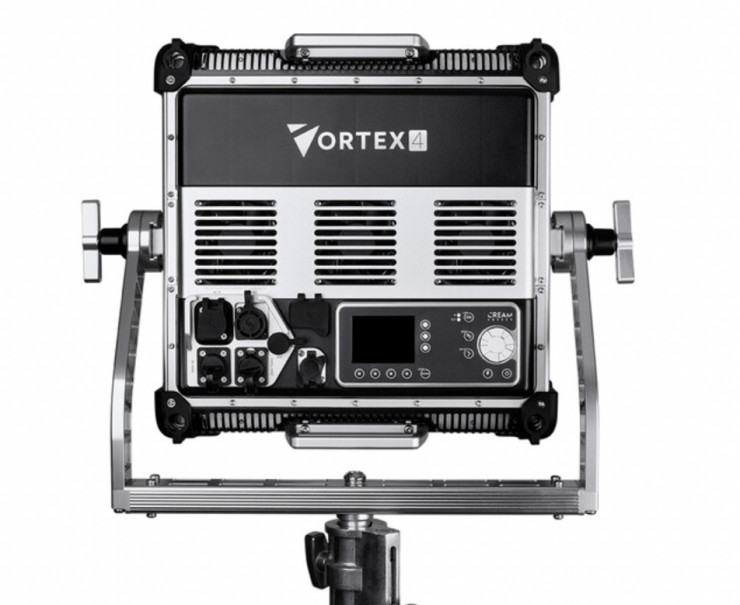

The Vortex Connect features include built-in LumenRadio CRMX TimoTwo, Ethernet with sACN, Bluetooth, Wi-Fi, 5-pin DMX, USB-A, and a Creamsource accessory port, enabling a wide range of control possibilities and future protocol support. Additionally, effects, color gels, and the latest FrameSync technology are built into the latest CreamOS architecture. The CreamOS V3.0 has a multilingual web interface that allows you to configure and manage multiple Vortex fixtures from any browser.
Rigging points have been built into the fixture to accommodate rapid rigging of a large array of units, and the Vortex4 is IP65 water-resistant and sealed for security and efficiency.
The 5000 fps functionality enables flicker-free operation in high-speed modes. Another particularity is a sync input for triggering and syncing to the camera shutter.

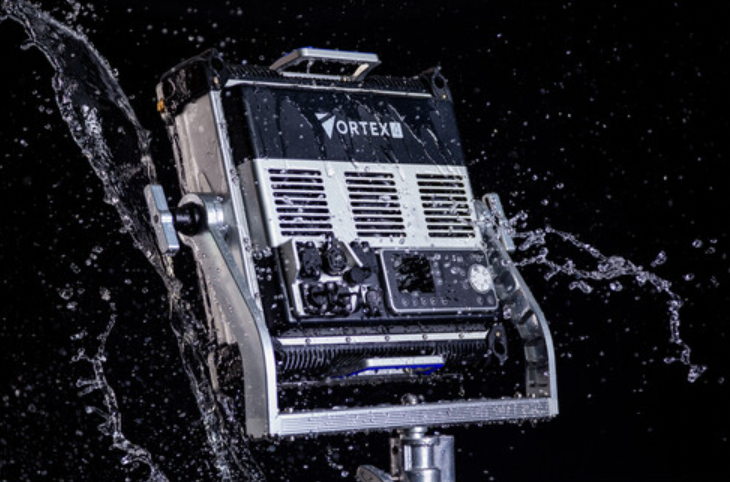

The Vortex4 is built and designed to withstand all weather conditions and is rated IP65 for rain, snow, or dust protection. The Vortex4 is an ultraquiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allow core electronics to be sealed and isolated.

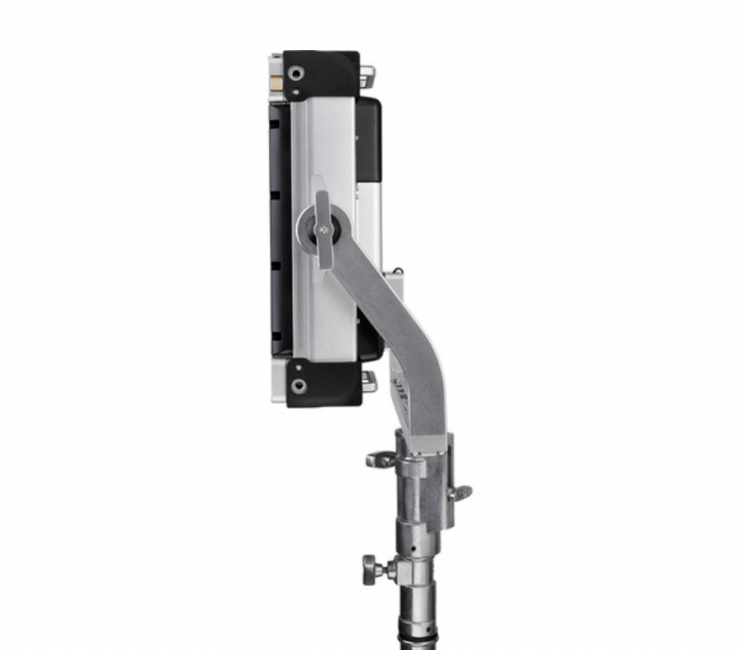

It is made of durable aluminum and technopolymer, and the Vortex4 features a removable quick release yoke, eight 3/8″-16 rigging points, and an integrated power supply. It also includes a dedicated 48 VDC input for battery-powered operation.
Other Details
- Plus/minus green
- Hue, saturation, XY, gels, and effects
- 0-100% dimming with ultrasmooth low-end mode
- Color LCD screen
- Low-noise variable speed fans
- 50,000-hour estimated LED lifespan
- Waterproof connectors
- Compatible with third-party equipment and apps
Price & Availability
The Creamsource Vortex4 RGB LED Light Panel (Pro Kit) is now available to pre-order for $3,099 USD.
