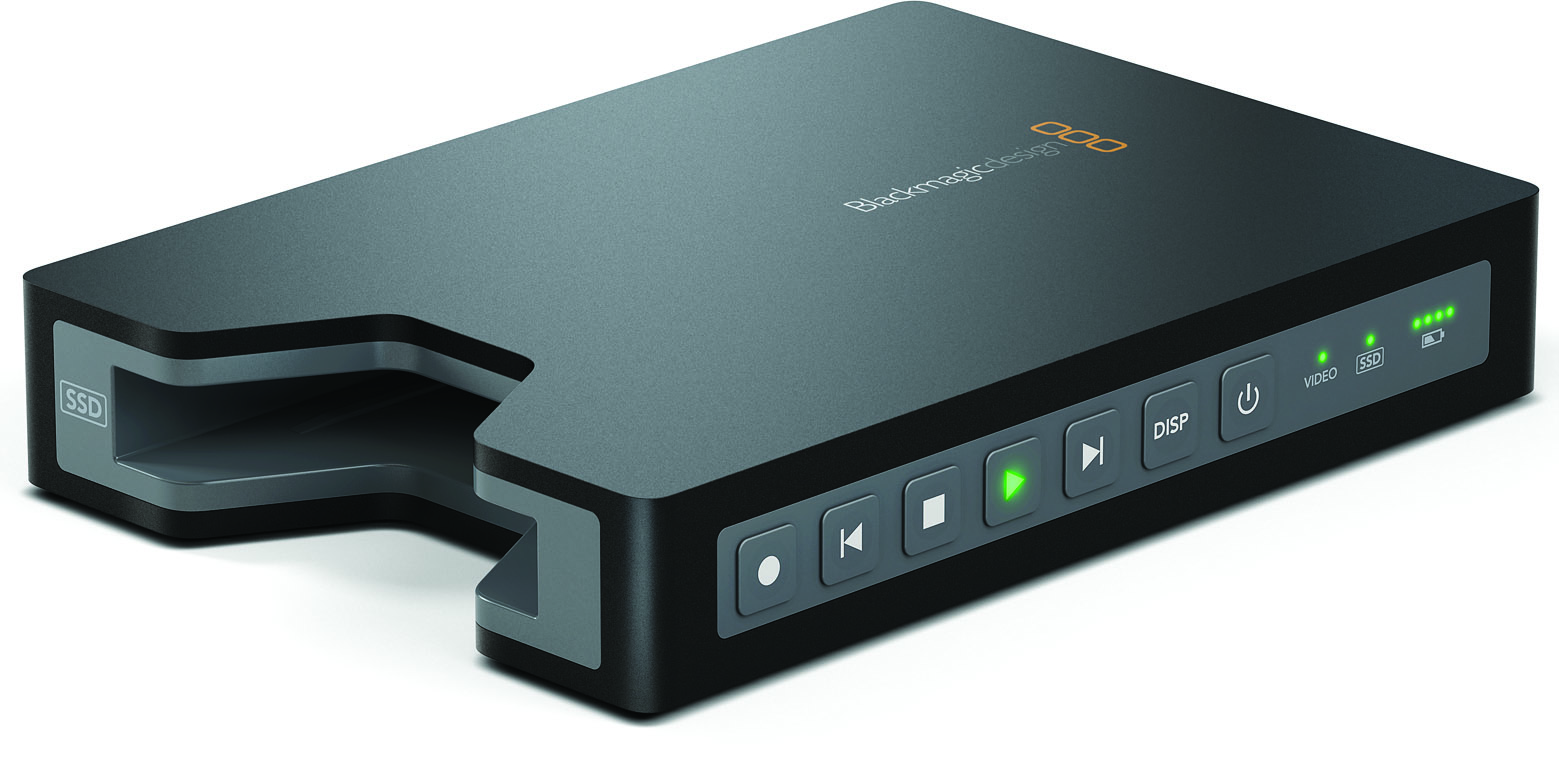

Blackmagic Design Adds ProRes 422 (HQ) Recording and Playback to their HyperDeck Shuttle 2

By site editor Dan Chung:

Blackmagic Design have announced a free update to allow their HyperDesk Shuttle 2 SSD recorder that allows it to record in the popular ProRes 422 HQ format. This means it benefits from reduced file sizes and much greater direct-to-edit compatibility with Final Cut Pro compared to the original firmware. The Shuttle 2 can now record 1080P up to 10-bit 4:2:2 if your video camera is capable of outputting it via HD/SDI or HDMI.

Blackmagic design have been offering the inexpensive Shuttle 2 SSD for some time now and at $345 US (without SSD disk) it is probably the cheapest high quality external recorder around. However it had suffered from only being able to record in 10-bit uncompressed Quicktime or Avid’s DNxHD MXF formats. This previosly limited it’s appeal to many users who didn’t want huge files or the Avid format.

Now that it can record ProRes 422 I foresee it becoming a popular option for budget conscious users looking to increase the image quality from their cameras. It is worth noting that the update does not appear to offer regular 422 or the more smaller ProRes LT formats – only 422 HQ.

Here is the press release from Blackmagic Design:

InterBEE 2012, Chiba, Japan – November 14, 2012 - Blackmagic Design today announced the immediate availability of HyperDeck software update 3.6, a new update to its revolutionary solid state disk (SSD) recorder which adds support for Apple ProRes 422 (HQ) into Hyperdeck Shuttle 2, plus new closed caption support for all HyperDeck models. At only US$345, the Hyperdeck Shuttle 2 with the new ProRes compression feature significantly reduces the size of uncompressed HD video files while preserving full frame 10-bit 4:2:2 quality, allowing customers to record up to six times longer.

Hyperdeck Shuttle 2 can be seen at the Blackmagic Design InterBEE 2012 booth, Hall 7 Booth 7206.

“Adding ProRes 422 (HQ) recording and playback to HyperDeck Shuttle 2 shows our continuing commitment to open systems and gives users the freedom to work in either compressed or uncompressed formats,” said Grant Petty, CEO, Blackmagic Design. “Recording ProRes 422 (HQ) straight to disk now costs less per minute than recording to professional tape, plus it’s the most efficient workflow possible. A 64GB SSD is less than $70 and will record 50 minutes of the highest quality ProRes video. That’s broadcast quality recording for less than $2 a minute.”

ProRes 422 (HQ) offers the highest quality for 4:2:2 with minimal generation loss as well as fast export and is one of the most popular video formats for high end post production and broadcast. HyperDeck Shuttle turns low cost cameras into high end broadcast cameras because it allows video file recording to bypass the camera’s compression by recording from SDI and HDMI directly to either 10-bit uncompressed QuickTime, Avid DNxHD MXF and now Apple ProRes 422 (HQ) formats. SSDs are cheap and fast, and can be plugged into an eSATA dock for instant access to the media files, so are the most flexible recording medium available.

This new update also includes full closed caption support for all HyperDeck models. Closed caption support works in 1080HD video formats and allows closed caption data to be read from the SDI input when recording and saved into .mcc type files, which are compatible with popular closed caption authoring software such as Maccaption. Then when playing back from HyperDeck, this .mcc file is read and closed caption data is embedded into the SDI output. This means customers can simply record and playback with full closed caption as well as using closed caption authoring software to generate the .mcc files for creating closed captioning for programs. With full closed caption support, HyperDeck Shuttle and HyperDeck Studio are the ideal solution for authoring closed captioning, as well as ensuring all closed caption is recorded and played back.

With the addition of the new ProRes recording and playback, as well as full closed caption support, the HyperDeck Shuttle 2 provides customers with a small, affordable and battery powered solution that is the perfect field recorder. For direct camera mounting, HyperDeck Shuttle Mounting plate can be added to provide multiple pre drilled 1/4” and 3/8” mounting holes.

HyperDeck Shuttle 2 Key Features
Record and play back to Apple ProRes 422 (HQ), Avid DNxHD MOV, Avid DNxHD MXF or 10-bit uncompressed QuickTime formats.
Uses high speed, off the shelf Solid State Disks (SSDs) available from computer resellers at low cost.
SSD is removable for editing and changing to blank disks.
3 Gb/s SDI input using mini coax SDI connector and HDMI input. Auto selects.
3 Gb/s SDI output using mini coax SDI connector and HDMI output.
Power supply connection also recharges battery.
USB connection for software updates and settings.
Machined out of solid block of aluminum for maximum strength and attractive design.
File compatibility with Media Composer, Final Cut Pro, Premiere Pro, DaVinci Resolve and more.

Availability and Price
HyperDeck Shuttle 2 is shipping now and available from Blackmagic resellers worldwide. HyperDeck software 3.6 with ProRes support is now available free of charge for download from www.blackmagicdesign.com/support for any customer who has a HyperDeck Shuttle 2.

640x100-5

Posted on November 14th, 2012 by admin | Category: External recorders |

3 responses to "Blackmagic Design Adds ProRes 422 (HQ) Recording and Playback to their HyperDeck Shuttle 2"

  1. benjolino Says:
    November 15th, 2012 at 4:33 am

    does anybody know how long the batterie lasts in the hds?
    i heard it´s not removable. then this think would be useless?

  2. littlebitstrouds Says:
    November 15th, 2012 at 11:04 am

    There’s a battery solution for everything, or plug it in. Not everyone needs everything to be battery operated. Heck at this price, you can get 2-3 Chances are, by the time you use the battery, you’ll need a new hard drive anyway.

    Anyone else think that a hacked gh3 with this strapped to the top, could be very nasty?

  3. benjolino Says:
    November 15th, 2012 at 11:46 am

    i just thought about it for the mark3. there´s time till april:) but i think the ninja2 from atomos is the same price if you need batterie etc. for the shuttle. the ninja comes with two batteries, a monitor and a card reader.
